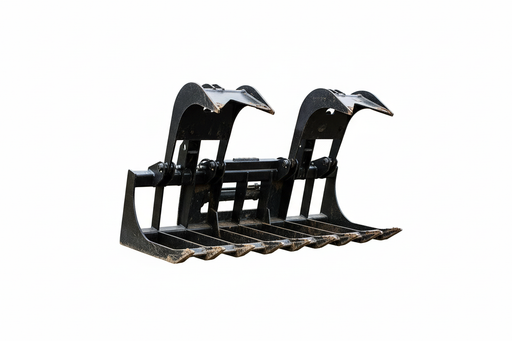

What Are Root Grapples and How Do They Work?

What Is a Root Grapple Used For?

Root grapples grab, lift, and relocate roots, stumps, brush, rocks, and debris from cleared land. A single operator completes in 2 to 4 hours what manual labor crews take 2 to 3 days to finish.

• Stump extraction and root pile consolidation after tree removal
• Brush and branch collection during lot clearing and fence line cleanup
• Rock sorting and removal from agricultural fields and construction sites
• Demolition debris handling — concrete chunks, rebar bundles, and mixed rubble
• Pasture reclamation and fire break preparation across rural properties

What Is a Root Grab?

"Root grab" is an alternate term for root grapple, used interchangeably in certain regions and product catalogs. Root grab, root grapple, and root rake grapple all describe hydraulic clamping attachments with open-tine lower frames.

Some manufacturers label excavator thumb-style clamps as root grabs, but the standard definition refers to the same loader-mounted, dual-jaw design covered on this page.

How Does a Root Grapple's Hydraulic Jaw Mechanism Operate?

The operator activates auxiliary hydraulics to extend or retract 1 or 2 hydraulic cylinders, which pivot the upper grapple jaw open or closed against the fixed lower tine frame. Cylinder bore sizes range from 2.5 to 3.5 inches, producing clamping forces sufficient to grip stumps exceeding 500 pounds.

Control runs through the machine's auxiliary hydraulic joystick or a third-function valve. Single-cylinder root grapples center the cylinder on the frame. Twin-cylinder root grapples mount cylinders on each side for even pressure distribution.

What Types of Root Grapples Are Available?

What Is the Difference Between Single-Cylinder and Twin-Cylinder Root Grapples?

Single-cylinder root grapples use 1 centered hydraulic cylinder for lighter-duty clamping, while twin-cylinder root grapples use 2 cylinders for greater force and even jaw pressure. Twin-cylinder configurations prevent jaw twisting on off-center loads.

Twin-cylinder designs are standard on root grapples 72 inches and wider. Twin-cylinder units typically cost 15 to 30 percent more than single-cylinder models of the same width.

What Separates Open-Bottom Root Grapples from Closed-Bottom Designs?

Open-bottom root grapples have tines spaced 3 to 6 inches apart, allowing soil and small debris to sift through during lifting. Closed-bottom root grapples retain all material inside the frame for transport without separation.

• Open-bottom designs weigh 10 to 15 percent less than closed-bottom equivalents
• Open-bottom root grapples excel at land clearing where soil stays on site
• Closed-bottom root grapples handle mixed material piles and loose aggregate

Which Is Better, Root Grapple or Grapple Rake?

A root grapple excels at clamping and lifting heavy individual objects like stumps and boulders, while a grapple rake sweeps, collects, and sifts loose brush and debris across broader areas.

• Root grapple jaw openings reach 30 to 42 inches for large material
• Grapple rake tines angle forward for ground-level sweeping
• Root grapples generate higher per-tine clamping force for dense objects
• Grapple rakes cover more surface area per pass on scattered debris

What Sizes Do Root Grapples Come In?

How Much Does a 72 Inch Root Grapple Weigh?

A 72-inch root grapple typically weighs between 650 and 900 pounds depending on steel thickness and cylinder configuration. Weight increases with heavier steel gauge and twin-cylinder setups.

• 48-inch root grapples: 350 to 500 pounds
• 60-inch root grapples: 500 to 700 pounds
• 66-inch root grapples: 575 to 750 pounds
• 72-inch root grapples: 650 to 900 pounds
• 78-inch root grapples: 750 to 1,000 pounds
• 84-inch root grapples: 850 to 1,100 pounds

What Width Root Grapple Matches Your Machine?

Root grapple width matches or runs slightly narrower than the machine's loader arm or bucket width to maintain operator visibility and lateral balance. Oversized root grapples reduce maneuverability and risk exceeding hydraulic capacity.

• Compact tractors (25–50 HP): 48-inch to 60-inch root grapples
• Utility tractors (50–100 HP): 60-inch to 72-inch root grapples
• Skid steers (50–90 HP): 66-inch to 78-inch root grapples
• Compact track loaders (70–110 HP): 72-inch to 84-inch root grapples

What Are the Key Specifications to Compare Across Root Grapple Sizes?

The 7 most important root grapple specifications are width, weight, jaw opening, tine spacing, tine thickness, cylinder bore diameter, and overall depth. Jaw openings typically range from 30 to 42 inches across standard sizes.

• Tine thickness: 3/8-inch to 1/2-inch steel indicates commercial-grade construction
• Frame plate thickness: 1/4-inch to 3/8-inch steel for structural integrity
• Cylinder bore: 2.5-inch to 3.5-inch diameter determines clamping force
• Hinge pin diameter: 1-inch to 1.5-inch pins resist shear loads at pivot points

Which Machines Are Compatible with Root Grapples?

What Hydraulic Flow and Pressure Do Root Grapples Require?

Root grapples require 12 to 25 GPM of hydraulic flow and 2,500 to 3,500 PSI of operating pressure from the machine's auxiliary hydraulic circuit. Machines below 12 GPM produce slow jaw cycle times and reduced clamping force.

Compact tractors with rear-remote hydraulics often deliver 8 to 12 GPM, which operates smaller root grapples adequately. Skid steers and compact track loaders typically output 17 to 30 GPM, powering 72-inch and larger root grapples at full speed.

Which Quick-Attach Mounting Systems Fit Root Grapples?

4 mounting systems cover the majority of root grapple installations: universal skid steer quick-attach (ISO/ASAE standard), Euro/global front loader mount, John Deere hook-and-pin, and dedicated quick-attach plates for specific loader models.

• Universal skid steer quick-attach fits most skid steers and compact track loaders
• Euro/global mount fits compact and utility tractors with Euro-style loader arms
• Hook-and-pin systems require matching pin spacing to the loader bracket
• Hydraulic couplers allow single-operator attachment changes in under 60 seconds

Can Compact Tractors Run a Root Grapple Effectively?

Compact tractors with front loaders and auxiliary hydraulics run 48-inch to 60-inch root grapples effectively for light land clearing, brush pile management, and property maintenance. The machine's rated operating capacity must exceed the root grapple weight plus the maximum intended load.

Tractors below 25 HP and 1,200 pounds lift capacity risk instability with loaded root grapples. A third-function hydraulic valve is required if the tractor lacks dedicated grapple hydraulics.

What Are the Best Applications for Root Grapples?

How Do Root Grapples Perform in Land Clearing and Stump Removal?

Root grapples extract stumps up to 24 inches in diameter and consolidate root piles in a single machine pass. Land clearing contractors use root grapples to process 1 to 3 acres per day depending on vegetation density and machine size.

• Stump extraction after grinding or bulldozer push-over operations
• Root ball consolidation into burn piles or haul-off staging areas
• Trail building and erosion control material placement on slopes

Can Root Grapples Sort Rocks and Handle Demolition Debris?

Open-bottom root grapples sort rocks from 4 inches to 24 inches in diameter by allowing smaller material to fall through the tine spacing. Demolition contractors use root grapples to separate concrete, rebar, and wood framing on active job sites.

Tine spacing of 3 to 4 inches retains rocks above baseball size while sifting out soil and gravel. Closed-bottom root grapples handle mixed demolition debris without material loss during transport.

How Do You Select the Right Root Grapples for Your Operation?

What Specifications Determine Root Grapple Compatibility?

3 specifications determine root grapple compatibility: mounting system type, machine hydraulic output, and rated operating capacity. The mounting plate must match the machine's quick-attach standard. Hydraulic flow must meet or exceed 12 GPM. The machine's lift capacity must handle the grapple weight plus a loaded material weight of 500 to 2,000 pounds.

What Is the Difference Between Entry-Level and Professional Root Grapple Options?

Professional root grapples use 1/2-inch tines, 3/8-inch frame plate, and 3-inch bore cylinders, while entry-level units use 3/8-inch tines, 1/4-inch plate, and 2.5-inch bore cylinders. Professional units include reinforcement gussets at all stress points and powder-coat finishes rated for 1,000-plus hours of salt spray resistance.

What Size and Configuration Options Are Available?

6 standard widths are available: 48, 60, 66, 72, 78, and 84 inches. Each width comes in open-bottom and closed-bottom configurations. Cylinder options include single-cylinder for widths under 72 inches and twin-cylinder for 72 inches and above.

Why Do Contractors Choose Root Grapple Attachments Over Alternatives?

How Much Time or Labor Does a Root Grapple Save?

A root grapple replaces 3 to 5 laborers and reduces land clearing time by 60 to 80 percent compared to manual stump removal and hand-sorting. A single operator with a skid steer-mounted root grapple processes debris piles that take a crew 2 to 3 days in 4 to 8 hours.

How Does a Root Grapple Reduce Physical Strain and Operating Costs?

Root grapples eliminate manual lifting of stumps, roots, and rocks weighing 50 to 500 pounds per piece. Reduced manual labor lowers injury risk for back, shoulder, and hand strain. Operating cost per acre drops 40 to 60 percent versus crew-based clearing methods when factoring labor, insurance, and time.

Browse Forge Claw's Root Grapple Selection

Forge Claw carries professional-grade root grapples built for demanding land clearing, construction, and agricultural work. Every unit ships ready to bolt on and dig in. You get heavy steel, proven hydraulics, and a support team that knows attachments — not just part numbers. Equipment financing available for qualified buyers.

What Makes Forge Claw's Selection Right for Professional Use?

Every root grapple in the Forge Claw lineup meets commercial-duty construction standards. You're choosing from attachments built with reinforced gussets, hardened hinge pins, and cylinders sized for real-world clamping loads. Questions about sizing or machine compatibility get answered by people who've run these attachments, not just sold them.

What Other Products Do Contractors Pair with Root Grapple Attachments?

Contractors regularly combine root grapples with complementary products to expand capability and reduce changeovers.

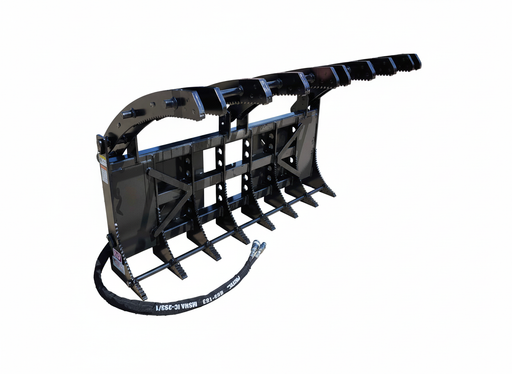

Skid Steer Root Grapples

Compact skid steers handle most residential and light commercial clearing jobs where maneuverability matters more than raw lifting capacity. Skid Steer Root Grapples deliver the same debris-handling efficiency in tight spaces like suburban lots, narrow fence lines, and areas with overhead obstacles. Their smaller frame fits through standard gates while still grabbing stumps and brush piles effectively.

Tractor Root Grapples

Large-scale land clearing and agricultural projects demand the higher hydraulic flow and lifting power that only tractors provide. Tractor Root Grapples excel at moving oversized stumps, consolidated debris piles, and heavy rock loads across extensive acreage. Agricultural operators frequently switch between these attachments and standard root grapples depending on the scale of each clearing phase.

Root Rock Grapples

Construction sites and agricultural fields often contain mixed debris requiring specialized handling capabilities for both organic material and stone. Root Rock Grapples feature reinforced tines and enhanced grabbing geometry designed specifically for lifting jagged rocks alongside typical brush and stump removal tasks. This dual-purpose design eliminates attachment swaps during projects with varied debris types.

Frequently Asked Questions About Root Grapples

What Machines Are Compatible with Root Grapples?

Root grapples are compatible with skid steers, compact track loaders, compact tractors, utility tractors, mini excavators, and wheel loaders equipped with auxiliary hydraulics and a matching quick-attach system.

Hydraulic output is the primary compatibility factor. Machines producing 12 to 25 GPM and 2,500 to 3,500 PSI operate standard root grapples at full performance. Compact tractors below 25 HP may require a third-function valve installation. The machine's rated operating capacity must exceed the combined weight of the root grapple and its maximum intended load to maintain stability during lifting and transport operations.

What Is a Root Grapple Used For?

Root grapples grab, lift, and move stumps, roots, brush, rocks, and construction debris during land clearing, site preparation, and property maintenance operations.

5 industries rely on root grapples daily: construction contractors use root grapples for lot clearing and demolition debris removal. Agricultural operators clear fence lines and reclaim overgrown pastures. Forestry crews consolidate slash piles after timber harvest. Landscaping contractors remove stumps and boulders during grading. Municipal crews prepare fire breaks and maintain drainage easements across public lands.

How Long Do Root Grapples Last with Proper Maintenance?

A professional-grade root grapple lasts 5 to 10 years or 2,000 to 5,000 operating hours with routine maintenance.

3 maintenance tasks extend root grapple service life. Grease all hinge pins and pivot points every 8 to 10 operating hours using NLGI #2 grease. Inspect hydraulic hoses and fittings for abrasion, cracking, or leaks before each shift. Check tine tips and wear edges every 100 hours and weld-repair or replace tines worn below 50 percent of original thickness. Store root grapples with cylinders retracted to protect rod seals from UV and debris exposure.

What Safety Practices Apply During Root Grapple Operation?

Operators follow 4 safety practices during root grapple use: maintain stable footing on level ground, never exceed rated operating capacity, keep bystanders outside a 50-foot radius, and verify hydraulic connections before each use.

Load stability is the primary safety concern. Stumps and root balls shift during lifting, changing the machine's center of gravity. Operators keep loads low during travel — 12 inches or less above ground level. Hydraulic hose failure releases pressurized fluid at 2,500 to 3,500 PSI, causing serious injury on contact. Operators wear safety glasses and gloves when connecting or disconnecting hydraulic lines.

Does Owning a Root Grapple Pay for Itself Versus Renting?

Root grapple ownership pays for itself within 15 to 30 rental days, depending on attachment size and local rental rates that average $150 to $300 per day for comparable units.

A mid-range 72-inch root grapple priced at $2,500 to $4,500 breaks even after 10 to 20 uses at typical rental rates. Ownership eliminates rental availability delays, transport fees, and damage deposit risk. Contractors completing 3 or more land clearing projects per year recover the full purchase cost in the first season and gain on-demand access for every project after.
