What Are Wheel Loader Bale Spears and How Do They Work?

What Components Make Up a Wheel Loader Bale Spear?

A wheel loader bale spear consists of 4 primary components: a structural mounting frame, one or more main spear tines, stabilizer spikes, and a coupler interface plate. Main spear tines are forged from 4140 heat-treated steel, measuring 39 to 49 inches in length and 1.75 to 2 inches in diameter.

• Mounting frame built from ¼-inch to ½-inch high-strength structural steel plate
• Stabilizer spikes measuring 18 to 24 inches in length to prevent bale rotation during transport
• Coupler interface plate matched to the loader's specific quick-attach or pin-on system
• Powder-coat or Hardox-reinforced finish on high-wear contact areas

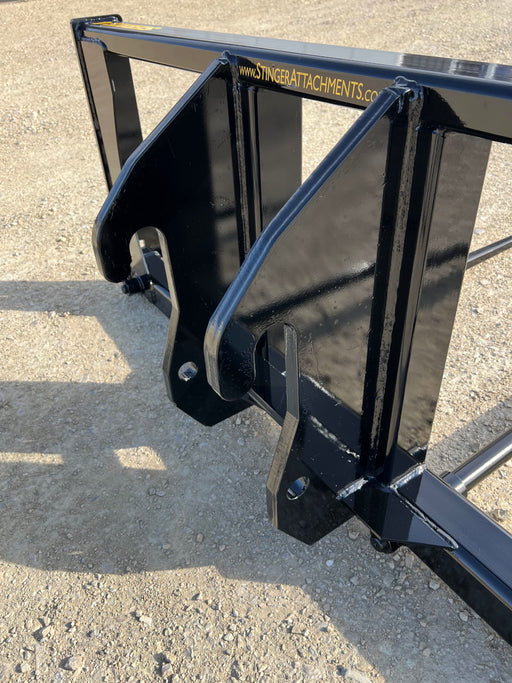

How Does a Bale Spear Attach to a Wheel Loader?

Bale spears attach through a coupler plate that matches the loader's quick-attach or pin-on mounting system in a 3-step process. The operator aligns the spear frame's coupler plate with the loader's mounting interface, engages the locking mechanism, and verifies a secure connection before lifting.

6 common coupler standards cover the majority of wheel loaders in current production: Euro/Global, ISO, JRB, IT-style, Volvo-pattern, and pin-on mounts. Most aftermarket bale spear frames are manufactured in multiple coupler configurations to match these standards.

What Types of Wheel Loader Bale Spears Are Available?

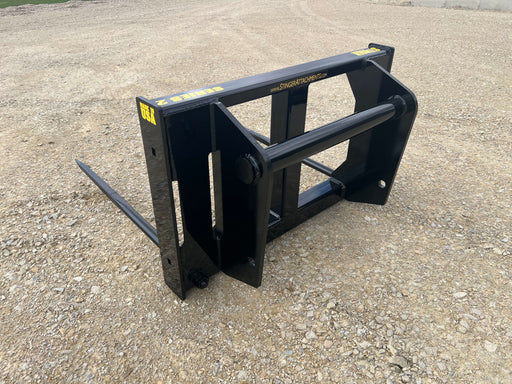

When Should You Choose a Single Bale Spear Over a Double?

A single bale spear is the correct choice when the wheel loader's rated lift capacity falls below 4,000 lbs or daily bale volume stays under 50 bales. Single-spear frames weigh 150 to 350 lbs and impose less load on compact and small wheel loaders in the 10,000-to-20,000-lb operating weight range.

Typical single-spear applications include supplemental feeding on small ranches, occasional hay transport from field to barn, and truck loading at low-volume hay operations.

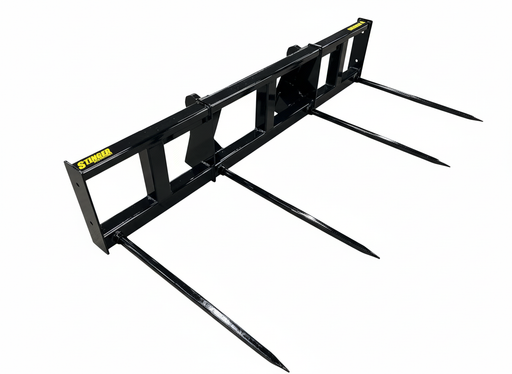

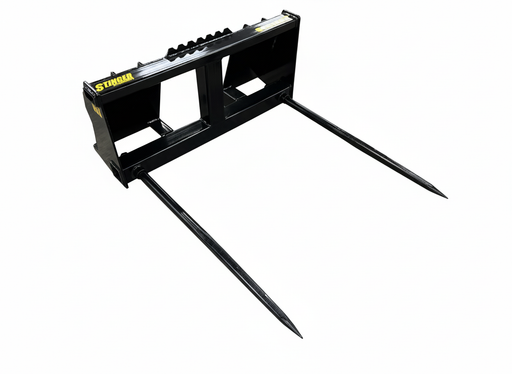

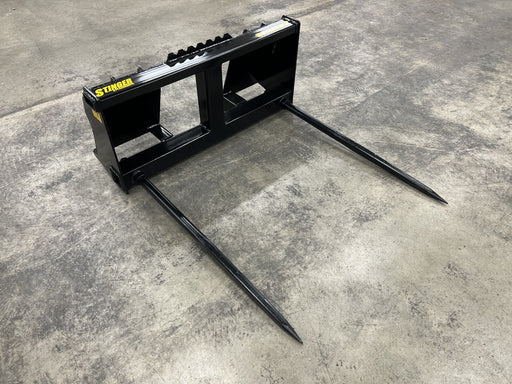

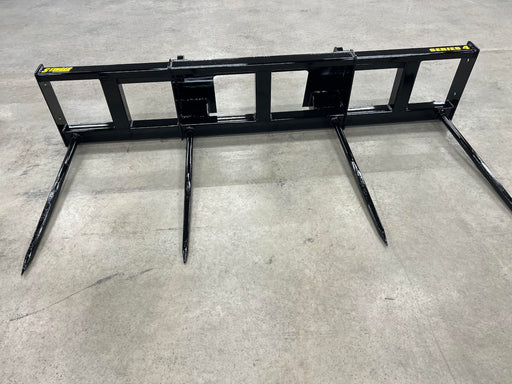

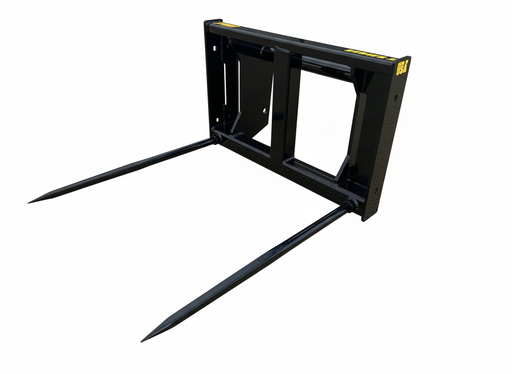

What Are the Advantages of a Double or Multi-Tine Bale Spear?

Double bale spears move 2 bales per cycle, reducing total transport cycles by 50% on operations handling 100 or more bales per day. Double-spear frames weigh 400 to 800 lbs and require wheel loaders with rated lift capacities of 4,000 lbs or higher.

• Double-spear configurations handle 2 round bales simultaneously at weights up to 4,000 lbs combined

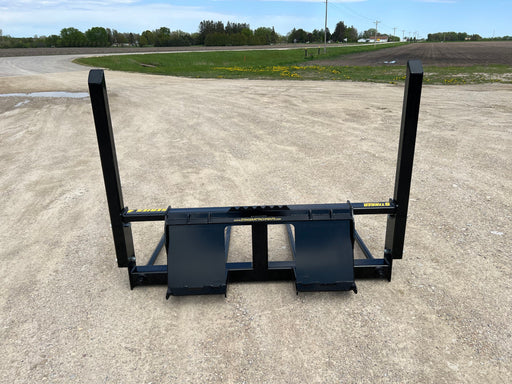

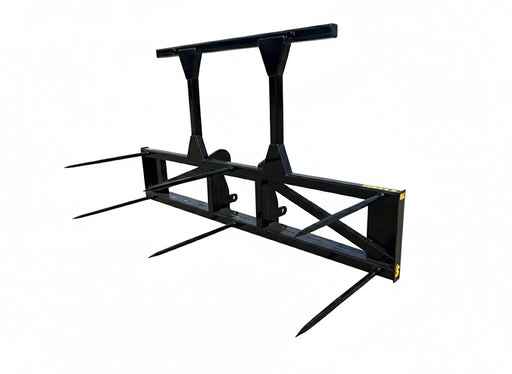

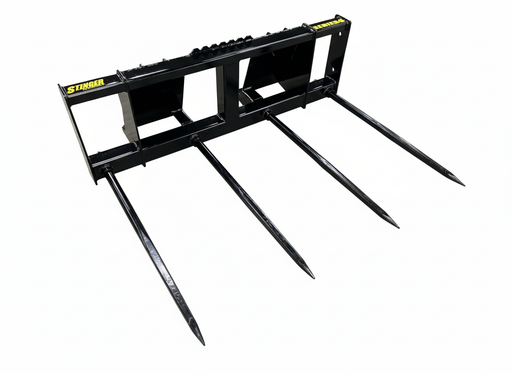

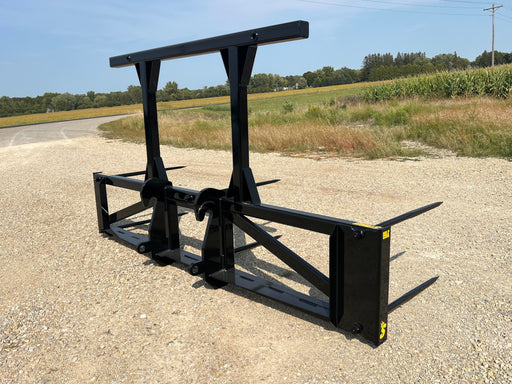

• Multi-tine frames with 3 or more tines are designed for large square bales and cotton bale stacking
• Mid-size and large wheel loaders in the 30,000-lb-plus operating weight class support multi-tine configurations

What Is the Difference Between a Bale Spear and a Bale Fork?

A bale spear uses pointed tines that pierce the bale core, while a bale fork uses flat or rounded tines that cradle the bale from underneath without penetration. Bale spears are the standard choice for net-wrapped and twine-wrapped round bales where core penetration provides the most secure grip.

Bale forks are preferred for loose, damaged, or partially unwrapped bales where piercing would cause the bale to break apart. Some manufacturers label spear-type attachments as "bale forks," creating terminology confusion in the market.

Which Wheel Loader Sizes Are Compatible with Bale Spears?

What Coupler Types Fit Wheel Loader Bale Spears?

6 coupler types fit the majority of wheel loader bale spear applications: Euro/Global, ISO, JRB, IT-style, Volvo-pattern, and pin-on. Euro/Global couplers are the most common standard across European-designed loaders in the compact through mid-size range.

• Euro/Global couplers fit most European-designed loaders from 10,000 to 40,000 lbs operating weight
• IT-style couplers fit domestic loaders in the 15,000-to-50,000-lb class
• JRB couplers fit older domestic and Asian-designed loaders
• Volvo-pattern couplers are specific to Scandinavian-designed loader models
• ISO couplers follow international standardization for cross-brand compatibility
• Pin-on mounts serve loaders without quick-attach systems, with adapter plates available for conversion

How Do You Match a Bale Spear to Your Wheel Loader's Weight Class?

Matching a bale spear to a wheel loader requires comparing the spear's loaded weight (frame weight plus bale weight) to the loader's rated operating capacity at full lift height. Rated operating capacity — not static tipping load — is the critical specification for safe bale handling.

• Compact loaders at 10,000 to 15,000 lbs operating weight pair with single-spear frames rated to 2,000 lbs
• Small loaders at 15,000 to 25,000 lbs support single or light double-spear frames rated to 4,000 lbs
• Mid-size loaders at 25,000 to 40,000 lbs handle double-spear frames rated to 6,000 lbs
• Large loaders above 40,000 lbs support multi-tine configurations rated to 8,000 lbs or higher

Which Wheel Loader Brands Work with Universal Bale Spear Frames?

Universal bale spear frames with interchangeable coupler plates work across all major wheel loader brands currently manufactured. The bale spear frame itself is brand-agnostic — the coupler plate is the only brand-specific component. Operators who run mixed-brand fleets purchase one spear frame with multiple coupler plates to swap between loaders.

What Specifications Matter Most When Buying Wheel Loader Bale Spears?

What Weight Capacity Do You Need for Your Bale Type?

Weight capacity requirements range from 800 lbs for small round bales to 2,200 lbs for large round bales and up to 2,000 lbs for large square bales. Cotton modules weigh 2,000 to 2,500 lbs. Silage bales in plastic wrap range from 1,200 to 1,800 lbs depending on moisture content.

• Small round bales: 4 feet diameter, 800 to 1,200 lbs
• Large round bales: 5 to 6 feet diameter, 1,000 to 2,200 lbs
• Large square bales: 3 × 4 × 8 feet, 1,500 to 2,000 lbs
• Cotton bales: 2,000 to 2,500 lbs per module
• Silage wrap bales: 1,200 to 1,800 lbs depending on moisture

What Tine Length and Diameter Are Best for Round vs. Square Bales?

Round bales require tines 39 to 49 inches long and 1.75 to 2 inches in diameter to reach the bale core and maintain structural hold. Large square bales use the same tine diameter but shorter tines at 32 to 39 inches are acceptable due to the rectangular profile and denser compression.

How Does Frame Width Affect Stability and Bale Handling?

Frame width determines lateral stability during bale transport and dictates maximum bale diameter clearance. Single-spear frames range from 36 to 48 inches wide. Double-spear frames measure 72 to 96 inches wide to accommodate 2 bales side by side with clearance between bales.

What Bale Types Can You Handle with a Wheel Loader Bale Spear?

Can You Use Wheel Loader Bale Spears for Cotton and Silage Bales?

Wheel loader bale spears handle cotton bales and silage bales when tine length and capacity ratings match the bale dimensions and weight. Cotton module handling typically requires multi-tine configurations with 3 or more tines to distribute load across the module's width. Silage bales in plastic wrap require sharp, polished tine tips to minimize wrap damage during penetration.

How Do Bale Dimensions and Weight Affect Spear Selection?

Bale diameter, length, and weight determine the minimum tine length, required capacity rating, and optimal tine count for safe handling. A 6-foot-diameter round bale at 2,200 lbs requires a 49-inch tine to reach past center and a capacity rating with margin above the bale weight plus frame weight combined.

Browse Forge Claw's Wheel Loader Bale Spear Selection

Forge Claw carries professional-grade wheel loader bale spears built for daily production work. Every model in our lineup meets the specs listed on this page — 4140 heat-treated tines, heavy-gauge frames, and coupler plates configured for your exact loader. You get real support from people who know this equipment. Equipment financing available for qualified buyers.

What Makes Forge Claw's Selection Right for Professional Use?

Every bale spear in the Forge Claw lineup is stocked in multiple coupler configurations and capacity ratings. That means you're not forcing a universal fit — you're getting the exact match for your loader's coupler and your operation's bale weight. One call gets you the right model.

How Do You Safely Operate and Maintain a Wheel Loader Bale Spear?

What Pre-Operation Inspection Should You Perform?

A 5-point pre-operation inspection takes 3 to 5 minutes and covers coupler lock engagement, tine straightness, stabilizer spike tightness, frame weld integrity, and hydraulic line connections. Bent tines with more than ½ inch of deflection over the tine length require immediate replacement. Loose stabilizer spikes allow bale rotation during transport and create a drop hazard.

How Often Should You Replace Tines and Stabilizer Spikes?

Main spear tines last 3 to 5 years under normal use, defined as 50 to 100 bales per day in dry hay operations. Silage and high-moisture bale operations accelerate wear and corrosion, reducing tine life to 2 to 3 years. Stabilizer spikes wear faster than main tines and require replacement every 1 to 2 years. Tine tip sharpness affects bale penetration — dulled tips increase required hydraulic pressure and cycle time.

What Other Products Do Contractors and Operators Pair with Wheel Loader Bale Spears?

Contractors and operators regularly combine bale spears with complementary attachments to expand capability and reduce changeovers.

Frequently Asked Questions About Wheel Loader Bale Spears

What Size Wheel Loader Do You Need for a Bale Spear?

A wheel loader with a minimum operating weight of 10,000 lbs and a rated lift capacity of 2,000 lbs at full height supports a single bale spear with one standard round bale.

Compact wheel loaders in the 10,000-to-15,000-lb class handle single-spear configurations with bales up to 1,500 lbs. Mid-size loaders at 25,000 to 40,000 lbs handle double-spear setups with combined bale loads up to 4,400 lbs. Large loaders above 40,000 lbs support multi-tine frames carrying 6,000 to 8,000 lbs. Always verify rated operating capacity at full lift height — not maximum tipping load.

How Many Bales Can a Wheel Loader Bale Spear Carry at Once?

A single bale spear carries 1 bale per cycle. A double bale spear carries 2 bales per cycle. Multi-tine configurations carry 2 to 4 bales depending on bale size and loader capacity.

A double-spear frame with 2 main tines spaced 48 to 60 inches apart carries 2 round bales simultaneously. Multi-tine frames designed for large square bales use 3 to 4 tines and carry 2 large square bales stacked or 4 small square bales. Total load weight per cycle must remain below the loader's rated operating capacity minus the frame weight.

How Do You Maintain a Wheel Loader Bale Spear for Maximum Service Life?

Maintenance for a wheel loader bale spear requires daily visual inspection, monthly torque checks on tine mounting hardware, and annual weld inspection on the frame.

Grease tine sleeves every 40 operating hours to prevent corrosion binding. Inspect tine tips weekly during active baling season — a worn tip with more than ⅛-inch flat spot increases penetration resistance by 15 to 20%. Store bale spears under cover or coated with rust inhibitor during off-season months. Replace all fasteners annually regardless of visible condition.

Can You Use a Bale Spear for Cotton Bales and Silage Bales?

Wheel loader bale spears handle cotton bales and silage bales when the tine configuration and capacity rating match the bale weight and dimensions.

Cotton modules at 2,000 to 2,500 lbs require multi-tine frames with 3 or more spear tines to distribute penetration points across the module width. Silage bales wrapped in plastic film require polished tine tips to minimize wrap puncture damage beyond the entry point. Silage moisture content adds 20 to 40% more weight than dry hay bales of the same dimensions — capacity ratings must account for this increase.

Do Wheel Loader Bale Spears Pay for Themselves Over Manual Bale Handling?

A wheel loader bale spear typically pays for itself within 1 to 3 months on operations handling 30 or more bales per day, based on labor savings alone.

Manual bale handling with a tractor and front-end loader averages 2 to 3 minutes per bale cycle. A wheel loader bale spear reduces cycle time to 45 to 90 seconds per bale due to faster hydraulic response and higher travel speed between pickup and drop points. On a 100-bale-per-day operation, a double-spear configuration saves approximately 2.5 hours of labor per day compared to a single tractor-mounted spear.
