What Are Tractor Bale Spears and How Do They Work?

Tractor bale spears are steel-tined attachments that mount to a tractor's 3-point hitch or front-end loader to pierce, lift, and transport round or square hay bales weighing up to 4,500 lbs across farms, ranches, and job sites. The main spear tine penetrates the bale core while stabilizer tines prevent rotation during lifting. Tractor hydraulics raise the headrack frame and carry the loaded bale to its destination.

What Types of Bales Can a Tractor Bale Spear Handle?

Tractor bale spears handle round bales in 4×4, 4×5, 5×5, and 5×6 configurations, large square bales in 3×3×8, 3×4×8, and 4×4×8 dimensions, and small square bales when paired with appropriate tine setups. Weight ranges vary by bale density and moisture content.

• Dry round bales weigh 800–1,500 lbs depending on diameter and crop type
• Wet round bales weigh 1,500–2,200 lbs due to moisture absorption
• Large square bales weigh 1,000–2,000 lbs based on compression and length
• Small square bales weigh 40–75 lbs and require multi-bale tine configurations for efficient transport

What Are the Main Components of a Tractor Bale Spear?

5 main components form a tractor bale spear: the spear tine, headrack frame, stabilizer tines, mounting plate or hitch bracket, and securing hardware. Spear tines forged from 4140 steel resist bending under heavy loads. Heavy-wall tube steel frames distribute weight across the mounting system.

• Spear tine — forged or welded steel, tapered for bale penetration, 39″–49″ long
• Headrack frame — structural backbone connecting the tine to the mount
• Stabilizer tines — 12″–18″ secondary spikes preventing bale rotation
• Mounting plate — bracket matching Category 1, Category 2, or quick-attach systems
• Securing hardware — lynch pins and bushing sleeves locking the spear to the hitch

What Size Tractor Bale Spear Do You Need for Your Operation?

3 factors determine the right tractor bale spear size: tractor horsepower and lift capacity, bale weight, and spear tine length required for full bale penetration. Matching all three factors prevents overloading the tractor's hydraulic system and ensures stable bale transport across uneven terrain.

How Much Weight Can a Tractor Bale Spear Lift?

Most tractor bale spears carry rated capacities between 2,000 and 4,500 lbs. Compact tractor models typically rate at 2,000–3,000 lbs. Utility and row-crop tractor models rate at 3,000–4,500 lbs. The tractor's own 3-point hitch lift capacity or loader lift capacity is the limiting factor — not just the spear's rating.

Static load ratings measure stationary lift capacity, while dynamic load ratings account for movement over uneven ground. Operators derate the spear's maximum capacity by 15–20% when transporting bales across rough pasture or hillside terrain.

What Spear Length and Tine Diameter Should You Choose?

Spear tines range from 39″ to 49″ in length and 1.75″ to 2.0″ in diameter. The tine penetrates at least two-thirds of the bale diameter for secure transport. A 5×5 round bale measuring 60″ in diameter requires a minimum 39″ tine. Larger 5×6 bales and dense square bales benefit from 49″ tines at 2.0″ diameter.

Taper design affects penetration resistance. A gradual taper enters the bale with less force, reducing bale damage and lowering the hydraulic effort required from the tractor.

Which Tractor Horsepower Class Matches Each Bale Spear Size?

Tractor horsepower class determines which bale spear capacity rating operates safely and efficiently. Exceeding the tractor's lift capacity creates tip-over risk and premature hydraulic wear.

• Subcompact tractors (25–40 HP) — Category 1 hitch — spears rated under 2,500 lbs
• Compact tractors (40–65 HP) — Category 1 or 2 hitch — spears rated 2,500–3,000 lbs
• Utility tractors (65–100 HP) — Category 2 hitch — spears rated 3,000–3,500 lbs
• Row-crop and large utility tractors (100+ HP) — Category 2 or 3 hitch — spears rated 3,500–4,500 lbs

What Types of Tractor Bale Spears Are Available?

Tractor bale spears are available in 3 primary configurations: single-tine, double-tine, and triple-tine. Each configuration addresses different bale sizes, load stability requirements, and handling speeds for specific operation types.

What Is the Difference Between a Single Spear and a Double Spear?

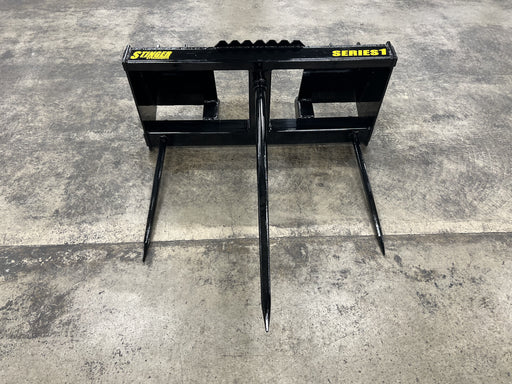

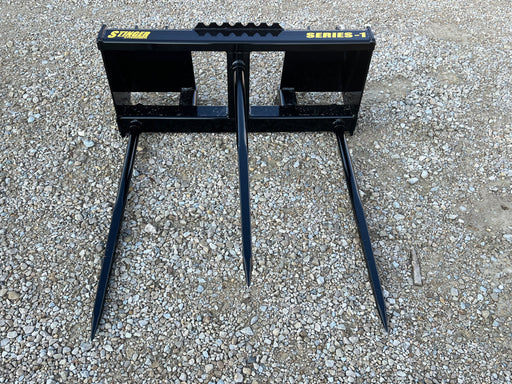

A single-tine bale spear uses one center-mounted tine for standard round bale handling, while a double-tine bale spear uses two parallel tines for increased stability with large square bales or heavy round bales. Single spears weigh less and cost less. Double spears distribute load across two contact points and eliminate bale spinning during transport.

• Single-tine spear — best for round bales under 1,500 lbs, lighter tractors, faster attachment

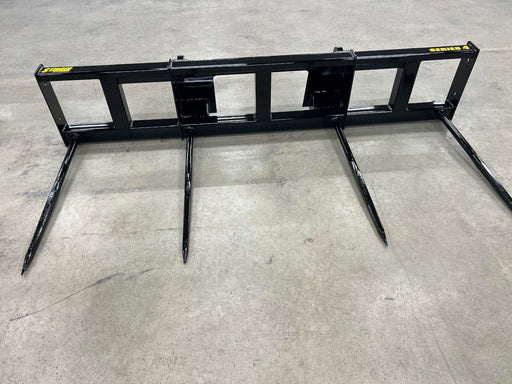

• Double-tine spear — best for large square bales, wet round bales over 1,500 lbs, and feedlot stacking
• Triple-tine spear — best for commercial hay operations moving high volumes of large square bales

What Is a Stabilizer Tine and Why Does It Matter?

A stabilizer tine is a 12″–18″ secondary spike mounted on the headrack that prevents the bale from rotating on the main spear during lifting and transport. Most quality bale spears include 2 stabilizer tines positioned below or beside the main tine. Stabilizer tines grip the bale's outer surface and stop lateral roll.

Bales handled without stabilizer tines spin freely on the main spear, creating unpredictable load shifts that reduce operator control and increase tip-over risk on slopes.

How Does a Bale Spear Compare to a Bale Fork or Bale Grapple?

A bale spear pierces the bale core for single-bale transport, a bale fork cradles the bale from below using curved tines, and a bale grapple clamps the bale with hydraulic arms. Each attachment type suits different handling priorities.

• Bale spears — fastest single-bale pickup, lowest cost, simplest mounting
• Bale forks — carry bales without core penetration, reduce hay waste on premium bales
• Bale grapples — grip bales from any angle, handle wrapped silage bales without puncture

How Do You Mount Tractor Bale Spears to Your Equipment?

Tractor bale spears mount through 3 primary systems: 3-point hitch, front-end loader quick-attach, and Euro/global quick-attach frames. The mounting system determines which tractors accept which bale spear models.

How Does a 3-Point Hitch Bale Spear Attach to a Tractor?

A 3-point hitch bale spear connects to the tractor's rear-mounted Category 1 or Category 2 three-point hitch using two lower lift arm pins and one top link pin. Lynch pins or snap pins secure each connection point. The tractor's hydraulic control lever raises, lowers, and angles the spear assembly.

Can You Use a Bale Spear on a Front-End Loader or Quick-Attach System?

Front-end loader bale spears mount to Euro/global quick-attach plates or manufacturer-specific quick-attach frames on the loader arm. This configuration places the bale spear at the front of the tractor for forward visibility during transport. Skid steer universal quick-attach plates use a different pin and coupler geometry than tractor loader plates.

What Is the Difference Between Category 1 and Category 2 Hitch Compatibility?

Category 1 hitches use 7/8″ diameter lower lift pins and fit subcompact and compact tractors under 50 HP, while Category 2 hitches use 1-1/8″ diameter lower lift pins and fit utility tractors from 50 HP to 150 HP. Category 3 hitches with 1-7/16″ pins serve row-crop tractors above 150 HP. Bushing sleeves adapt Category 2 spears to Category 1 hitches.

Who Uses Tractor Bale Spears and in What Applications?

6 primary operator types use tractor bale spears daily across agriculture, livestock, and rural property management. Each operator type handles different bale volumes, bale sizes, and transport distances.

How Do Cattle Ranchers and Hay Farmers Use Bale Spears Daily?

Cattle ranchers use tractor bale spears to move round bales from storage to feeding areas, loading 5–20 bales per day during winter feeding seasons. Hay farmers use bale spears to load bales onto flatbed trailers for field-to-barn transport and commercial sale delivery.

• Cattle ranchers — bale placement at feed rings, pasture rotation feeding, barn-to-lot transport
• Hay farmers — field pickup, barn stacking, trailer loading for sale or delivery
• Hobby farmers — small-scale feeding operations using compact tractors
• Feedlot operators — high-volume bale staging at feed bunks

What Advantages Do Bale Spears Offer Over Manual Handling?

A tractor bale spear moves a 1,200 lb round bale in 2–3 minutes, a task that requires 2–3 workers and 15–20 minutes using manual rolling and lever methods. One operator with a tractor-mounted bale spear replaces a full crew for daily bale handling across operations of any size.

Labor cost reduction and reduced physical strain directly lower operating costs per bale moved, particularly during 4–6 month winter feeding seasons when daily bale movement is constant.

Browse Forge Claw's Tractor Bale Spear Selection

Forge Claw carries professional-grade tractor bale spears built for demanding daily farm and ranch work. Every spear in this collection meets the load ratings, steel quality, and mounting precision that full-time operators depend on. You get the specs you need, real product support when you call, and equipment financing available for qualified buyers.

What Makes Forge Claw's Selection Right for Professional Use?

Forge Claw stocks bale spears across all major mounting systems and capacity ratings, from compact tractor Category 1 models to heavy-duty Category 2 and loader-mount units. You pick the spear that matches your tractor and your bales. We make sure it's built to handle both — season after season.

What Other Products Do Farmers and Operators Pair with Bale Spear Attachments?

Farmers and tractor operators regularly combine tractor bale spears with complementary attachments to expand capability and reduce changeovers between tasks.

Frequently Asked Questions About Tractor Bale Spears

Are Tractor Bale Spears Universal Across All Tractor Brands?

Tractor bale spears are not universal, but they fit any tractor matching the correct hitch category and lift capacity rating regardless of tractor brand.

Category 1 bale spears fit any tractor with a Category 1 three-point hitch using 7/8″ lower lift arm pins — spanning subcompact and compact models from every manufacturer. Category 2 bale spears fit utility tractors with 1-1/8″ pins. Front-end loader bale spears require matching the correct quick-attach plate style — Euro/global or manufacturer-specific — to the loader model. Bushing sleeves adapt Category 2 spears down to Category 1 hitches when needed.

Can You Use a Tractor Bale Spear on a Skid Steer?

A 3-point hitch tractor bale spear does not mount directly to a skid steer — skid steers require bale spears built for the universal skid steer quick-attach plate.

Skid steer quick-attach plates use a standardized hook-and-pin interface measuring approximately 15″ tall with a top attachment rail and bottom pin lock. Tractor 3-point hitch bale spears use a completely different three-pin connection geometry. Front-end loader quick-attach bale spears using Euro/global plates also do not interchange with skid steer plates. Operators running both machine types require separate bale spear attachments for each.

How Do You Maintain and Inspect a Bale Spear for Safe Operation?

Inspect tractor bale spears before each use by checking the spear tine for bending, the weld joints for cracks, and all pins for wear or deformation.

Spear tine tips dull over time and require re-sharpening or replacement after approximately 500–1,000 bale cycles depending on bale density and soil contact frequency. Weld points at the tine-to-frame junction carry the full bale load and develop stress cracks under repeated use. Powder coat or paint touch-up on exposed steel prevents rust in humid or wet-bale environments. Lynch pins and bushing sleeves wear from vibration and require replacement when loose fit develops.

What Safety Precautions Should Operators Follow When Using Bale Spears?

Operators never transport bales with the spear raised above the tractor's center of gravity, never allow personnel to stand within the tractor's turning radius during bale handling, and never exceed the tractor's rated lift capacity.

Raised bale loads shift the tractor's center of gravity upward and rearward, increasing rollover risk on slopes exceeding 10–15 degrees. Operators lower the loaded spear to within 12″ of ground level during transport. Exposed spear tines present impalement hazards — a tine cover or visible flagging marks the tine when the spear is empty and parked. All bystanders and ground crew maintain a minimum 20-foot clearance during active bale handling operations.

Do Tractor Bale Spears Pay for Themselves in Productivity Gains?

A tractor bale spear priced between $150 and $600 replaces 2–3 hours of daily manual bale handling labor, producing a full return on investment within 2–4 weeks of regular use.

A single operator moving 10 round bales per day with a tractor bale spear completes the task in 30–45 minutes. The same work requires 2 workers and 3–4 hours using manual methods — costing $50–$100 in daily labor at standard agricultural labor rates. Over a 120-day winter feeding season, a bale spear eliminates $6,000–$12,000 in manual labor costs. Contractors handling hay commercially recover the attachment cost within the first week of operation.
