Mortar Mixers

What Are Mortar Mixers and How Do They Work?

Mortar mixers are motorized machines that blend sand, cement, water, and lime into uniform mortar using rotating paddles inside a stationary steel or poly drum. Mortar mixers serve masonry, construction, landscaping, and agricultural applications where consistent cementitious mix quality directly affects structural integrity.

What Are the Main Components of a Mortar Mixer?

A mortar mixer consists of 7 primary components that work together to batch and discharge mixed material. Each component is replaceable, and wear parts require periodic inspection to maintain mix quality and machine longevity.

• Mixing drum or barrel — steel (10-gauge to 14-gauge) or polyethylene construction, holding 2 to 12 cubic feet of material
• Mixing paddles or blades — heavy-duty steel paddles that shear and fold mortar inside the stationary drum

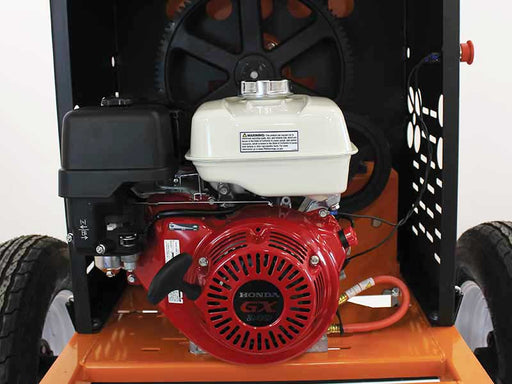

• Engine or motor — gas engines ranging from 4 HP to 8 HP, or electric motors from 1/2 HP to 1.5 HP
• Frame and chassis — welded steel base with mounting points for the drum, motor, and transport hardware
• Discharge chute — adjustable opening at the drum base for controlled material release
• Steel grate or screen — placed over the drum opening to block oversized material and prevent hand entry
• Wheel kit or tow hitch — pneumatic tires for portability or a highway-rated tow hitch for towable models

What Types of Mortar Mixers Are Available?

5 mortar mixer types serve different project scales and jobsite conditions: stationary electric, portable gas-powered, towable, hydraulic-driven, and compact or mini mixers. Each type maps to a specific operator profile and work environment.

• Stationary electric mortar mixers — 2 to 7 cubic feet capacity, ideal for indoor work, residential projects, and noise-sensitive areas
• Portable gas-powered mortar mixers — 4 to 9 cubic feet capacity, suited for outdoor jobsites and remote locations without electrical access

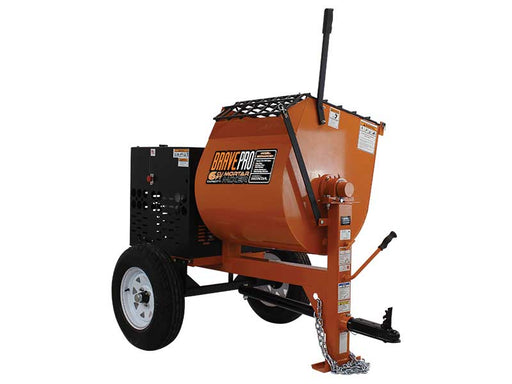

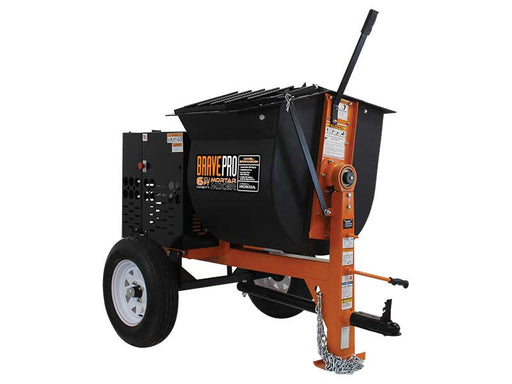

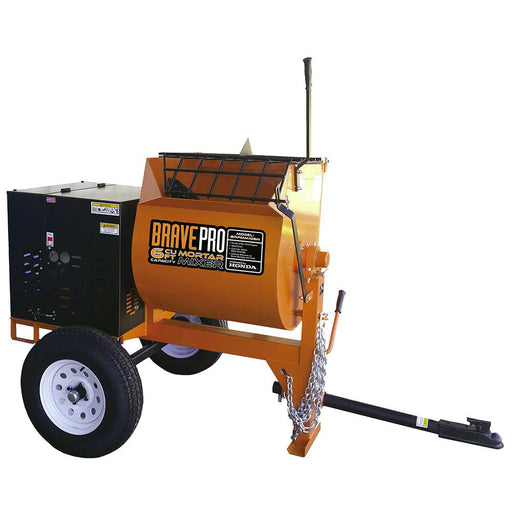

• Towable mortar mixers — 7 to 12+ cubic feet capacity, highway-towable units for commercial masonry and large-scale construction
• Hydraulic-driven mortar mixers — powered by skid steer or tractor hydraulic systems, used on agricultural properties and large construction sites
• Compact or mini mortar mixers — 2 to 3 cubic feet capacity, designed for repair work, tuckpointing, and small residential jobs

What Size Mortar Mixer Do You Need for Your Project?

The right mortar mixer size depends on batch volume — small 2 to 4 cubic foot mixers handle repair and residential work, while 6 to 12 cubic foot commercial mortar mixers handle high-volume masonry, landscaping, and agricultural projects.

How Do Drum Capacity and Batch Yield Affect Productivity?

Drum capacity directly determines how many 80-pound bags of mortar a mixer processes per batch. A 6 cubic foot mortar mixer handles 2 to 3 bags per batch. A 9 cubic foot mortar mixer handles 3 to 4 bags per batch. A 12 cubic foot mortar mixer handles 5 to 6 bags per batch.

Batch cycle time averages 3 to 5 minutes from loading to discharge. A 9 cubic foot mortar mixer produces 12 to 16 batches per hour under continuous operation, translating to 36 to 64 bags of mortar mixed per hour.

Which Mortar Mixer Size Is Best for Small vs. Large Jobs?

3 project scales determine the correct mortar mixer capacity:

• Small projects (tuckpointing, fence post setting, small landscape walls) — 2 to 4 cubic foot mortar mixers
• Medium projects (residential block work, stucco application, stone veneer) — 6 to 7 cubic foot mortar mixers
• Large projects (commercial masonry, retaining walls over 50 linear feet, agricultural building foundations) — 9 to 12 cubic foot mortar mixers

What Specifications Should You Compare When Choosing a Mortar Mixer?

6 specifications determine mortar mixer performance and jobsite compatibility:

• Drum capacity — measured in cubic feet, ranging from 2 to 12+ cubic feet
• Horsepower — gas models range from 4 HP to 8 HP; electric models range from 1/2 HP to 1.5 HP
• Paddle RPM — typical operating speed of 20 to 30 RPM for consistent mortar shearing
• Weight — compact electric mortar mixers weigh 150 to 300 pounds; towable gas mortar mixers weigh 500 to 1,200 pounds
• Voltage requirements — electric mortar mixers operate on 115V (standard outlet) or 230V (dedicated circuit)
• Discharge height — ranges from 16 to 24 inches, determining compatibility with wheelbarrows and mud pans

What Is the Difference Between a Mortar Mixer and a Concrete Mixer?

Mortar mixers use rotating paddles to shear and blend mortar, plaster, and stucco inside a stationary drum, while concrete mixers use a rotating drum with internal fins to tumble aggregate-heavy concrete. The two machines are not interchangeable for best results because paddle action prevents aggregate separation in fine mixes.

Can You Use a Mortar Mixer for Stucco, Plaster, or Grout?

Mortar mixers handle all cementitious materials that do not contain large aggregate. Compatible materials include Type S mortar, Type N mortar, stucco base coat, finish plaster, grout, and thin-set. Paddle-style mixing produces the uniform consistency these materials require for proper adhesion and workability.

Why Do Contractors Choose Dedicated Mortar Mixers Over General-Purpose Mixers?

Dedicated mortar mixers produce more uniform mortar with fewer lumps and less material waste than drum-style concrete mixers. Paddle shearing action folds and cuts the mix rather than tumbling it, eliminating dry pockets. Contractors using dedicated mortar mixers report fewer rejected batches and faster application rates on brick, block, and stone veneer work.

Which Mortar Mixers Work Best for Contractors, Landscapers, and Agricultural Professionals?

The best mortar mixer depends on trade — masonry contractors need high-capacity towable units, landscapers benefit from portable mid-size mixers, and farm owners require durable gas-powered models that operate without electrical access on remote properties.

What Do Masonry Contractors Need in a Mortar Mixer?

Masonry contractors require 7 to 12 cubic foot mortar mixers with heavy-duty steel drums, 5 to 8 HP gas engines, and towable configurations. High-volume commercial masonry demands fast discharge rates, a drum that withstands continuous daily operation, and a tow hitch for repositioning between job zones on large sites.

How Do Landscapers and Farm Owners Use Mortar Mixers on the Jobsite?

Landscapers use mortar mixers for retaining wall construction, stone veneer installation, outdoor kitchen footings, and fence post bases. Farm and ranch owners use mortar mixers for barn foundations, livestock enclosure walls, silo base repair, and irrigation channel lining. Gas-powered portable mortar mixers in the 4 to 7 cubic foot range serve both audiences on sites without electrical hookups.

Should You Choose a Gas-Powered, Electric, or Towable Mortar Mixer?

3 power source options serve distinct jobsite conditions:

• Gas-powered mortar mixers — 4 to 8 HP, best for outdoor and remote jobsites, higher noise output (75 to 85 dB), requires fuel storage
• Electric mortar mixers — 1/2 to 1.5 HP, best for indoor work and noise-sensitive residential areas (55 to 65 dB), requires 115V or 230V outlet or generator
• Towable mortar mixers — gas-powered with highway-rated tow hitch, 9 to 12+ cubic foot drums, built for large-scale commercial and agricultural projects requiring frequent site-to-site transport

How Do You Maintain and Clean a Mortar Mixer?

Clean a mortar mixer immediately after every use by rinsing the drum, paddles, and discharge chute with water to prevent mortar from curing inside the machine. Hardened mortar accelerates paddle wear, restricts discharge flow, and reduces drum capacity over time.

What Daily Maintenance Steps Extend the Life of a Mortar Mixer?

5 daily and seasonal maintenance tasks extend mortar mixer service life to 5 to 15 years:

• Rinse the drum, paddles, grate, and discharge chute with water within 30 minutes of final batch
• Inspect paddle blades for wear — replace paddles when blade thickness decreases by 25% or more
• Grease all fittings (paddle shaft bearings, wheel axle) every 40 operating hours
• Check belt tension on belt-driven models weekly and replace cracked or glazed belts
• Change engine oil on gas mortar mixers every 50 operating hours; inspect motor brushes on electric mortar mixers every 200 hours

What Safety Precautions Should You Follow When Operating a Mortar Mixer?

4 safety practices apply to all mortar mixer operation:

• Wear gloves, eye protection, a dust mask, and steel-toe boots during loading and mixing
• Never reach into a running drum — use the steel grate to prevent hand and tool entry
• Apply lock-out/tag-out procedures before performing any maintenance on electric mortar mixers; disconnect spark plug wire on gas mortar mixers
• Set up mortar mixers on level, stable ground to prevent tipping during operation — soft or uneven surfaces increase rollover risk

Browse Forge Claw's Mortar Mixer Selection

Forge Claw carries professional-grade mortar mixers built for the kind of work that doesn't stop at noon. Gas, electric, towable — every unit in our lineup is built for contractors, landscapers, and agricultural professionals who need a mixer that runs all day without excuses. Equipment financing is available for qualified buyers.

What Makes Forge Claw's Selection Right for Professional Use?

Every mortar mixer in Forge Claw's lineup meets commercial-duty standards for drum construction, paddle durability, and engine or motor reliability. You get direct access to our equipment specialists who match the right mixer to your project scale — not a guessing game on a product grid.

What Other Products Do Contractors and Agricultural Professionals Pair with Mortar Mixers?

Contractors and agricultural professionals regularly combine mortar mixers with complementary products to keep material moving from mix to placement without bottlenecks.

Which Products Work Alongside Mortar Mixing Equipment?

6 product categories pair directly with mortar mixing equipment on active jobsites:

• Wheelbarrows — transport mixed mortar from the mixer to the work area
• Mortar hoes and mud pans — hand tools for secondary mixing and mortar placement on scaffolding
• Concrete mixers — handle aggregate-heavy pours alongside mortar mixing operations
• Scaffolding and work platforms — position masons and material at height for block and brick work
• Skid steer attachments — bucket attachments move sand and aggregate to the mixer staging area
• Material handling equipment — pallet forks and hoists position 80-pound mortar bags at the mixer

Concrete Vibrators

After mixing consistent mortar batches, contractors often need concrete vibrators to eliminate air pockets and achieve proper consolidation in poured concrete applications. Both tools support masonry and concrete work where material consistency and structural integrity are critical.

Walk-Behind Power Trowels

Masonry crews working with fresh mortar frequently transition to walk-behind power trowels for finishing concrete slabs and flatwork. These complementary tools serve overlapping construction phases where smooth, level surfaces require both proper mixing and expert finishing techniques.

Frequently Asked Questions About Mortar Mixers

How Many Bags of Mortar Can a Mixer Handle Per Batch?

Batch capacity depends on drum size — a 6 cubic foot mortar mixer handles 2 to 3 bags of 80-pound mortar per batch, and a 12 cubic foot mortar mixer handles 5 to 6 bags per batch.

Overloading a mortar mixer beyond rated drum capacity causes uneven mixing, paddle strain, and motor or engine overheating. Load mortar mix to approximately 80% of rated drum volume to allow proper paddle rotation and material folding. A 9 cubic foot mortar mixer loaded to 80% capacity processes 3 to 4 bags per batch with a 3 to 5 minute cycle time.

Can You Mix Concrete in a Mortar Mixer?

Mortar mixers are not designed for concrete containing coarse aggregate larger than 3/8 inch.

Coarse aggregate in a paddle-style mortar mixer causes accelerated paddle wear, uneven distribution of stone within the mix, and potential damage to poly drums. Mortar mixers handle sand-based mixes — mortar, stucco, plaster, grout, and thin-set. Concrete mixes with 3/4-inch or larger aggregate require a rotating drum concrete mixer with internal fins designed to tumble heavy material.

How Long Does a Mortar Mixer Typically Last with Proper Maintenance?

A properly maintained mortar mixer lasts 5 to 15 years depending on daily operating hours, material abrasiveness, and maintenance consistency.

Paddle blades are the highest-wear component and require replacement every 6 to 18 months under daily commercial use. Steel drums outlast poly drums in high-volume applications but weigh more and cost more to replace. Gas engines require oil changes every 50 hours and air filter replacement every 100 hours. Electric motors require brush inspection every 200 hours.

What Safety Risks Apply to Mortar Mixer Operation?

The 3 primary safety risks are hand or arm entanglement in rotating paddles, caustic cement burns from wet mortar, and tipping on uneven ground.

Cement-based mortar has a pH of 12 to 13 and causes chemical burns with prolonged skin contact. Operators wear alkali-resistant gloves and long sleeves during loading and drum cleaning. The steel grate prevents hands and tools from entering the drum during paddle rotation. Electric mortar mixers require ground-fault circuit interrupter (GFCI) protection when powered by extension cord or portable generator.

Are Mortar Mixers Worth the Investment for Small-Scale Projects?

A mortar mixer pays for itself within 2 to 4 projects for operators who mix more than 10 bags of mortar per job.

Daily rental rates for mortar mixers range from $75 to $150 depending on drum size and power type. A compact 4 cubic foot electric mortar mixer costs $800 to $1,500 to purchase. Operators who complete 5 or more mortar-intensive projects per year recover the purchase cost faster than renting, while maintaining schedule control and eliminating rental availability delays.

Browse Forge Claw's full selection of professional-grade mortar mixers — equipment financing available for qualified buyers.
