What Are Box Scrapers and How Do They Work?
What Are Box Scrapers Good For?
Box scrapers level driveways, grade roads, spread gravel, prepare food plots, smooth arena footing, and establish drainage slopes — any task requiring material to be cut, carried, and redistributed across a surface.
- Gravel driveway grading and crown restoration
- Dirt road maintenance and pothole filling
- Arena footing leveling for equestrian facilities
- Food plot seedbed finishing after discing
- Parking area smoothing and material redistribution
- Drainage slope creation around structures and roads
- Backfilling utility trenches and foundation perimeters
- Light soil spreading across prepared surfaces
How Does a Box Scraper Attach to a Tractor or Skid Steer?
Box scrapers mount to tractors through a 3-point hitch system in Category I, Category II, or Category I/II convertible configurations. Category I fits subcompact and compact tractors under 35 HP with ⅞-inch lower pins and 21.5-inch pin spread. Category II fits utility tractors from 35–75 HP with 1⅛-inch lower pins and 27-inch pin spread.
Quick-hitch adapters allow faster attachment changes but require verification that the adapter matches the hitch category. Skid steer-compatible box scrapers use a universal quick-attach mounting plate and operate through the machine's auxiliary hydraulics.

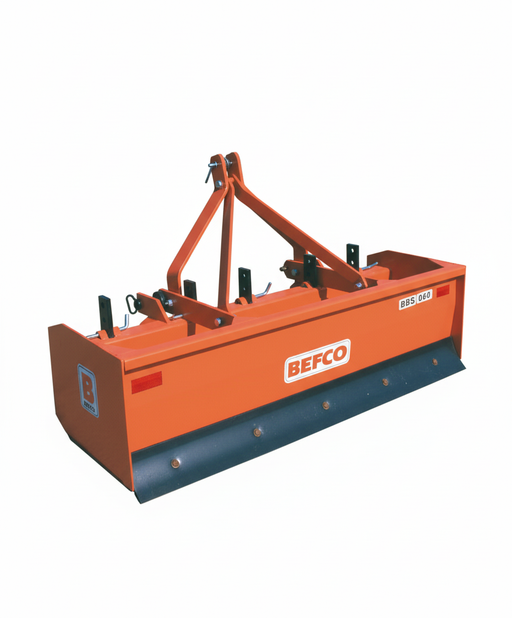

What Are the Key Components of a Box Scraper?
A box scraper consists of 7 primary components: front cutting edge, rear cutting edge, two side plates (end plates), scarifier shanks, top link connection point, and lower lift arm pins.
- Front cutting edge — cuts and loads material on forward passes
- Rear cutting edge — finishes and levels on reverse passes
- Side plates — contain material within the box during transport
- Scarifier shanks — break compacted surfaces before grading
- Top link and lower arm pins — secure the attachment to the 3-point hitch
Wear items requiring periodic replacement include front and rear cutting edges and scarifier shank teeth.
What Are the Different Types of Scrapers and How Do Box Scrapers Compare?
What Are the 4 Types of Scrapers?
The 4 main types of scrapers are box scrapers, grading scrapers, carry-all scrapers, and pull-type (wheel) scrapers — each designed for different material volumes, precision levels, and equipment pairings.
- Box scrapers — enclosed three-sided design for leveling and grading with 3-point hitch tractors
- Grading scrapers — open angled blade for pushing material sideways across slopes and ditches
- Carry-all scrapers — flat-bottom trays for transporting loose material short distances
- Pull-type scrapers — wheeled units towed behind large tractors for high-volume earthmoving
What Is the Difference Between a Box Scraper and a Grading Scraper?
A box scraper uses enclosed side plates to trap and carry material for redistribution, while a grading scraper uses an open angled blade to push material sideways. Box scrapers produce flatter finished surfaces. Grading scrapers shape slopes and ditch banks more effectively.
Box scrapers excel at driveway leveling, arena maintenance, and material spreading. Grading scrapers perform better on road shoulders, terracing, and angled drainage work where material needs directional displacement rather than containment.
What Is the Difference Between a Box Scraper and a Box Blade?
"Box scraper" and "box blade" refer to the same attachment in most cases. Some manufacturers use "box blade" for lighter-duty models with fewer scarifier shanks and shorter end plates. When shopping, both terms describe a three-sided grading attachment with front and rear cutting edges.
When Should You Choose a Box Scraper Over a Land Plane?
A box scraper provides active depth control through the 3-point hitch, while a land plane relies on passive weight and drag to level surfaces. Box scrapers handle tighter areas, variable-depth work, and material transport. Land planes suit long, flat surfaces like airstrips and large arenas.
Land planes typically cost less and require no hydraulic input, but box scrapers offer greater versatility for contractors managing multiple job types on a single machine.
What Size Box Scraper Do You Need for Your Tractor?
How Do You Match Box Scraper Width to Tractor Horsepower?
Box scraper width matches to tractor horsepower in 5 standard size classes. Soil conditions and terrain slope affect these ranges — compacted clay or rocky ground requires the upper end of each HP range.
- 48-inch (4 ft) box scraper — 15–25 HP subcompact tractors
- 60-inch (5 ft) box scraper — 20–40 HP compact tractors
- 72-inch (6 ft) box scraper — 30–55 HP compact/utility tractors
- 84-inch (7 ft) box scraper — 40–65 HP utility tractors
- 96-inch (8 ft) box scraper — 50–80+ HP utility tractors
Box scraper width should not exceed the tractor's tire-to-tire measurement. Verify that the tractor's 3-point lift capacity exceeds the box scraper's total weight by at least 20%.
How Much Do Box Scrapers Weigh by Size?
A 5 ft box scraper weighs 250–400 lbs depending on steel gauge and construction quality. Heavier box scrapers cut harder ground more effectively but demand greater tractor lift capacity.
- 4 ft box scraper — 200–300 lbs
- 5 ft box scraper — 250–400 lbs
- 6 ft box scraper — 350–525 lbs
- 7 ft box scraper — 450–650 lbs
- 8 ft box scraper — 550–800 lbs
What 3-Point Hitch Category Does Your Box Scraper Require?
Category I hitches fit box scrapers paired with subcompact and compact tractors under 35 HP. Category II hitches fit utility tractors from 35–75 HP. Most mid-size box scrapers (5 ft–7 ft) ship with Category I/II convertible pin bushings to fit both hitch classes without aftermarket adapters.
What Are the Most Common Uses for Box Scrapers on the Job Site?

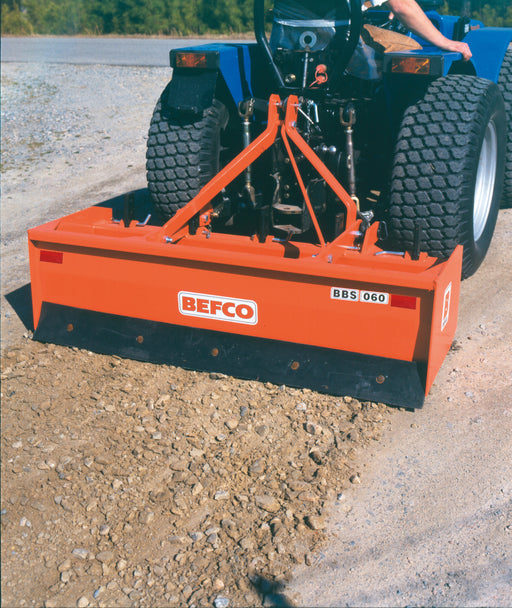

How Do Contractors Use Box Scrapers for Driveway and Road Grading?
Contractors grade gravel driveways by running scarifier shanks forward to loosen compacted material, then reversing to spread and level with the rear cutting edge. A 6 ft box scraper grades a 200-foot driveway in 2–4 passes. Seasonal regrading every 3–6 months maintains crown and drainage.
Can You Use a Box Scraper for Arena Leveling and Food Plot Preparation?
Box scrapers level equestrian arena footing by redistributing sand and fiber mix at shallow depth settings of 0.5–1 inch. Arena operators run 2–3 passes weekly to eliminate ruts and maintain consistent footing depth.
Food plot preparation uses medium depth settings of 1–2 inches to smooth soil after discing, creating a finished seedbed surface for broadcast or drill seeding.
How Do Box Scrapers Help with Drainage Grading and Backfilling?
Box scrapers create surface drainage slopes of 1–2% grade around buildings, parking areas, and roadways. The enclosed design moves 0.5–1.5 cubic feet of material per linear foot, making box scrapers effective for backfilling utility trenches and foundation perimeters in 2–3 passes per trench width.
What Features and Specifications Should You Look for in a Box Scraper?
Why Do Scarifier Shanks Matter on a Box Scraper?
Scarifier shanks break compacted surfaces before the cutting edges engage, reducing draft load and improving finish quality. Box scraper models carry 3–7 shanks depending on width. Standard shank spacing runs 8–12 inches apart. Replaceable carbide or hardened steel teeth bolt on individually.
Shanks stay raised for light finish grading and drop to working depth of 2–4 inches for compacted gravel, hard clay, and frozen crust.
What Cutting Edge Material and Thickness Performs Best?
AR400 abrasion-resistant steel cutting edges outperform mild steel by 2–3 times in service life. Standard cutting edge thickness runs ⅜ inch to ½ inch. Reversible cutting edges double usable life before replacement. Both front and rear edges require periodic inspection for wear beyond ¼-inch material loss.
How Does Steel Gauge and Build Quality Affect Box Scraper Longevity?
7-gauge steel (0.1793 inch) side plates and floors resist deformation under heavy loads. 10-gauge steel (0.1345 inch) appears on lighter-duty models suited to subcompact tractors and occasional use. Powder coat finishes prevent surface corrosion. Reinforced end plates and continuous weld seams indicate professional-grade construction.
Browse Forge Claw's Box Scraper Selection
Forge Claw carries professional-grade box scrapers built for demanding grading, leveling, and earthwork operations. Every model in the lineup earns its spot through proven construction and real-world performance. You get the right size, the right build quality, and expert support when you need it. Equipment financing available for qualified buyers.
What Makes Forge Claw's Selection Right for Professional Use?
Forge Claw stocks box scrapers across all standard widths from 48 inches to 96 inches with Category I, Category II, and convertible hitch configurations. Each model features replaceable cutting edges and scarifier shanks — the wear parts that keep your attachment working season after season.
What Other Products Do Contractors Pair with Box Scraper Attachments?
Contractors regularly combine box scrapers with complementary products to expand capability and reduce changeovers.
Grading Land Shaping Attachments
Operators working on large-scale leveling projects often need specialized tools beyond basic scraping capabilities. Grading Land Shaping Attachments provide precision control for complex terrain modification, making them essential companions for contractors handling comprehensive site preparation where multiple grading techniques are required.
Road Driveway Maintenance Attachments
Maintaining access routes requires diverse equipment for different surface conditions and repair tasks. Road Driveway Maintenance Attachments offer specialized solutions for pothole filling, edge work, and surface restoration that complement the broad leveling capabilities needed for ongoing infrastructure upkeep.
Frequently Asked Questions About Box Scrapers
What Are Box Scrapers Good For?
Box scrapers level driveways, grade gravel roads, smooth arena footing, prepare food plots, establish drainage slopes, and backfill trenches — any task requiring material to be cut, carried, and redistributed across a surface.
Contractors, property owners with acreage, municipal maintenance crews, ranch operators, and equestrian facility managers use box scrapers as a primary grading attachment. The enclosed three-sided design traps material between front and rear cutting edges, producing a level finish in fewer passes than open-blade alternatives. Scarifier shanks break compacted surfaces before grading to improve cut quality.
What Is the Difference Between a Box Scraper and a Grading Scraper?
A box scraper traps material between enclosed side plates for redistribution across flat surfaces. A grading scraper pushes material laterally with an angled open blade for slope shaping and ditch work.
Box scrapers produce flatter finishes on driveways, parking areas, and arenas because material stays contained during each pass. Grading scrapers displace material directionally, making grading scrapers better for road shoulders, terrace construction, and V-ditch formation. Box scrapers operate on 3-point hitch tractors from 15–80+ HP. Grading scrapers typically require 25 HP or more.
What Are the 4 Types of Scrapers?
The 4 types of scrapers are box scrapers, grading scrapers, carry-all scrapers, and pull-type (wheel) scrapers. Each type handles different material volumes, finish precision, and equipment pairings.
Box scrapers level and redistribute material on compact and utility tractors from 15–80+ HP. Grading scrapers shape slopes and ditches with angled blades. Carry-all scrapers transport loose material in flat-bottom trays. Pull-type scrapers move high volumes of earth behind large tractors exceeding 100 HP for land clearing and field leveling operations.
How Do You Maintain and Replace Box Scraper Cutting Edges?
Box scraper cutting edges require replacement when wear exceeds ¼ inch of material loss or when the edge develops visible rounding that reduces cut quality.
Reversible cutting edges flip once before full replacement, doubling service intervals. Standard bolt-on edges use ½-inch or ⅝-inch grade-8 carriage bolts. Scarifier shank teeth bolt on individually and require replacement when tooth length drops below 3 inches. Grease all pivot points every 10 operating hours. Inspect weld seams on end plates and shank mounts at the start of each season.
How Much Does a 5 ft Box Scraper Weigh?
A 5 ft box scraper weighs 250–400 lbs depending on steel gauge, cutting edge thickness, and scarifier shank count. Professional-grade 5 ft models with 7-gauge steel construction average 310–380 lbs.
Tractor 3-point lift capacity must exceed box scraper weight by at least 20% for safe operation and consistent depth control. A compact tractor rated at 500 lbs of 3-point lift capacity handles a 400-lb box scraper within safe margins. Heavier box scrapers cut harder soils more effectively but require proportionally larger tractors to maintain hydraulic responsiveness during grading passes.
