Earth Augers

What Are Earth Augers and How Do They Work?

Earth augers are drilling tools designed to bore cylindrical holes into the ground for fence posts, footings, tree planting, and soil sampling. Earth augers use a rotating helical blade — called a flighting — to cut and extract soil efficiently. A motor drives a gearbox that spins the auger bit into the ground while flighting carries loosened material upward and out of the hole.

Earth augers differ from manual post hole diggers and hand augers by delivering powered rotation that cuts through compacted soil, clay, and root systems. Earth auger models range from one-person handheld units to two-person models and heavy-equipment-mounted hydraulic attachments.

What Are the Main Components of an Earth Auger?

Every earth auger consists of 5 primary components: a power head, a gearbox, a drive shaft, a helical auger bit, and handles or a mounting frame. The gearbox reduces motor speed at ratios between 30:1 and 40:1 to maximize torque at the bit.

• Power head — gas engine, electric motor, or hydraulic motor providing rotational energy
• Gearbox — planetary or worm-gear reduction unit converting speed to torque
• Drive shaft — connects gearbox output to the auger bit via 2-inch hex, 2-9/16-inch round, or keyed shaft
• Auger bit — helical flighting with cutting teeth at the tip, available in diameters from 2 inches to 36 inches
• Handles or mount — operator grip handles on handheld units, quick-attach frames on machine-mounted units

What Types of Earth Augers Are Available?

Earth augers are available in 4 main types: one-person handheld, two-person handheld, hydraulic machine-mounted attachments, and PTO-driven tractor augers. Each type serves a distinct operator profile and project scale.

• One-person earth augers — 20 to 35 lbs, 30cc to 52cc engines, suited for light fencing and residential projects
• Two-person earth augers — 40 to 70 lbs, 52cc to 80cc engines, suited for commercial fencing and deck footings
• Hydraulic earth auger attachments — 500 to 3,000+ ft-lbs torque, mount to skid steers, excavators, and loaders
• PTO-driven earth augers — powered by tractor power take-off shaft, 15 to 50 HP requirement, suited for farm and ranch applications

Which Earth Auger Power Source Is Best for Your Job?

The best earth auger power source depends on hole volume, jobsite access, and available equipment. Gas-powered augers suit most fieldwork. Battery-powered models handle light residential tasks. Hydraulic attachments deliver maximum torque for high-volume commercial drilling. PTO-driven augers serve large-scale agricultural operations.

What Are the Advantages of Gas-Powered Earth Augers?

Gas-powered earth augers offer the highest power-to-weight ratio among handheld models, with engine displacements from 30cc to 80cc and torque output from 60 to 150+ ft-lbs. Two-stroke engines run on mixed gas and oil. Four-stroke engines use straight gasoline and produce lower emissions.

• Common engine sizes: 43cc, 52cc, 63cc, and 78cc
• One-person gas auger weight: 20 to 35 lbs
• Two-person gas auger weight: 40 to 70 lbs
• No cord or battery limitation — unlimited runtime with fuel

When Should You Choose a Battery or Electric Earth Auger?

Battery-powered earth augers handle light-duty residential projects — planting bulbs, installing small posts, and drilling in noise-sensitive areas. Voltage ranges from 40V to 80V with battery capacities of 2Ah to 5Ah. Torque output falls below gas equivalents, and bit diameter capability typically maxes out at 8 inches.

Electric earth augers require zero fuel mixing and produce no exhaust emissions. Battery earth augers are not suited for rocky ground, heavy clay, or high-volume drilling. Runtime per charge averages 25 to 40 holes in loose soil with a 4-inch bit.

Why Do Professionals Choose Hydraulic Earth Auger Attachments?

Hydraulic earth auger attachments deliver 500 to 3,000+ ft-lbs of torque by using the hydraulic system of skid steers, excavators, and compact track loaders. Standard-flow hydraulic augers require 7 to 15 GPM at 2,000 to 3,000 PSI. High-flow models require 15 to 30+ GPM at up to 4,000 PSI.

• Bit diameter range: 6 inches to 36+ inches
• Drilling depth: 48 to 72 inches standard, 10+ feet with extension shafts
• Mount types: universal quick-attach, Bobcat-style, mini excavator pin-on, adapter plates
• Compatible machines: skid steers, compact track loaders, mini excavators, backhoe loaders, telehandlers

What Are PTO-Driven Earth Augers Used For?

PTO-driven earth augers mount to compact and utility tractors via 3-point hitch and use the tractor's power take-off shaft to rotate auger bits. PTO earth augers require 15 to 50 tractor horsepower and connect through Category 1 or Category 2 three-point hitches.

Farm fencing, vineyard post installation, and large-scale tree planting are the primary applications for PTO-driven augers. PTO augers drill hundreds of holes per day without requiring a separate engine or hydraulic system.

How Do You Choose the Right Earth Auger Size for Your Project?

Choosing the right earth auger size means matching bit diameter and drilling depth to the specific project. A standard sizing rule applies: the hole diameter equals approximately 3 times the width of the post or footing it holds.

How Big of an Auger Do You Need for a 4×4 Post?

A 6-inch auger bit is the standard size for a 4×4 post, providing clearance around the 3.5-inch actual post width for gravel backfill and concrete. Drilling depth for fence posts ranges from 24 to 36 inches depending on frost line depth and fence height. Posts taller than 6 feet require holes at least 36 inches deep.

What Auger Diameter Works Best for Deck Footings and Piers?

Deck footings and pier holes require 8-inch to 12-inch auger bits, matched to the tube form or footing pad diameter specified by local building codes. Common Sonotube diameters are 8 inches, 10 inches, and 12 inches. Drilling depth follows regional frost line requirements — 36 to 48 inches in northern climates.

Which Auger Size Is Ideal for Tree Planting and Landscaping?

Tree planting auger bits range from 12 to 24 inches in diameter, sized to match the root ball of the tree or shrub being planted. Soil sampling and landscape edging use 2-inch to 4-inch bits. Sign post installation typically requires 8-inch to 10-inch bits drilled 30 to 42 inches deep.

What Earth Auger Specifications Matter Most for Professional Use?

The earth auger specifications that matter most for professional use include engine displacement and torque ratings, hydraulic flow rates and pressure requirements, plus weight distribution and ergonomic design features. These core performance metrics directly impact drilling efficiency, operational costs, and operator productivity across different soil conditions and project demands.

What Engine Displacement and Torque Ratings Should You Look For?

Engine displacement determines raw power output — 43cc to 52cc suits residential and light commercial work, while 63cc to 80cc handles heavy clay and large-diameter bits. Torque output measured in ft-lbs directly correlates to drilling performance. One-person gas earth augers produce 60 to 90 ft-lbs. Two-person gas earth augers produce 90 to 150+ ft-lbs.

How Do Hydraulic Flow Rate and Pressure Affect Auger Performance?

Hydraulic flow rate (GPM) controls bit rotation speed, and hydraulic pressure (PSI) controls torque output. An earth auger attachment rated for 10 GPM at 2,500 PSI drills standard post holes efficiently. High-volume contractors drilling 12-inch or larger holes in compacted soil require 20+ GPM at 3,500+ PSI for consistent performance.

What Weight and Ergonomic Features Reduce Operator Fatigue?

Handheld earth auger weight classes divide into one-person units at 20 to 35 lbs and two-person units at 40 to 70 lbs. Anti-vibration handle systems, padded grips, and throttle lockouts reduce fatigue during extended drilling sessions. Two-person earth augers distribute torque reaction across 2 operators, reducing wrist and arm strain on each individual.

Which Soil Conditions Affect Earth Auger Performance?

Soil conditions significantly affect earth auger performance by determining drilling speed, bit wear rates, and torque requirements across different ground types. Rocky terrain, clay deposits, frozen ground, and compacted soils each demand specific auger bit designs and drilling techniques to maintain productivity and equipment longevity.

Can Earth Augers Drill Through Rocky or Clay Soil?

Earth augers drill through clay and rocky soil when paired with the correct bit type and sufficient torque. Standard earth bits handle loam and sandy soil. Carbide-tipped rock bits cut through shale, limestone, and embedded stones. Clay soil requires slow feed rates to prevent flighting from clogging — periodic withdrawal clears packed material.

What Auger Bit Type Works Best in Frozen or Compacted Ground?

Carbide-tipped heavy-duty bits and rock bits penetrate frozen ground and heavily compacted soil where standard earth bits stall or lose cutting teeth. Frozen ground drilling requires higher torque — hydraulic auger attachments producing 800+ ft-lbs handle frost layers exceeding 12 inches deep. Pilot bits centered on the cutting head stabilize the auger during initial penetration.

Who Uses Earth Augers and for What Applications?

Earth augers serve contractors, landscapers, and farm operators across drilling applications from fence post installation and foundation work to tree planting and utility pole placement. These professional drilling attachments handle specialized tasks for fencing crews, tree service operations, and agricultural projects requiring precise holes in various soil conditions.

How Do Contractors and Fencing Professionals Use Earth Augers?

Fencing contractors use earth augers to drill 50 to 200+ post holes per day for residential, commercial, and agricultural fence installations. General contractors use earth augers for deck footings, sign post holes, and foundation piers. Hydraulic earth auger attachments mounted on skid steers allow a single operator to match the output of a 3-person manual crew.

What Earth Auger Applications Serve Landscapers and Tree Service Crews?

Landscapers and arborists use earth augers for tree and shrub planting, landscape bed preparation, and root ball hole drilling. Tree planting augers with 18-inch to 24-inch bits reduce planting time per tree from 20 minutes of manual digging to 2 to 3 minutes of powered drilling.

How Do Farm Owners and Ranch Operators Benefit from Earth Augers?

Farm and ranch owners use PTO-driven and hydraulic earth augers for fence line installation, gate post drilling, and vineyard trellis construction across hundreds or thousands of acres. A PTO earth auger on a 30-HP tractor drills 36-inch-deep post holes in under 30 seconds each, replacing manual labor on remote fencing projects.

Browse Forge Claw's Earth Auger and Drilling Attachment Selection

Forge Claw carries professional-grade earth augers and auger attachments built for demanding drilling work. Gas-powered handhelds, hydraulic skid steer and excavator attachments, PTO-driven tractor models — you'll find the right setup for your crew and your ground conditions. Equipment financing is available for qualified buyers.

What Makes Forge Claw's Selection Right for Professional Use?

Every earth auger in Forge Claw's lineup is spec'd for commercial and agricultural duty cycles. You're not sorting through homeowner-grade tools to find the one that'll actually hold up. The product team knows drilling equipment — call with your machine specs and project details and get a straight answer, not a sales pitch.

What Other Products Do Contractors and Landowners Pair with Earth Augers?

Contractors and landowners regularly combine earth augers with complementary products to expand capability and reduce changeovers between tasks.

Which Products Work Alongside Earth Auger Attachments?

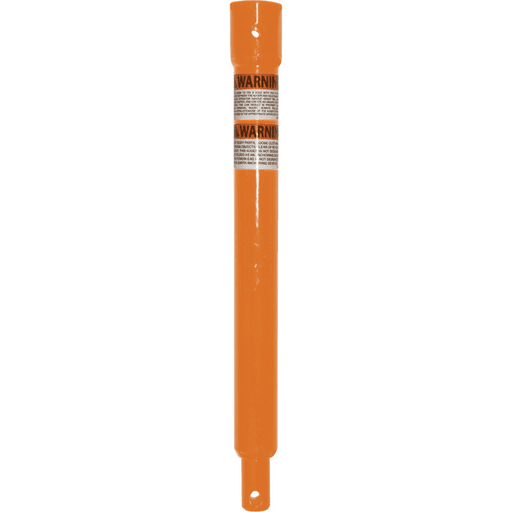

• Extension shafts — add 12 to 48 inches of drilling depth beyond standard auger bit length

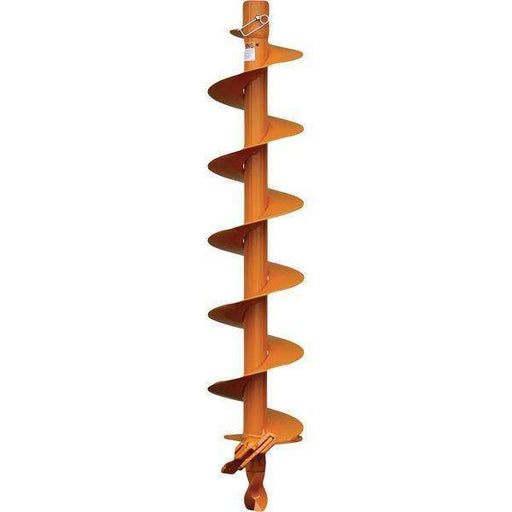

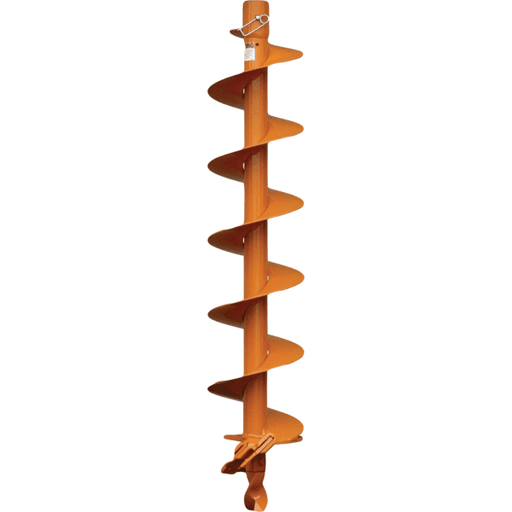

• Replacement auger bits — standard earth bits, rock bits, and tree planting bits in diameters from 4 to 36 inches
• Bit tooth kits — carbide-tipped replacement teeth restore cutting performance without replacing the entire bit
• Auger mounting brackets and adapter plates — convert between quick-attach styles for different machine brands
• Post drivers and tampers — seat and compact material around posts after auger drilling

Frequently Asked Questions About Earth Augers

Frequently asked questions about earth augers cover equipment value, brand specifications, sizing requirements, operational limitations, and proper maintenance procedures. These common inquiries address the practical considerations contractors face when selecting, using, and caring for professional drilling equipment.

Are Earth Augers Worth It?

Earth augers reduce post hole drilling time by 80% to 90% compared to manual digging with a clamshell post hole digger, making earth augers a direct labor cost reduction for any project requiring 10 or more holes.

A fencing contractor drilling 100 post holes manually spends 3 to 5 days on hole preparation alone. A gas-powered two-person earth auger completes the same 100 holes in 4 to 6 hours. Hydraulic earth auger attachments on skid steers finish the same job in under 2 hours. The equipment cost recovers within 1 to 3 projects for most professional operators.

What Is a Little Beaver?

Little Beaver is a brand name that manufactures mechanical earth augers and post hole drilling equipment — the term refers to the company, not a specific product type or auger category.

Little Beaver earth augers are one-person and two-person handheld units powered by gas engines. The brand is one of several that produce professional-grade handheld earth augers. When comparing earth auger options, evaluate engine displacement, torque output, bit compatibility, and weight rather than brand name alone to match the correct auger to the job.

How Big of an Auger for a 4×4 Post?

A 6-inch diameter auger bit fits a 4×4 post correctly, leaving approximately 1.25 inches of clearance on each side of the 3.5-inch actual post width for gravel base and concrete or tamped backfill.

Drilling depth for a standard 4×4 fence post ranges from 24 to 36 inches. Posts for fences 6 feet or taller require 36-inch hole depth. In frost-prone regions, hole depth extends below the local frost line — typically 36 to 48 inches in northern U.S. climates. A 6-inch auger bit on a 43cc or larger earth auger handles this hole size in under 30 seconds per hole in average soil.

What Are the Disadvantages of Auger Holes?

Auger-drilled holes produce smooth, cylindrical sidewalls that compact surrounding soil and reduce drainage compared to hand-dug holes with rough, irregular surfaces.

Compacted sidewalls in clay soil create a glazing effect that traps water around posts and footings. Breaking up sidewall glazing with a shovel or bar after drilling improves drainage and concrete adhesion. Auger holes in rocky soil sometimes deflect off buried stones, producing angled or oversized openings that require additional backfill. Oversized auger bits relative to the post size waste concrete and increase material costs per hole.

How Do You Maintain and Store an Earth Auger?

Earth auger maintenance involves 4 tasks: cleaning the bit after each use, inspecting and replacing worn cutting teeth, servicing the power head per manufacturer intervals, and greasing the gearbox output shaft.

Gas-powered earth augers require spark plug inspection every 25 to 50 operating hours, air filter cleaning every 10 hours, and fuel system draining before seasonal storage. Hydraulic earth auger attachments require hose inspection for leaks, coupler cleaning, and hydraulic fluid level checks on the host machine. Store earth augers in a dry location with the bit removed and cutting teeth coated in light oil to prevent corrosion.

Browse Forge Claw's full selection of professional-grade earth augers — equipment financing available for qualified buyers.
