What Are Walk-Behind Power Trowels and How Do They Work?
What Is a Walk-Behind Trowel?

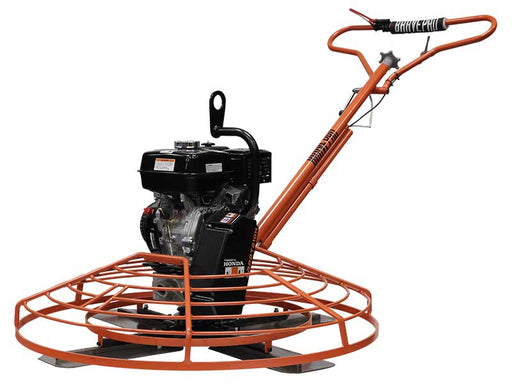

A walk-behind power trowel is a gasoline- or electric-powered concrete finishing machine with rotating blades that smooths and compacts freshly poured slabs, operated by a single person walking behind the unit using adjustable handles. 5 core components make up every walk-behind power trowel:
- Engine or electric motor mounted above a central gearbox
- Spider assembly connecting 4 blades to the drive shaft
- Guard ring surrounding the blade perimeter to protect edges and operators
- Blade pitch adjustment handle controlling finish angle from 0° to 15°

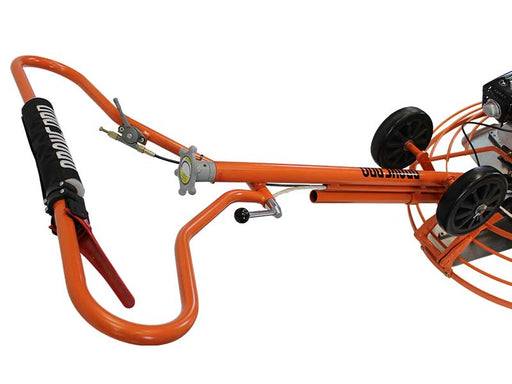

- Throttle and steering handle for operator speed and direction control
Walk-behind power trowels differ from hand trowels, bull floats, and ride-on trowels in both scale and output. Hand trowels finish less than 10 square feet per minute. Walk-behind power trowels finish 50 to 120 square feet per minute depending on blade diameter.
How Does a Walk-Behind Power Trowel Finish Concrete?
A walk-behind power trowel finishes concrete in a two-pass process — a float pass followed by one or more finish passes. The first pass uses float blades or a clip-on float pan at low blade pitch to flatten the surface and push aggregate below the cream layer.
The second pass uses finish blades at progressively steeper pitch angles to densify and polish the surface. Troweling begins when concrete supports the machine's weight — typically 1 to 4 hours after the pour depending on mix design, temperature, and humidity. Operators control RPM between 60 and 150 RPM and blade pitch between 0° and 15°.
What Is the Difference Between Floating and Finish Troweling?
Floating is the first pass at low blade pitch (or with a float pan) that levels the surface and embeds aggregate; finish troweling is one or more subsequent passes at increasing blade pitch that densify, harden, and polish the concrete surface.
Float pans clip directly over finish blades and are removed before final finishing passes. Over-floating or troweling concrete too early traps bleed water beneath the surface and causes delamination, scaling, and surface cracking.
What Sizes and Types of Walk-Behind Power Trowels Are Available?
Which Blade Diameter Is Right for Your Project?
5 standard blade diameters are available: 24-inch, 28-inch, 36-inch, 46-inch, and 48-inch. Each diameter matches a different project scale and workspace constraint:
- 24-inch trowels cover approximately 50 square feet per minute — suited for sidewalks, small patios, and repair patches
- 28-inch trowels handle mid-size residential work including porches and narrow slabs
- 36-inch trowels cover approximately 80 square feet per minute — standard for driveways, garage floors, and barn floors
- 46-inch to 48-inch trowels cover approximately 120 square feet per minute — built for warehouse floors, agricultural pads, and commercial flatwork
Larger blade diameters produce flatter finishes on open slabs but reduce maneuverability around columns, walls, and obstacles.
What Is the Difference Between Gas-Powered and Electric Walk-Behind Trowels?
Gas-powered walk-behind trowels deliver 5.5 to 13 HP with full jobsite portability and are standard for outdoor and large-scale work. Common engine options include 5.5 HP (160cc), 6.5 HP (200cc), 9 HP (270cc), and 13 HP (390cc) four-stroke models. Fuel tank capacity ranges from 0.5 to 1.6 gallons.
Electric walk-behind trowels produce 1 to 3 HP with zero exhaust emissions and lower noise levels, making electric trowels the required choice for indoor pours, enclosed buildings, and spaces without ventilation. Electric models operate on 110V or 220V circuits.
What Blade Types and Accessories Come with Walk-Behind Power Trowels?
4 blade types serve different finishing stages: float blades (flat profile), finish blades (curved or cupped profile), combination blades, and clip-on float pans. Standard blade dimensions range from 6 inches by 14 inches to 6 inches by 18 inches in spring steel or stainless steel.
- Float blades flatten and level during the initial pass
- Finish blades densify and polish during subsequent passes
- Combination blades handle both floating and light finishing on smaller pours
- Clip-on float pans attach over finish blades for aggressive leveling on wet concrete
Blade replacement intervals average every 20,000 to 40,000 square feet depending on aggregate hardness and concrete mix abrasiveness.
How Do You Choose the Right Walk-Behind Power Trowel for Your Job?
What Engine Horsepower and RPM Range Should You Look For?
Walk-behind power trowels range from 5.5 HP to 13 HP with RPM ranges of 60 to 150. Higher horsepower and RPM deliver faster finishing on harder concrete mixes. A direct HP-to-blade-diameter guide applies:
- 5.5 HP engines pair with 24-inch to 28-inch blade diameters
- 6.5 HP to 9 HP engines pair with 36-inch blade diameters
- 9 HP to 13 HP engines pair with 46-inch to 48-inch blade diameters
Centrifugal clutch engagement and variable throttle control are standard features that protect the drivetrain during startup and allow precise RPM adjustment during finishing.
How Does Trowel Weight Affect Performance and Portability?
Walk-behind power trowels weigh between 95 pounds (24-inch models) and 250-plus pounds (48-inch models). Heavier machines generate more downward surface pressure, producing denser and harder finishes on thick commercial slabs.
Lighter 24-inch to 28-inch models fit in a pickup truck bed without ramps or lift gates. Heavier 46-inch to 48-inch models require a utility trailer or lift gate. Folding handles on select models reduce storage footprint for farm owners and landowners with limited trailer space.
Which Walk-Behind Power Trowel Size Matches Which Project Type?
Project type determines the correct blade diameter and engine class. A clear matching guide applies across residential, agricultural, and commercial work:
- 24-inch to 28-inch trowels — sidewalks, residential patios, repair patches, and small shed pads
- 36-inch trowels — driveways, garage floors, barn floors, stable pads, and standard residential slabs up to 2,000 square feet
- 46-inch to 48-inch trowels — warehouse floors, large agricultural equipment pads, commercial flatwork, and slabs exceeding 2,000 square feet
Agricultural applications including barn floors, stable pads, and equipment slabs typically require 36-inch to 48-inch trowels paired with 6.5 HP to 13 HP engines for consistent coverage on 4-inch to 6-inch-thick slabs.
What Are the Best Walk-Behind Power Trowel Brands and How Do They Compare?
What Are the Best Power Trowel Brands?
The highest-rated walk-behind power trowel manufacturers specialize in concrete finishing equipment with decades of production history. Professional contractors evaluate brands on gearbox durability, blade quality, parts availability, and engine pairing options. Established manufacturers offer guard rings, gearboxes, and blade assemblies backed by documented warranty terms.
Brand differentiation comes down to 3 factors: gearbox construction (worm gear vs. planetary gear), standard blade material (spring steel vs. stainless), and included accessories (float pan, blade kit, or bare machine).
How Do Walk-Behind Power Trowels Compare to Ride-On Trowels?
Walk-behind power trowels finish slabs up to approximately 5,000 square feet efficiently; ride-on trowels handle slabs from 5,000 to 50,000-plus square feet. Walk-behind models weigh 95 to 250 pounds and cost significantly less than ride-on units weighing 600 to 1,200 pounds.
Walk-behind trowels access tight spaces that ride-on machines cannot enter — including residential garages, narrow barn aisles, and areas adjacent to walls or footings. Ride-on trowels finish large open areas faster but require wider access points and more experienced operators.
What Are the Most Common Walk-Behind Power Trowel Applications?
How Are Walk-Behind Power Trowels Used on Agricultural and Ranch Properties?
Farm and ranch owners use walk-behind power trowels to finish barn floors, livestock stable pads, equipment storage slabs, milking parlor floors, and outbuilding foundations. Agricultural concrete slabs typically range from 4 to 6 inches thick with a broom or light-trowel finish for traction.
A 36-inch gas-powered trowel finishes a 1,500-square-foot barn floor in approximately 20 minutes per pass — replacing 3 to 4 hours of hand finishing with bull floats and hand trowels.
Which Residential and Commercial Projects Require a Walk-Behind Power Trowel?
Walk-behind power trowels are standard equipment for 6 common project types:
- Residential driveways and garage floors (typically 400 to 800 square feet)
- Patios and outdoor living spaces requiring smooth or burnished finishes
- Sidewalks and pathway slabs in landscape and hardscape installations
- Commercial shop floors and small warehouse slabs up to 5,000 square feet
- Decorative concrete prep where a flat, dense substrate precedes stamping or coating
- Slab-on-grade foundations for residential and light commercial buildings
What Are Common Power Trowel Problems and How Do You Maintain Your Machine?
What Are Common Power Trowel Problems?
5 problems account for most walk-behind power trowel failures:
- Gearbox oil leaks caused by worn seals — check oil level before every use
- Blade pitch linkage binding from dried concrete buildup — clean after every pour
- Engine stalling under load from fouled spark plugs or dirty air filters — replace spark plugs every 100 hours
- Uneven finish from worn or mismatched blades — replace all 4 blades as a set
- Excessive vibration from bent spider arms or loose blade bolts — inspect spider assembly every 50 hours
Can You Power Trowel Too Much?
Over-troweling concrete causes surface delamination, darkening, and micro-cracking by sealing bleed water beneath a densified top layer. The risk increases when operators start troweling before bleed water fully evaporates or when too many finish passes compact the surface beyond the concrete's cure capacity.
2 to 4 total passes (1 float pass plus 1 to 3 finish passes) is standard for most slab pours. High-performance floors requiring a burnished finish accept up to 5 passes with careful timing between each pass to allow moisture release.
What Maintenance Schedule Keeps a Walk-Behind Power Trowel Running Reliably?
A 4-interval maintenance schedule applies to gas-powered walk-behind power trowels:
- Before every use — check engine oil level, gearbox oil level, blade condition, and blade bolt torque
- Every 25 hours — clean or replace air filter element, inspect throttle cable, and grease pitch adjustment linkage
- Every 100 hours — replace spark plug, change engine oil, and change gearbox oil
- Every 300 hours — inspect centrifugal clutch pads, inspect gearbox seals, and replace fuel filter
Electric walk-behind trowels require less maintenance — no oil changes, no spark plugs, and no fuel system service. Inspect brushes (on brushed motors) every 200 hours and replace when worn to the wear indicator line.
Browse Forge Claw's Walk-Behind Power Trowel Selection
Forge Claw stocks professional-grade walk-behind power trowels from 24-inch compact models to 48-inch heavy-duty machines — gas and electric. Every trowel ships ready to finish concrete on day one. Our equipment specialists match the right blade diameter, engine class, and blade package to your project. Equipment financing is available for qualified buyers.
What Makes Forge Claw's Selection Right for Professional Use?
Every walk-behind power trowel in Forge Claw's lineup meets the durability and performance standards professional contractors and farm owners demand. You get real spec sheets, direct support from people who know concrete equipment, and machines that hold up through years of pours — not rental-fleet leftovers.
What Other Products Do Contractors and Farm Owners Pair with Walk-Behind Power Trowels?
Contractors and farm owners regularly combine walk-behind power trowels with complementary concrete finishing products to handle every stage from pour to polish.
Which Products Work Alongside Walk-Behind Power Trowels?
- Concrete vibrators — consolidate fresh concrete and remove air pockets before troweling begins
- Bull floats and fresno trowels — level and smooth concrete immediately after screeding and before power troweling
- Concrete power screeds — strike off and level concrete to grade before floating
- Knee boards — provide a stable kneeling surface for hand-finishing edges and joints that trowels cannot reach
- Concrete saws — cut control joints after the slab cures to prevent random cracking
Ride-On Power Trowels
Large commercial pours often require both machine types to handle different coverage areas efficiently. Ride-On Power Trowels excel on expansive slabs where speed matters most, while walk-behind units access tight corners and confined spaces that riding machines cannot reach.
Power Trowel Blades
Maintaining consistent finishing quality depends on having sharp, properly configured blades for your specific concrete mix and weather conditions. Power Trowel Blades wear down through regular use and require periodic replacement to ensure smooth operation and professional results.
Concrete Hand Trowels
Precision edge work and detail finishing around penetrations require manual tools that power equipment cannot access safely. Concrete Hand Trowels handle these critical touch-up areas where mechanical troweling leaves imperfections or cannot physically reach.
Frequently Asked Questions About Walk-Behind Power Trowels
What Is a Walk-Behind Trowel and When Should You Use One Instead of Hand Finishing?
A walk-behind trowel is a motorized concrete finishing machine that rotates 4 blades to smooth, flatten, and densify freshly poured concrete slabs. It replaces hand troweling on any slab larger than approximately 100 square feet.
Hand finishing a 500-square-foot garage floor takes one experienced finisher 3 to 4 hours with a bull float and hand trowels. A 36-inch walk-behind power trowel completes the same area in approximately 30 minutes across 2 to 3 passes with a flatter, more uniform surface. Walk-behind power trowels are standard equipment for contractors, farm owners, and landowners pouring slabs for driveways, barns, equipment pads, and garage floors.
What Are Common Power Trowel Problems and How Do You Fix Them?
The 5 most common walk-behind power trowel problems are gearbox oil leaks, pitch linkage binding, engine stalling under load, uneven finish from worn blades, and excessive vibration from bent or loose spider components.
Gearbox leaks require seal replacement — continuing to run a trowel with low gearbox oil destroys the gear set. Pitch linkage binding results from dried concrete in the adjustment mechanism; cleaning the linkage and applying grease after every use prevents the problem. Engine stalling traces to air filter restriction or fouled spark plugs in 90 percent of cases. Replacing all 4 blades as a matched set eliminates uneven surface finish caused by height or wear differences between individual blades.
What Are the Best Power Trowel Brands for Professional Contractors?
The best walk-behind power trowel brands for professional contractors are established manufacturers with documented gearbox warranties, available replacement parts networks, and field-proven engine pairings on machines rated for daily commercial use.
Professional-grade walk-behind power trowels feature hardened worm-gear or planetary-gear gearboxes rated for 1,000-plus hours, spring steel or stainless steel blade sets, heavy-gauge guard rings, and engines from proven four-stroke manufacturers. Contractors evaluate brands on 3 factors: gearbox service life, blade and parts availability in their region, and total cost of replacement components over the machine's working life.
Can You Power Trowel Too Much and Damage Your Concrete?
Over-troweling concrete seals the surface prematurely, trapping bleed water beneath a densified layer. This causes delamination, scaling, surface darkening, and micro-cracking that compromises the slab's long-term durability.
Standard slab pours require 2 to 4 total passes — 1 float pass followed by 1 to 3 finish passes at progressively steeper blade pitch. Each pass compresses the surface further. Operators wait until the surface loses its sheen between passes before making the next pass. Hot weather and low humidity accelerate surface drying, narrowing the safe troweling window. Cold weather extends the window but increases the risk of starting too early on slow-setting concrete.
How Long Does a Walk-Behind Power Trowel Last with Proper Maintenance?
A well-maintained walk-behind power trowel operates reliably for 1,000 to 3,000 engine hours depending on engine quality, gearbox construction, and adherence to the manufacturer's maintenance schedule.
Gas engines require oil changes every 100 hours, air filter service every 25 hours, and spark plug replacement every 100 hours. Gearbox oil changes every 100 hours protect the gear set from premature wear. Blades are consumable components replaced every 20,000 to 40,000 square feet. A contractor finishing 50,000 square feet per year replaces blade sets 1 to 3 times annually. Machines that receive consistent maintenance retain resale value and outperform neglected units by a wide margin over a 5-year ownership period.
Browse Forge Claw's full selection of professional-grade walk-behind power trowels — equipment financing available for qualified buyers.
