How Deep Can a Mini Excavator Dig — Depth Guide by Size

How deep can a mini excavator dig depends on weight class — 1 ton models reach 5 to 6 feet, 2 ton models reach 8 to 10 feet, and 3 to 5 ton models reach 10 to 15 feet. Soil type, arm configuration, and attachment choice all shift those numbers in real working conditions. This guide breaks down depth ranges by machine size, covers the factors that limit or extend digging depth, and walks through how to match the right excavator class to your project's depth requirements.

What Do You Need to Know Before Digging With a Mini Excavator?

Digging to a target depth with a mini excavator requires 3 prerequisites: the correct machine weight class, a site assessment for soil and underground utilities, and the right attachment for the dig type. Each factor directly determines whether the machine reaches the required depth safely.

What Equipment and Size Class Are Required?

The mini excavator weight class determines maximum digging depth. A 1 ton machine reaches 5 to 6 feet. A 2 ton machine reaches 8 to 10 feet. A 3 to 5 ton machine reaches 10 to 15 feet. Long-arm or extendable-arm configurations add 2 to 4 feet of reach beyond standard specs.

• 1 ton class — 5 to 6 feet max depth, fits through openings as narrow as 3 feet
• 2 ton class — 8 to 10 feet max depth, standard for residential utility trenching
• 3 to 5 ton class — 10 to 15 feet max depth, suited for deep footings and commercial work

What Site Conditions and Preparations Are Needed?

Call 811 or the local utility locate service before any excavation. Mark all underground utilities with paint or flags. Assess soil type on site — clay and saturated ground reduce effective digging depth by 30 to 50 percent compared to dry granular soil. Check the water table depth, because standing water below 4 feet fills trenches faster than the bucket removes material.

How Does Tail Swing Affect Depth Work in Tight Spaces?

Tail swing radius determines whether a mini excavator operates safely in confined areas. Zero tail swing models keep the counterweight inside the track width during rotation. Full-swing models dig more efficiently with better counterweight balance but require 12 to 24 inches of additional clearance on each side.

Shop Earthmoving Digging Attachments for This Job

These 10 picks from our earthmoving digging attachments range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all earthmoving digging attachments.

8" x 36" Auger Bit for Skid Steer | Carbide Tip | Heat-Treated Steel | Brave$446Auger Bit for Skid Steer | Commercial Drilling | 14 Inch Diameter | Brave$6054" x 36" Auger Bit for Standard Drives | Heat-Treated Edges | Brave$391Brave Pro 5-In. Bedmaster Rotor Trencher for Walk-Behind | 9-Inch Depth | Honda GX270 | Brave$4,990Bit Extension Auger for Earth Auger | 15" Length | 1.38" Hex Drive | Brave$152Bucket for Mini Skid Steer | 3/16" Steel | 3/8" Cutting Blade | Star Industries$928Push Drop Spreader | Walk Behind Style | 50-Lb Capacity | 13-In Wheels | Stainless Steel | Spyker$624Push Drop Spreader | 120 lb Capacity | Stainless Steel | AccuWay Technology | Spyker$999Compact Tractor Rock Bucket Attachment – Sifting Rocks and Debris with Ease | Stinger Attachments$1,095Compact Tractor Rock Grapple Attachment – Built for Land Clearing and Debris Handling | Stinger Attachments$2,495

How Do You Maximize Mini Excavator Digging Depth Step by Step?

Reaching maximum digging depth with a mini excavator follows 5 steps over 15 to 45 minutes per trench section. Each step has a measurable checkpoint before moving to the next depth increment.

What Are the Steps to Reach Maximum Digging Depth?

Complete these 5 steps in order to reach target depth safely and efficiently.

1. Position the machine. Set the mini excavator on level ground perpendicular to the trench line. Extend the blade down to stabilize the chassis. Confirm at least 3 feet of clearance from any marked utility line.
2. Excavate the first bench. Dig the initial 3 to 4 feet of depth across the full trench width. Remove spoil to a pile at least 2 feet from the trench edge. Keep the bucket angle between 30 and 45 degrees for clean cuts.
3. Cut the second bench. Narrow the trench width by 6 to 12 inches and dig another 3 to 4 feet deeper. Bench cutting prevents sidewall collapse and keeps the bucket path clear for material removal.
4. Check depth and grade. Lower a measuring rod or grade stick to the trench bottom. Compare the reading against the target depth. Adjust the final 6 to 12 inches with controlled, shallow bucket passes.
5. Clear the trench floor. Scrape the trench bottom flat with the bucket teeth angled parallel to the floor. Remove any loose material or slough from the sidewalls. Verify the finished depth one final time before moving to the next section.

What Are the Most Common Mistakes When Digging Deep?

The most common mistake is digging a narrow trench to full depth in a single pass. This causes sidewall collapse in cohesive soils and jams the bucket in clay. Bench cutting in 3 to 4 foot increments prevents both problems.

• Single-pass deep trenching — causes wall collapse — use bench cuts at 3 to 4 foot intervals
• Piling spoil at the trench edge — adds surcharge load to unstable walls — pile spoil at least 2 feet from the edge
• Ignoring soil moisture — saturated clay reduces effective depth by up to 50 percent — dewater before continuing

What Safety Practices Apply When Digging Deep With a Mini Excavator?

Deep excavation safety requires 4 controls: trench shoring or sloping for cuts over 5 feet, a spotter for confined-area work, PPE including hard hat and high-visibility vest, and continuous awareness of underground utility locations. Each control prevents a specific fatality or equipment damage risk.

What Are the Critical Safety Requirements?

Any trench deeper than 5 feet requires cave-in protection per OSHA standards. Use trench boxes, shoring, or slope the walls at a 1:1 ratio in Type B soil. Keep all personnel outside the trench when the excavator arm operates below grade.

• No entry into unprotected trenches over 5 feet deep — cave-in risk causes fatal crushing injuries
• Maintain 10 feet of clearance from overhead power lines — contact causes electrocution
• Shut down the engine and relieve hydraulic pressure before anyone enters the trench — unexpected bucket movement causes struck-by injuries

What Are the Warning Signs During Deep Excavation?

Cracking along the trench edge is the most urgent warning sign of imminent wall collapse. Visible tension cracks running parallel to the trench appear 1 to 3 feet from the edge before failure. Stop digging immediately, evacuate all personnel, and widen the trench or install shoring before resuming work.

How Do You Maintain Digging Performance After Each Project?

Post-project mini excavator maintenance involves 4 steps: bucket tooth inspection, hydraulic hose check, undercarriage cleaning, and pin and bushing lubrication. Skipping any step accelerates wear and reduces digging depth on the next job.

What Post-Use Maintenance Keeps Digging Depth Consistent?

Inspect bucket teeth after every deep-digging session. Worn or missing teeth reduce penetration force by 20 to 30 percent, which directly limits effective depth in hard soils. Replace teeth when wear reaches the adapter surface. Clean all packed soil from the undercarriage to prevent track tension loss.

How Often Should You Inspect the Arm and Boom Components?

Inspect arm and boom pins, bushings, and cylinder seals every 250 operating hours. Worn pins allow 0.5 to 1 inch of play in the arm linkage, reducing maximum reach and depth by an equal amount. Grease all pivot points every 10 operating hours or at the start of each workday.

Frequently Asked Questions About Mini Excavator Digging Depth

The most common mini excavator digging depth questions cover maximum depth limits, basement excavation, fence post requirements, rocky soil performance, and auger attachment capabilities. The answers below resolve each with specific numbers and field-tested guidance.

What Is the Deepest a Mini Excavator Can Dig?

The deepest standard mini excavator reach is 14 to 15.5 feet, achieved by 5 ton class machines with long-arm configurations.

Extended or telescoping arm options push that figure to roughly 17 to 18 feet on select 5 ton models. Beyond 15 feet, cycle times increase significantly and bucket fill rates drop because the arm operates at extreme extension angles. For post holes and pier shafts that require precise depth beyond bucket reach, an auger attachment bores vertically to 10 to 15 feet depending on auger shaft length.

Can a Mini Excavator Dig a Basement?

A 3 to 5 ton mini excavator handles basement excavation for standard 8-foot basement depths, though the job requires bench cutting and multiple repositioning passes.

A typical 1,200 square foot basement at 8 feet deep produces roughly 350 cubic yards of spoil. A 5 ton mini excavator moves 30 to 50 cubic yards per hour in favorable soil, meaning the excavation takes 7 to 12 hours of seat time. Access width and spoil hauling logistics often matter more than digging depth for basement projects.

How Deep Do You Need to Dig for a Fence Post?

Fence posts require holes 24 to 36 inches deep for residential fences and 36 to 48 inches deep for commercial or agricultural fences, with depth set to one-third of total post length.

A 6-foot fence post needs a 24-inch hole. An 8-foot post needs a 32-inch hole. Frost line depth in northern states requires holes at 36 to 48 inches minimum to prevent heaving. An auger attachment sized to the post diameter — typically 6 to 12 inches — drills these holes in 30 to 90 seconds each.

How Much Can a Mini Excavator Dig in a Day?

A mini excavator trenches 100 to 300 linear feet per day at moderate depth, depending on trench width, depth, and soil conditions.

A 2 ton excavator digging a 24-inch-wide trench at 4 feet deep in sandy loam averages 250 to 300 linear feet in an 8-hour shift. The same machine in heavy clay at 6 feet deep produces 100 to 150 linear feet. Every additional foot of depth adds 15 to 25 percent more cycle time per bucket load because the arm extends farther and spoil travel distance increases.

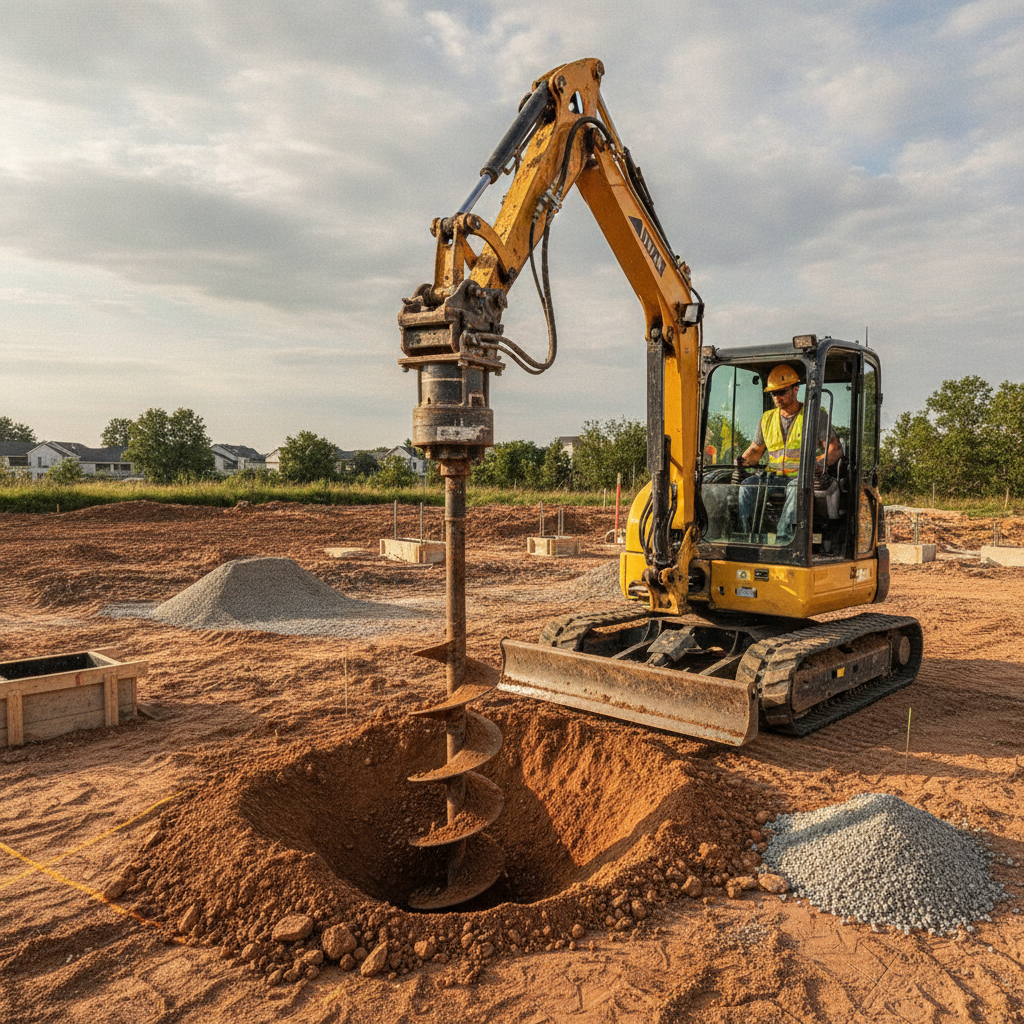

How Deep Can a Mini Excavator Dig With an Auger?

A mini excavator with an auger attachment bores 10 to 15 feet deep depending on auger shaft length, with extensions available to reach 20 feet for pier and caisson work.

Auger diameter ranges from 6 to 36 inches. Smaller diameters reach greater depths because the auger generates less resistance and the machine maintains adequate hydraulic torque. The excavator requires 8 to 15 GPM hydraulic flow and 2,000 to 4,500 PSI to drive the auger at rated speed. Browse Mini Excavator Auger options sized for different machine classes and depth requirements. For standard trenching buckets and ripper attachments that improve digging in hard ground, explore Earthmoving Digging Attachments matched to mini excavator pin configurations.
