What Is a Floor Sander and How Does It Work?
A floor sander is a powered machine that strips, smooths, and prepares wood flooring surfaces using abrasive belts, discs, or pads — used by contractors and property owners for floor restoration and refinishing. Four primary types exist: drum sanders, orbital sanders, edger sanders, and multi-disc planetary sanders. Each type removes material through a distinct mechanical action suited to specific floor conditions and project stages.
What Are the Main Components of a Floor Sander?
The main components of a floor sander are the motor, sanding drum or pad, abrasive media, dust collection system, handle and frame, and height or pressure adjustment mechanism. Motors range from 1.5 HP on edger sanders to 5 HP on commercial drum models. Drum widths span 8 inches to 12 inches on walk-behind units.
- Dust collection bags or ports (4-inch diameter standard) connect to shop vacuums rated at 100+ CFM
- Sanding belts and discs require replacement every 200–400 square feet depending on floor condition
- Voltage requirements split between 110V residential circuits and 220V commercial circuits for machines above 3 HP
- Machine weights range from 50 lbs for edger sanders to 150+ lbs for commercial drum sanders
How Does a Floor Sander Remove Material from Wood and Hardwood Surfaces?
A floor sander removes material by spinning or oscillating abrasive grit against the floor surface under controlled downward pressure, stripping old finish and leveling wood fibers. Coarse grits (24–36) handle heavy stripping of paint, varnish, and deep scratches. Medium grits (60–80) level the surface and remove drum marks.
Fine grits (100–120) prepare the wood for finish application. Drum sanders cut aggressively and remove more material per pass than orbital sanders. Orbital sanders produce a random scratch pattern that hides sanding marks and reduces visible cross-grain damage on hardwood species.
What Type of Sander Is Best for Sanding Floors?
A drum sander is best for sanding large, heavily worn floors that need aggressive material removal. An orbital floor sander is the better choice for lightly worn floors, finish-ready surfaces, and operators who want a more forgiving machine. The right selection depends on floor condition, project square footage, flooring material, and operator experience level.

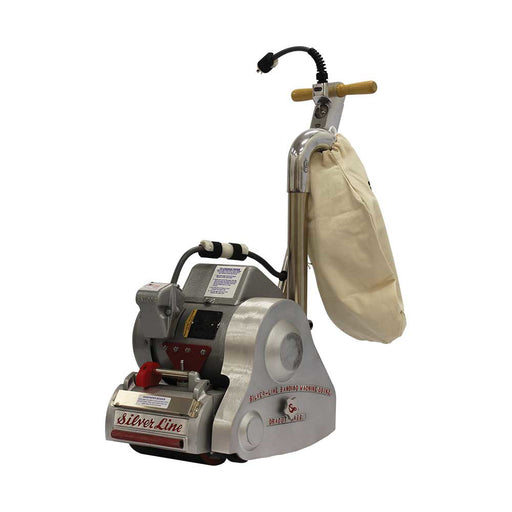

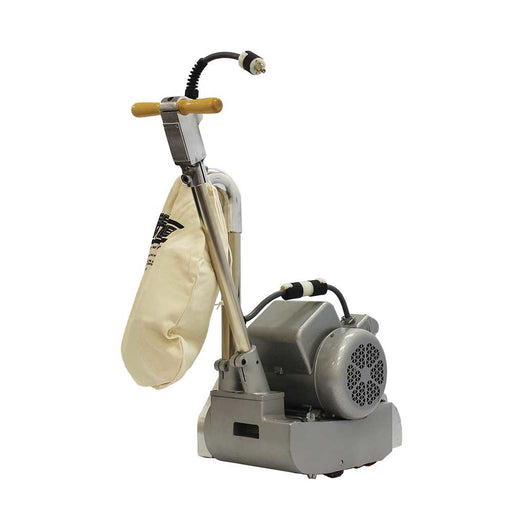

When Should You Use a Drum Floor Sander?
A drum floor sander is the right tool when stripping multiple layers of old finish, leveling uneven boards, or sanding raw hardwood floors over 200 square feet. Commercial drum sanders run 3–5 HP motors with 8-inch sanding widths and remove material at 2–3 times the rate of orbital models.
- Barn floor restoration requiring removal of decades-old finish and surface damage
- Large residential hardwood refinishing projects above 500 square feet
- Commercial facility floors with heavy wear patterns and deep scratches
- New solid hardwood installations needing initial flattening and smoothing
When Is an Orbital Floor Sander the Right Choice?
An orbital floor sander is the right choice for refinishing floors in good condition, applying a screen-and-recoat, or when the operator has limited floor sanding experience. Random orbital patterns eliminate cross-grain scratches. Pad sizes range from 12 to 16 inches. Orbital sanders cause less damage to engineered hardwood and softwood species like pine and fir.
What Jobs Require an Edger Sander?
An edger sander is required for sanding within 1–2 inches of walls, baseboards, door frames, and corners that walk-behind floor sanders cannot reach. Standard edger sanders use 7-inch disc diameters with 1.5–2 HP motors. Every floor sanding project requires an edger in addition to the primary sander to achieve a uniform finish across the full floor area.
How Does a Multi-Disc Planetary Sander Compare to a Drum Sander?
A multi-disc planetary sander uses 3–4 counter-rotating discs instead of a single drum, producing a flatter and more uniform finish with less risk of visible sanding marks. Drum sanders strip faster for heavy removal. Multi-disc planetary sanders deliver superior results on final passes and on engineered hardwood where aggressive material removal risks cutting through the wear layer.
How Hard Is It to Sand Floors Yourself vs. Hiring a Professional?
Sanding floors yourself is moderately difficult — a drum sander requires 8–16 hours of practice to operate without gouging, while orbital sanders are effective after 2–4 hours of instruction. The difficulty depends on the sander type, floor condition, and the operator's experience with powered floor equipment. Common failure points include drum marks, uneven pressure, and skipped grit stages.
What Skill Level Do You Need to Operate a Floor Sander Safely?
Operating a drum floor sander safely requires intermediate-to-advanced skill, while orbital floor sanders suit beginners after brief hands-on training. Edger sanders fall in between, requiring 4–8 hours of practice to feather edges smoothly. Improper drum sander use causes gouges, dish-outs, and uneven surfaces that require additional sanding passes or board replacement to correct.
What Are the Most Common Floor Sanding Mistakes Contractors Avoid?
The most common floor sanding mistakes are sanding against the grain, skipping grits in the sanding sequence, applying uneven pressure, and failing to check for nails and staples before starting.
- Skipping from 36-grit to 100-grit leaves visible scratch patterns under finish
- Stopping a drum sander while the drum contacts the floor creates divots
- Failing to vacuum between grit changes embeds coarse particles into finer passes
- Neglecting moisture meter readings leads to sanding wood above 12% moisture content, causing finish failure
What Safety Equipment and PPE Does Floor Sanding Require?
Floor sanding requires a NIOSH-rated dust respirator (P100 recommended), hearing protection rated for exposure above 85 dB, safety glasses, and knee pads for edger work. Floor sanders generate fine wood dust classified as a respiratory hazard by OSHA. Dust containment systems — including HEPA vacuum hookups and plastic sheeting for room isolation — reduce airborne particulate during sanding operations.
What Is the Best Floor Sander for Refinishing Floors?
The best floor sander for refinishing floors is an orbital or multi-disc planetary sander for most refinishing projects, paired with an edger sander for perimeter work. The right refinishing sander depends on 3 factors: floor material type, total square footage, and the condition of the existing finish. Specification matching and grit sequence discipline determine refinishing quality more than machine brand.
Which Floor Sander Specifications Matter Most for Refinishing Projects?
Motor horsepower, sanding width, dust collection CFM, and voltage requirements are the 4 specifications that determine floor sander refinishing performance. Residential refinishing projects under 800 square feet run efficiently on 110V orbital sanders with 12-inch pads. Projects above 800 square feet benefit from 220V drum or multi-disc sanders with 8–16-inch sanding widths and dust extraction rated at 100+ CFM.
What Grit Sequence Should You Follow When Refinishing Hardwood Floors?
The standard grit sequence for refinishing hardwood floors is 36 → 60 → 80 → 100 → 120, with each stage removing the scratch pattern left by the previous grit.
- 36-grit: strips old finish and removes deep scratches on heavily worn floors
- 60-grit: levels the surface and removes 36-grit scratch marks
- 80-grit: smooths grain and prepares for fine sanding
- 100-grit: creates a uniform surface for stain or sealer
- 120-grit: final pass for water-based finish adhesion on hardwood species
How Do You Choose a Floor Sander Based on Project Size and Floor Type?
Project size and floor type narrow the floor sander selection to 1–2 machine categories. Solid hardwood floors in poor condition over 500 square feet require a drum sander. Engineered hardwood and softwood floors perform better under orbital sanders that avoid cutting through thin wear layers. Agricultural building floors and workshop surfaces with paint or heavy coatings need drum sanders starting at 24-grit or 36-grit.
Is It Worth Sanding Your Own Floors — Cost and ROI Analysis?
Sanding your own floors saves $1.50–$3.00 per square foot compared to hiring a professional flooring contractor. For contractors and property owners managing multiple properties, owning a floor sander eliminates per-project rental costs and scheduling delays. The financial breakeven depends on project volume and machine purchase price.
What Does Professional Floor Sanding Cost Per Square Foot?
Professional floor sanding costs $2.50–$5.00 per square foot for sand-and-finish work, depending on floor condition and geographic location. A 1,000-square-foot hardwood floor refinishing project costs $2,500–$5,000 through a flooring contractor. Self-performed sanding using owned equipment reduces per-project cost to $0.50–$1.50 per square foot for abrasives, finish materials, and machine wear.
How Does Owning a Floor Sander Pay Off for Contractors and Property Owners?
A professional-grade drum floor sander pays for itself within 2–4 refinishing projects for contractors sanding 500+ square feet per job. Farm owners, ranch owners, and property managers restoring multiple buildings — barns, workshops, rental units — recover equipment costs faster than single-property owners. Operators who also pair floor sanders with Surface Scarifiers for concrete prep work expand the revenue potential of a single equipment investment.
Browse Forge Claw's Floor Sander Selection
Forge Claw carries professional-grade floor sanders built for contractors, property owners, and agricultural professionals who need machines that hold up job after job. Every floor sander in the catalog meets commercial-duty specifications — not homeowner-grade compromises dressed up for the weekend warrior market. Equipment financing available for qualified buyers.
What Makes Forge Claw's Selection Right for Professional Use?
Every floor sander Forge Claw stocks is rated for commercial-duty cycle use, with motor power, build weight, and dust collection capacity that match professional project demands. The lineup covers drum sanders, orbital sanders, edger sanders, and multi-disc planetary sanders — so you pick the right machine for the floor, not the only machine on the shelf.
What Other Products Do Contractors and Property Owners Pair with Floor Sanders?
Contractors and property owners regularly combine floor sanders with complementary products to handle complete floor restoration and facility maintenance projects without renting additional equipment.
Which Products Work Alongside Floor Sanding Machines?
Floor sanding projects require companion equipment for dust control, surface preparation, and finish application. Operators working across mixed floor types — hardwood, concrete, plywood subfloor — expand capability by pairing floor sanders with Floor Care Equipment for post-sanding maintenance and finish preservation.
- Dust collection systems and HEPA shop vacuums for airborne particulate control during sanding
- Floor buffers and polishers for inter-coat abrasion and final finish buffing
- Moisture meters for verifying subfloor and hardwood moisture content before sanding begins
- Concrete Specialty Tools for prepping adjacent concrete surfaces in mixed-use agricultural buildings and workshops
Edge Floor Sander
Tight corners and baseboards require specialized equipment that drum sanders cannot reach effectively. An Edge Floor Sander handles these precise areas with compact design and angled access capabilities. Together, these tools complete comprehensive floor preparation projects without manual scraping in hard-to-reach spaces.
Floor Burnisher
After sanding removes old finishes and imperfections, applying protective coatings requires proper surface preparation. A Floor Burnisher creates the smooth, polished base needed for optimal stain and polyurethane adhesion. Contractors typically use both machines in sequence for professional hardwood restoration projects.
Floor Cleaner
Sanding operations generate significant dust and debris that must be thoroughly removed before finishing work begins. Professional Floor Cleaner equipment ensures complete particle removal from wood grain and surface pores. This critical step prevents contamination that would compromise the final finish quality and durability.
Frequently Asked Questions About Floor Sanders
Floor sander buyers most frequently ask about machine type selection, refinishing suitability, difficulty level, cost justification, and maintenance intervals. The 5 questions below address the specific decision points that determine whether a floor sander purchase matches the operator's project requirements and skill level.
What Type of Sander Is Best for Sanding Floors?
A drum sander is best for heavily worn floors needing aggressive material removal. An orbital floor sander is best for lightly worn floors and less experienced operators.
Drum floor sanders run 3–5 HP motors and remove old finish, paint, and surface damage at 2–3 times the rate of orbital models. Orbital floor sanders use random scratch patterns that hide sanding marks and protect thin wear layers on engineered hardwood. Edger sanders handle the 1–2 inches along walls and baseboards that walk-behind machines miss. Most refinishing projects require both a primary sander and an edger to achieve a uniform result across the full floor area.
What Is the Best Sander for Refinishing Floors?
An orbital or multi-disc planetary sander is the best choice for most refinishing projects, producing a uniform finish with lower risk of visible sanding marks than a drum sander.
Multi-disc planetary sanders use 3–4 counter-rotating heads that flatten and smooth floors without the aggressive directional cut of a single drum. Floors in good condition needing a screen-and-recoat respond well to 12–16-inch orbital sanders on 110V circuits. Floors with heavy damage, multiple finish layers, or deep scratches still require a drum sander for initial stripping before switching to an orbital sander for final passes at 100-grit and 120-grit.
How Hard Is It to Sand Floors Yourself?
Sanding floors yourself is moderately difficult with a drum sander and beginner-accessible with an orbital floor sander. Drum sanders require 8–16 hours of practice to avoid gouging and uneven surfaces.
Orbital floor sanders are forgiving enough for operators with 2–4 hours of hands-on instruction. The most common self-sanding failures come from skipping grits, stopping the drum while it contacts the floor, and sanding against the grain. Checking for nails, staples, and moisture content above 12% before starting prevents the most costly mistakes. Contractors adding floor refinishing to a service line typically achieve professional-quality results after 2–3 supervised jobs.
Is It Worth Sanding Your Own Floors?
Sanding your own floors saves $1.50–$3.00 per square foot compared to professional contractor rates of $2.50–$5.00 per square foot for sand-and-finish work.
Owning a floor sander pays for itself within 2–4 projects for contractors and property managers handling 500+ square feet per job. Farm owners and ranch owners restoring barn floors, workshop floors, and rural property hardwood recover equipment costs faster across multiple buildings. A 1,000-square-foot refinishing project costs $2,500–$5,000 through a contractor versus $500–$1,500 in abrasives and finish materials when self-performed with owned equipment.
How Do You Maintain a Floor Sander Between Jobs?
Floor sander maintenance between jobs requires replacing worn sanding belts or discs, emptying and inspecting the dust collection bag, and checking the drum or pad for wear or glazing.
Sanding belts on drum floor sanders last 200–400 square feet per belt depending on floor condition and grit coarseness. Dust collection bags require emptying when 75% full to maintain airflow above 100 CFM. Drive wheels and rubber contact surfaces on drum sanders wear over time and require inspection every 5–10 projects. Edger sander pads lose grip after 10–15 disc changes and need replacement to prevent disc slippage during perimeter sanding operations.
Browse Forge Claw's full selection of professional-grade floor sanders — equipment financing available for qualified buyers.
