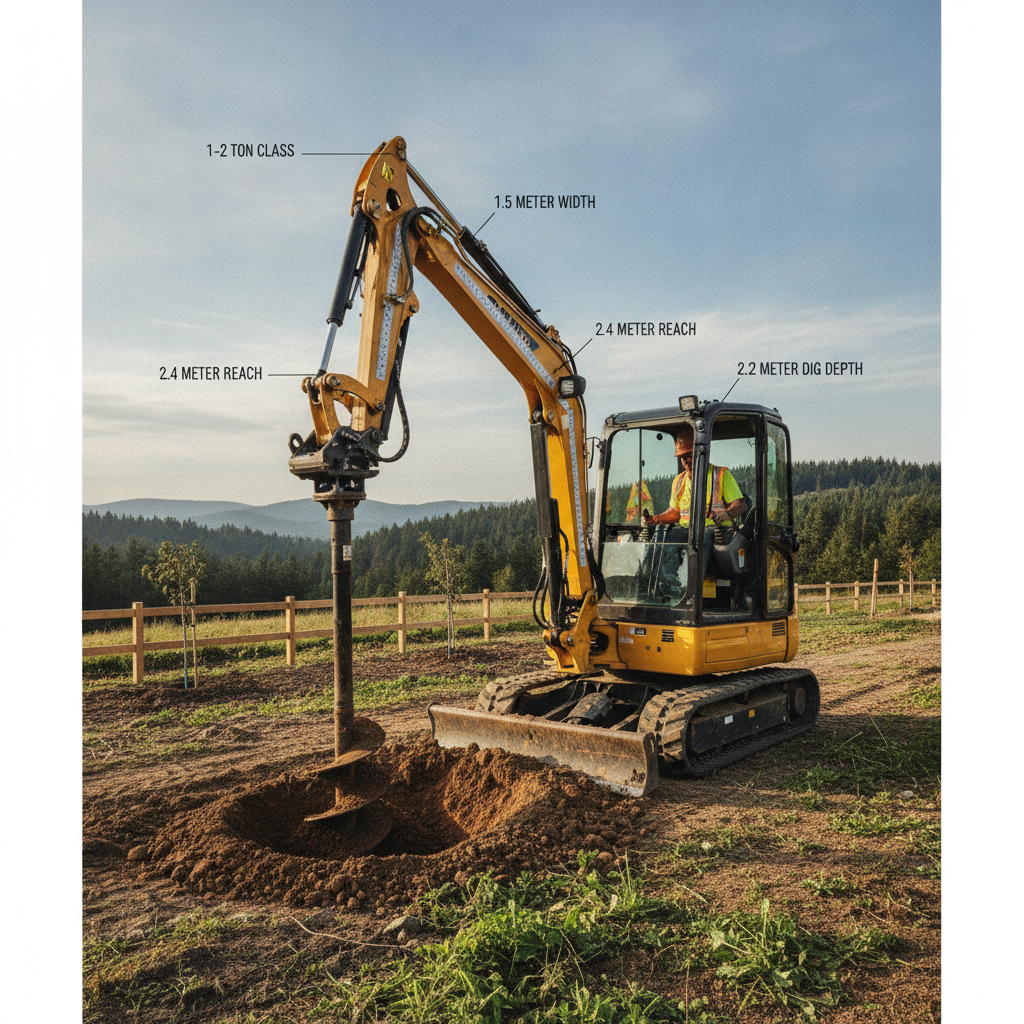

Mini Excavator Dimensions Buyer Guide — What to Look For

Mini excavator dimensions determine whether a machine fits your jobsite, your trailer, and your gate — or costs you a day of wasted mobilization. Five factors drive the right choice: overall width (including blade), transport height with boom folded, operating weight relative to your tow vehicle's GVWR, dig depth matched to project scope, and tail-swing radius for confined work areas. Get any one of these wrong and you're either stuck at the entrance or underpowered at the trench. This guide breaks down every measurement you need, class by class, spec by spec.

What Mini Excavator Dimension Specifications Should You Verify Before Buying?

Mini excavator dimension specifications fall into three categories: access compatibility, transport fitment, and working-envelope performance. Each category eliminates a specific failure — getting stuck at a gate, overloading a trailer, or running out of reach mid-dig.

What Access Compatibility Dimensions Must Match Your Jobsite?

Overall width, transport height, and tail-swing radius determine whether the machine physically fits the work area. A machine that exceeds gate width by even 2 inches requires fence removal, adding $200 to $500 in labor and repair costs per occurrence. Verify all three before signing a purchase order or rental agreement.

• Overall width (tracks retracted): acceptable range 28 to 77 inches — exceeding gate or alley width prevents site access entirely
• Transport height (boom folded): acceptable range 72 to 100 inches — exceeding trailer-plus-machine height of 13 feet 6 inches triggers overheight violations on public roads
• Tail-swing radius: acceptable range 0 to 24 inches past track edge — any overhang beyond track width risks striking structures, utilities, or fencing in confined lots

What Transport Fitment Specs Determine Safe Hauling?

Operating weight, machine length, and track width must fall within your trailer's weight rating and deck dimensions. A 1-ton mini excavator at 2,200 lbs rides safely on a 5,000-lb GVWR trailer behind a half-ton truck. A 5-ton machine at 11,000 lbs requires a 14,000-lb GVWR trailer and a one-ton truck minimum.

• Operating weight: verify against trailer GVWR minus trailer curb weight — overloading voids insurance coverage and risks brake failure
• Machine length (boom folded): verify against trailer deck length — overhang beyond 3 feet requires flagging and reduces braking stability
• Track width: verify against trailer deck width — tracks extending past deck edge cause load shift during turns

What Working-Envelope Specs Determine Performance?

Dig depth, boom reach at grade, and lift capacity at maximum reach define the machine's productive output on the job. A 1-ton machine digs to 5 feet 6 inches. A 5-ton machine digs to 12 feet 6 inches. Selecting a machine 2 feet short of required dig depth forces benchwork or a second mobilization.

• Maximum dig depth: 1-ton class averages 5 to 6 feet; 3-ton class averages 9 to 10 feet; 5-ton class averages 12 to 13 feet — insufficient depth requires costly benchwork
• Maximum reach at grade: ranges from 10 feet (1-ton) to 22 feet (10-ton) — short reach forces repositioning, adding 15 to 30 minutes per trench run
• Rated lift capacity at 10-foot radius: ranges from 400 lbs (1-ton) to 4,500 lbs (10-ton) — exceeding rated lift triggers hydraulic relief valves or tips the machine

Shop Earthmoving Digging Attachments for This Job

These 10 picks from our earthmoving digging attachments range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all earthmoving digging attachments.

Push Drop Spreader | 120 lb Capacity | Stainless Steel | AccuWay Technology | Spyker$999Compact Tractor Rock Bucket Attachment – Sifting Rocks and Debris with Ease | Stinger Attachments$1,095Compact Tractor Rock Grapple Attachment – Built for Land Clearing and Debris Handling | Stinger Attachments$2,495DOT Package Post Driver | Gas-Powered | 1.2HP Honda GX50 Engine | 30 Lbs | Titan$3,875Earth Auger | Post Hole Digger | 52CC | Two-Stroke | 1-Person Operation | Powerhorse$234Earth Auger Bit for Earth Auger | 8-Inch | Pin Connection | Professional Grade | Powerhorse$167Earth Auger Bit for Auger | 36" Length | 1.38" Hex Drive | Brave$469Earth Auger Bit for Earth Augers | 8" Diameter | 1.38" HEX Drive | Brave$446Earth Auger Bit for Post Hole Digger | 6" x 36" | 1.38" Hex Drive | Brave$429Earth Auger Bit for Post Hole Digger | 36" Length | 1.38" Hex Drive | Brave$959

What Do Different Mini Excavator Dimension Classes Cost?

Mini excavator pricing reflects operating weight, hydraulic system output, and undercarriage build — three specs that scale together across size classes. Each price tier corresponds to a specific jobsite profile and use frequency.

What Do You Get at Each Price Level?

Three price tiers span from $15,000 to $120,000 for new machines.

• Entry-level (1-ton to 2-ton, $15,000 to $35,000): 28- to 39-inch track width, 5- to 7-foot dig depth, 6 to 10 GPM auxiliary hydraulics. Suited for homeowners, part-time landscapers, and light grading work under 20 hours per month
• Mid-range (3-ton to 5-ton, $35,000 to $70,000): 59- to 72-inch track width, 9- to 13-foot dig depth, 14 to 22 GPM auxiliary hydraulics. Suited for full-time contractors running 80 to 120 hours per month across residential and light commercial sites
• Professional (6-ton to 10-ton, $70,000 to $120,000): 72- to 80-inch track width, 13- to 16-foot dig depth, 22 to 33 GPM auxiliary hydraulics. Suited for commercial site work, municipal projects, and daily production digging

What Specifications Change at Each Tier?

The largest spec jump between entry and professional tiers is auxiliary hydraulic flow — from 6 GPM to 33 GPM. This 5x increase determines attachment compatibility. Entry-level machines run small augers (6- to 12-inch bits) and standard buckets. Professional machines power hydraulic breakers, 36-inch augers, and compaction wheels without bogging.

When Is an Entry-Level Mini Excavator Sufficient?

Entry-level machines handle projects requiring fewer than 20 operating hours per month and dig depths under 7 feet. Once monthly hours exceed 40 or trench depths exceed 8 feet, move to mid-range. The hydraulic system and undercarriage on entry-level units wear at accelerated rates above these thresholds.

What Should You Avoid When Evaluating Mini Excavator Dimensions?

The most common mini excavator dimension purchase mistakes involve width measurements that exclude the blade, weight figures that omit the bucket, and dig-depth ratings taken at a non-standard boom configuration. Each mistake creates a mismatch between quoted specs and real-world performance.

What Are the Red Flags in Listings and Spec Sheets?

The most frequent red flag is a width measurement that does not specify blade-up versus blade-down position. The dozer blade adds 4 to 8 inches beyond track width. A listing showing 39 inches wide without this distinction sets up a failed gate-access attempt on day one.

• Width listed without blade position noted: indicates the seller is quoting track width only — real working width is 4 to 8 inches wider
• Operating weight listed without bucket: actual working weight exceeds the quoted figure by 150 to 600 lbs depending on bucket size — this affects trailer loading and tow calculations
• Dig depth listed at maximum stick extension without specifying boom angle: actual usable dig depth at 90-degree bucket curl is 6 to 12 inches less than max spec
• No mention of retractable undercarriage availability: the seller either does not know or the machine lacks this feature — confirm before purchase if gate access under 60 inches is required

What Mini Excavator Dimensions Are Frequently Overstated?

Lift capacity at maximum reach is the most overstated spec. Manufacturers publish lift capacity at minimum radius (bucket tucked close to the machine). At full reach — where operators actually work — lift capacity drops 40 to 60 percent. A machine rated at 3,500 lbs at minimum radius delivers 1,400 to 2,100 lbs at full extension. Request the lift capacity chart, not a single number.

What Warranty Terms Should You Verify on Mini Excavators?

Minimum acceptable warranty is 24 months or 2,000 hours on the powertrain and hydraulic system. Structural frame and boom welds carry 36-month coverage from reputable sellers. Anything below these thresholds signals refurbished or gray-market equipment.

• Structural welds (boom, arm, frame): minimum coverage 36 months — below this indicates substandard welding or unknown service history
• Hydraulic pumps and cylinders: minimum coverage 24 months or 2,000 hours — seals and valves fail first in high-hour machines
• Wear parts (teeth, cutting edges, track pads): typically excluded from warranty — budget $800 to $2,500 per year depending on machine class and soil conditions

Shop Demolition Attachments for This Job

These 10 picks from our demolition attachments range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all demolition attachments.

Tile Smasher Head for Jackhammer | Universal Fit | 6-Inch Blade | High Tensile Steel | Makinex$297Tile Smasher Head for Rotary Hammer | SDS Max Shank | Flooring Removal | Makinex$167Tile Smasher Head for Rotary Hammer | SDS Plus Shank | Demolition Tool | Makinex$167Vac Attach Assembly for Jackhammer Trolley | Dust Control | Concrete Breaking | Makinex$199Vinyl Floor Stripper | ¾ HP Electric Motor | 35 lb Cutting Weight | Makinex$3,79744" Root Grapple/Grapple Bucket for Mini Skid Steer | Open Design | Star Industries$1,928Hydraulic Hammer Stand for Hydraulic Breakers | Heavy-Gauge Steel | Protective Arms | Star Industries$905Jackhammer Trolley for Jackhammer | Universal Fit | 35 lb Capacity | 6x Faster Demolition | Makinex$1,357Lifting Hooks for Self-Dump Hoppers | 6,000 lb Capacity | Heavy-Duty Steel | Star Industries$621Paver Breaking Pallet | Heavy-Duty Steel Frame | Reinforced Cross-Bracing | Star Industries$1,642

How Do You Match Mini Excavator Dimensions to Your Project?

Matching mini excavator dimensions to a specific project requires three inputs: access-point width, required dig depth, and transport frequency. These inputs map directly to weight class and eliminate both under-sized and over-sized purchases.

How Do You Determine the Right Mini Excavator Size?

Start with the narrowest access point on the jobsite and work backward to machine class. Measure gate openings, alley widths, and any overhead obstructions. Then match dig depth to project scope. A 36-inch gate is too narrow for any mini excavator. A 48-inch gate fits 1-ton machines with retracted tracks. A 60-inch double gate fits most 3-ton machines.

• If access width is 42 to 48 inches: choose a 1-ton machine with retractable undercarriage (retracts to 28 to 38 inches)
• If access width is 54 to 66 inches and dig depth under 10 feet: choose a 3-ton machine (54 to 62 inches wide, 9 to 10 feet dig depth)
• If access width is 72 inches or greater and dig depth exceeds 12 feet: choose a 5-ton to 8-ton machine (65 to 78 inches wide, 12 to 15 feet dig depth)

What Questions Should You Ask Before Purchasing a Mini Excavator?

Five questions expose dimensional details that sellers and spec sheets frequently omit.

• "What is the overall width with the dozer blade in the lowered working position?" — reveals whether the quoted width is track-only or full-footprint, a difference of 4 to 8 inches
• "What is the transport height with boom folded and cab at lowest pin position?" — reveals whether the machine clears a standard 13-foot-6-inch bridge on a loaded trailer
• "Does this model have a retractable undercarriage, and what is the retracted track width?" — reveals whether the machine fits through gates under 54 inches without modification
• "What is the tail-swing overhang past the track edge at full rotation?" — reveals how much clearance the counterweight needs beyond the track footprint in tight quarters
• "What is the rated lift capacity at a 10-foot radius versus at minimum radius?" — reveals the realistic working capacity, not the headline spec

What Is the Complete Pre-Purchase Mini Excavator Dimension Checklist?

Verify these nine specifications against your jobsite constraints and tow vehicle ratings before purchase.

• Overall width (blade down): verify 32 to 80 inches depending on class — must clear narrowest access point by minimum 4 inches
• Overall width (tracks retracted, if applicable): verify 28 to 38 inches for gate access under 48 inches
• Transport height (boom folded): verify 72 to 100 inches — add trailer deck height (18 to 24 inches) and confirm total stays under 13 feet 6 inches
• Operating weight with bucket: verify 2,200 to 20,000 lbs — must fall within trailer GVWR minus trailer curb weight
• Maximum dig depth: verify 5 to 16 feet — must exceed project trench depth by minimum 12 inches for grade tolerance
• Tail-swing radius: verify 0 to 24 inches past track — zero-tail-swing models overhang 0 to 4 inches; conventional models overhang 12 to 24 inches
• Auxiliary hydraulic flow: verify 6 to 33 GPM — must match planned attachments within 2 GPM of rated minimum
• Machine length (boom folded): verify 10 to 22 feet — must fit trailer deck with no more than 3 feet overhang
• Turning radius (on flat ground): verify 5 to 10 feet — must allow full rotation within available work area radius

How Do Mini Excavator Dimensions Affect Attachment Compatibility?

Attachment compatibility depends on three machine dimensions: undercarriage width, auxiliary hydraulic flow rate, and boom-arm reach envelope. Mismatched dimensions cause poor drilling angles, bucket drag on tracks, or inadequate hydraulic pressure to the tool.

Why Does Undercarriage Width Matter When Choosing Augers and Buckets?

Undercarriage width sets the maximum bucket width and auger bit diameter the machine handles without tipping. A 1-ton machine with 28-inch track width safely runs buckets up to 24 inches and auger bits up to 12 inches. A 5-ton machine with 68-inch track width handles 36-inch buckets and 24-inch auger bits. Exceeding these ratios shifts the center of gravity outside the track footprint.

Once you have confirmed your mini excavator's dimensions and hydraulic flow, pairing it with the right Mini Excavator Auger ensures the attachment matches the machine's width, weight class, and auxiliary hydraulic output for efficient drilling.

How Do Boom and Arm Reach Dimensions Influence Attachment Selection?

Boom length and arm reach determine the effective working radius for every attachment mounted on the quick coupler. A machine with 12-foot reach at grade operates a hydraulic thumb or grapple across a 24-foot-diameter working circle without repositioning. A machine with 8-foot reach covers only a 16-foot circle. Match attachment weight to the machine's lift capacity at the radius where the attachment operates — not at minimum radius.

Frequently Asked Questions About Mini Excavator Dimensions

Common mini excavator dimension questions cluster around four themes: gate-access width, transport vehicle requirements, dig depth by class, and zero-tail-swing differences. The answers below resolve each with specific measurements.

What Width Mini Excavator Fits Through a Standard Residential Gate?

A standard 48-inch residential gate fits only 1-ton mini excavators with retractable undercarriages narrowed to 28 to 38 inches.

No mini excavator fits a 36-inch pedestrian gate. For 60-inch double gates, most 3-ton machines pass through at 54 to 62 inches wide (blade raised). Measure the gate opening at its narrowest point — hinges and hardware often reduce clear width by 2 to 4 inches from the nominal gate size.

What Size Truck Tows a 3-Ton Mini Excavator Safely?

A 3-ton mini excavator weighing 6,000 to 7,500 lbs requires a three-quarter-ton truck with a minimum 10,000-lb tow rating and a trailer rated at 10,000-lb GVWR or higher.

Half-ton trucks max out at towing 1-ton to 2-ton mini excavators (2,200 to 4,500 lbs) on appropriately rated trailers. One-ton trucks with 14,000-lb-plus tow ratings handle 5-ton machines at 11,000 lbs. Always calculate combined weight: machine plus trailer curb weight plus fuel and attachments on board.

How Tall Is a Mini Excavator for Low-Clearance Work?

Mini excavator cab height ranges from 72 inches (1-ton open canopy) to 100 inches (8-ton enclosed cab) with the boom folded.

Transport height differs from working height. A mid-size machine with an 8-foot folded height sits at roughly 10 feet total on a trailer with a 24-inch deck. During operation, boom-up height reaches 12 to 16 feet depending on the class. For indoor or parking-garage work, verify both cab height and maximum boom height against overhead clearance.

Do Zero-Tail-Swing Models Have Different Dimensions Than Conventional Models?

Zero-tail-swing models keep the counterweight within the track width during full rotation, producing 0 to 4 inches of overhang versus 12 to 24 inches on conventional designs.

The trade-off is a heavier counterweight concentrated in a smaller area, increasing ground pressure by 10 to 15 percent on the same track footprint. Zero-tail-swing machines cost $3,000 to $8,000 more than equivalent conventional models. The premium pays for itself on residential lots where 12 inches of tail clearance prevents striking a foundation wall or fence line.

What Mini Excavator Dimensions Support Lifting 2,000 Pounds?

Lifting 2,000 lbs at a 10-foot radius requires a minimum 5-ton machine with 68- to 72-inch track width and 22-GPM auxiliary hydraulics.

A 3-ton machine rated at 2,000 lbs typically achieves that figure at minimum radius only (4 to 5 feet from center pin). At 10-foot working radius, the same 3-ton machine delivers 800 to 1,200 lbs. Always confirm lift capacity at the radius where the load actually sits — not the maximum spec printed on the boom decal.
