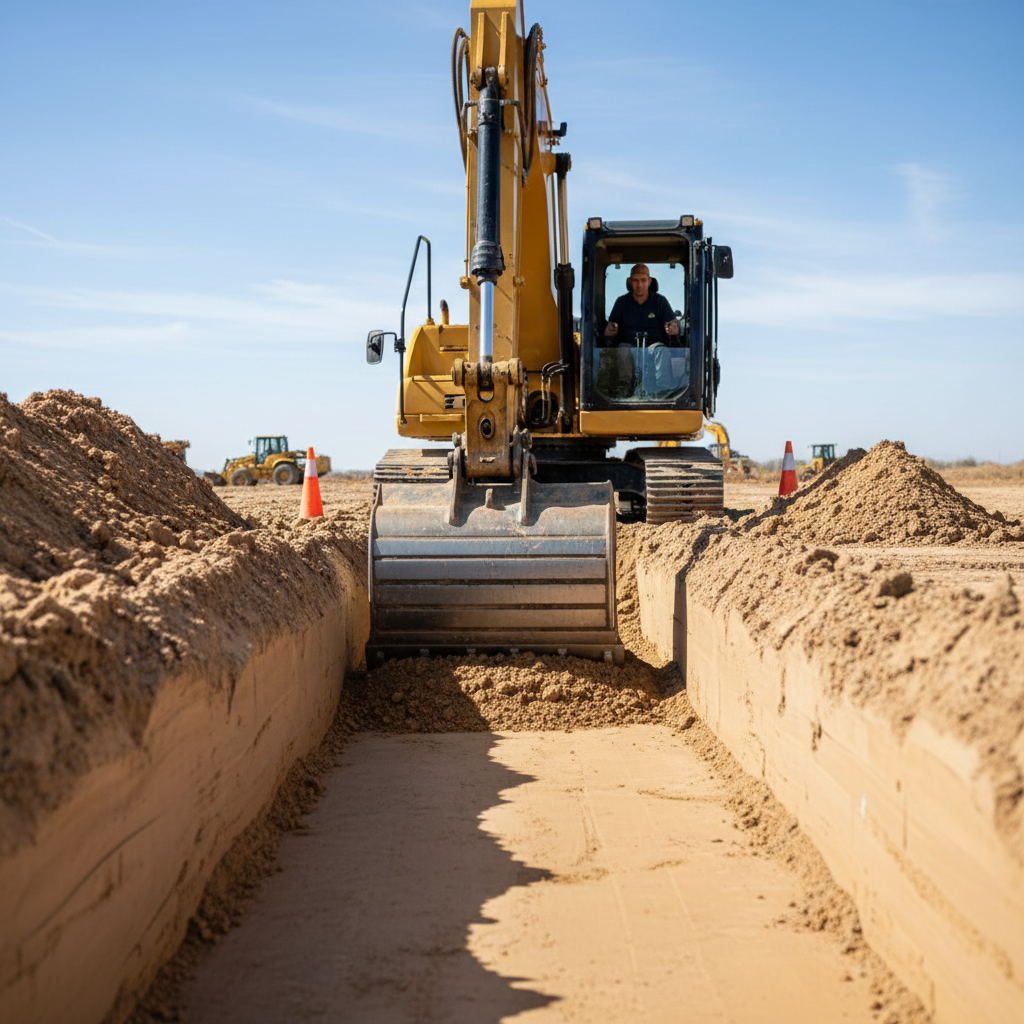

Excavator Digging Trench: Step-by-Step Guide for a Clean Cut

Excavator digging trench work is one of the most common tasks on residential, commercial, and agricultural job sites — from running waterlines across a pasture to installing drainage along a foundation. Whether you're a contractor bidding a utility job, a farm owner burying irrigation pipe, or a landscaper grading a drainage path, this guide walks you through planning, execution, safety rules (including the 5-4-3-2-1 trench rule), realistic speed expectations, machine selection, and the mistakes that cost time and money.

What Do You Need Before You Start Digging a Trench?

Excavator digging trench requires utility locating, route planning, and permit acquisition before breaking ground. Proper preparation covers 2 critical areas: mapping underground infrastructure to prevent costly strikes and securing required permits for safe, compliant operation.

How do you plan the trench route and check for buried utilities?

Call 811 at least 48 hours before any excavation — it's legally required in all 50 states and free to use. Utility locators will mark gas, electric, water, telecom, and sewer lines with color-coded paint or flags on your site.

Walk the entire trench route on foot before positioning any machine. Flag the start and end points with stakes. Mark turns or grade changes every 25 feet. Identify obstacles like tree roots, rock outcrops, or soft spots that will change your bucket selection or cycle time.

What permits or site prep does trenching require?

Most municipalities require a permit for trenches deeper than 2 feet that cross property lines or public right-of-way. Check with your local building department before breaking ground. Permit fees typically range from $50 to $500 depending on jurisdiction and trench length.

Clear the trench corridor of vegetation, debris, and loose material before the machine arrives. A cleared path at least 4 feet wider than the trench on each side gives the excavator room to position and allows safe spoil pile placement away from the edge.

How Do You Properly Dig a Trench With an Excavator?

Excavator digging trench follows systematic positioning, bucket angle control, and depth maintenance techniques for clean cuts. Proper technique encompasses 3 operational phases: machine setup and positioning, step-by-step digging methodology, and consistent dimension control throughout the trenching process.

What is the correct excavator setup and positioning for trenching?

Position the excavator so the tracks or wheels run parallel to the trench line, with the boom centered over the dig path. Set the machine on firm, level ground. Offset the tracks at least 3 feet from the planned trench edge to prevent sidewall collapse from machine weight.

Angle the bucket teeth perpendicular to the trench line for the initial cut. Lower the boom slowly and curl the bucket toward the cab in a controlled arc. Avoid swinging the loaded bucket over workers or open trench sections at any point during the cycle.

What is the step-by-step digging technique for a clean trench?

Follow this sequence for each cut: position, plunge, drag, curl, lift, swing, dump. That seven-step cycle, repeated consistently, produces straight walls and a flat bottom.

1. Set the bucket at the far end of the cut zone. 2. Plunge the teeth 6–12 inches into the soil. 3. Drag the bucket toward the machine using the stick cylinder. 4. Curl the bucket closed before lifting. 5. Lift just high enough to clear the trench edge. 6. Swing to the spoil side. 7. Dump material at least 2 feet from the trench edge per OSHA standards.

How do you maintain consistent trench depth and width?

Use a grade laser or string line stretched between batter boards at each end to verify depth every 10 feet of progress. A rotating laser with a receiver mounted on a grade rod gives ±1/8-inch accuracy over runs exceeding 200 feet.

Match the bucket width to the required trench width — a 12-inch bucket for utility pipe, 18-inch for drainage tile, 24-inch for sewer lines. An oversized bucket creates excess spoil and adds backfill time. Measure actual trench width with a tape at every depth check point.

What Is the 5-4-3-2-1 Trench Rule and Why Does It Matter?

The 5-4-3-2-1 trench rule establishes mandatory depth thresholds where cave-in protection becomes legally required. This OSHA safety standard covers 2 protection areas: specific depth requirements that trigger shoring systems and additional safety practices that prevent worker fatalities in excavated trenches.

How does the 5-4-3-2-1 rule protect workers from cave-ins?

The 5-4-3-2-1 rule is a field-ready summary of OSHA trench safety thresholds tied to specific depth benchmarks. At 5 feet deep, a protective system (shoring, sloping, or a trench box) is required. At 4 feet, a competent person must evaluate whether protection is needed based on soil conditions.

At 3 feet, ladder or ramp access is required if the trench is 4 feet or deeper, spaced every 25 feet of lateral travel. At 2 feet, keep all spoil piles and equipment at least 2 feet from the trench edge. At 1 foot: inspect the trench conditions at least once per shift and after every rainstorm or vibration event.

What other OSHA trench safety practices should you follow?

OSHA requires a designated competent person on site for any trench 5 feet or deeper — someone trained to identify hazards and authorized to stop work. Trenches 20 feet or deeper require a protective system designed by a registered professional engineer.

Never enter a trench that has standing water without dewatering first. Test the atmosphere in trenches deeper than 4 feet if there's any possibility of gas accumulation. Keep heavy equipment at least 2 feet from the trench edge unless the trench walls are shored or shielded.

How Fast Can an Excavator Dig a Trench?

Excavator digging trench speed ranges from 50-200 linear feet per hour depending on soil conditions and machine size. Actual productivity varies across 2 key variables: environmental factors affecting dig resistance and realistic benchmarks based on equipment specifications and ground conditions.

What factors affect excavator trenching speed?

Soil type is the single largest variable — loose sandy soil moves 3–4 times faster than compacted clay or rocky ground. Machine size, operator experience, trench depth, and bucket width also affect cycle time directly.

A skilled operator averages 15–20 seconds per dig cycle in cooperative soil. Obstructions like roots, boulders, or buried debris add 30–60 seconds per encounter. Frozen ground in winter can cut production rates by 50–70% compared to the same soil in summer.

What are realistic speed benchmarks by soil type and machine size?

A compact or mini excavator (3–6 ton class) typically trenches 30–100 linear feet per hour at a depth of 3–4 feet in medium soil. Soft, sandy ground pushes that number above 100 feet per hour. Hard clay drops it to 20–40 feet per hour.

Full-size excavators (12–20 ton class) increase speed by 30–50% on deeper trenches but are overkill for residential utility work. For trenches under 4 feet deep and under 24 inches wide, a compact machine outperforms a large excavator because repositioning time is shorter and ground disturbance is minimal.

What Machine Is Best for Digging Trenches?

Machine selection for excavator digging trench depends on trench dimensions, site access, and soil conditions determining optimal equipment size. Equipment comparison covers 3 machine categories: mini excavators versus full-size models, mini skid steers as trenching alternatives, and specialized attachments that enhance digging performance.

When should you use a mini excavator versus a full-size excavator?

Use a mini excavator (under 6 tons) for trenches up to 6 feet deep in residential yards, utility corridors, and farm fields where access is tight. Full-size excavators make sense for trenches deeper than 8 feet or longer than 500 feet in open terrain.

Mini excavators pass through 36-inch gates, work within 5 feet of structures, and produce less turf damage. For most contractor and landowner trenching — waterlines, drainage, electrical conduit — a compact machine with a narrow bucket handles 90% of the work.

How does a mini skid steer compare to an excavator for trenching?

A mini skid steer paired with a trencher attachment digs narrow, consistent utility trenches faster than a bucket-equipped excavator on straight runs under 4 feet deep. These machines excel in tight residential lots, landscaped areas, and around existing structures where an excavator's swing radius is a liability.

For jobs requiring a 4–6 inch wide trench at depths of 24–48 inches, a Mini Skid Steer with a dedicated trencher attachment is the most efficient setup. Look for a unit with at least 9–13 HP, a universal attachment plate, and tracks narrow enough to fit through a 36-inch gate. The low ground pressure also protects finished lawns and irrigated fields from rutting.

What trenching attachments improve performance and versatility?

A chain-style or wheel-style trencher attachment cuts a uniform channel at a fixed width and depth, eliminating the skill-dependent variation of bucket digging. These attachments bolt directly onto skid steers and mini skid steers through standard quick-attach plates.

Other attachments worth pairing include ripper teeth for breaking hardpan before trenching, narrow digging buckets (12–18 inches) for wider utility trenches, and backfill blades for pushing spoil back into the trench. The right set of Skid Steer Attachments turns a single compact machine into a complete trenching system — dig, grade, and backfill without swapping machines.

What Common Mistakes Should You Avoid When Trenching?

Excavator digging trench failures stem from inadequate wall support and improper bucket techniques that compromise safety and efficiency. Critical error prevention addresses 2 failure modes: cave-in risks from unstable soil conditions and operational mistakes that reduce digging speed and cut quality.

How do you prevent trench wall collapse during and after digging?

The most common cause of trench wall collapse is stacking the spoil pile too close to the edge, which adds surcharge weight the sidewall can't support. OSHA mandates a minimum 2-foot setback for all excavated material. Most field failures happen at 1 foot or less.

Vibration from nearby equipment, vehicle traffic, or even the excavator's own tracks positioned too close can trigger sudden cave-ins. In Type C soil (granular sand or gravel), trenches as shallow as 3.5 feet have collapsed without warning. Slope the walls at a 1.5:1 ratio in Type C soil, or install a trench box for vertical cuts.

What bucket and technique errors slow down trenching?

Using a bucket wider than the trench specification is the single most common efficiency mistake — a 24-inch bucket on an 18-inch trench generates 33% more spoil that you'll have to haul or spread. That adds backfill labor and disposal cost on every job.

Other frequent errors include overcrowding the bucket (filling past 85% capacity causes spillback into the trench), failing to curl the bucket before lifting (drops material on the trench lip), and not checking depth every 10 feet (produces a wavy trench bottom that won't pass inspection). Selecting the correct Mini Skid Steer Buckets for the soil type and trench width prevents most of these problems before they start.

Frequently Asked Questions About Excavator Trench Digging

Common excavator digging trench questions address operational techniques, safety regulations, and equipment selection for specific project requirements. These 5 frequently asked topics cover proper digging methods, OSHA safety rules, productivity expectations, equipment terminology, and alternative machine capabilities for trenching applications.

How do you properly dig a trench with an excavator?

Position the machine parallel to the trench line, plunge the bucket 6–12 inches per pass, drag toward the cab, curl, lift, and dump spoil at least 2 feet from the edge.

Repeat the cycle in overlapping passes, checking depth with a grade laser or string line every 10 feet. Use a bucket width that matches the trench specification — 12 inches for water lines, 18 inches for drain tile, 24 inches for sewer. Keep the tracks at least 3 feet from the trench edge on all passes.

What is the 5-4-3-2-1 trench rule?

It's a field shorthand for OSHA trench safety: at 5 feet deep, install protective systems; at 4 feet, a competent person evaluates hazards; at 3 feet, provide exit access every 25 feet; at 2 feet, keep spoil from the edge; at 1, inspect every shift.

This rule applies to every trenching operation regardless of soil type or duration. Violations carry OSHA fines starting at $16,131 per occurrence for serious citations. Cave-ins kill an average of 40 workers per year in the U.S., making trenching one of the most hazardous excavation activities by fatality rate.

How fast can an excavator dig a trench?

A mini excavator digs 30–100 linear feet per hour at 3–4 feet deep in medium soil; soft ground pushes output above 100 feet per hour, while hard clay or rock drops it to 20–40 feet per hour.

Full-size machines increase throughput by 30–50% on deep trenches but add mobilization cost and site damage. Operator skill accounts for roughly a 25% swing in production between an experienced operator and a novice on the same machine and soil type.

What is the machine that digs trenches called?

The general term is "trencher" for a dedicated trenching machine, but excavators (mini and full-size), backhoes, and skid steers with trencher attachments all perform the same work.

Dedicated walk-behind trenchers handle trenches up to 48 inches deep and 6 inches wide. For larger or deeper work, a mini excavator or a compact skid steer with a trencher attachment is standard. The choice depends on trench width, depth, soil conditions, and how much other work (grading, backfilling) the machine needs to handle on the same job.

Can you dig a trench with a skid steer or mini skid steer?

Yes — a skid steer or mini skid steer equipped with a trencher attachment digs utility trenches up to 48 inches deep and 4–6 inches wide efficiently, often faster than a bucket-equipped excavator on straight runs in cooperative soil.

The advantage is versatility: swap the trencher for a bucket, grapple, or backfill blade without leaving the seat. For contractors running multiple task types on a single site — trenching, grading, material moving — a compact skid steer platform with quick-attach capability handles all three without mobilizing a second machine.
