How to Inspect a Sewer Line — Drain Camera Guide

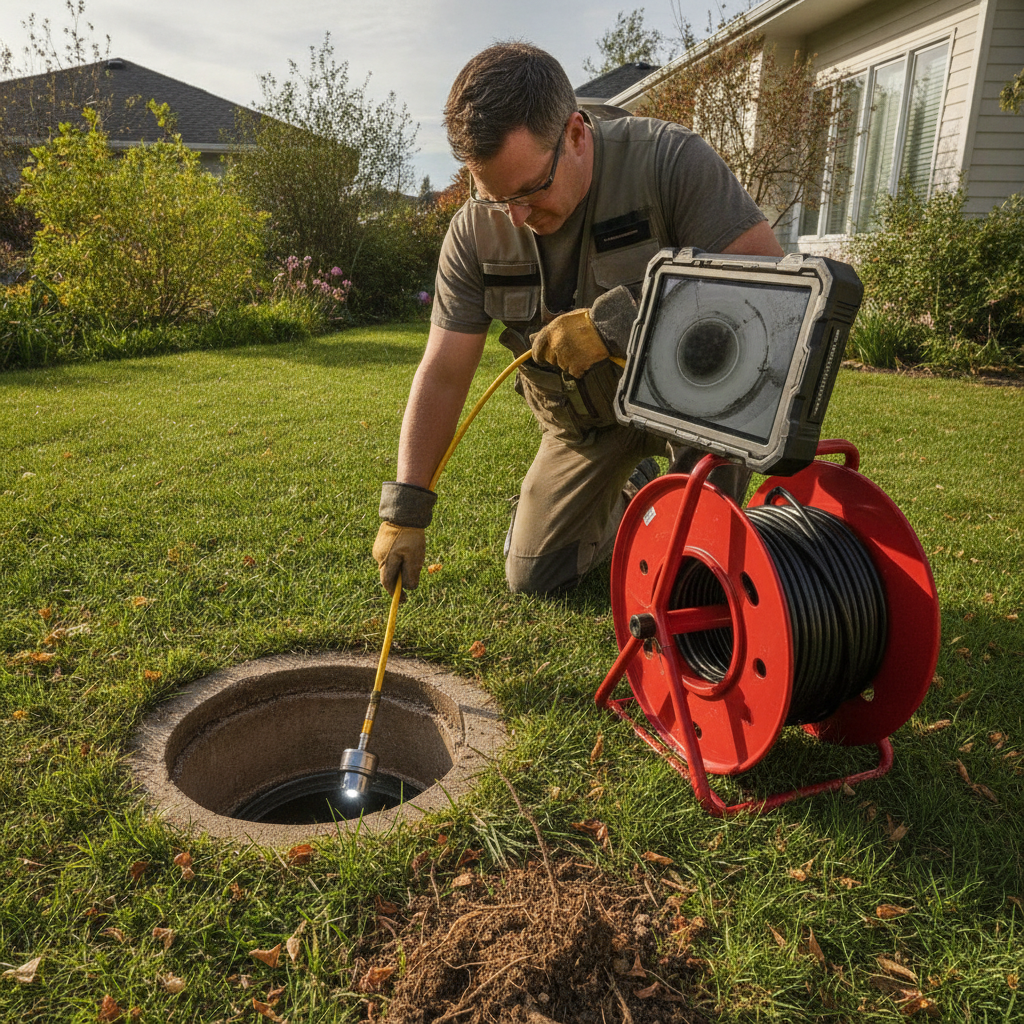

To inspect a sewer line, feed a waterproof drain camera through the cleanout access point and advance it through the full length of the pipe while monitoring a live video feed. The process takes 30 to 90 minutes depending on line length and condition. Most residential sewer lines run 50 to 100 feet from the structure to the municipal connection at 4 to 6 inches in diameter. A push-rod camera system, access to the cleanout, and basic protective equipment are the three requirements before starting.

Why Do You Need to Inspect a Sewer Line?

Sewer line inspection identifies hidden damage — root intrusion, cracks, bellying, and joint offsets — before a full backup occurs. Camera inspection catches problems that surface-level diagnostics miss entirely.

What Warning Signs Indicate a Sewer Line Problem?

Slow drains affecting multiple fixtures at once signal a mainline obstruction rather than a localized clog. Sewage odors in the yard, unexplained patches of lush grass over the line path, and gurgling sounds from drains all point to sewer line failure.

• Multiple fixtures draining slowly at the same time
• Sewage smell near cleanout or foundation
• Standing water or sinkholes along the sewer line path
• Recurring backups despite repeated drain cleaning

How Often Do Sewer Lines Require Inspection?

Inspect sewer lines every 18 to 24 months on properties with mature trees near the line path. Homes built before 1970 with clay or cast iron pipe benefit from annual inspection due to higher vulnerability to root intrusion and corrosion.

What Are the Three Main Types of Sewer Systems?

Sanitary, storm, and combined sewer systems make up the three categories. Sanitary sewers carry wastewater from structures to treatment plants. Storm sewers handle rainwater runoff. Combined systems carry both in a single pipe and are common in older municipalities.

What Tools Do You Need to Inspect a Sewer Line?

A complete sewer line inspection requires four items: a push-rod camera system, cleanout access wrench, personal protective equipment, and a recording device or built-in DVR. Each item addresses a distinct requirement of the inspection process.

How Does a Drain Camera Work for Sewer Inspection?

A drain camera transmits live video from inside the pipe to an above-ground monitor through a flexible push rod. The camera head is waterproof, typically 1 to 1.5 inches in diameter, and illuminates the pipe interior with built-in LEDs. Operators feed the rod manually from the cleanout while watching the display for defects.

Camera systems designed for 4- to 6-inch residential lines use push rods between 100 and 200 feet long. Units with a self-leveling camera head keep the image oriented correctly regardless of the rod's rotation inside the pipe. Browse our full selection of Drain Camera options for residential and commercial sewer inspection applications.

What Features Matter Most in Sewer Inspection Equipment?

A built-in distance counter and self-leveling camera head are the two features that improve inspection accuracy most. The distance counter records exactly how far the camera has traveled, allowing precise pinpointing of defects for targeted repair.

• Self-leveling camera head — maintains upright image orientation
• Built-in distance counter — locates defects to within 1 foot
• 512 Hz sonde transmitter — enables above-ground locating of the camera position
• DVR recording — creates a permanent video record of findings

How Do You Inspect a Sewer Line Step by Step?

A complete sewer line camera inspection follows five steps over 30 to 90 minutes. Each step has a clear completion point before advancing to the next.

What Are the Steps to Inspect a Sewer Line?

Five steps cover the full inspection from access to documentation.

1. Locate the cleanout. Find the main sewer cleanout — a capped pipe typically 4 inches in diameter located near the foundation wall or in the yard along the sewer line path. Remove the cap using a pipe wrench. Allow any standing water or pressure to release before proceeding.
2. Prepare the camera. Connect the camera head to the push rod and confirm the monitor displays a clear image. Verify the distance counter reads zero. Start the DVR recording before inserting the camera into the line.
3. Feed the camera. Insert the camera into the cleanout opening and advance the push rod at a steady rate of 1 to 2 feet per second. Pause at every joint, fitting, and change in direction to examine the pipe walls on all sides.
4. Document defects. Mark each defect by noting the distance counter reading, clock position (12 o'clock = top of pipe), and defect type. Capture still images or timestamps of root intrusion, cracks, offset joints, and standing water.
5. Retrieve and review. Retract the push rod slowly while scanning for any defects missed on the initial pass. Clean the camera head with fresh water. Review the full recording and compile a written defect log with distance references.

What Are the Most Common Mistakes During Sewer Line Inspection?

Advancing the camera too quickly is the most frequent mistake. Fast insertion causes the operator to miss hairline cracks, early-stage root intrusion, and minor joint offsets that require close examination at each section of pipe.

• Pushing too fast — causes missed defects — advance at 1 to 2 feet per second maximum
• Skipping the distance counter reset — produces inaccurate defect locations — zero the counter before each inspection
• Forcing the camera past obstructions — damages the lens or push rod — retract and clear the blockage first

What Common Problems Does a Sewer Line Inspection Uncover?

Camera inspections reveal five primary defect categories: root intrusion, pipe cracks, joint offsets, bellying, and buildup accumulation. Each defect type presents differently on the camera display.

How Do You Identify Root Intrusion and Pipe Cracks?

Root intrusion appears as hair-like fibers extending through pipe joints or cracks into the flow channel. Small roots create a web pattern visible on camera; advanced intrusion fills a significant portion of the pipe diameter. Clay and cast iron pipes in pre-1970s installations are most susceptible.

Cracks appear as visible lines running along the pipe wall — longitudinal cracks follow the pipe length, while circumferential cracks wrap around the diameter. Hairline cracks indicate early-stage failure; offset or displaced cracks indicate structural movement.

What Does Bellying or Misalignment Look Like on Camera?

A belly appears as a section of standing water that the camera passes through where the pipe has sunk below proper grade. The water level does not drain because the pipe's slope has reversed in that section. Misaligned joints show a visible step or gap where two pipe sections no longer connect flush.

What Is the 135 Rule in Plumbing and Why Does It Matter?

The 135 rule restricts any single drainage fitting to a maximum bend of 135 degrees to maintain proper waste flow and prevent clogs. Bends exceeding 135 degrees create sharp turns where solids accumulate and camera equipment cannot pass. Inspectors flag fittings violating this rule as both a code issue and a maintenance risk.

How Do You Maintain Drain Camera Equipment After Use?

Post-use drain camera maintenance involves three steps: cleaning the camera head and push rod, inspecting for physical damage, and proper storage. Skipping any step shortens equipment life and degrades image quality on future inspections.

What Post-Use Maintenance Is Required?

Clean the camera head with fresh water and a soft cloth immediately after each inspection. Wipe down the full length of the push rod to remove debris and sewage residue. Inspect the push rod for kinks, abrasion, or exposed wiring. Coil the push rod loosely on its reel — tight coiling causes permanent bends that reduce maneuverability inside pipes.

How Often Does Sewer Inspection Equipment Need Service?

Inspect the camera head lens and LED array before every use. Check push rod connectors and the monitor cable for corrosion or loose contacts monthly. Replace worn push rod sections when visible wire exposure occurs. Professional calibration of the distance counter every 12 months ensures measurement accuracy within 1 foot over 100-foot runs.

Frequently Asked Questions About Sewer Line Inspection

The most common sewer line inspection questions cover alternative methods, DIY feasibility, inspection duration, pipe lifespan, and real estate requirements. The answers below address each with specific figures.

How Do You Test Sewer Lines Without a Camera?

A hydrostatic pressure test fills the line with water to a height of 10 feet above the highest joint and monitors for pressure drop over 15 minutes to detect leaks.

Smoke testing is another method — technicians pump non-toxic smoke into the line and observe where smoke escapes above ground, revealing cracks and faulty connections. Neither method provides visual confirmation of defect type or location. Camera inspection remains the only method that identifies specific defect characteristics and precise distance measurements for targeted repair.

Can You Inspect a Sewer Line Yourself?

A property owner or contractor with a push-rod camera system and access to the cleanout can perform a sewer line inspection without specialized licensing in most jurisdictions.

DIY inspection works well for routine maintenance checks and monitoring known problem areas. A professional inspection is the better choice for pre-purchase property evaluations, insurance claims, and situations requiring a certified report. Professional sewer scope inspections cost between $100 and $500 depending on region and line length.

How Long Does a Sewer Line Camera Inspection Take?

A standard residential sewer camera inspection takes 30 to 90 minutes from setup to retrieval, depending on line length and the number of defects requiring documentation.

Lines under 50 feet with no obstructions take 30 minutes or less. Lines over 75 feet with multiple bends, root intrusion, or partial blockages require 60 to 90 minutes. Add 15 to 20 minutes for recording review and written defect reporting after the camera has been removed from the line.

What Is the Average Lifespan of a Residential Sewer Line?

Residential sewer line lifespan varies by material — clay pipes last 50 to 60 years, cast iron lasts 75 to 100 years, and PVC lasts 100 years or more under normal conditions.

Soil conditions, tree root proximity, ground movement, and water chemistry all affect actual service life. Clay and cast iron pipes installed before 1970 have already reached or exceeded expected lifespan in many properties. Regular camera inspection identifies deterioration before catastrophic failure and helps plan repair or replacement on a controlled timeline.

Do You Need a Sewer Inspection Before Buying a Home?

Most U.S. real estate transactions do not legally require a sewer inspection, but buyers increasingly request one — especially on properties built before 1980 with original sewer lines.

A pre-purchase sewer scope costs $100 to $300 and identifies problems that a standard home inspection cannot detect. Homeowners insurance typically does not cover sewer line replacement caused by normal wear. Separate sewer line coverage riders are available from many insurance providers at an additional premium. Identifying defects before closing gives the buyer leverage to negotiate repairs or price adjustments.
