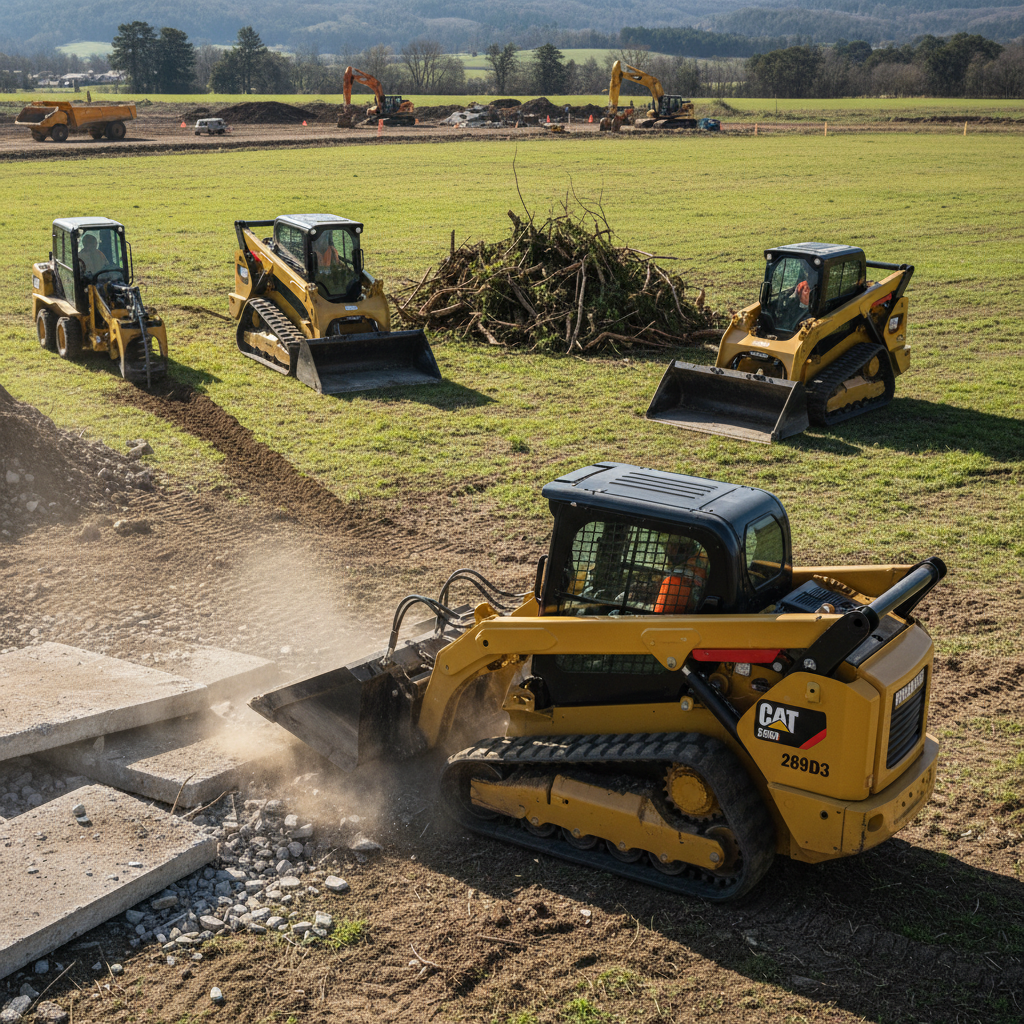

Cat 289D3 Attachments Buyer Guide — What to Look For

Cat 289D3 attachments aren't all created equal — and the wrong one can sit in your yard collecting rust. Five factors determine whether an attachment actually works on this machine: coupler mount type, hydraulic flow and pressure ratings, operating weight capacity, hose configuration, and the physical dimensions of the attachment relative to the loader's rated operating capacity. Get any one of those wrong and you're stuck with a return, a retrofit, or a safety problem. This guide walks through every spec you need to confirm before you spend a dollar.

What Mounting System Do Cat 289D3 Attachments Require?

Cat 289D3 attachments require universal skid steer quick-attach mounting systems with specific hydraulic flow ratings. Compatibility depends on 3 critical specifications: coupler interface type, hydraulic flow capacity, and weight distribution limits.

What Coupler Interface Does the Cat 289D3 Use?

The Cat 289D3 uses the universal skid steer quick-attach interface, also called the universal mounting plate. This interface follows a standard dimensional profile: two flat mounting ears spaced approximately 36.5 inches apart, center to center, with two wedge-style locking pins. Any attachment built to the universal skid steer mount pattern connects directly.

• Mount type: universal skid steer quick-attach — non-universal or proprietary mount plates do not latch without an adapter
• Pin spacing: 36.5 inches center to center — wider or narrower spacing prevents the coupler pins from engaging
• Plate height: approximately 15.5 inches — oversized plates interfere with the loader arm geometry and prevent full lock

What Hydraulic Flow and Pressure Specs Must Match?

The Cat 289D3 delivers standard hydraulic flow of approximately 23 GPM at 3,335 PSI, with a high-flow option rated near 33 GPM. Every hydraulic-driven attachment — augers, brush cutters, mulchers, trenchers, stump grinders — lists a minimum and maximum GPM requirement. Exceeding the attachment's rated pressure or starving it of flow causes motor damage or stalling.

• Standard-flow attachments: require 14–23 GPM — attachments rated above 23 GPM stall on the standard hydraulic package
• High-flow attachments: require 24–33 GPM — these run only with the high-flow hydraulic option installed
• Operating pressure: attachment must be rated for a minimum of 3,335 PSI — lower-rated seals and motors fail prematurely under full system pressure

What Weight and Capacity Limits Apply?

The Cat 289D3 has a rated operating capacity of approximately 3,525 pounds at 50% tipping load. The combined weight of the attachment plus the material it carries must stay at or below this figure. Exceeding rated operating capacity causes the machine to tip forward, damages the loader arm pivot pins, and voids the machine warranty.

• Attachment weight: verify the bare weight of the attachment — a 72-inch rock bucket at 900 pounds plus 2,000 pounds of material leaves only 625 pounds of safety margin
• Lift height capacity: the rated capacity decreases at full lift height — confirm the attachment weight is within the machine's capacity at the height you plan to operate
• Ground pressure: the 289D3 on rubber tracks already runs lower ground pressure than wheeled loaders — adding a 1,200-pound attachment still keeps ground pressure below 4.5 PSI in most configurations

What Are the Most Popular Cat 289D3 Attachment Types?

The most popular Cat 289D3 attachment types are grapples, buckets, forks, and hydraulic-powered specialty tools. These 4 categories cover material handling, excavation, loading, and specialized tasks that maximize the 289D3's compact track loader capabilities.

What Grapple Types Work Best on the 289D3?

Root grapples, brush grapples, and rock grapples are the three most common grapple types for this machine class. Root grapples feature tines spaced 4–6 inches apart for sifting soil while gripping roots and debris. Brush grapples use closer tine spacing or solid sides for loose vegetation. A 72-inch grapple width matches the 289D3's operating capacity well for most land-clearing tasks. Browse the full selection of skid steer grapples to compare configurations.

• If clearing timber and root balls from stumped land: choose a root grapple with 1/2-inch tines and 5-inch spacing
• If handling mixed brush and small logs: choose a brush grapple with a solid bottom plate
• If sorting rock and concrete debris: choose a rock grapple with reinforced heel plates and 3-inch tine spacing

What Fork and Bucket Options Fit This Machine?

Pallet forks for the 289D3 typically range from 42-inch to 48-inch tine length with a rated capacity of 4,000–5,500 pounds at the fork heel. The fork frame must not exceed the machine's rated operating capacity when loaded. Standard dirt buckets range from 66–78 inches wide. A 72-inch bucket at 3/8-inch cutting edge thickness handles general grading and material loading. Check available skid steer pallet forks built for this weight class.

• If hauling palletized material daily: choose class II or class III forks rated at 4,000 pounds minimum with a 48-inch tine length
• If grading and backfilling: choose a 72-inch dirt bucket with a bolt-on cutting edge for field replacement
• If loading trucks with aggregate: choose a 66-inch high-capacity bucket with spill guards

What Hydraulic-Driven Attachments Run on the 289D3?

Augers, brush cutters, mulchers, trenchers, stump grinders, and log splitters all require hydraulic drive from the machine's auxiliary circuit. Each lists a GPM range. Augers for 12–24-inch diameter holes typically need 15–20 GPM — within the standard-flow spec. Mulchers and brush cutters often demand 24–33 GPM, requiring the high-flow package. Verify the attachment's case drain requirement; some motors need a dedicated case drain line, and running without one causes the motor housing to overpressure and fail.

• If drilling post holes and footings: choose an auger drive rated for 15–20 GPM with a direct-drive planetary motor
• If clearing heavy brush and small trees up to 6 inches: choose a brush cutter or mulcher rated for 28–33 GPM (high-flow required)
• If trenching for utilities: choose a trencher rated for 17–22 GPM with a chain bar length of 36–48 inches

What Do Different Cat 289D3 Attachment Price Tiers Offer?

Cat 289D3 attachment price tiers offer progressively higher build quality, advanced features, and extended warranties. Price differences reflect 3 key variables: material grade, manufacturing precision, and included accessories that affect long-term performance.

What Do You Get at Each Price Level?

Cat 289D3 attachments fall into three price tiers depending on build materials, hydraulic component quality, and warranty coverage.

• Entry-level ($800–$2,200): 3/16-inch to 1/4-inch mild steel construction, imported hydraulic cylinders with chrome-plated rods, powder coat finish, 6–12 month structural warranty — suits property owners and operators using attachments fewer than 20 hours per month
• Mid-range ($2,200–$5,500): 1/4-inch to 3/8-inch AR400 or T-1 steel, domestic or name-equivalent hydraulic cylinders with hardened pins, 12–24 month warranty — suits contractors and landscapers running 40–80 hours per month
• Professional ($5,500–$14,000+): 3/8-inch to 1/2-inch AR450 steel in high-wear zones, precision-machined pivot points, replaceable wear parts, hardened teeth or tines, 24–36 month warranty — suits daily commercial operators running 100+ hours per month or working in abrasive conditions

What Specifications Change at Each Tier?

The largest specification jump between entry-level and professional is steel grade and thickness in structural and wear areas. Entry-level grapples use 3/16-inch mild steel tines that bend under sustained root-pulling loads. Professional grapples use 1/2-inch AR400 tines that resist deformation at the same load. Hydraulic cylinder bore increases from 2-inch to 3-inch or larger, delivering 30–50% more clamping or breakout force.

When Is Entry-Level Sufficient?

Entry-level attachments perform adequately for operators working fewer than 20 hours per month in non-abrasive materials. Occasional pallet fork work, light grading, and seasonal brush cleanup do not demand AR400 steel or oversized cylinders. Once usage exceeds 30 hours per month or involves rock, frozen ground, or demolition debris, mid-range construction becomes the minimum requirement.

What Should You Avoid When Buying Cat 289D3 Attachments?

Common pitfalls when buying Cat 289D3 attachments include mismatched hydraulic specifications, inflated capacity claims, and inadequate warranty coverage. These 3 issues create costly compatibility problems, performance failures, and limited recourse options.

What Are the Red Flags in Listings and Products?

The most common red flag is a listing that omits steel type and thickness entirely. Any reputable manufacturer publishes whether the frame is mild steel, AR400, or AR450, and specifies the gauge. Omission usually means the thinnest, cheapest steel available — often 10-gauge (0.135-inch) mild steel marketed as "heavy-duty."

• No steel thickness listed: indicates 10-gauge or lighter mild steel — request the spec sheet or move on
• Hydraulic cylinders with no bore or rod diameter stated: prevents verifying the force output — quality sellers list 2.5-inch bore, 1.5-inch rod, or similar specs
• Stock photos only with no weld detail images: hides inconsistent weld penetration and bead quality — request actual production photos
• "Fits all skid steers" without dimensional specs: the universal mount has specific dimensions and some attachments exceed the 289D3's rated operating capacity — verify weight and pin spacing numbers

What Specifications Are Frequently Overstated?

Rated capacity is the most overstated specification in attachment listings. A pallet fork listing may claim 5,500-pound capacity at the fork heel, but the 289D3's rated operating capacity is 3,525 pounds — making the fork's rating irrelevant beyond the machine's limit. The number that matters is the capacity your machine can actually lift safely. Always cross-reference the attachment's rated load against the machine's rated operating capacity, not the attachment's standalone number.

What Warranty Terms Should You Verify?

Minimum acceptable warranty coverage is 12 months on structural components and 6 months on hydraulic components for mid-range attachments. Professional-tier attachments carry 24 months structural. Watch for exclusions on weld failure — some warranties cover only "manufacturing defects" and exclude weld cracking, which is the most common failure mode.

• Structural welds: minimum coverage 12 months — 24 months at professional tier
• Hydraulic cylinders and motors: minimum coverage 6 months — 12 months at professional tier
• Wear parts (teeth, cutting edges, tines): typically excluded from warranty — confirm replacement part availability and cost before purchase

How Do You Match Cat 289D3 Attachments to Your Situation?

Matching Cat 289D3 attachments to specific applications requires analyzing job requirements, machine capacity, and operational constraints. This process involves 3 evaluation steps: sizing calculations, compatibility verification, and complete specification review.

How Do You Determine the Right Attachment Size?

Match attachment width to the machine's track width and rated operating capacity. The 289D3 runs on tracks approximately 17.7 inches wide with an overall width near 78 inches. Attachment widths between 66 and 78 inches maintain machine stability during operation. Wider attachments create side-load stress on the loader arms; narrower attachments reduce productivity per pass.

• If grading, trenching, or backfilling: choose an attachment width between 66 and 72 inches to stay within the track footprint
• If clearing land or handling brush: choose a 72–78-inch grapple to maximize material capture per cycle
• If loading pallets or bales: choose pallet forks or bale spears rated at or below 3,525 pounds loaded weight including the attachment

What Questions Should You Ask Before Purchasing?

Five questions expose the information sellers rarely volunteer, and the answers separate quality attachments from disposable ones.

• "What is the steel type and thickness on the frame, tines, and wear surfaces?" — reveals whether the attachment uses AR400 or mild steel and whether specs are published or hidden
• "What is the hydraulic cylinder bore diameter, rod diameter, and seal type?" — reveals the actual clamping or breakout force and whether seals are replaceable in the field
• "Does this attachment require a case drain line, and what is the minimum and maximum GPM?" — reveals whether the attachment runs on your standard or high-flow circuit without modification
• "What is the bare weight of this attachment without teeth or optional add-ons?" — reveals whether the attachment plus load stays within the 289D3's 3,525-pound rated operating capacity
• "What specific failures does the warranty cover, and does it include weld cracking?" — reveals whether the warranty has practical value or excludes the most common failure mode

What Is the Complete Pre-Purchase Specification Checklist?

Verify these 10 specifications before purchasing any attachment for the Cat 289D3.

• Mount type: verify universal skid steer quick-attach with 36.5-inch pin spacing
• Hydraulic flow requirement: verify between 14 and 23 GPM for standard flow, or 24–33 GPM with high-flow option confirmed on your machine
• Operating pressure rating: verify attachment is rated at minimum 3,335 PSI
• Case drain requirement: verify whether the attachment motor requires a third hydraulic line for case drain return
• Attachment bare weight: verify combined attachment and load weight stays at or below 3,525 pounds
• Attachment width: verify between 66 and 78 inches for proper stability and clearance
• Steel type and thickness: verify AR400 minimum for wear surfaces at mid-range tier; 1/4-inch minimum frame thickness
• Hydraulic cylinder bore: verify 2.5-inch minimum bore for grapples and tilt functions
• Hose routing and coupler size: verify flat-face couplers match the 289D3's auxiliary quick-connect size (typically 1/2-inch)
• Warranty terms: verify minimum 12 months structural, 6 months hydraulic, with weld coverage specified

Frequently Asked Questions About Cat 289D3 Attachments

Common Cat 289D3 attachment questions focus on first purchase recommendations, used equipment value, warranty terms, ownership costs, and fit verification. These 5 topics address the primary concerns contractors face when selecting compatible attachments.

What Is the Best First Attachment to Buy for a Cat 289D3?

A 72-inch grapple or a set of 48-inch pallet forks covers the widest range of daily tasks for most operators.

Grapples handle brush clearing, debris removal, log stacking, and demolition cleanup — the tasks most contractors and landowners face first. Pallet forks handle material delivery, hay bales (with a bale spear adapter), and general hauling. Buying one of each gives the 289D3 roughly 70% of its practical versatility. Browse the full lineup of skid steer attachments to compare both categories side by side.

Are Used Cat 289D3 Attachments Worth Buying?

Used attachments save 30–50% off new pricing, but only if you inspect three things before paying: weld integrity, cylinder condition, and pin wear.

Run your finger along every structural weld — any cracking, porosity, or grinding marks over a repair weld means the attachment already failed once. Extend and retract each hydraulic cylinder fully; any drift, leaking, or scored rod chrome indicates rebuild cost of $200–$600 per cylinder. Check pivot pins and bushings for lateral play exceeding 1/8 inch. A used mid-range attachment in good condition outperforms a new entry-level unit.

What Warranty Coverage Is Standard for New Attachments?

Standard warranty on new, mid-range attachments is 12 months on structural components and 6 months on hydraulics.

Professional-tier units extend to 24 months structural and 12 months hydraulic. Watch for warranties that exclude "normal wear," which some sellers define broadly enough to deny weld failures. Request the written warranty document before purchase — not the summary on the product listing. Confirm the warranty covers weld cracking explicitly, as this is the most frequent structural failure in grapples and buckets under heavy use.

What Is the True Total Cost of Owning an Attachment?

Total cost of ownership over 5 years includes the purchase price, replacement wear parts, hydraulic maintenance, and any rebuild labor.

A $1,200 entry-level grapple that needs $400 in tine replacements annually costs $3,200 over 5 years. A $3,500 mid-range grapple with AR400 tines needing $150 annually in wear parts costs $4,250 over 5 years — but handles twice the workload without structural failure. For operators running 40+ hours per month, the mid-range grapple costs less per hour of use. Factor in one cylinder reseal at $250 per cylinder at the 3-year mark for budget accuracy.

How Do You Confirm an Attachment Fits Before Buying?

Request the attachment's dimensional spec sheet and cross-reference three measurements: mount pin spacing, attachment weight, and hydraulic flow range.

Pin spacing must be 36.5 inches for the universal skid steer interface. Attachment bare weight plus maximum load must stay at or below 3,525 pounds. Hydraulic flow must fall within 14–23 GPM for standard or 24–33 GPM for high-flow. If the seller cannot provide these three numbers from a spec sheet, the attachment is not verified compatible. For skid steer grapples specifically, also confirm cylinder bore and hose coupler size match the 289D3's auxiliary circuit.
