Backfilling a Retaining Wall: The Complete Step-by-Step Guide

Backfilling a retaining wall is where most wall failures actually start — not in the block work or the footing, but in what gets packed behind it. Whether you're building a 3-foot garden wall or a 10-foot structural grade change, the backfill process controls drainage, lateral pressure, and long-term stability. This guide walks you through material selection, drainage prep, lift thickness, compaction specs, equipment choices, and the mistakes that crack walls open within a single season. If you're doing this work yourself or running a crew, here's exactly how to get it right.

Why Is Backfilling a Retaining Wall So Important?

Backfilling a retaining wall is the process of placing and compacting granular material, typically crushed stone or gravel, behind a completed wall structure. Proper backfilling ensures drainage, reduces hydrostatic pressure, and prevents wall failure caused by soil saturation and lateral earth pressure.

What Happens When a Retaining Wall Is Backfilled Incorrectly?

Incorrect backfill traps water behind the wall, generating hydrostatic pressure that can exceed the wall's design load and push it forward or collapse it entirely.

Hydrostatic pressure is the leading cause of retaining wall failure. A saturated clay backfill behind a 4-foot wall can exert over 300 pounds of lateral force per linear foot. That force bows blocks, cracks mortar joints, and tilts the wall outward. Repairs typically cost 2 to 5 times the original build price because you have to excavate, remove, rebuild, and re-backfill.

Do All Retaining Walls Need to Be Backfilled?

Every retaining wall that holds soil on one side requires properly placed and compacted backfill between the wall face and the existing grade.

This applies to segmental block, poured concrete, timber, and natural stone walls. Even short walls under 2 feet tall benefit from a 12-inch granular drainage zone behind the face. The only exception is a freestanding decorative wall with no soil contact on either side, which functions as a fence, not a retaining structure.

What Is the Best Backfill Material for a Retaining Wall?

The best backfill material for a retaining wall is angular crushed stone with 3-6 inch particle size and minimal fine content. This selection covers 3 material categories including proper drainage aggregate, acceptable native soils under specific conditions, and materials that create structural problems.

Why Is Crushed Stone the Preferred Backfill Material?

Clean, angular crushed stone in the 3/4-inch to 1-1/2-inch range drains freely, resists settling, and does not expand when wet — making it the standard backfill against the wall face.

Angular stone interlocks under compaction, creating a stable matrix that allows water to pass through at rates above 100 feet per day. Round river gravel lacks that interlock and shifts under load. Specify washed stone with less than 5 percent fines to prevent clogging. A minimum 12-inch-wide drainage zone of clean crushed stone should run the full height of the wall.

Can You Use Native Soil for Backfilling a Retaining Wall?

Native soil can be used as general fill behind the drainage zone, but it should never sit directly against the wall face.

If your native material is a well-graded sandy gravel with low plasticity (plasticity index under 10), it works well as secondary fill placed 12 or more inches away from the wall. Compact it in lifts just like the stone zone. Test the soil first — a simple jar test reveals clay content, and anything above 20 percent clay is a problem directly behind the wall.

What Backfill Materials Should You Avoid?

Clay, organic soils, topsoil, and construction debris should never be used as primary backfill against a retaining wall.

Clay expands up to 10 percent by volume when saturated, generating massive lateral pressure. Organic material decomposes and creates voids that lead to settlement. Construction debris compacts unevenly and can puncture filter fabric or crush drain pipe. Even "clean" fill dirt with unknown composition is a risk — always verify the material before placing it.

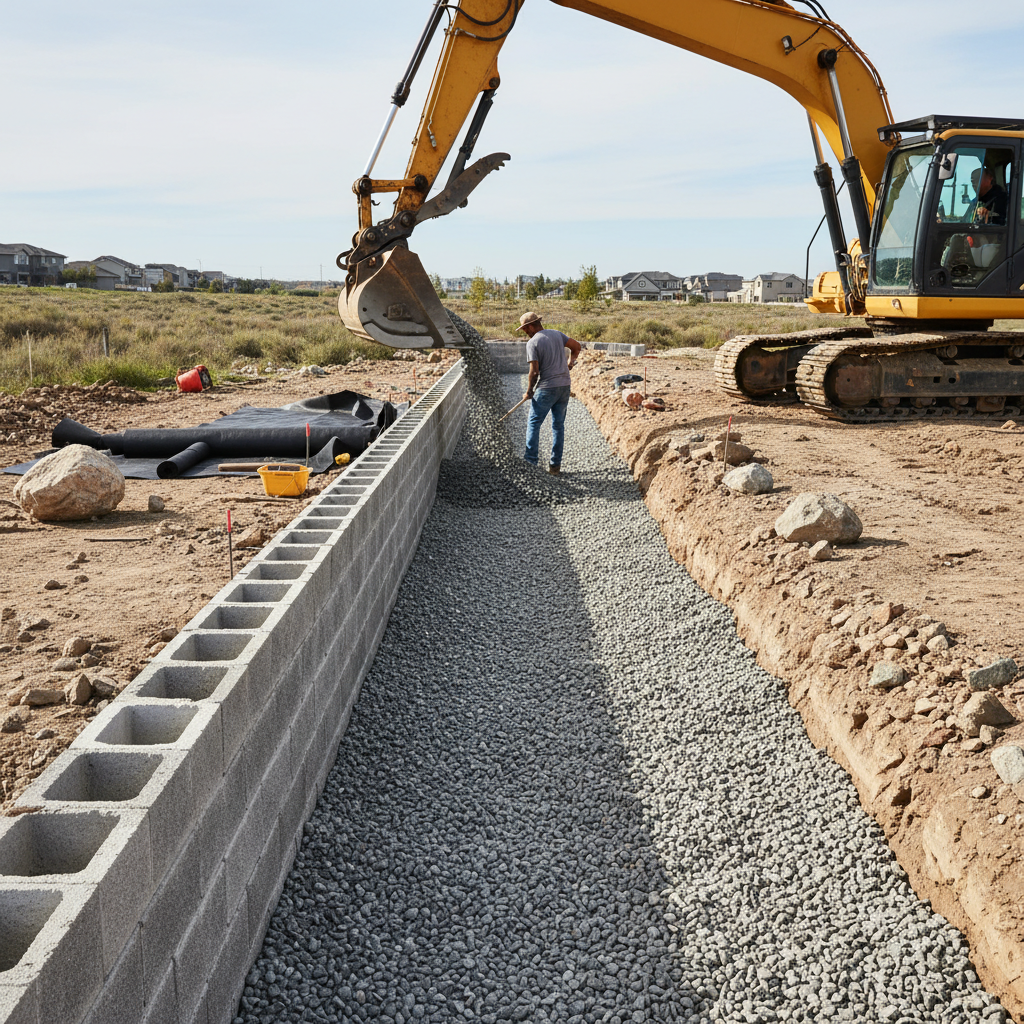

How Do You Backfill a Retaining Wall Step by Step?

Backfilling a retaining wall follows 3 sequential phases beginning with drainage layer installation, followed by lift-and-compact cycles, then final grading. The process requires specific preparation techniques, compaction methods with defined lift thickness, and precise finishing procedures for long-term wall stability.

How Do You Prepare the Drainage Layer Before Backfilling?

Install a perforated drain pipe — 4-inch minimum diameter — at the base of the wall footing, wrapped in filter fabric, sloped at a minimum 1 percent grade toward a daylight outlet or storm system.

Lay the pipe with perforations facing down on a 2-inch bed of crushed stone. Cover it with 6 inches of the same stone. Then wrap the entire stone-and-pipe assembly in non-woven geotextile filter fabric to prevent soil fines from migrating in and clogging the system. This drainage assembly collects water before it builds pressure against the wall.

What Is the Correct Lift Thickness and Compaction Method?

Place backfill in lifts of 6 to 8 inches of loose material, then compact each lift to 95 percent standard Proctor density before adding the next layer.

Use a plate compactor for granular fill within 3 feet of the wall face — it delivers even force without slamming the wall. For cohesive soils farther behind the drainage zone, a jumping jack (rammer) compactor penetrates deeper and handles heavier material. Never dump a full load and compact from the top down. That approach leaves loose pockets at the bottom that settle later and pull the wall inward.

How Do You Finish the Final Grade Behind the Wall?

Cap the crushed stone zone with 6 inches of compacted native soil or a clay cap to direct surface water away from the wall, then grade at a 2 percent minimum slope away from the wall face.

Without this cap, rain sheets directly into your drainage stone and overloads the pipe system. The final grade should blend into the surrounding terrain. If you're seeding or sodding, add 3 to 4 inches of topsoil over the cap layer. Compact the cap layer before adding topsoil to avoid future settling behind the wall.

What Equipment Makes Backfilling a Retaining Wall Faster?

Professional backfilling equipment includes compact machines with specialized bucket attachments designed for controlled material placement and compaction. Equipment selection depends on 2 primary factors: bucket design for efficient material handling and attachment compatibility with specific jobsite constraints and access requirements.

Which Buckets and Machines Handle Backfill Material Most Efficiently?

A skid steer paired with a properly sized bucket is the most practical machine for moving, placing, and spreading crushed stone or gravel behind retaining walls on residential and mid-size commercial sites.

Hand-wheeling stone in barrows behind a 50-foot wall burns hours and backs. A purpose-built bucket lets you scoop, transport, and feather material in 6-inch lifts directly where it needs to go. For most backfill work, you want Skid Steer Buckets in the 66-inch to 78-inch range with a flat bottom edge for spreading and a capacity between 0.5 and 0.75 cubic yards. That size handles standard crushed stone without overloading the machine and fits behind most walls with adequate working room.

Confined residential yards and narrow-access lots call for a smaller machine. Mini Skid Steer Buckets in the 36-inch to 48-inch range fit through 36-inch gates and work in spaces where a full-size skid steer can't turn. They're ideal for walls under 4 feet tall on properties with limited staging area.

How Do You Choose the Right Attachment for Your Jobsite Size?

Match the bucket to the machine's rated operating capacity and the jobsite access constraints — not just the volume of material you need to move.

For large-scale commercial retaining wall projects with backfill volumes above 50 cubic yards, Wheel Loader Buckets in the 2-to-3-cubic-yard range stage bulk material and feed it to smaller machines working close to the wall. On a mid-size residential job moving 10 to 20 cubic yards, a standard skid steer bucket handles the full workflow. Below 5 cubic yards on a tight lot, a mini skid steer bucket keeps you from tearing up the client's lawn.

How Long Does Backfilling a Retaining Wall Take and What Does It Cost?

Backfilling timeline and costs depend on 2 critical factors: mandatory concrete curing periods before backfill placement and material quantities calculated by wall dimensions. Project scheduling must account for specific curing requirements, while costs reflect material volumes, equipment rental, and labor based on wall specifications.

What Curing Times Apply Before You Can Start Backfilling?

Concrete and mortar-set stone walls require a minimum of 7 days of curing before any backfill pressure is applied; segmental block walls and timber walls can typically be backfilled the same day.

Poured concrete reaches roughly 70 percent of its 28-day strength at day 7. Backfilling earlier risks cracking the wall under lateral load before it has adequate tensile strength. Segmental (dry-stack) block walls rely on weight and interlock rather than curing, so you can fill as you build in some cases — check the block manufacturer's installation guide for specific lift heights per course.

How Much Does Backfilling a Retaining Wall Cost?

Material cost for crushed stone backfill runs $25 to $50 per ton delivered, and a typical 4-foot-tall, 50-foot-long wall requires 15 to 25 tons of stone for the drainage zone alone.

That puts material in the $375 to $1,250 range before labor or equipment. Hiring a crew to backfill runs $50 to $85 per hour per laborer plus machine rental at $250 to $400 per day for a skid steer. Owning your own bucket attachment and machine eliminates rental markups and scheduling delays — a meaningful advantage if you're building multiple walls per season.

What Mistakes Should You Avoid When Backfilling a Retaining Wall?

Critical backfilling mistakes include inadequate drainage design and insufficient compaction procedures that cause structural failure. These 2 primary errors create water pressure buildup behind walls and settlement problems that compromise structural integrity and require costly repairs.

How Does Poor Drainage Cause Retaining Wall Failure?

Skipping the drain pipe or using fine-graded fill against the wall face traps water, saturates the backfill zone, and doubles or triples the lateral earth pressure the wall must resist.

A wall designed for drained conditions might handle 200 pounds per linear foot of lateral pressure. Add hydrostatic pressure from trapped water and that number jumps to 500 or more. The wall wasn't engineered for that load. It bows, cracks, or topples — usually during spring thaw or heavy rain when the damage is most expensive to fix.

Why Does Skipping Compaction Lead to Settlement?

Uncompacted backfill settles 5 to 15 percent over time, pulling away from the wall cap, creating surface depressions, and redirecting water back toward the wall.

Other avoidable errors include dumping all fill at once instead of working in 6-to-8-inch lifts, using a plate compactor on cohesive soil (it only compacts the top 2 inches), running heavy equipment directly against the wall face before the backfill is at grade, and forgetting to extend filter fabric over the top of the stone zone before capping. Each of these shortcuts creates a failure point that shows up within 1 to 3 years.

Frequently Asked Questions About Backfilling a Retaining Wall

Common backfilling questions address 5 practical concerns including material selection, timing requirements, DIY feasibility, quantity calculations, and maintenance schedules. These contractor-focused answers cover material specifications, curing periods, project complexity assessment, volume estimation methods, and inspection intervals for proper wall performance.

What Is the Best Backfill for a Retaining Wall?

Clean, angular crushed stone in the 3/4-inch to 1-1/2-inch size range is the best backfill material to place directly against a retaining wall.

It drains at rates exceeding 100 feet per day, interlocks under compaction for structural stability, and does not expand when wet. Behind the stone drainage zone — at least 12 inches from the wall face — you can transition to compacted native soil if it has low clay content. Avoid round gravel, topsoil, clay, and any organic material in the primary fill zone.

How Long Should You Wait Before Backfilling a Retaining Wall?

Wait at least 7 days before backfilling poured concrete or mortar-set walls to allow adequate strength development.

Segmental block walls and timber walls do not rely on a curing chemical reaction, so backfilling can begin the same day they're built. If temperatures during the cure period drop below 40°F, extend the wait time to 10 to 14 days. Cold weather slows cement hydration significantly, and premature loading under those conditions risks structural cracking.

Can You Backfill a Retaining Wall Yourself?

Walls under 4 feet tall with straightforward access are well within reach for an experienced contractor or capable property owner with the right equipment.

The key threshold is wall height. Walls above 4 feet in most jurisdictions require engineered designs and permitted construction, and the backfill specifications become stricter. For DIY-scale projects, budget $400 to $1,200 for materials and a day of machine rental. A professional crew typically charges $1,500 to $4,000 for a wall in the 30-to-60-foot range including backfill.

How Much Backfill Material Do You Need for a Retaining Wall?

Calculate volume by multiplying the wall length by the wall height by the drainage zone width (minimum 12 inches), then add 10 percent for compaction loss.

For a 50-foot-long, 4-foot-tall wall with a 12-inch stone zone, that's roughly 7.5 cubic yards of crushed stone — about 12 to 15 tons depending on the material. Larger walls or walls with deeper drainage zones require proportionally more. On commercial projects with walls over 6 feet, engineers often specify 24-inch or wider drainage zones, which doubles the stone volume.

How Often Should You Inspect Retaining Wall Backfill and Drainage?

Inspect the wall face, drain outlets, and surface grade behind the wall at least twice per year — once after spring thaw and once after the heaviest rain season in your area.

Look for wall face displacement greater than 1/2 inch from plumb, standing water at the base, settlement depressions behind the cap, and reduced or zero flow from the drain outlet during rain events. Blocked drains need to be flushed or excavated immediately. Catching a drainage failure in year 1 costs a few hundred dollars; ignoring it until the wall leans costs thousands.
