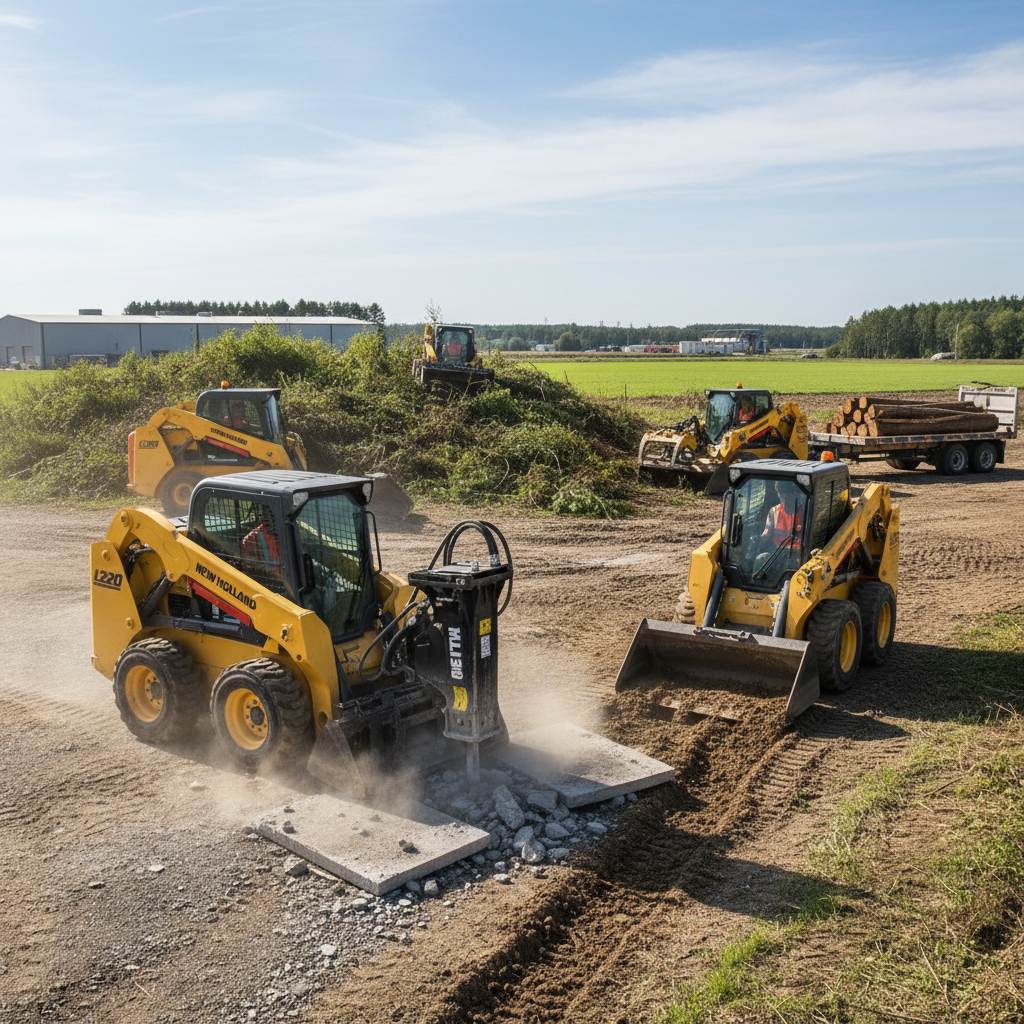

New Holland L220 Attachments Buyer Guide — What Fits

Picking the right new Holland L220 attachments comes down to five factors — mount type, hydraulic flow capacity, rated operating capacity, attachment weight, and your actual work mix. Get any one of those wrong and you're stuck with a return, a machine that can't lift the load, or a coupler that won't latch. This guide gives you the exact specs to match, breaks down what each price tier actually buys you, flags the warning signs sellers hope you miss, and hands you a pre-purchase checklist you can run through in five minutes flat.

What Specifications Must You Verify Before Buying New Holland L220 Attachments?

Attachment compatibility requires verification of 7 critical specifications including hydraulic flow rates, mounting plate dimensions, and weight limits. These specifications determine compatibility, durability expectations, and performance output for specific job requirements.

What Compatibility Specifications Must Match?

The New Holland L220 uses a universal skid steer quick-attach mounting plate — also called the standard quick-coupler interface. This plate measures approximately 15.5 inches tall and 9.5 inches wide at the latch points. Any attachment labeled "universal skid steer mount" or "standard quick-attach" connects to the L220 without adapter plates.

• Mount type: universal skid steer quick-attach (standard) — a mini or compact-track-only mount physically cannot latch and creates a safety hazard
• Hydraulic flow: the L220 supplies approximately 17.4 GPM at standard flow — attachments requiring more than 17.4 GPM stall, overheat the hydraulic system, or fail to cycle
• Operating pressure: the L220 delivers roughly 3,000 PSI — attachments rated above 3,000 PSI operating pressure do not reach full performance on this machine

What Build Quality Specs Determine Durability?

Steel thickness on the mounting plate and main frame is the single best indicator of durability. Light-duty attachments use 3/16-inch plate steel; heavy-duty attachments use 1/4-inch to 3/8-inch plate. For daily commercial use, 1/4-inch minimum prevents frame flex and weld cracking under repeated load cycles.

• Frame steel thickness: 1/4-inch minimum for commercial use — 3/16-inch flexes under sustained loads exceeding 1,500 lbs and shortens weld life by 40–60%
• Weld type: continuous MIG or robotic welds along all structural seams — tack welds or intermittent beads crack within 200–400 operating hours
• Cylinder rod diameter: 2-inch minimum on grapple and bucket cylinders — 1.5-inch rods bend under side-loading in dense material

What Performance Specs Determine Output?

Rated operating capacity (ROC) of the L220 is approximately 2,200 lbs at 50% tipping load. Any attachment plus its payload must stay at or below 2,200 lbs combined. An 800-lb grapple holding 1,500 lbs of logs totals 2,300 lbs — over capacity, triggering tip-forward risk and accelerated wear on the loader arms and pivot pins.

What Do Different New Holland L220 Attachment Price Tiers Offer?

Attachment pricing typically falls into 3 distinct tiers ranging from $2,000 entry-level to $15,000+ professional-grade units. Each tier delivers different material specifications, performance capabilities, and determines when basic functionality meets project demands.

What Do You Get at Each Price Level?

New Holland L220 attachments fall into three price tiers spanning roughly $400 to $6,500+ depending on type.

• Entry-level ($400–$1,200): 3/16-inch steel frames, single-cylinder designs, imported hydraulic cylinders, 90-day limited warranties — suits property owners using an attachment 5–15 hours per month
• Mid-range ($1,200–$3,500): 1/4-inch steel frames, dual-cylinder configurations, domestic or name-equivalent hydraulic components, 12-month structural warranties — suits contractors and landscapers running 40–80 hours per month
• Professional ($3,500–$6,500+): 3/8-inch reinforced frames, hardened teeth or cutting edges, oversized pins and bushings, 24-month structural warranties — suits operators running 100+ hours per month in demolition, land clearing, or heavy agricultural applications

What Specifications Change at Each Tier?

The largest spec jump between entry-level and professional is steel thickness — from 3/16-inch to 3/8-inch. Cylinder bore increases from 2 inches to 3 inches. Pin diameters step from 3/4-inch to 1-inch. Hose fittings upgrade from pressed crimp to O-ring face seal. Each change extends service life by measurable intervals — 3/8-inch frames last 3,000+ hours vs. 800–1,200 hours on 3/16-inch frames.

When Is Entry-Level Sufficient?

Entry-level attachments work for landowners and hobby farmers operating fewer than 15 hours per month. Once monthly usage exceeds 20 hours, or material density exceeds 40 lbs per cubic foot (wet topsoil, green logs, rock), step to mid-range. The cost difference of $400–$800 prevents a full replacement within 12–18 months.

What Red Flags Appear When Shopping for New Holland L220 Attachments?

Problematic attachment listings contain 5 warning signs including missing compatibility data, inflated performance claims, and inadequate warranty coverage. These red flags appear in product descriptions, specification sheets, and warranty terms that require careful evaluation.

What Are the Red Flags in Listings and Products?

The most common red flag is a listing that omits steel thickness entirely. A manufacturer confident in build quality publishes exact material specs. Absence of that data usually signals 3/16-inch or thinner material dressed up with heavy paint.

• No steel gauge specified: indicates thin material the seller does not want compared side-by-side — request spec sheet before ordering
• Single product photo from one angle: conceals weld quality, backside reinforcement, and cylinder mounting — demand photos of welds and pin connections
• "Fits all skid steers" with no mount dimensions listed: some attachments ship with a mini-excavator or compact-tool-carrier mount despite the claim — confirm 15.5-inch × 9.5-inch standard quick-attach pattern
• Weight not listed: prevents you from calculating combined payload against the L220's 2,200-lb ROC — any seller who does not list attachment weight is withholding data you need for safe operation

What Specifications Are Frequently Overstated?

Capacity ratings are the most commonly inflated specification in attachment listings. A grapple rated at "2,500 lbs" often refers to the cylinder's maximum clamping force — not the safe working load at the attachment's center of gravity. Ask for the rated working load measured at the bucket lip or grapple midpoint. Compare that figure against the L220's 2,200-lb ROC minus attachment self-weight.

What Warranty Terms Deserve Scrutiny?

Require a minimum 12-month structural warranty covering frame welds and mounting plates. Hydraulic cylinders and hoses need at least 6 months of coverage. Any warranty that excludes "normal wear" without defining what constitutes normal wear is effectively void from day one.

• Structural welds: minimum coverage 12 months
• Hydraulic cylinders and hoses: minimum coverage 6 months
• Wear parts (teeth, cutting edges, tines): typically excluded — budget $150–$400 annually for replacement sets

How Do You Match New Holland L220 Attachments to Your Work?

Proper attachment selection requires matching 4 job-specific factors including material type, cycle frequency, site conditions, and output requirements. This process involves determining optimal attachment dimensions, asking targeted seller questions, and completing a comprehensive specification verification.

How Do You Determine the Right Attachment Type and Size?

Match attachment type to your three most frequent tasks, not your occasional wish-list job. A 66-inch grapple bucket handles brush, logs, and debris — the top three tasks for tree service and land clearing operators. A 72-inch bucket exceeds the L220's width and reduces breakout force per square inch. Keep bucket and grapple widths between 60 and 72 inches for this machine class.

• If primary work is material handling (pallets, bales, pipe): choose skid steer pallet forks rated at 4,000 lbs or higher with 42-inch or 48-inch tines
• If primary work is land clearing, brush, or log removal: choose skid steer grapples with 60- to 72-inch opening width and dual cylinders
• If primary work is grading, backfilling, or trenching: choose a 66-inch bucket with a bolt-on cutting edge or a dedicated trencher attachment rated for 14–17 GPM

What Questions Do You Ask a Seller Before Purchasing?

Five questions separate a solid purchase from an expensive mistake — most sellers do not volunteer this data unless asked directly.

• "What is the exact steel thickness on the frame and mounting plate?" — reveals whether the attachment meets the 1/4-inch commercial-grade minimum
• "What is the attachment's self-weight without any payload?" — reveals whether you can carry a full load within the L220's 2,200-lb ROC
• "What is the required hydraulic GPM and PSI for full operation?" — reveals whether the attachment runs properly on the L220's 17.4 GPM standard flow
• "Are the welds continuous or intermittent, and are they performed by certified welders or robotic systems?" — reveals structural integrity and consistency
• "Does the warranty cover structural failure of welds for at least 12 months, and what is excluded?" — reveals the manufacturer's confidence in their own product

What Is the Complete Pre-Purchase Specification Checklist?

Verify these 10 specifications before placing any order for a New Holland L220 attachment.

• Mount type: verify universal skid steer quick-attach (standard pattern, 15.5 in × 9.5 in)
• Hydraulic flow requirement: verify 17.4 GPM or below
• Operating pressure requirement: verify 3,000 PSI or below
• Attachment self-weight: verify total (attachment + max payload) stays at or under 2,200 lbs
• Frame steel thickness: verify 1/4-inch minimum for commercial use
• Weld type: verify continuous structural welds on all load-bearing seams
• Cylinder bore and rod diameter: verify 2-inch bore minimum for grapples and buckets
• Hose fitting type: verify flat-face or O-ring face seal fittings — not pipe-thread fittings, which leak under vibration
• Width: verify 60 to 72 inches for bucket and grapple attachments on this frame size
• Warranty: verify 12-month minimum structural, 6-month minimum hydraulic

How Do New Holland L220 Attachment Types Compare for Common Tasks?

Attachment performance varies significantly based on hydraulic demands, versatility ratings, and task-specific design features. These differences determine which attachments maximize machine capabilities, hydraulic system requirements, and passive attachment suitability for specific operations.

Which Attachments Deliver the Most Versatility on This Machine?

A grapple bucket and a set of pallet forks cover roughly 70% of the tasks contractors and farm owners face. A grapple handles brush, logs, demolition debris, and loose material. Pallet forks handle feed, lumber, fencing supplies, and equipment. Adding a third attachment — an auger or trencher — expands the L220 into post-hole and drainage work without renting a second machine.

What Are the Hydraulic Demands of High-Flow Attachments?

The L220's standard hydraulic output of 17.4 GPM limits compatibility with certain powered attachments. Mulchers, brush cutters, and stump grinders typically require 20–35 GPM and perform poorly or overheat the system at 17.4 GPM. An optional high-flow kit — if available for your specific serial number — raises output to approximately 30 GPM and opens compatibility with these attachments. Verify high-flow availability with your dealer before purchasing any attachment rated above 18 GPM.

What Passive Attachments Work Best on the L220?

Passive (non-hydraulic) attachments like dozer blades, snow pushers, and bale spears place zero extra demand on the hydraulic system. These rely entirely on the loader arm's lift capacity and tilt function. A 6-foot snow pusher weighing 500–700 lbs fits within the L220's ROC with margin. A bale spear at 200–350 lbs handles round bales up to 1,800 lbs safely. Decision rule: if your total load stays under 2,200 lbs and the attachment mounts to the standard quick-attach plate, it fits.

Frequently Asked Questions About Buying New Holland L220 Attachments

Common attachment purchasing questions focus on compatibility standards, used equipment value, warranty expectations, ownership costs, and hydraulic verification methods. These 5 topics address universal fitting standards, cost-benefit analysis, standard warranty terms, long-term expenses, and pre-purchase compatibility confirmation.

Will Any Universal Skid Steer Attachment Fit the New Holland L220?

Any attachment built to the standard universal skid steer quick-attach pattern (approximately 15.5 in × 9.5 in latch points) physically connects to the L220.

Physical fit does not equal operational compatibility. Verify hydraulic flow stays at or below 17.4 GPM and combined weight stays at or below 2,200 lbs. Powered attachments like mulchers and cold planers often require high-flow hydraulics the standard L220 does not supply. Browse skid steer attachments built for standard-flow machines to avoid mismatch.

Is Buying a Used Attachment for the L220 Worth It?

Used attachments save 30–50% off new pricing — a $2,400 mid-range grapple sells used for $1,200–$1,700.

Inspect four things before buying used: weld cracks at the mounting plate (run a finger along every seam), cylinder rod pitting (any visible scarring means a seal failure is imminent), pin-and-bushing slop (more than 1/8-inch lateral play means the pins are worn), and hydraulic hose condition (dry-rotted or bulging hoses cost $100–$250 to replace per line).

What Warranty Terms Are Standard for New Skid Steer Attachments?

Expect 12 months on structural components and 6 months on hydraulic cylinders and hoses for mid-range and professional-tier attachments.

Entry-level attachments commonly carry 90-day warranties. Avoid warranties that exclude "damage from normal use" without a clear definition — this language lets the manufacturer deny any claim involving actual work. A strong warranty specifically covers weld failure, cylinder seal leaks, and mounting plate cracks under normal operating loads up to the published ROC.

What Is the True Cost of Owning an Attachment Over Five Years?

Total five-year cost equals purchase price plus wear parts plus hydraulic maintenance.

A mid-range grapple at $2,400 costs approximately $3,200–$3,600 over five years. Budget $150–$400 per year for replacement teeth or cutting edges, $100–$200 per year for hydraulic hose replacements, and $50–$100 for annual pin and bushing inspection and greasing. Professional-tier attachments cost more upfront but reduce annual wear-part replacement by 30–40% due to hardened steel and oversized components.

How Do You Confirm Hydraulic Compatibility Before Buying?

Request the attachment's hydraulic spec sheet listing required GPM and PSI.

Cross-reference those numbers against the L220's published specs: 17.4 GPM standard flow and 3,000 PSI operating pressure. If the attachment lists a GPM range (e.g., "15–25 GPM"), it performs at reduced speed or force at the lower end. For powered attachments like augers and trenchers, confirm performance is acceptable at exactly 17.4 GPM — not just technically possible. A skid steer grapple typically requires only 8–15 GPM and runs at full performance on this machine.
