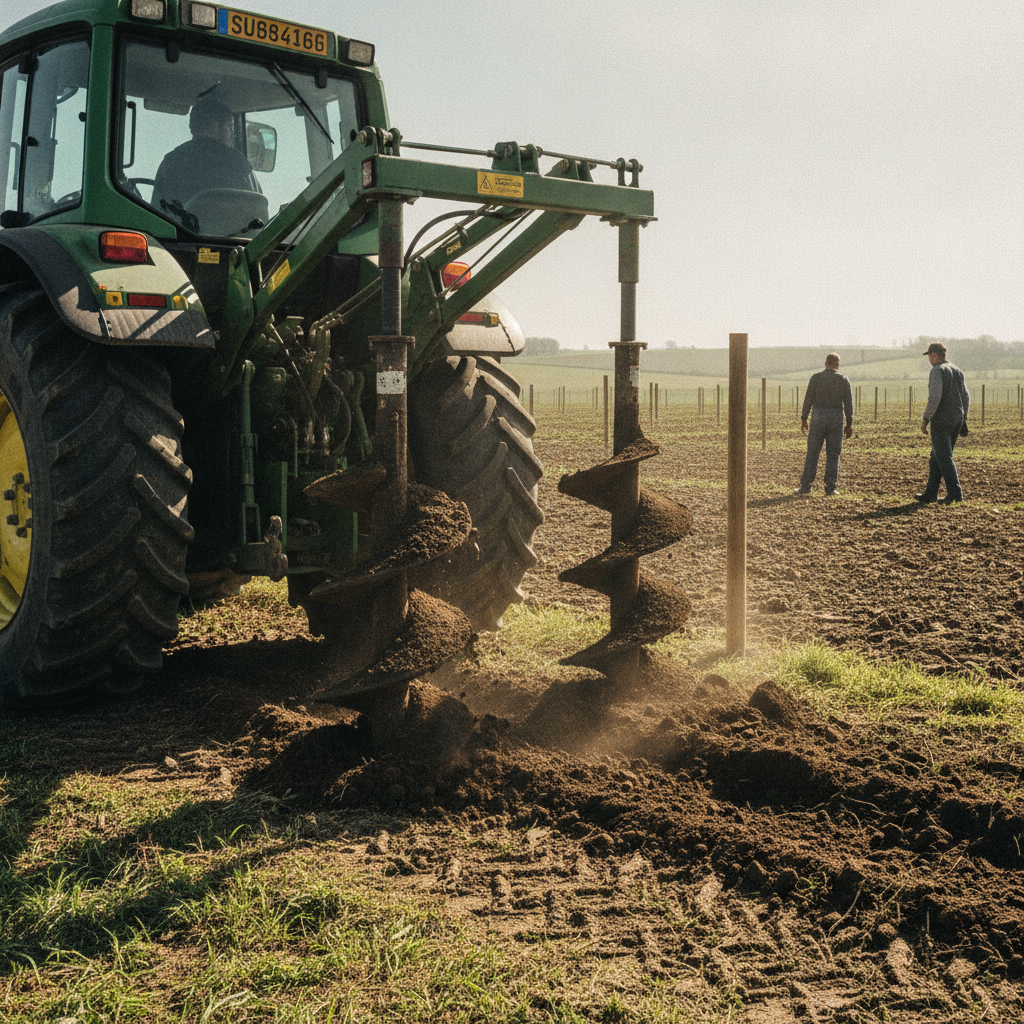

How to Use 3 Point Augers for Fence Post Holes

Using 3 point augers to dig fence post holes takes 1 to 3 minutes per hole once the tractor and auger are set up correctly. The full process — from hitch attachment through drilling a line of post holes — requires a tractor with a Category 1 or Category 2 three-point hitch, a 540 RPM PTO, and an auger bit sized to the post diameter. This guide covers auger selection, tractor specs, the drilling process, safety practices, and maintenance so every hole comes out clean and consistent.

What Do You Need Before Using 3 Point Augers for Post Holes?

Digging post holes with a 3 point auger requires four elements: a compatible tractor, the correct hitch category, a properly sized auger bit, and adequate front-end ballast. Each element resolves a distinct dependency before drilling begins.

What Tractor Specs and Hitch Category Does a 3 Point Auger Require?

A 3 point auger mounts to a Category 1 or Category 2 three-point hitch and runs on a 540 RPM PTO. Category 1 hitches fit compact and sub-compact tractors with lower-pin spacing of 26 inches. Category 2 hitches fit utility tractors with lower-pin spacing of 28 inches.

• PTO horsepower requirement: 15 to 25 HP minimum for 6-inch to 12-inch bits; 25 to 50 HP for 18-inch and 24-inch bits
• PTO speed: 540 RPM — connecting a 3 point auger to a 1000 RPM PTO without a speed reducer destroys the gearbox
• Front ballast: add counterweight or a loaded front-end loader bucket equal to at least 30% of the auger's boring force to prevent rear tipping during deep holes

What Auger Bit Size and Ground Conditions Apply?

Auger bit diameter depends on post size and soil type. Standard 3 point auger bits come in 6-inch, 9-inch, 12-inch, 18-inch, and 24-inch diameters. The hole diameter needs to be 2 to 4 inches wider than the post for backfill and tamping room.

• 6-inch bit — electric fence stakes, small garden posts
• 9-inch bit — standard 4x4 fence posts, vineyard trellises
• 12-inch bit — 6x6 posts, deck footings, mailbox posts
• 18-inch bit — large structural posts, sign posts, tree planting
• 24-inch bit — pier footings, utility poles, large tree relocations

Soil type dictates bit style. Sandy loam and loose topsoil work with standard welded-tooth bits. Clay, hardpan, and rocky ground demand heavy-duty bits with carbide cutting teeth and a reinforced pilot point. Browse our full lineup of Tractor Post Hole Diggers to find the right gearbox and bit combination for your tractor's hitch category and PTO horsepower.

Shop Tractor Post Hole Diggers for This Job

These 9 picks from our tractor post hole diggers range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all tractor post hole diggers.

Universal Auger Drive Extensions (2″ Hex) – Extend Your Drilling Depth and Reach | Stinger Attachments$405Universal Auger – Professional Drilling for Fence Posts and Foundations | Loflin Fabrication$320Universal Mini Auger Drive Attachment – High-Torque Drilling | Stinger Attachments$2,680Universal Mini Auger Attachment – Precision Drilling | Stinger Attachments$495DOT Package Post Driver | Gas-Powered | 1.2HP Honda GX50 Engine | 30 Lbs | Titan$3,875Pro Fence Package Post Driver | Gas-Powered | 1.2HP Honda GX50 Engine | 32 Lbs | Titan$3,750Tractor Post Hole Digger – Professional Fence and Foundation Work | BEFCO$1,242Universal Auger – 2" Hex for Heavy-Duty Drilling and Post Holes | Stinger Attachments$495Universal Auger Drive – High-Torque Design for Post Holes and Land Development | Stinger Attachments$3,000

How Do You Drill Fence Post Holes With 3 Point Augers Step by Step?

Drilling fence post holes with 3 point augers follows six steps over 1 to 3 minutes per hole. Each step has a measurable completion point before moving to the next.

What Are the Steps to Drill Clean, Consistent Post Holes?

The six steps below produce uniform holes at the correct depth and spacing for fence line work.

1. Mark hole locations. Drive a stake at each post position along the fence line. Space stakes at 6-foot to 10-foot intervals depending on fence type. Run a string line between end stakes to keep the row straight.
2. Position the tractor. Align the tractor so the auger bit centers directly over the first stake. Lower the three-point hitch until the pilot point touches the ground at the marked spot.
3. Engage the PTO. Set the PTO to 540 RPM. Let the auger spin at full speed for 2 to 3 seconds before applying downward hydraulic pressure. The bit cuts into soil under its own weight and tractor hydraulic force.
4. Drill in intervals. Lower the auger 12 to 18 inches into the ground, then raise the bit fully to clear spoils from the flighting. Repeat this plunge-and-lift cycle until the hole reaches target depth. Never force the auger downward — let the cutting teeth work at their own pace, especially in wet clay.
5. Verify hole depth. Measure hole depth with a tape measure or marked stick. Fence posts require burial depth equal to one-third of total post length: an 8-foot post needs a hole 32 to 36 inches deep minimum.
6. Advance to the next hole. Raise the auger fully clear of the ground. Disengage the PTO before driving the tractor forward to the next stake. Re-engage the PTO only after the bit is positioned over the new mark.

Once all holes are drilled, complementary Fence Post Work Attachments like drivers and tampers speed up the rest of the installation process.

What Are the Most Common Mistakes When Drilling Post Holes?

The most common mistake is choosing an undersized gearbox for the bit diameter. A gearbox rated for 9-inch bits stalls and strips gears when paired with an 18-inch bit in compacted soil. Match gearbox torque rating to the largest bit diameter intended for use.

• Forcing the auger down instead of letting the bit cut — causes the tractor rear to lift, the auger to bind, and the driveline to overload
• Skipping the plunge-and-lift cycle — packs wet clay around the flighting, stalls the PTO shaft, and produces a tapered hole instead of a straight bore
• Running a 540 RPM auger on a 1000 RPM PTO without a reducer — destroys the planetary gearbox within seconds of engagement

What Safety Practices Apply When Operating 3 Point Augers?

Operating 3 point augers safely requires four controls: proper PPE, adequate tractor ballast, PTO shield integrity, and bystander clearance. Each control prevents a specific injury or equipment failure scenario.

What Are the Critical Safety Requirements?

The PTO driveline shield must be intact and spinning freely before every use. An exposed PTO shaft catches loose clothing and causes severe entanglement injuries. Inspect the shield for cracks or missing sections before each session.

• Wear close-fitting clothing, steel-toed boots, gloves, and safety glasses — loose sleeves or drawstrings catch on rotating components
• Keep all bystanders at least 20 feet from the auger during operation — ejected rocks and broken soil travel at high velocity
• Disengage the PTO and lower the auger to the ground before leaving the tractor seat for any reason

What Are the Warning Signs During Operation?

A sudden increase in engine RPM load or unusual vibration from the gearbox signals an obstruction or mechanical failure. Stop the PTO immediately if the tractor rear lifts more than 4 to 6 inches off the ground — the auger has hit a boulder or root mass. Reverse the auger rotation if the gearbox supports it, or raise the bit and reposition.

Shop Fence Post Work Attachments for This Job

These 10 picks from our fence post work attachments range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all fence post work attachments.

1/2-Inch Reducer Sleeve for Hydraulic Post Driver | Precision Guidance | Steel Construction | Titan$102Honda GX35 Gas-Powered Post Driver | 32 lbs | 50% More Impact Force | Handheld Operation | Titan$1,225Manual Post Puller for Property Maintenance | Hand Operation | Engineered Tripod Base | NW Quik Pull$1,457Multi-Use Mixer for Commercial Equipment | Electric | Continuous Operation | Mud Mixer$3,695Plate Compactor | Single-Direction | 212cc Engine | 21.5" x 17.7" Plate | Powerhorse$700Post Puller for Manual Operation | 36-Inch | Large Frame | Telescoping Handle | Titan$307Ripper Attachment for NorTrac Towable Trencher | 7-11/16 In. L x 10-11/16 In. W | Solid Iron Construction | NorTrac$1673/4-Inch Reducer Sleeve for Hydraulic Post Driver | Precision Guidance | Steel Construction | Titan$102Towable Wood Chipper | 5-In. Capacity | 420cc Engine | 15 HP | Powerhorse$1,700Skid Steers Ranch Axe Tree Shears | 14"-20" | Solid Steel Arms | 60% Stronger Performance | Maxx Attachments$12,500

How Do You Maintain 3 Point Augers After Use?

Post-use 3 point auger maintenance involves four steps: cleaning the flighting, inspecting cutting teeth, greasing the gearbox, and checking PTO driveline condition. Skipping any step shortens service life and causes unexpected failure during the next job.

What Post-Use Maintenance Is Required?

Clean all soil from the auger flighting and pilot point after every use. Packed clay left on the flighting corrodes the steel and creates imbalance during the next bore. Grease the gearbox input shaft and all zerk fittings every 8 to 10 operating hours, or after each full day of drilling.

When Do You Replace Auger Bits and Wear Parts?

Replace cutting teeth when they wear down to 50% of original length. Worn teeth force the auger to work harder, increase PTO load, and produce rough-sided holes that compromise post stability. Replace the pilot point when it no longer centers the bit in the hole — a dull pilot causes the auger to wander and produce oversized bores.

Frequently Asked Questions About 3 Point Augers

The most common 3 point auger questions cover digging performance, tractor compatibility, auger sizing, soil limitations, and tool comparisons. The answers below resolve each with specific numbers and direct guidance.

Are Augers Good for Digging?

A 3 point auger drills a 36-inch-deep fence post hole in 1 to 3 minutes — a task that takes 15 to 30 minutes with a manual post hole digger in firm soil.

Augers produce uniform-diameter holes with straight sidewalls, which improves post alignment and reduces backfill volume. For tree planting, deck footings, and utility work, explore our Earth Augers collection for bits and setups designed for varied ground conditions. Mechanical augers outperform manual tools in every measurable category: speed, consistency, depth accuracy, and operator fatigue.

What Is the Best Auger for a Compact Tractor?

Compact tractors with 15 to 25 PTO horsepower run a Category 1 hitch auger with a gearbox rated for 6-inch to 12-inch bits at 540 RPM.

Match the gearbox torque output to the maximum bit diameter planned for use. A compact tractor gearbox rated at 2,500 foot-pounds of torque handles 12-inch bits in average soil. Exceeding the gearbox rating by running a larger bit causes stalling and premature gear wear. Add front ballast equal to at least 500 pounds when boring holes deeper than 24 inches with any compact tractor setup.

What Are the Standard Sizes of Augers?

Standard 3 point auger bit diameters are 6 inch, 9 inch, 12 inch, 18 inch, and 24 inch.

The 9-inch bit handles the majority of residential and agricultural fence post work with standard 4x4 posts. The 12-inch bit fits 6x6 structural posts and small deck footings. The 18-inch and 24-inch bits serve commercial applications: pier footings, utility poles, and large sign installations. Select a bit diameter 2 to 4 inches wider than the post or footer to allow room for backfill material and compaction.

Can You Use a 3 Point Auger in Rocky Soil?

A 3 point auger bores through rocky soil when equipped with a heavy-duty bit that has carbide cutting teeth and a hardened pilot point.

Standard welded-tooth bits chip and dull on rock within minutes. Carbide-tipped teeth maintain cutting edges through gravel, shale, and fractite. In soil with large boulders (12 inches or greater), the auger stalls or deflects — mark the obstruction, reposition the hole 6 to 8 inches laterally, and re-drill. Frequent plunge-and-lift cycles of 6 to 8 inches prevent bit binding in rocky ground.

What Is the Best Tool for Digging Post Holes on Large Properties?

A tractor-mounted 3 point auger is the most efficient tool for digging post holes across properties with 50 or more holes to drill.

Handheld two-person augers work for 5 to 10 holes in soft ground but cause operator fatigue on larger runs. Skid steer auger attachments offer speed but require a separate machine and higher operating cost per hour. A 3 point auger uses the tractor already on the property, mounts in 10 to 15 minutes, and drills at a sustained pace of 20 to 40 holes per hour depending on depth and soil. For the full fencing workflow — drilling, driving, and tamping — pair the auger with dedicated Fence Post Work Attachments to keep the job moving.
