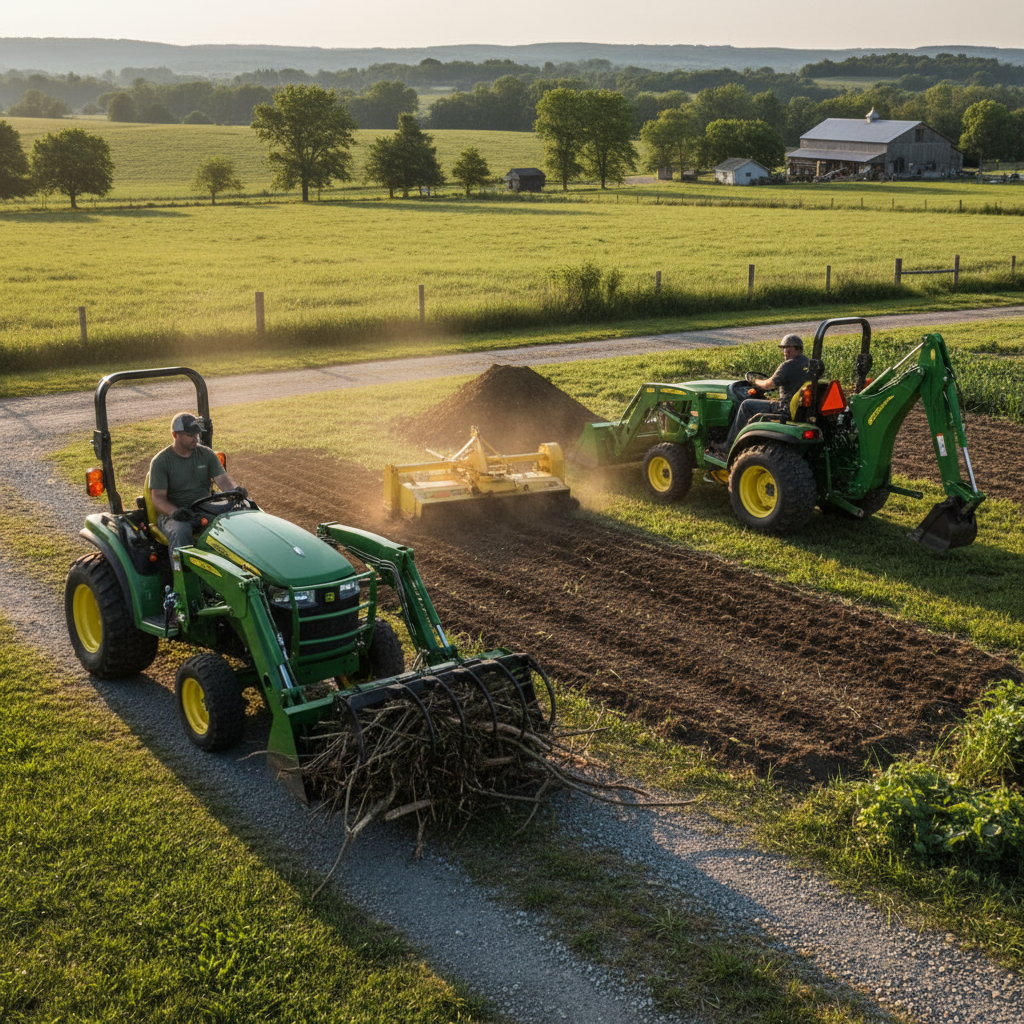

John Deere 1023E Attachments — What Fits & How to Choose

John Deere 1023E attachments fit or fail based on five factors — and getting even one wrong means a return, an adapter, or a safety risk. Those factors are loader mount type, three-point hitch category, hydraulic flow rate, PTO speed, and machine lift capacity. This guide covers every compatible attachment class for the 1023E, breaks down what to check before you buy, and gives you a spec-by-spec checklist so nothing gets left to guesswork. No fluff, no filler — just the information you need to order with confidence.

What Specifications Determine Which John Deere 1023E Attachments Fit?

Compatibility specifications are hydraulic flow rates, lift capacity limits, and mounting interface dimensions that determine attachment fitment. The 3 critical specification categories include compatibility requirements for proper connection, build quality standards for operational durability, and performance parameters that determine work output capacity.

What Compatibility Specifications Must Match?

The 1023E uses a global standard skid steer-style quick-attach plate on its loader and a Category 1 three-point hitch at the rear. Any front attachment must match the quick-attach plate dimensions — 1/2-inch pin holes on roughly 14-7/16-inch centers. Any rear attachment must accept Category 1 link pins (7/8-inch diameter) with 14 to 22 inches between lower link ends.

• Loader mount: standard skid steer quick-attach plate — non-matching plates require an adapter that reduces lift capacity by 50 to 150 lbs
• Three-point hitch category: Category 1 (7/8-inch lower link pins, 22-mm top link pin) — Category 2 implements will not pin up without bushings, and bushings introduce play that accelerates wear
• PTO output: 540 RPM rear PTO — attaching a 1,000-RPM implement destroys the gearbox or the implement within minutes

What Build Quality Specs Determine Durability?

Steel thickness is the single largest variable between attachments that look identical online. For a sub-compact tractor class like the 1023E, front attachments (pallet forks, grapples, buckets) built from 3/16-inch plate steel are suitable for light residential work. Attachments rated for daily commercial use require 1/4-inch plate at minimum on all structural components.

• Frame plate steel: 1/4-inch minimum for commercial use — 3/16-inch flexes under repeated loading and cracks at weld joints within 1 to 2 seasons
• Cylinder bore size: 2-inch bore minimum on grapple cylinders — smaller bores produce insufficient clamping force for logs over 8 inches in diameter
• Weld type: continuous MIG or TIG welds on all load-bearing seams — skip welds (stitch welds) fail under cyclic stress at 30% to 50% of the rated load

What Performance Specs Determine Output?

Hydraulic flow and lift capacity define what the 1023E can actually operate. The 1023E produces approximately 3.4 GPM from its standard rear remotes and roughly 4.7 GPM to the loader circuit. Attachments requiring above 5 GPM — such as high-flow brush cutters or large snow blowers — stall or cycle too slowly to be productive on this machine.

What Do Different John Deere 1023E Attachment Price Tiers Offer?

Price tiers represent distinct build quality levels with corresponding specification differences and performance capabilities. The 3 pricing categories offer different material grades and feature sets, with specification variations across tiers, and specific applications where entry-level attachments provide adequate performance for basic tasks.

What Do You Get at Each Price Level?

John Deere 1023E attachments span three distinct price tiers across most categories.

• Entry-level ($150 to $600): 3/16-inch steel construction, imported manufacturing, painted finish, pin-on fasteners or economy quick-attach plates, 6-month structural warranty — suits homeowners using attachments fewer than 20 hours per year
• Mid-range ($600 to $1,500): 1/4-inch steel, domestic or quality-audited import manufacturing, powder-coat finish, standard skid steer quick-attach, 12-month warranty — suits landowners and part-time operators logging 20 to 100 hours per year
• Professional ($1,500 to $3,500+): 1/4-inch to 3/8-inch steel, AR400 wear surfaces on high-contact edges, fully gusseted frames, 24-month structural warranty, replaceable cutting edges and teeth — suits contractors and agricultural professionals exceeding 100 hours per year

What Specifications Change at Each Tier?

The largest specification jump between entry-level and professional is steel grade and wear-surface hardness. Entry-level attachments use mild steel (typically A36) for cutting edges and teeth. Professional-tier attachments use AR400 or AR450 hardened steel on every wear surface, extending edge life by 3x to 5x. Cylinder rod diameter increases from 3/4-inch to 1-inch between entry and professional grapples.

When Is Entry-Level Sufficient?

Entry-level attachments perform adequately for seasonal, light-duty tasks under 20 hours annually. A homeowner moving mulch, gravel, or small hay bales a few times per month does not need AR400 edges or 1/4-inch plate. Once usage exceeds 20 hours per year or material weight regularly exceeds 300 lbs per load, upgrade to mid-range.

What Red Flags Should You Watch for When Buying John Deere 1023E Attachments?

Red flags are compatibility misstatements, inflated performance claims, and inadequate warranty coverage that indicate problematic purchases. The 3 warning categories include deceptive listing practices and product defects, commonly overstated specifications that mislead buyers, and warranty terms requiring verification before purchase.

What Are the Red Flags in Listings and Products?

The most common red flag is a listing that omits steel thickness entirely. Any reputable manufacturer publishes plate gauge, steel grade, and cylinder specifications. Omission means the seller is hiding sub-spec materials or does not have quality control documentation.

• No steel thickness listed: indicates 3/16-inch or thinner plate steel — request a spec sheet before purchasing
• "Universal fit" without specifying mount type: the attachment often requires a $150 to $400 adapter plate and still does not sit flush, reducing effective lift capacity
• Weight ratings listed without specifying "at 24-inch load center": weight capacity varies by load center distance — a rating without this reference point is meaningless and likely inflated
• Stock photos instead of actual product photos: indicates drop-ship or white-label product with no in-house quality inspection

What Specifications Are Frequently Overstated?

Lift capacity and hydraulic pressure ratings are the two most commonly inflated specifications. Sellers list maximum theoretical capacity at the cylinder, not at the attachment tip where the load sits. Verify that any stated capacity references a specific load center (typically 24 inches for forks, 12 inches for buckets). Request a load chart if one is not published — absence of a load chart is itself a red flag.

What Warranty Terms Should You Verify?

Minimum acceptable warranty for a mid-range attachment is 12 months on structural components and 6 months on hydraulic cylinders. Verify that the warranty covers weld failure specifically — many budget warranties exclude "structural fatigue," which is the primary mode of failure.

• Structural welds: minimum coverage 12 months — professional-grade attachments offer 24 months
• Hydraulic cylinders and hoses: minimum coverage 6 months — seals and fittings are the first components to fail
• Wear parts (cutting edges, teeth, tines): typically not warrantied — confirm replacement part availability and cost before purchasing

How Do You Match John Deere 1023E Attachments to Your Specific Tasks?

Task matching requires evaluating work requirements against attachment specifications to ensure optimal performance and compatibility. The 3 matching factors include determining proper attachment sizing for specific applications, asking targeted questions during the selection process, and following a comprehensive specification checklist before finalizing purchases.

How Do You Determine the Right Size?

Size every attachment to stay within 80% of the 1023E's rated loader lift capacity of approximately 613 lbs (at full height, 24-inch load center). That means the attachment's own weight plus the maximum load it carries must not exceed roughly 490 lbs in practice. Exceeding this threshold causes front axle overload, accelerated tire wear, and hydraulic relief valve cycling.

• If primary task is moving palletized material under 400 lbs: choose 42-inch compact tractor pallet forks rated at 2,000 lbs (fork rating exceeds tractor capacity, keeping the forks as the non-limiting factor)
• If primary task is brush clearing, log moving, or debris handling: choose a 48-inch to 54-inch compact tractor grapple with a minimum 2-inch bore cylinder for adequate clamping force
• If primary task is grading, backfilling, or soil work: choose a 48-inch rear box blade or landscape rake rated for Category 1 three-point hitch with total implement weight under 250 lbs

What Questions Should You Ask Before Purchasing?

Five questions separate a confident purchase from an expensive mistake — and most sellers do not volunteer this information unless asked directly.

• "What is the exact steel plate thickness on the frame and mounting plate?" — reveals whether the attachment meets the 1/4-inch minimum for commercial duty
• "What is the rated capacity at a 24-inch load center, and do you have a published load chart?" — reveals whether the listed capacity is realistic or theoretical maximum
• "Does this attachment mount directly to a standard skid steer quick-attach, or does it require an adapter?" — reveals hidden adapter costs of $150 to $400 and reduced lift capacity
• "What is the hydraulic flow requirement in GPM, and what is the minimum operating pressure in PSI?" — reveals whether the attachment will function on the 1023E's 3.4 to 4.7 GPM system
• "Are replacement wear parts (teeth, cutting edges, tines) stocked and available for individual purchase?" — reveals long-term serviceability and whether you are locked into buying a full new attachment when edges wear out

What Is the Complete Pre-Purchase Specification Checklist?

Verify these 10 specifications before placing an order for any 1023E attachment.

• Loader mount type: confirm standard skid steer quick-attach plate (not proprietary pin-on or Euro-style hitch)
• Three-point hitch category (rear implements): confirm Category 1, 7/8-inch lower link pins
• PTO speed (powered rear implements): confirm 540 RPM
• Hydraulic flow demand: confirm attachment requires 5 GPM or less for loader-circuit implements, 3.4 GPM or less for rear-remote implements
• Total implement weight plus maximum load: confirm combined weight stays below 490 lbs (80% of rated loader capacity)
• Steel plate thickness: confirm 1/4-inch minimum on structural frame for commercial use
• Cylinder bore and rod diameter: confirm 2-inch bore minimum on grapple/clamshell cylinders
• Weld type: confirm continuous MIG or TIG welds on all load-bearing joints
• Finish type: confirm powder coat or industrial enamel — raw painted steel corrodes within one season of outdoor storage
• Replacement wear parts: confirm tines, teeth, or cutting edges are individually available for purchase

What Are the Most Popular John Deere 1023E Attachment Types?

Popular attachment types are front loader implements, three-point hitch tools, and PTO-driven equipment designed for compact tractor applications. The 3 attachment categories include front-mounted loader accessories for material handling, rear three-point implements for ground engagement work, and power take-off driven attachments for specialized operations.

What Front Loader Attachments Fit the 1023E?

The most commonly purchased front loader attachments for the 1023E are pallet forks, grapples, and general-purpose buckets. Pallet forks in the 42-inch class handle feed bags, small pallets, and landscape materials. Grapples in the 48-inch to 54-inch range handle brush, logs, and demolition debris. Buckets in the 48-inch to 60-inch range handle soil, gravel, and mulch.

What Rear Three-Point Hitch Attachments Fit the 1023E?

Rear attachments include box blades, post hole diggers, landscape rakes, tillers, backhoe sub-frames, and bale spears — all in Category 1. Box blades between 48 and 60 inches suit grading driveways and building pads. Post hole diggers with 6-inch to 12-inch augers handle fence building. Bale spears rated for 49-inch tine length handle standard square and small round bales under 400 lbs.

What PTO-Driven Attachments Work With This Machine?

PTO-driven implements — brush cutters, tillers, snow blowers, and stump grinders — must match the 1023E's 540-RPM output and 14.4 engine HP rating. Brush cutters (also called brush hogs) in the 42-inch to 48-inch range operate within the 1023E's power band. Tillers wider than 48 inches bog down in heavy soil. Snow blowers wider than 44 inches exceed available PTO horsepower in wet, heavy snow conditions.

Frequently Asked Questions About John Deere 1023E Attachments

Common questions address compatibility concerns, purchasing decisions, warranty coverage, ownership costs, and verification processes for compact tractor attachments. The 5 frequent topics include skid steer attachment compatibility, used attachment purchase considerations, standard warranty coverage expectations, total ownership cost analysis, and pre-order compatibility verification methods.

Will Standard Skid Steer Attachments Fit the John Deere 1023E?

Yes — the 1023E loader accepts standard skid steer quick-attach plates with 1/2-inch pin holes on approximately 14-7/16-inch centers.

Any attachment built to the universal skid steer interface mounts directly without adapters. Verify the attachment's total weight plus expected load stays under 490 lbs (80% of the 1023E's 613-lb rated loader lift capacity). Attachments advertised as "mini skid steer" or "compact tool carrier" use a different, smaller plate and do not fit without an adapter.

Is It Worth Buying Used Attachments for the 1023E?

Used attachments save 30% to 50% over new, but inspect three areas before purchasing: weld integrity, cylinder condition, and pin hole wear.

Run your finger along every weld seam and look for hairline cracks, especially where the mount plate meets the frame. Extend and retract every hydraulic cylinder fully — any drift (cylinder slowly retracting under load) indicates a failing seal, which costs $75 to $200 to repair. Measure pin holes with a caliper; holes worn more than 1/16-inch beyond spec cause dangerous play under load.

What Warranty Coverage Is Standard for Compact Tractor Attachments?

A 12-month structural warranty is the industry baseline for mid-range attachments; anything less signals budget-grade construction.

Professional-tier attachments typically carry 24-month structural warranties covering weld failure and frame cracking. Hydraulic cylinder warranties of 6 to 12 months are standard. Read the fine print: some warranties exclude "wear items" broadly, which can include cylinder seals, hose fittings, and even mounting pins — components that are not truly wear items.

What Does Total Cost of Ownership Look Like for 1023E Attachments?

Purchase price represents only 60% to 70% of the 5-year ownership cost for most attachment categories.

Budget an additional 15% to 25% for replacement wear parts (cutting edges, teeth, tines) over five years of moderate use (40 to 80 hours per year). Hydraulic-powered attachments add $50 to $150 in hose and coupler replacements over the same period. A $900 mid-range grapple with $200 in wear parts and $75 in hose maintenance costs $1,175 over five years — still less than a $1,500 professional grapple but with shorter edge life and lighter steel.

How Do You Verify an Attachment Is Compatible Before You Order?

Request the attachment's specification sheet and cross-reference three values against the 1023E's published specs: mount type, hydraulic flow requirement, and total weight.

Confirm the mount is standard skid steer quick-attach (front) or Category 1 three-point hitch (rear). Confirm hydraulic demand is under 5 GPM for front implements and under 3.4 GPM for rear-remote implements. Confirm total implement weight plus maximum load stays under 490 lbs on the loader. Browse compact tractor attachments with published spec sheets to compare values side by side before purchasing.
