What Are Augers and Why Are They Essential for Heavy Equipment Operations?

What Is the Meaning of Auger?

An auger is a rotating helical screw blade — called a flight — used to bore holes into ground, wood, ice, or other materials. The word derives from Old English "nafogār," meaning nave drill. An auger differs from an augur, which refers to a Roman religious official or the verb meaning "to predict."

• Earth drill — describes augers used for ground boring
• Post-hole digger — refers to the same drilling function for fence and deck posts
• Boring tool — general mechanical term for any helical drilling device
• Helical drill — describes the spiral flight geometry of auger bits

What Is an Auger Used For in Construction and Landscaping?

Auger attachments bore holes for fence posts, foundation piers, sign and bollard installations, tree planting, utility poles, deck footings, and solar ground mounts. A hydraulic auger on a skid steer completes 60 to 100 post holes in a single shift. Manual crews complete 15 to 25 holes in the same time.

How Do Auger Attachments Differ from Handheld Augers?

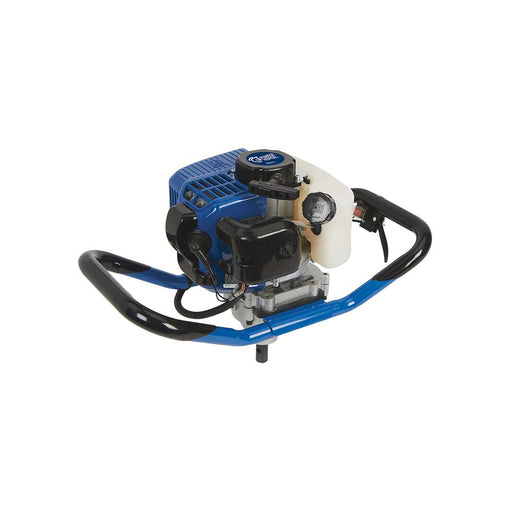

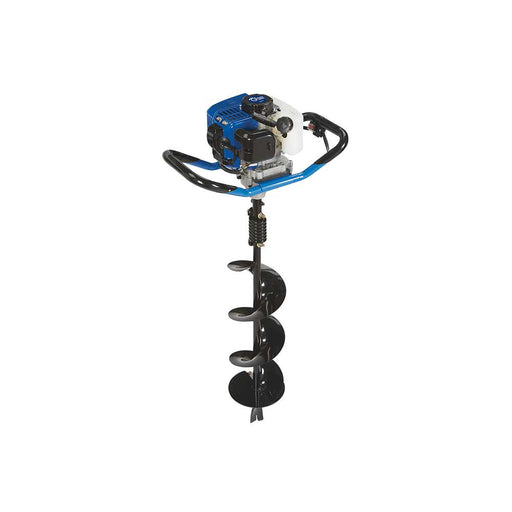

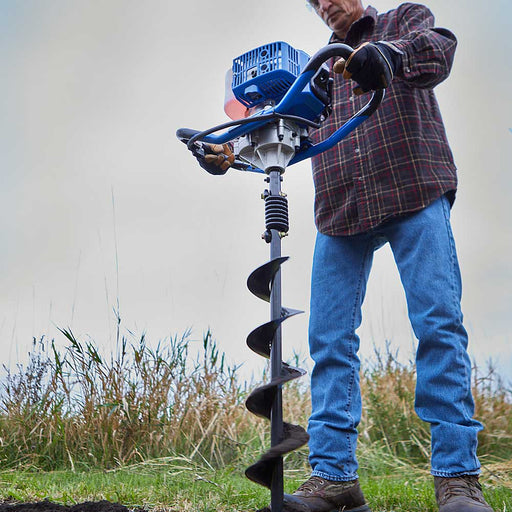

Auger attachments are hydraulically driven units that mount to heavy equipment carriers, delivering 10 to 50 times the torque of handheld gas-powered augers. Handheld one-man augers produce 1 to 3 HP and fewer than 150 ft-lbs of torque through 2-inch to 8-inch bits.

Attachment-class auger drives produce 500 to 10,000+ ft-lbs of torque and spin bits from 4 inches to 48 inches in diameter. Attachment augers eliminate the physical strain and operator fatigue that limit handheld auger productivity on professional jobsites.

What Types of Augers Are Available for Contractors and Operators?

What Is the Difference Between Earth Augers, Rock Augers, and Utility Augers?

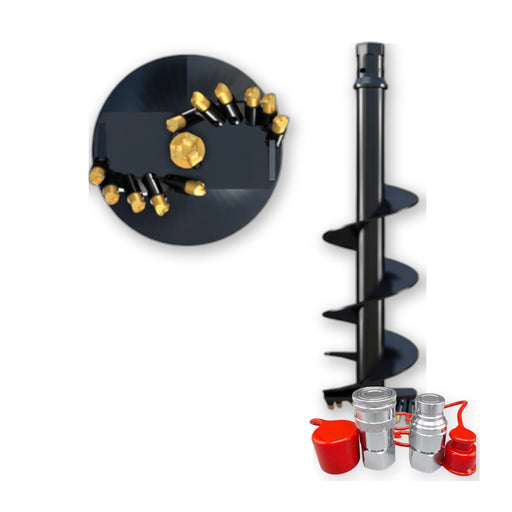

Earth augers use standard flights to cut through soil, clay, and loam in diameters from 6 inches to 36 inches. Rock augers feature carbide-tipped bullet teeth and conical cutting heads designed for fractured rock, frozen ground, asphalt, and hardpan. Rock augers operate at slower RPM with higher torque.

• Earth augers — standard flights, soil and clay, 6-inch to 36-inch diameter, fishtail pilot point
• Rock augers — carbide bullet teeth, rock and frozen ground, 6-inch to 36-inch diameter, rock pilot bit
• Utility augers — narrow bore (9-inch to 18-inch), depth range of 6 to 20+ feet with extensions, designed for pole and piling installation
• Tree-planting augers — wide-body flights, 18-inch to 36-inch diameter, fast material evacuation for landscaping

What Are Auger Drive Units and How Do They Power Auger Bits?

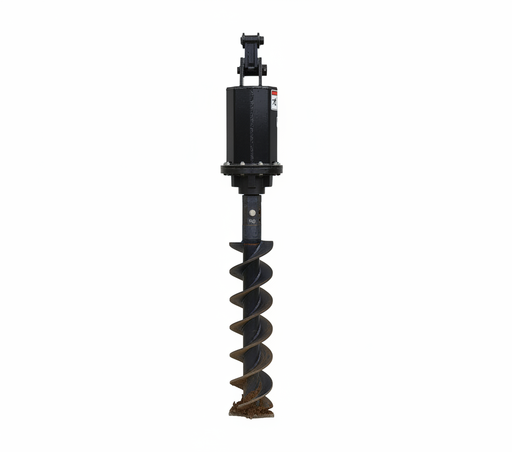

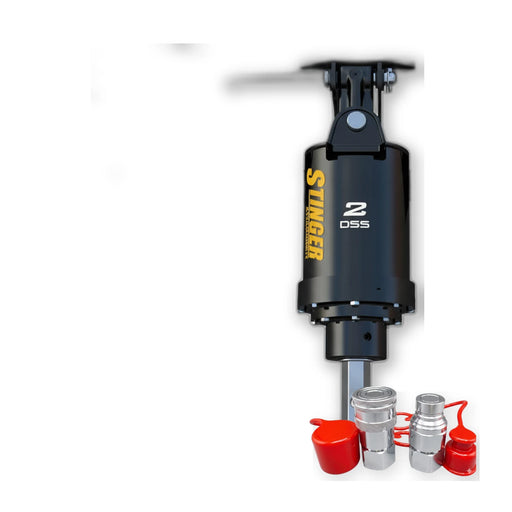

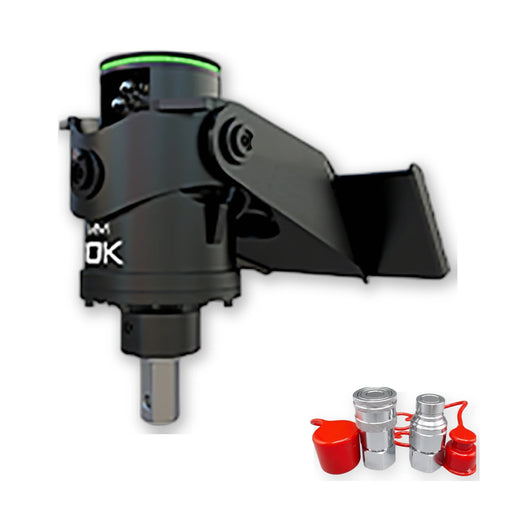

An auger drive unit is a hydraulic motor and planetary gearbox that converts the carrier machine's hydraulic flow into rotational torque to spin the auger bit. Standard-flow drives operate at 8 to 20 GPM. High-flow drives require 20 to 45 GPM. Operating pressure ranges from 2,000 to 4,000 PSI.

• Standard-flow auger drives — 8 to 20 GPM, 500 to 3,000 ft-lbs torque, 30 to 180 RPM
• High-flow auger drives — 20 to 45 GPM, 3,000 to 15,000 ft-lbs torque, 10 to 80 RPM
• Output shaft types — 2-inch hex, 2-9/16-inch round, and direct-drive connections
• Mounting styles — universal skid steer quick-attach plate and excavator pin-on brackets

Which Auger Bits and Flights Match Specific Ground Conditions?

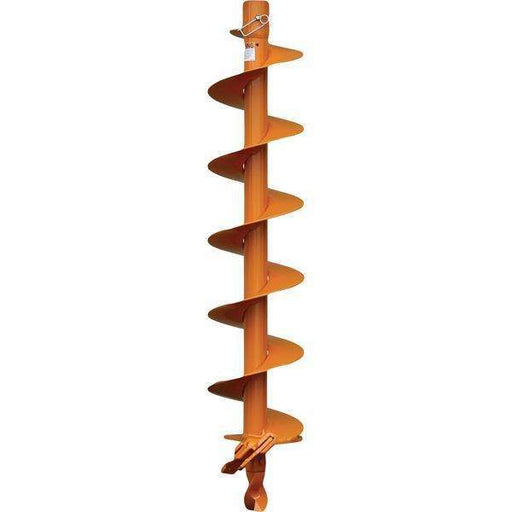

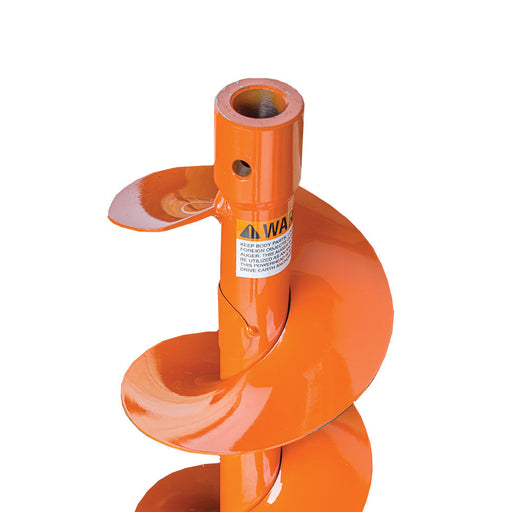

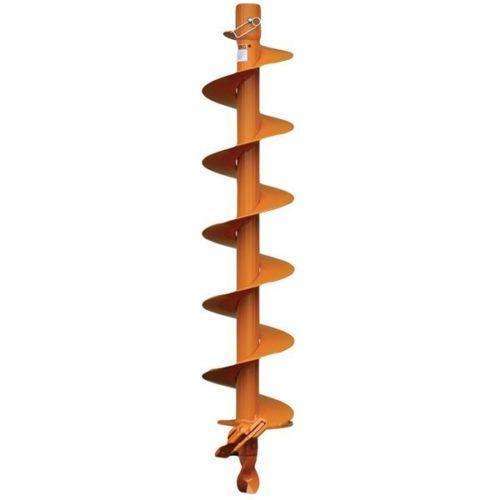

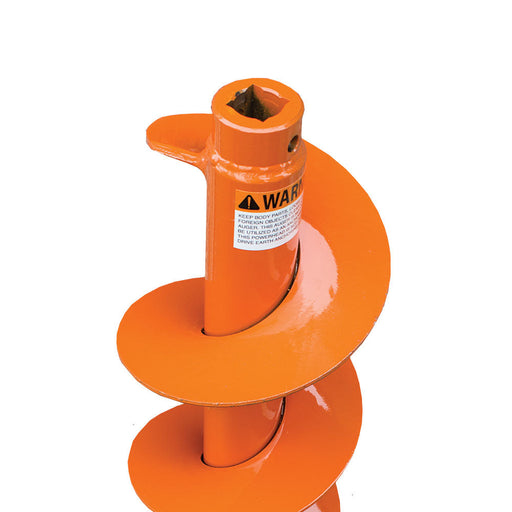

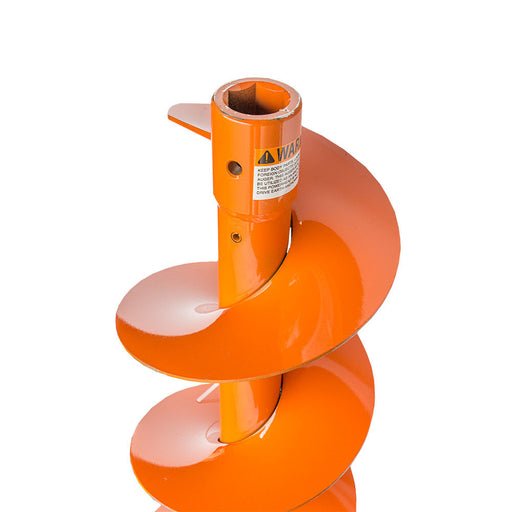

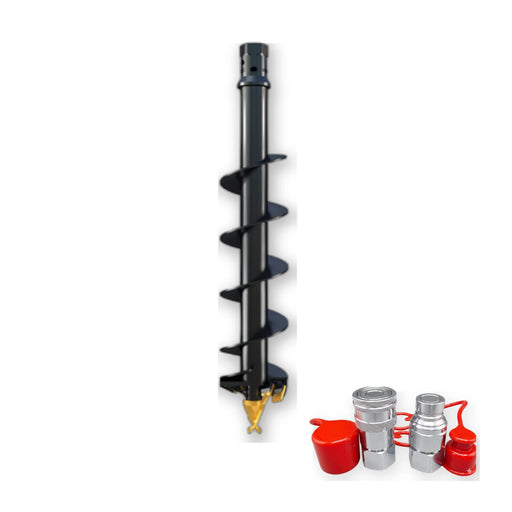

Standard single-flight auger bits handle sandy and loamy soil, double-flight bits improve material evacuation in deep holes through clay, and rock bits with carbide teeth cut compacted or rocky ground. Fishtail pilot points center the bit in soft soil. Rock pilot bits use hardened steel points for penetration.

• Sandy soil — standard single-flight bit with fishtail pilot
• Clay and wet soil — double-flight or wide-body bit for faster spoil removal
• Rock and frozen ground — rock head with replaceable carbide bullet teeth
• Mixed conditions — combination bit with bolt-on cutting edges and replaceable teeth

What Machines Are Compatible with Auger Attachments?

Which Skid Steers and Compact Track Loaders Work with Augers?

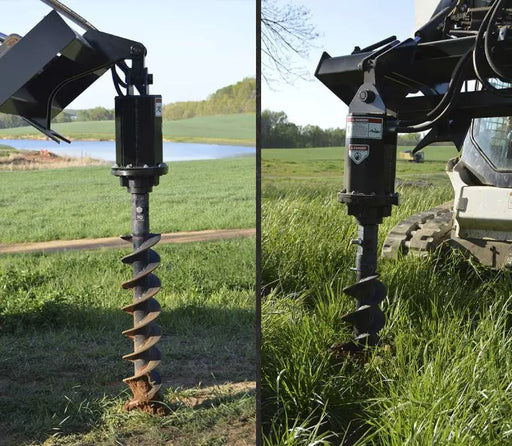

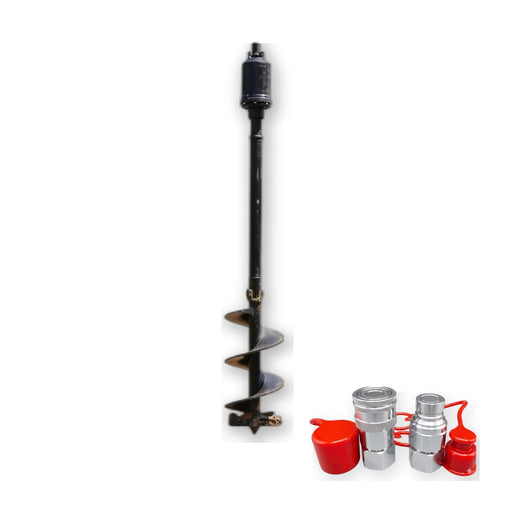

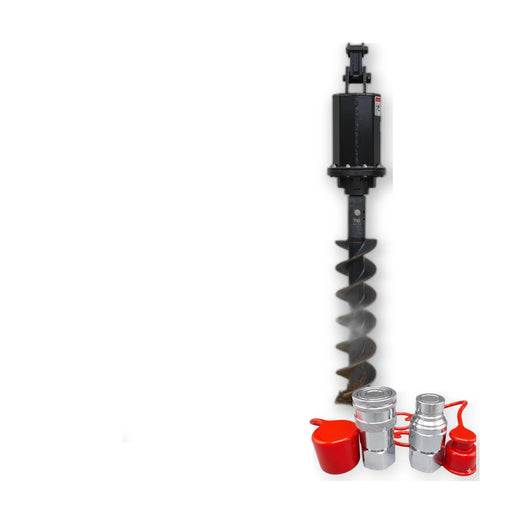

Skid steers and compact track loaders with auxiliary hydraulic circuits from 15 to 40+ GPM run auger attachments through flat-face hydraulic couplers. Standard-flow machines (15 to 22 GPM) pair with standard auger drives for earth auger bits up to 24 inches. High-flow machines (28 to 40+ GPM) power rock augers and large-diameter bits up to 48 inches.

A case drain line is required on most auger drive units to prevent seal damage in the hydraulic motor. Operators confirm auxiliary coupler size and case drain availability before selecting an auger drive.

Can Mini Excavators and Standard Excavators Run Auger Attachments?

Mini excavators (1 to 10 tons) and standard excavators (10 to 40+ tons) run auger attachments via auxiliary hydraulic circuits with pin-on mounting brackets. Excavator-mounted augers provide superior reach and angle control compared to skid steer mounts. Pin sizes vary by carrier class, and tilt-rotator compatibility expands drilling angles on sloped terrain.

How Do Hydraulic Flow and Pressure Requirements Determine Auger Compatibility?

3 specifications determine auger drive compatibility with a carrier machine: hydraulic flow (GPM), operating pressure (PSI), and case drain capacity. Undersized flow starves the auger motor and reduces torque output. Excess pressure without proper relief damages seals and hoses.

• Compact carriers under 5,000 lbs operating capacity — 8 to 15 GPM, 2,000 to 3,000 PSI
• Mid-size carriers from 5,000 to 10,000 lbs — 15 to 25 GPM, 3,000 to 3,500 PSI
• Full-size carriers above 10,000 lbs — 25 to 45 GPM, 3,000 to 4,000 PSI

How Do You Choose the Right Auger for Your Project?

What Bit Diameter and Drilling Depth Does Each Application Require?

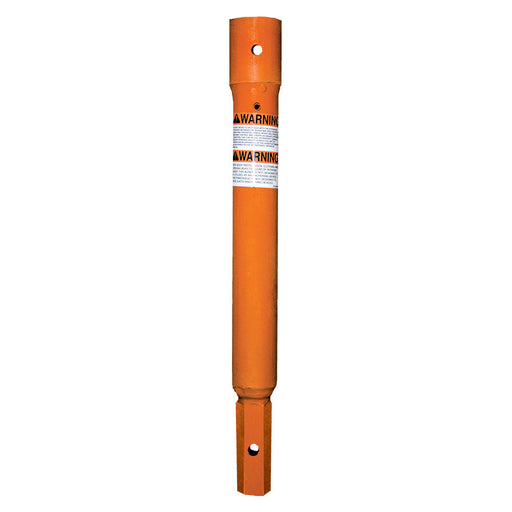

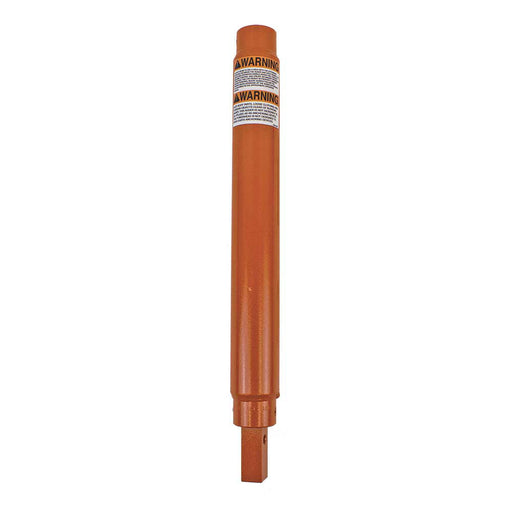

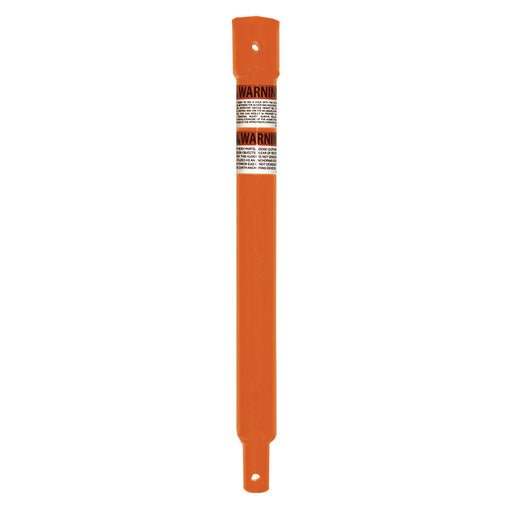

Bit diameter matches the hole size required by the project, and drilling depth matches footing or installation specifications. Standard auger bits reach 4 to 6 feet. Auger extensions add 2 to 6 feet per section for utility and foundation work.

• Fence posts — 6-inch to 12-inch diameter, 3 to 4 feet deep
• Deck footings and sign posts — 12-inch to 18-inch diameter, 4 to 6 feet deep
• Tree and shrub planting — 18-inch to 36-inch diameter, 2 to 4 feet deep
• Foundation piers and caissons — 24-inch to 48-inch diameter, 6 to 20+ feet deep
• Utility pole installation — 9-inch to 18-inch diameter, 6 to 12 feet deep

How Do Soil Conditions Affect Auger Selection?

Soil density, moisture content, and rock presence determine the correct auger bit type, tooth style, and drive torque requirement. Loose sandy soil requires minimal torque and standard flights. Dense clay demands double-flight bits for spoil evacuation. Fractured rock and frozen ground require carbide-tipped rock augers with high-flow drives producing 3,000+ ft-lbs of torque.

What Torque, RPM, and Drive Specifications Should Operators Evaluate?

Torque output (measured in ft-lbs), RPM range, and gear ratio are the 3 drive specifications that determine drilling performance. High-torque, low-RPM drives (10 to 40 RPM, 5,000 to 15,000 ft-lbs) suit rock and heavy clay. High-RPM, moderate-torque drives (60 to 180 RPM, 500 to 3,000 ft-lbs) suit soft soil and high-volume post work.

What Industries and Applications Rely on Augers?

How Are Augers Used in Fencing, Foundation, and Solar Installation?

Fencing contractors use 6-inch to 12-inch auger bits to drill 100+ post holes per day on residential and commercial perimeter projects. Foundation contractors drill 24-inch to 48-inch caisson holes for structural piers. Solar installation crews use auger attachments on compact track loaders to set ground-mount piles across multi-acre arrays.

What Role Do Augers Play in Utility, Agriculture, and Landscaping Projects?

Utility contractors drill 9-inch to 18-inch holes for electrical poles, telecom posts, and traffic sign bollards. Agricultural operators bore post holes for vineyard trellises, orchard supports, and livestock fencing. Landscapers use wide-body auger bits from 18 to 36 inches for tree and shrub planting in residential and commercial projects.

• Utility installation — electrical poles, telecom posts, bollards, and roadway signs
• Agriculture — vineyard posts, orchard supports, livestock fencing, and soil sampling
• Landscaping — tree planting, shrub installation, retaining wall tiebacks
• Municipal and DOT — sign installation, guardrail posts, and seasonal maintenance

Browse Forge Claw's Auger Attachment Selection

Forge Claw carries professional-grade auger attachments built for demanding heavy equipment operations. Every auger drive unit and bit in our lineup is selected for durability, torque output, and compatibility with the machines contractors actually run. You get expert support from people who understand hydraulic specs, ground conditions, and jobsite demands. Equipment financing is available for qualified buyers.

What Makes Forge Claw's Selection Right for Professional Use?

Forge Claw stocks auger drives, bits, extensions, and replacement teeth sized for compact loaders through full-size excavators. Our team matches your carrier's hydraulic output to the right drive unit and bit configuration — so you're drilling on day one, not troubleshooting compatibility on the jobsite.

What Other Products Do Contractors Pair with Auger Attachments?

Contractors regularly combine auger attachments with complementary products to expand capability and reduce changeovers on multi-task jobsites.

Which Products Work Alongside Auger Systems?

• Mini Skid Steer Augers
• Skid Steer Augers
• Skid Steer Augers Post Hole Diggers

Frequently Asked Questions About Augers

What Is the Meaning of Auger?

An auger is a helical drilling tool that rotates a spiral flight to bore holes into ground, wood, ice, or other materials. The term applies to handheld, engine-powered, and hydraulic attachment configurations.

The word auger originates from Old English "nafogār." In heavy equipment contexts, auger refers specifically to a hydraulic drive unit paired with a helical bit that mounts to a carrier machine such as a skid steer, excavator, or compact track loader. Auger differs from augur, which is an unrelated word meaning a Roman religious official or the act of predicting future events.

What Is the Difference Between an Auger and an Augur?

An auger is a physical drilling tool with a helical blade. An augur is a person who interprets omens or a verb meaning "to predict." The two words are homophones with no shared meaning.

Within the equipment industry, "auger" itself covers multiple tool types. Earth augers bore holes in soil for posts and footings. Rock augers use carbide teeth to cut through stone and frozen ground. Grain augers move loose grain through enclosed tube systems. Drain augers (plumber's snakes) clear pipe blockages. Heavy equipment auger attachments differ from all of these in scale, torque output, and hydraulic power requirements.

What Is a Synonym for Auger?

Common synonyms for auger include earth drill, post-hole digger, boring tool, and helical drill. Each term describes the same rotary boring function performed by an auger bit and drive system.

In equipment rental and specification documents, "auger drive" refers to the hydraulic motor and gearbox unit. "Auger bit" or "auger flight" refers to the helical cutting tool that connects to the drive. Contractors and equipment dealers use these terms interchangeably with "auger" depending on whether the reference is to the complete system or an individual component.

What Is an Auger Used For?

Auger attachments drill holes for fence posts, foundation piers, utility poles, tree planting, deck footings, sign installations, solar ground mounts, and soil sampling. A hydraulic auger completes holes up to 10 times faster than manual digging.

Specific applications determine bit diameter and drilling depth. Fencing projects use 6-inch to 12-inch bits at 3 to 4 feet deep. Foundation work requires 24-inch to 48-inch bits at 6 to 20+ feet deep. Utility pole installation uses 9-inch to 18-inch bits at 6 to 12 feet deep. Each application pairs a specific auger bit with a drive unit matched to the carrier machine's hydraulic output.

How Do You Maintain an Auger Attachment to Maximize Its Lifespan?

Auger attachment maintenance requires inspecting and replacing teeth, greasing the drive unit, checking hydraulic connections, and monitoring bit wear after every 40 to 80 operating hours or at the start of each project.

Replaceable pilot bits and carbide teeth are the primary wear components on auger systems. Worn teeth reduce drilling speed and increase hydraulic strain on the drive unit. Operators grease the output shaft and bit connection before each shift. Hydraulic hoses and flat-face couplers require inspection for leaks and seal degradation every 200 operating hours. Planetary gearbox oil changes follow manufacturer intervals, typically every 500 operating hours.
