What Are Material Handling Attachments and Why Do Contractors Rely on Them?

Material handling attachments are hydraulic or mechanical tools that mount to heavy equipment — skid steers, excavators, forklifts, and telehandlers — to lift, carry, grip, sort, and move materials on construction, agricultural, demolition, and industrial job sites.

What Are the 4 Types of Material Handling Equipment?

The four types of material handling equipment are storage and handling equipment, engineered systems, industrial trucks, and bulk material handling systems. The Material Handling Industry of America (MHI) defines this classification. Attachments fall within the industrial trucks and bulk handling categories, extending the capability of base machines like forklifts, loaders, and excavators.

• Storage and handling equipment — shelving, racking, bins for static material positioning
• Engineered systems — conveyors, automated sortation, robotic palletizers
• Industrial trucks — forklifts, hand trucks, AGVs equipped with handling attachments
• Bulk material handling — hoppers, conveyors, bucket elevators for loose materials

How Do Material Handling Attachments Turn One Machine into a Multi-Purpose Fleet?

A single skid steer paired with 4 to 6 attachments replaces 4 to 6 dedicated machines at a fraction of the cost. A grapple attachment costs $2,000 to $8,000 compared to $80,000 to $150,000 for a dedicated grapple truck. Quick coupler systems enable attachment swaps in under 60 seconds, keeping operators productive across multiple tasks per shift.

What Are the Different Types of Material Handling Attachments?

Material handling attachments fall into 5 primary functional categories: fork-mounted attachments, gripping and grapple attachments, lifting and rigging attachments, carrying and bucket attachments, and specialty rotator and positioner attachments.

What Are the Different Types of Forklift Attachments for Material Handling?

Forklift attachments include 11 primary types: pallet forks, fork extensions, side shifters, fork positioners, rotators, slip-sheet handlers, coil rams, carpet poles, drum handlers, carton clamps, and push/pull attachments. Standard pallet forks handle 2,500 to 10,000 lbs. Fork extensions add 30% to 50% to fork length. Drum handlers lift 500 to 2,000 lbs per drum.

• Pallet forks — 2,500 to 10,000 lbs rated capacity for palletized freight
• Fork extensions — bolt-on sleeves extending reach by 24 to 72 inches
• Drum handlers — single or double drum lifters rated 500 to 2,000 lbs per drum
• Coil rams and carpet poles — cylindrical stock handlers for steel coils and rolled goods

Which Grapple Attachments Handle the Toughest Material Handling Jobs?

7 grapple types cover the heaviest material handling tasks: log grapples, rock grapples, scrap grapples, demolition grapples, sorting grapples, bypass grapples, and rotating grapples. Jaw openings range from 24 to 72 inches. Grapple attachment weights span 500 to 5,000 lbs. Hydraulic requirements run 15 to 40 GPM at 2,500 to 4,000 PSI.

• Log grapples — forestry and timber yard operations
• Scrap grapples — recycling facilities and scrap yards
• Demolition grapples — structural deconstruction and debris sorting
• Rock grapples — quarry, landscaping, and riprap placement

What Lifting and Rigging Attachments Do Heavy Equipment Operators Use?

Lifting and rigging attachments include crane jibs, boom extensions, lifting hooks, spreader bars, lifting beams, and magnetic lifters. Crane jibs carry 2,000 to 10,000 lbs. Spreader bars handle 5,000 to 50,000 lbs. Lifting beams rate from 1,000 to 20,000 lbs. All below-the-hook lifting devices must meet ASME B30.20 standards for design, testing, and inspection.

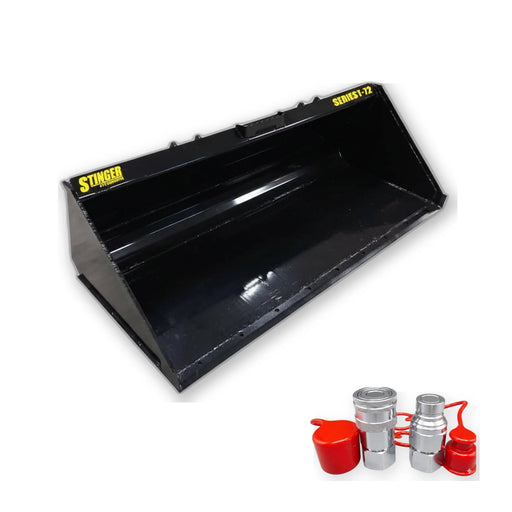

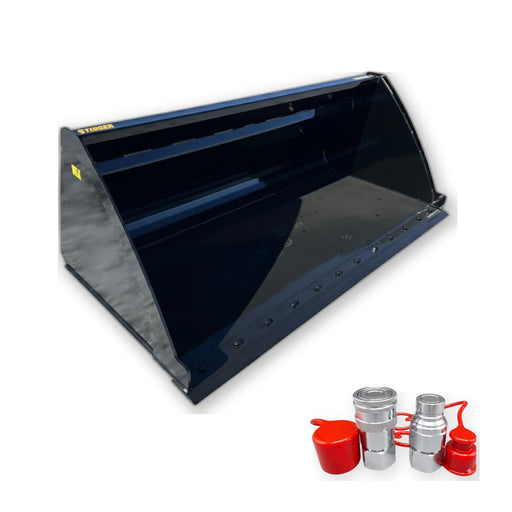

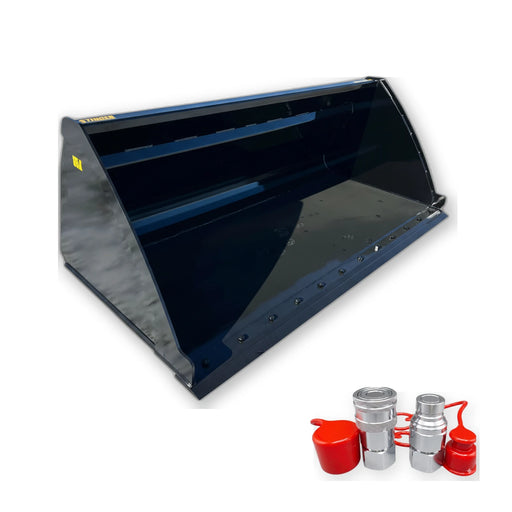

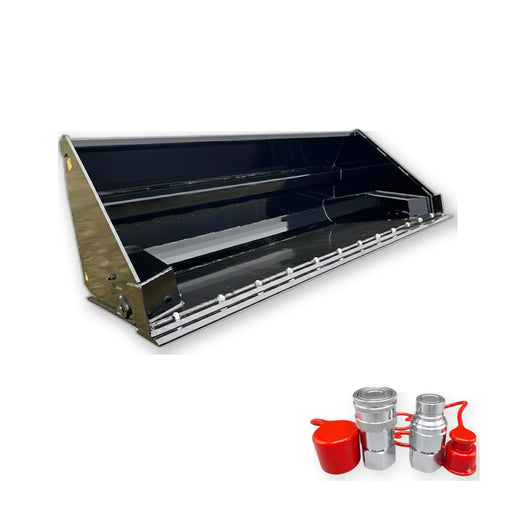

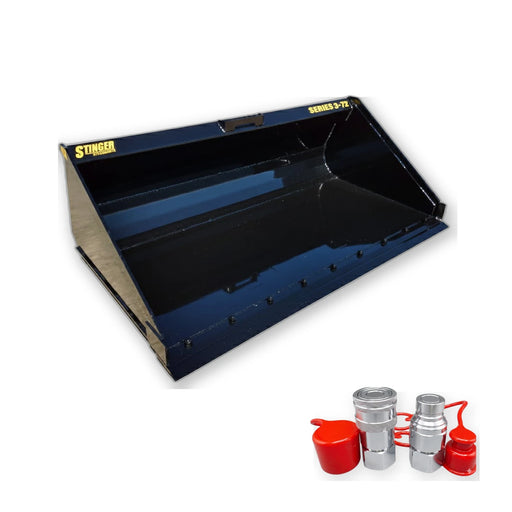

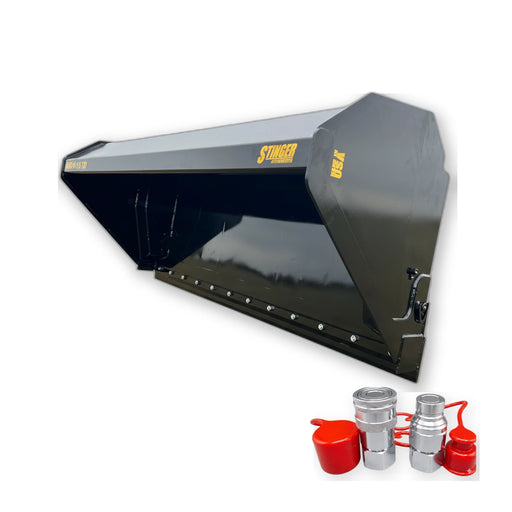

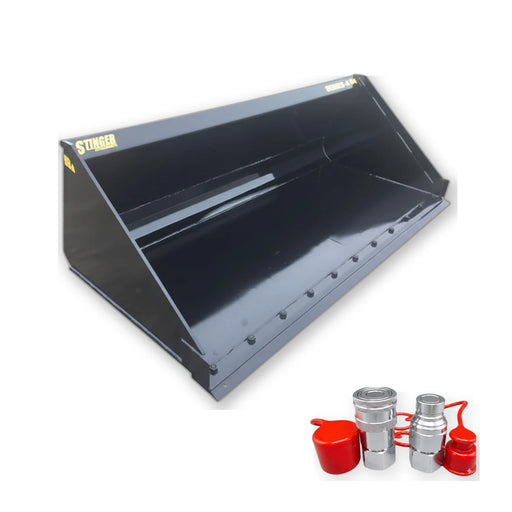

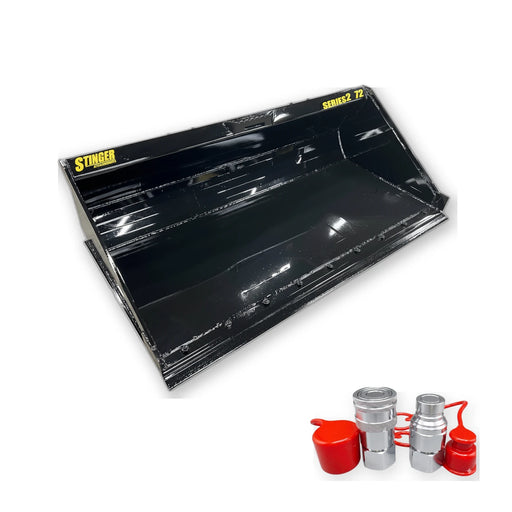

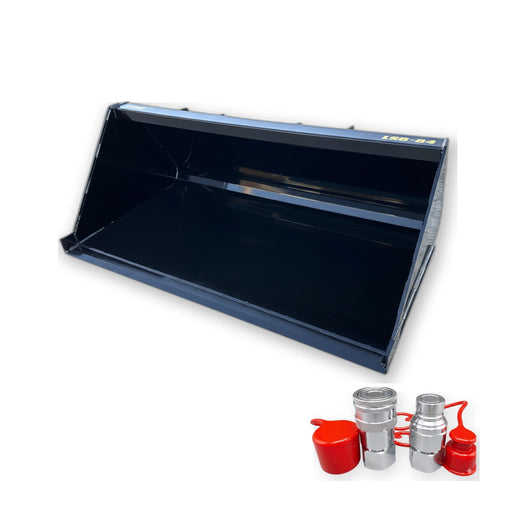

Which Bucket Attachments Are Designed for Material Handling Applications?

Material handling buckets differ from digging buckets in width, weight, and volume — built wider and lighter for high-volume material transfer. Standard material buckets hold 0.5 to 3.0 cubic yards. Light material buckets for mulch, snow, and grain hold 1.5 to 5.0 cubic yards.

• 4-in-1 buckets — clam, grade, doze, and carry in one attachment
• Skeleton and sorting buckets — separate fines from oversized material on site
• Concrete and mortar buckets — pour-controlled buckets rated 0.25 to 2.0 cubic yards
• AR400 steel floors and T-1 steel cutting edges extend bucket service life

What Specialty Attachments Solve Niche Material Handling Challenges?

Specialty material handling attachments address industry-specific requirements that standard attachments cannot meet. Bale spears handle round and square bales from 800 to 3,000 lbs in agricultural operations. Pipe grapples grip 4-inch to 48-inch diameter pipe for pipeline construction. Tire handlers lift OTR tires weighing 2,000 to 12,000 lbs in mining operations.

• Bale spears and bale clamps — agriculture, hay, cotton, recycled bale handling
• Pipe grapples — oil and gas pipeline, municipal water infrastructure
• Tire handlers — mining haul truck tire service
• Sheet and plate lifters — steel fabrication and structural steel erection

Which Machines Are Compatible with Material Handling Attachments?

Material handling attachments mount to 8 primary machine classes: skid steers, compact track loaders, excavators, telehandlers, wheel loaders, backhoe loaders, forklifts, and utility tractors. Compatibility depends on hydraulic output, rated operating capacity, and mount type. SAE J818 limits skid steer attachment loads to 50% of tipping load.

What Skid Steer and Compact Track Loader Attachments Move Materials Fastest?

Skid steers and compact track loaders use the universal quick-attach plate per SAE J2513 and split into 2 hydraulic classes: standard flow at 15 to 25 GPM and high flow at 25 to 40+ GPM. Pallet forks and material buckets run on standard flow. Grapples and rotating attachments require high flow.

• Standard flow (15–25 GPM) — pallet forks, material buckets, bale spears
• High flow (25–40+ GPM) — grapples, brush cutters, rotating attachments
• Operating capacity match — attachment weight plus load must not exceed rated operating capacity

Which Excavator Attachments Are Built for Material Handling?

Excavator material handling attachments mount via pin-on connections or hydraulic quick couplers sized to the excavator class. Mini excavators (3,000–14,000 lbs) pair with sorting grapples and tilt buckets. Mid-size excavators (14,000–45,000 lbs) run demolition grapples and log grapples. Full-size excavators (45,000–90,000+ lbs) power scrap grapples and magnet lifters.

How Do Telehandler and Wheel Loader Operators Choose the Right Attachment?

Telehandler operators match attachment weight and load center distance to the telehandler's load chart at the required lift height and reach. Wheel loader operators verify the attachment's pin spacing matches the loader's coupler and confirm the combined load stays within the machine's static tipping load at full turn. Hydraulic flow for telehandlers ranges from 20 to 35 GPM.

What Safety and OSHA Standards Apply to Material Handling Attachments?

OSHA, ANSI, and ASME publish specific standards governing material handling attachment use, inspection, and operator training. Non-compliance results in citations, fines, and increased liability exposure on regulated job sites.

What Does OSHA Say About Forklift Attachments?

OSHA standard 29 CFR 1910.178 requires that forklift attachments receive written approval from the forklift manufacturer or a licensed professional engineer before use. Attachments must not exceed the truck's rated capacity minus the attachment's own weight. Operators must have the forklift's capacity plate updated to reflect the derated capacity with the attachment installed. ANSI B56.1 reinforces these requirements.

How Should Operators Inspect Material Handling Attachments Before Each Shift?

Pre-shift inspection covers 6 areas: structural welds, hydraulic hoses and fittings, cylinder condition, pin and bushing wear, mounting plate integrity, and load-bearing surface condition. Cracked welds, leaking cylinders, and worn pins remove the attachment from service until repaired. Inspection records must be documented per OSHA recordkeeping requirements.

What Load Capacity and Rating Standards Must Attachments Meet?

Every material handling attachment carries a rated working load limit (WLL) that accounts for a minimum 3:1 safety factor on structural components. Below-the-hook lifting devices meet ASME B30.20 proof load testing at 125% of WLL. Operators never exceed the WLL stamped or tagged on the attachment regardless of the base machine's capacity.

How Do You Choose the Right Material Handling Attachment for Your Job?

3 specifications determine material handling attachment compatibility: hydraulic flow and pressure output, mount type, and the machine's rated operating capacity. Mismatching any one of these 3 factors causes underperformance, machine damage, or safety hazards.

What Hydraulic Flow and Pressure Specs Should You Match to Your Machine?

Hydraulic flow measured in GPM and hydraulic pressure measured in PSI must match or exceed the attachment manufacturer's minimum requirements. Grapples typically require 15 to 40 GPM at 2,500 to 4,000 PSI. Rotators require 10 to 20 GPM at 3,000 PSI. Running an attachment on insufficient flow causes slow cycle times and premature hydraulic component wear.

Which Quick Coupler and Mount Types Fit Your Base Equipment?

4 mount types cover the majority of material handling attachments: universal skid steer quick-attach plates, pin-on excavator mounts, fork-mounted carriage systems, and hydraulic quick couplers. Universal skid steer plates follow SAE J2513 dimensions. Excavator pin-on mounts require matching pin diameter and pin spacing to the machine's stick.

When Does Renting vs. Buying Material Handling Attachments Make Financial Sense?

Renting makes sense for single-project use under 3 months; buying pays back on attachments used more than 40 to 60 days per year. A grapple renting at $800 to $1,500 per month reaches purchase price ($3,000 to $8,000) within 3 to 6 months. Owned attachments carry no mobilization fees and remain available for every project.

Browse Forge Claw's Material Handling Attachment Selection

Forge Claw carries professional-grade material handling attachments built for demanding job site conditions. Every attachment in this collection meets commercial duty-cycle requirements and ships with verified capacity ratings. You get direct access to product specialists who match attachments to your machine specs — no guesswork, no compatibility surprises. Equipment financing available for qualified buyers.

What Makes Forge Claw's Selection Right for Professional Use?

Every attachment is spec-verified for hydraulic compatibility, mount type, and rated capacity before it reaches the catalog. Forge Claw's product team works directly with contractors and fleet managers to confirm the right fit. You're buying from a nationwide distributor that stands behind every piece of equipment sold.

What Other Products Do Contractors and Equipment Operators Pair with Material Handling Attachments?

Contractors and equipment operators regularly combine material handling attachments with complementary products to expand capability and reduce changeovers.

Agriculture Farm Attachments

Operators running telehandlers and skid steers on farms frequently switch between moving feed, hay bales, and equipment with material handling tools and specialized Agriculture Farm Attachments like manure spreaders or post hole diggers. Both attachment categories mount to the same hydraulic systems, allowing agricultural contractors to maximize their equipment's versatility across different seasonal tasks.

Utility Vehicle Attachments

Compact equipment operators often need both heavy-duty material handling capabilities and specialized tools for maintenance work around facilities and job sites. Utility Vehicle Attachments like snow plows, spreaders, and utility trailers complement material handling gear by extending the same skid steer or compact tractor into grounds maintenance and facility upkeep roles.

Frequently Asked Questions About Material Handling Attachments

What Are the 4 Types of Material Handling Equipment?

The 4 types are storage and handling equipment, engineered systems, industrial trucks, and bulk material handling systems — classified by the Material Handling Industry of America (MHI).

Storage and handling equipment includes racking, shelving, and bins. Engineered systems cover conveyors and automated sorting. Industrial trucks encompass forklifts, AGVs, and hand trucks. Bulk material handling systems include hoppers, bucket elevators, and conveyor belts. Material handling attachments extend the function of industrial trucks and earthmoving equipment within this framework.

What Are the Different Types of Forklift Attachments?

Forklift attachments include pallet forks, fork extensions, side shifters, fork positioners, rotators, slip-sheet handlers, coil rams, carpet poles, drum handlers, carton clamps, and push/pull attachments — 11 primary types.

Each type mounts to the forklift's carriage and serves a specific load shape or handling method. Pallet forks handle standard palletized loads from 2,500 to 10,000 lbs. Drum handlers grip cylindrical containers. Carton clamps squeeze boxed goods without pallets. Every forklift attachment derates the truck's capacity by the attachment's own weight.

What Does OSHA Say About Forklift Attachments?

OSHA 29 CFR 1910.178 requires written manufacturer or professional engineer approval before any attachment is used on a forklift, and the truck's capacity plate must be updated to reflect the derated load.

Attachments change the forklift's center of gravity and reduce its rated capacity. ANSI B56.1 reinforces that operators must be trained on each specific attachment. Using unapproved attachments or exceeding the adjusted capacity rating violates federal safety regulations and exposes the employer to citations and liability.

Is MHE a Forklift?

MHE stands for material handling equipment — a broad category that includes forklifts but also encompasses conveyors, hoists, cranes, pallet jacks, AGVs, and all attachments used to move, lift, store, or control materials.

A forklift is one type of MHE classified as an industrial truck. The MHE category spans four divisions: storage equipment, engineered systems, industrial trucks, and bulk handling systems. Referring to MHE as a forklift is inaccurate because MHE covers dozens of equipment types across warehousing, construction, manufacturing, and logistics operations.

How Do You Maintain Material Handling Attachments to Maximize Lifespan?

Maintaining material handling attachments requires daily pre-shift inspections, greasing pivot points every 8 to 10 operating hours, and replacing hydraulic hoses and worn pins at manufacturer-specified intervals.

Inspect structural welds for cracks after every 250 operating hours. Check hydraulic cylinder seals for leaks weekly. Replace cutting edges and wear plates when material thickness falls below 50% of original specification. Store attachments on level ground or racks to prevent frame distortion. Documented maintenance records extend attachment service life from 3 to 5 years to 8 to 12 years under normal commercial use.
