What Are Pallet Forks and Why Are They Essential for Heavy Equipment Operations?

What Does a Pallet Fork Attachment Do?

A pallet fork attachment converts any compatible loader or skid steer into a material-handling machine capable of lifting loads from 2,000 lbs to over 8,000 lbs. The frame mounts to the carrier machine's coupler plate. Two adjustable steel tines slide into pallet openings, cradle loads, or support long stock.

Pallet fork attachments differ from standalone warehouse forklifts because pallet forks mount to mobile heavy equipment that also accepts buckets, grapples, and augers. OSHA material handling standards apply to all pallet fork operations on job sites.

What Types of Pallet Forks Are Available?

Pallet forks come in 5 main configurations designed for different machines and mounting interfaces:

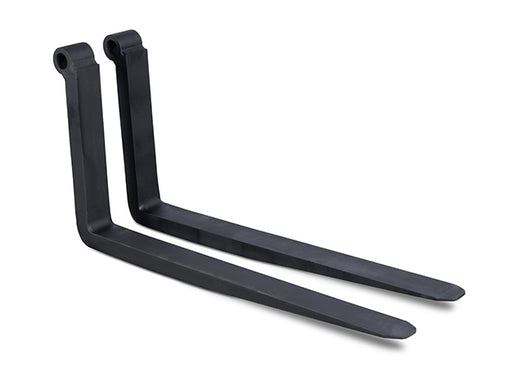

• Frame-and-tine sets for skid steers and compact track loaders with universal quick-attach mounting
• Clamp-on bucket forks that bolt directly to a loader bucket without removing the bucket
• 3-point hitch forks for compact utility tractors (Category 1 and Category 2)
• Telehandler-specific carriages with Class III or Class IV ITA mounting

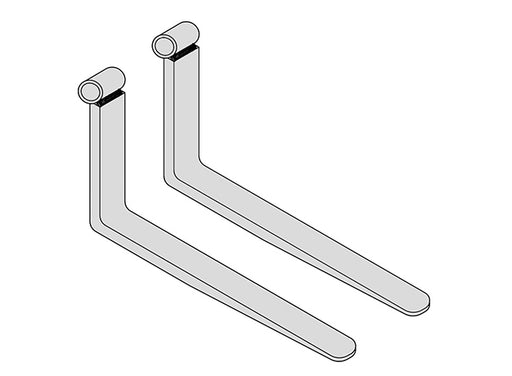

• Individual replacement tines (shaft-mount or pin-type) sold separately from frames

Fork extensions and sleeves slide over existing tines to add 24 to 36 inches of reach for oversized loads.

Who Uses Pallet Forks Most Often?

General contractors, farmers, landscapers, warehouse managers, and rental fleet operators are the primary buyers of pallet forks. Contractors move palletized block, brick, and bagged goods on construction sites. Farmers transport round bales, feed pallets, and fencing materials.

• Landscapers stage sod pallets, stone, and mulch at residential and commercial sites
• Warehouse and yard managers load and unload flatbed trucks at distribution points
• Rental fleet operators stock pallet fork sets as high-demand attachments for skid steer fleets
• Municipal and public works crews reposition dumpsters, barricades, and equipment

How Do You Choose the Right Pallet Fork Size and Capacity?

What Is the Best Length for Pallet Forks?

The best length for most pallet fork applications is 48 inches, which accommodates standard 48" × 40" GMA pallets and fits skid steers and compact loaders with 2,000–4,000 lb rated operating capacity. Fork length directly affects load center distance and effective lifting capacity.

• 42-inch tines — light-duty use on mini skid steers and compact tractors
• 48-inch tines — standard pallets, bagged goods, block pallets (most popular length)
• 60-inch tines — oversized pallets, lumber bunks, and landscape stone pallets
• 72-inch tines — long stock including pipe, steel, and dimensional lumber over 10 feet

What Weight Capacity Rating Do You Need?

Select a pallet fork capacity that meets or exceeds 50% of the carrier machine's rated operating capacity (ROC) to maintain stable, safe operation. The fork rating must never be the weakest link, but the machine's ROC remains the true limiting factor for every lift.

• 2,000 lb capacity — mini skid steers and sub-compact tractors
• 4,000 lb capacity — mid-size skid steers and standard compact track loaders
• 5,500 lb capacity — full-size skid steers handling lumber bunks (3,000–6,000 lbs)
• 8,000 lb capacity — large wheel loaders and telehandlers lifting steel or concrete loads

Common reference loads: a standard pallet of concrete blocks weighs approximately 2,500 lbs, a pallet of sod weighs approximately 2,000 lbs, and a lumber bunk ranges from 3,000 to 6,000 lbs.

What Is an ITA Carriage Class and Why Does It Matter?

ITA carriage class is an international standard defining the mounting dimensions and capacity range of forklift carriages and fork tines. Tines and frames must share the same ITA class for proper fit and safe operation.

• Class II — up to 4,000 lb capacity, 16-inch bar spacing, fits most skid steer frames
• Class III — up to 6,000 lb capacity, 20-inch bar spacing, fits full-size loaders and telehandlers
• Class IV — up to 8,000 lb capacity, 25-inch bar spacing, fits large wheel loaders

Which Machines Are Compatible with Pallet Forks?

Which Skid Steer and Compact Track Loader Models Work with Pallet Forks?

Any skid steer or compact track loader with a universal quick-attach interface accepts standard pallet fork frames. Universal quick-attach (also called quick-tach) is the most common mounting standard across all major manufacturers of skid steers and CTLs produced after 2000.

Mid-size skid steers with 2,200–3,500 lb ROC pair with 4,000 lb pallet fork sets. Full-size CTLs with 3,500–4,500 lb ROC pair with 5,500 lb or 8,000 lb pallet fork sets for heavy material handling.

Can You Use Pallet Forks on a Tractor with a Front-End Loader?

Compact utility tractors accept pallet forks through 2 mount types: Euro/global mount on the front-end loader or 3-point hitch (Category 1 or Category 2) at the rear. Euro/global mount frames attach to the loader's quick-coupler plate. 3-point hitch pallet forks connect to the tractor's rear three-point linkage for rear-facing material transport.

Do Pallet Forks Fit Telehandlers and Wheel Loaders?

Telehandlers and wheel loaders use Class III or Class IV ITA carriages that accept heavy-duty pallet fork tines rated at 6,000 to 8,000 lbs. Telehandler-specific carriages match proprietary coupler interfaces. Wheel loaders use pin-on or quick-coupler frames sized to the machine's lift arm.

What Are the Most Common Uses for Pallet Forks on the Job Site?

How Do Contractors Use Pallet Forks in Construction?

Pallet forks handle 5 primary construction tasks: moving palletized block and brick to masons, staging bagged concrete and mortar, unloading flatbed deliveries, repositioning dumpsters, and lifting equipment or engines during mechanical installs.

• Palletized block and brick delivery to masonry crews — eliminates hand-carrying across the site
• Lumber bunk transport from staging area to framing zones
• Flatbed truck loading and unloading at site entrances
• Dumpster and container repositioning as work progresses across the site

Can You Lift Round Bales with Pallet Forks?

Pallet forks lift and transport round bales by sliding the tines under the bale or cradling the bale between tines spaced 24 to 30 inches apart. Round bales weighing 800 to 1,500 lbs require a minimum 4,000 lb fork set for safe handling with margin. Dedicated bale spears provide more secure single-bale piercing, but pallet forks move multiple bales per trip when stacked on a flatbed or trailer.

What Other Agricultural and Landscaping Tasks Can Pallet Forks Handle?

Pallet forks handle feed pallet transport, fencing material staging, sod pallet placement, bulk stone delivery, and nursery container relocation across agricultural and landscaping operations.

• Farm supply transport — feed bags, seed pallets, and chemical totes from barn to field
• Landscape material staging — sod pallets (2,000 lbs each) placed at installation zones
• Nursery and garden center operations — moving potted tree pallets and stone pallets between yards
• Forestry log decking — 72-inch tines handle logs up to 12 feet for sorting and stacking

What Specifications and Features Should You Compare When Buying Pallet Forks?

What Fork Dimensions and Steel Grade Indicate Quality?

Professional-grade pallet fork tines use 4140 heat-treated high-tensile alloy steel with cross-sections of 4" × 1.75" (standard duty) or 6" × 2" (heavy duty). Tine thickness determines load-bearing strength. Fork tines with tapered tips reduce pallet entry resistance and minimize product damage.

What Frame Design Features Improve Safety and Productivity?

Walk-through (step-through) frame designs allow operators to access the front of the machine without climbing over the forks. A high backrest extension (42 to 48 inches) prevents loads from sliding into the cab. Powder-coated frames resist corrosion across outdoor job sites.

• Adjustable tine spacing accommodates pallet widths from 36 to 60 inches
• Chain-slot or pin-lock tine retention prevents tines from shifting under load
• Brick guard frames add a welded mesh upper section for small-item containment

Should You Choose Hydraulic or Manual Fork Positioning?

Hydraulic fork positioners adjust tine spacing from the cab using the machine's auxiliary hydraulic circuit, eliminating the need to exit the machine. Manual positioning requires the operator to unlock, slide, and re-lock each tine by hand. Hydraulic positioners add $800 to $2,000 to the cost but reduce repositioning time from 3–5 minutes to under 10 seconds per adjustment.

Browse Forge Claw's Pallet Fork Selection

Forge Claw carries professional-grade pallet forks built for demanding heavy equipment operations. Every frame and tine set meets ITA class standards and ships ready to mount. You get the specs, the compatibility data, and the support to match the right fork to your machine and your workload. Equipment financing available for qualified buyers.

What Makes Forge Claw's Selection Right for Professional Use?

Every pallet fork set in this collection is built from heat-treated alloy steel and rated to published ITA capacity standards. Forge Claw's equipment specialists match fork length, capacity, and mount type to your carrier machine — before you order. That's how you get the right attachment the first time.

What Other Products Do Contractors and Operators Pair with Pallet Fork Attachments?

Contractors and operators regularly combine pallet forks with complementary products to expand capability and reduce changeovers.

Compact Tractor Pallet Forks

Operators running smaller farming or landscaping operations often need material handling capabilities on their compact tractors. Compact Tractor Pallet Forks provide the same load-lifting functionality as larger attachments but are specifically sized and weighted for tractors under 50 horsepower. These attachments handle feed bags, nursery stock, and construction materials in tighter spaces where full-size equipment can't operate effectively.

Mini Skid Steer Pallet Forks

Landscaping crews and contractors working in confined areas rely on mini skid steers for their maneuverability around buildings and through gates. Mini Skid Steer Pallet Forks deliver essential material handling in these restricted environments, moving pavers, bagged materials, and equipment where standard-size loaders cannot access. The reduced weight capacity matches perfectly with the lifting limits of compact carriers.

Skid Steer Pallet Forks

Construction sites and agricultural operations frequently utilize skid steer loaders as their primary material handling platform due to their versatility and power. Skid Steer Pallet Forks maximize this capability by transforming these machines into efficient material movers for everything from feed pallets to construction supplies. The robust construction handles the higher hydraulic capacity that full-size skid steers deliver.

Frequently Asked Questions About Pallet Forks

What Does the Pallet Fork Do?

A pallet fork attachment mounts to a skid steer, compact track loader, tractor, or telehandler and lifts palletized materials, lumber, bales, and equipment weighing 2,000 to 8,000 lbs.

The frame attaches to the carrier machine's coupler plate, and two adjustable steel tines slide into pallet openings or cradle irregularly shaped loads. Pallet forks convert any compatible loader into a material-handling machine without requiring a standalone forklift. OSHA material handling standards govern load limits, tine condition, and operator visibility during all pallet fork operations.

What Is the Best Length for Pallet Forks?

48-inch tines are the best length for most applications because 48-inch tines fit standard 48" × 40" GMA pallets and match the rated operating capacity of mid-size skid steers and compact track loaders.

42-inch tines suit mini skid steers and compact tractors handling light loads under 2,000 lbs. 60-inch tines handle oversized pallets, lumber bunks, and landscape stone. 72-inch tines carry long stock such as pipe, steel bar, and dimensional lumber exceeding 10 feet. Longer tines shift the load center forward, which reduces the machine's effective lifting capacity.

Can You Lift Round Bales with Pallet Forks?

Pallet forks lift round bales weighing 800 to 1,500 lbs by sliding tines under the bale or cradling the bale between tines spaced 24 to 30 inches apart.

A 4,000 lb-rated fork set provides sufficient margin for single round bales on mid-size skid steers and tractors. Dedicated bale spears offer more secure piercing for single-bale transport. Pallet forks carry multiple bales per trip when bales are pre-loaded on a flatbed or pallet. Operators maintain bale stability by keeping the load low and traveling at reduced speed.

Where Can You Buy Pallet Forks?

Pallet forks are available from heavy equipment distributors, online equipment retailers, and authorized attachment dealers that stock frame-and-tine sets, clamp-on forks, and replacement tines across all ITA classes.

Key purchasing factors include mount type compatibility (universal quick-attach, Euro/global, 3-point hitch), ITA carriage class (II, III, or IV), and weight capacity rating matched to the carrier machine's ROC. Buyers purchasing from a specialized distributor receive machine-specific compatibility guidance, published load ratings, and access to replacement tines and accessories for long-term maintenance.

How Do You Maintain and Inspect Pallet Fork Tines?

Inspect pallet fork tines before each shift for cracks, bending, and wear — replace any tine that has lost 10% or more of its original thickness at any point along the blade.

The 10% thickness rule comes from ANSI/ITSDF B56 standards and applies to all ITA-class fork tines. Check the heel section (where the vertical shank meets the horizontal blade) for fatigue cracks. Verify that tine lock pins or chain-slot retainers seat fully before lifting. Grease mounting points on the frame every 50 operating hours. Powder-coated frames require recoating if bare steel is exposed to prevent corrosion in outdoor storage.
