What machines is this hydraulic power pack compatible with?
The BravePro Hydra Buddy is universally compatible with any equipment requiring hydraulic power. It works with log splitters, hydraulic winches, custom fabricated equipment, and both single and double-acting hydraulic cylinders. The standardized ORB and JIC fittings ensure secure connections across different manufacturers' equipment.
Its skid-mount design allows installation on trailers, truck beds, or permanent setups, making it ideal for contractors who need portable hydraulic power. The 12 GPM flow rate handles multiple hydraulic tools simultaneously, while the 2,250 PSI system relief valve protects connected equipment from pressure damage. Optional valve kits let you customize the unit for single-acting, double-acting, or multi-function hydraulic circuits depending on your specific applications. This versatility makes it perfect for tree service professionals, contractors, landscapers, and agricultural operators running various hydraulic implements. Forge Claw provides free nationwide shipping and flexible financing options to get you powered up quickly.
What are the hydraulic requirements for this power pack?
This power pack delivers 12 GPM hydraulic flow at up to 2,250 PSI maximum system pressure. The pump features 0.88 cubic inches per revolution displacement with clockwise rotation. Connection points include a 1-1/16-12 ORB pump inlet port, 7/8-14 ORB pump outlet port, 12 ORB valve inlet plumbed to reservoir, and 8 Male JIC adapter on valve outlet.

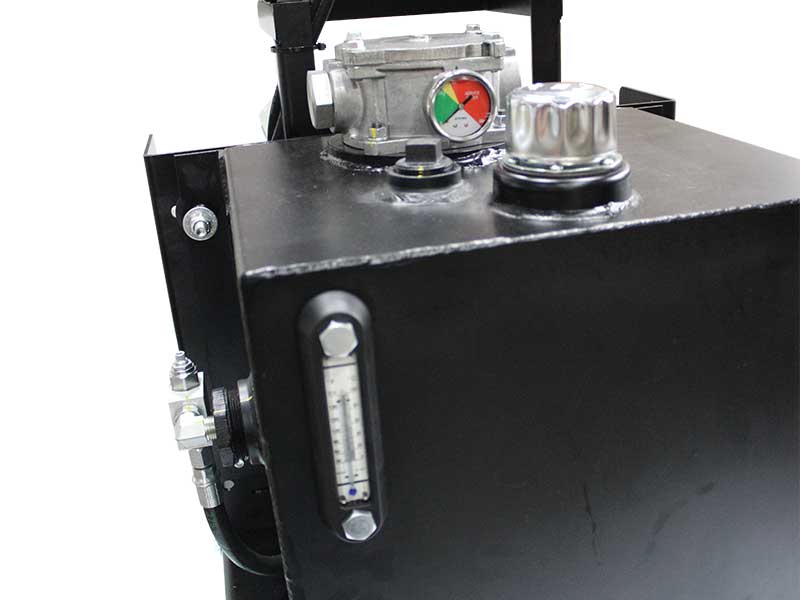

The 17.5-gallon actual capacity tank provides adequate fluid volume for extended operations, with 13.5 gallons useable capacity. Tank features include a 3/4" NPT drain port and sight gauge for monitoring fluid levels. The system uses standard hydraulic fluid and operates efficiently across temperature ranges with the integrated temperature gauge. Relief valve protection prevents system overload while the spin-on return filter maintains fluid cleanliness. This configuration handles most commercial hydraulic applications including cylinders, motors, and powered attachments requiring consistent flow and pressure.
How do I install and set up this hydraulic power pack?
Installation begins with positioning the 368-pound unit using the integrated fork lift points for safe handling. The skid-mount design bolts securely to trailers, truck beds, or permanent installations using the provided mounting points. Ensure adequate ventilation around the Honda engine and access to the control panel.

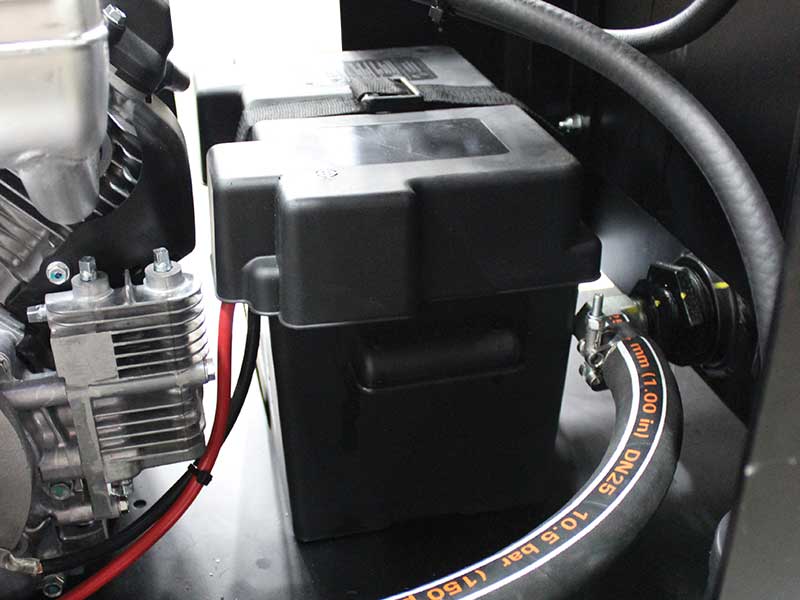

Fill the hydraulic tank with appropriate fluid to the sight gauge indicator level, leaving expansion room. Connect your hydraulic lines to the standardized ORB and JIC fittings, ensuring proper thread engagement and torque specifications. The electric start system requires a 12-volt battery connection with appropriate gauge wiring for reliable starting. Check all connections for leaks before initial operation and verify the relief valve setting matches your application requirements. Run the system at low pressure initially to purge air from lines and verify proper operation. The spin-on return filter should be checked after initial break-in period. Position the unit level for optimal pump performance and fluid circulation.
What maintenance does this hydraulic power pack require?

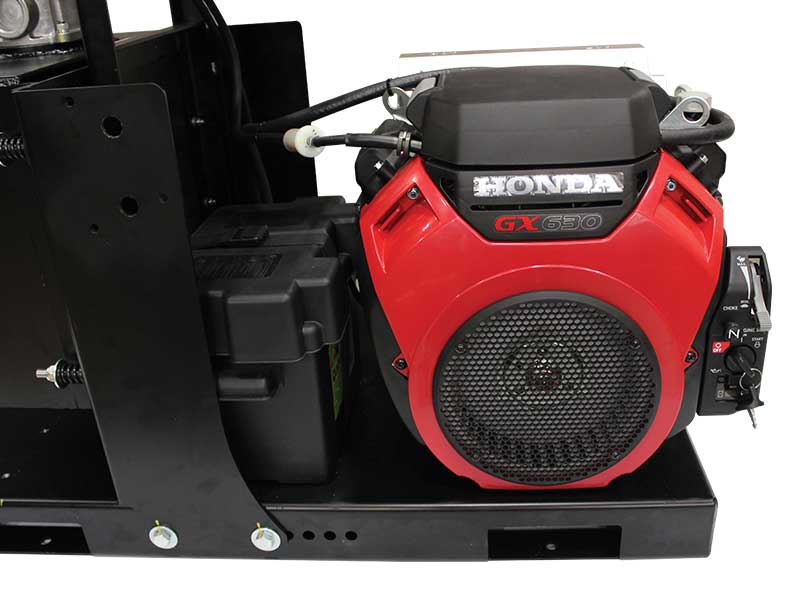

Regular maintenance ensures reliable performance and extends service life. The Honda GX630 engine follows standard commercial engine service intervals including oil changes, air filter replacement, and spark plug service as outlined in the owner's manual. Monitor hydraulic fluid level using the sight gauge and check fluid condition regularly - contaminated or degraded fluid should be replaced immediately.
The spin-on return filter features a visual indicator that shows red when replacement is needed, typically every 500-1000 operating hours depending on conditions. Inspect all hydraulic connections for leaks and retighten as necessary since vibration can loosen fittings over time. Check the system relief valve annually to ensure proper pressure settings and operation. Tank drain should be performed during fluid changes using the 3/4" NPT drain port. Monitor operating temperature using the gauge to prevent overheating damage. Keep the engine cooling fins clean and ensure adequate airflow around the unit during operation for optimal performance and longevity.
Is it worth buying vs renting this hydraulic power pack?
Purchase makes financial sense for operators using hydraulic power regularly. Rental costs typically run $200-400 weekly, meaning the investment pays for itself within months of regular use. Ownership eliminates scheduling conflicts and ensures equipment availability when you need it most.
The Honda GX630 commercial engine and robust construction provide years of reliable service with proper maintenance, spreading the cost over thousands of operating hours. Having your own unit allows customization with specific valve configurations and fittings for your applications. No transport time or rental return deadlines means increased productivity and job flexibility. The 2-year manufacturer warranty protects your investment while the proven Honda engine reduces long-term operating costs compared to lesser power plants. For contractors, landscapers, and agricultural professionals who regularly operate hydraulic equipment, ownership provides better control over maintenance schedules and operating costs. The compact size and skid-mount design make it easy to integrate into existing equipment fleets for maximum utilization across multiple job sites and applications.
