What makes a hydraulic dump bucket different from a standard tractor bucket?
A hydraulic dump bucket features integrated hydraulic cylinders that tilt the bucket forward at full lift height, extending your dump clearance well beyond what a traditional bucket can achieve. While a standard bucket relies solely on your loader's lift arms to position and dump material, the hydraulic dump bucket adds a second motion—a hydraulic tilt—that angles the bucket forward to reach over high-sided trailers, dumpsters, and containers. This means you can load material into locations that would normally require a larger machine or creative workarounds.
The hydraulic tilt is controlled through your machine's auxiliary hydraulic circuit, giving you precise control over the dump angle. This design is particularly valuable for contractors and landscapers who frequently load high-sided dump trailers, ranch owners transferring material into elevated bins, and tree service professionals dumping into chip trucks. The system maintains the speed and maneuverability of your compact tractor while adding the dump height capability of a much larger loader.
How much additional dump height does the hydraulic tilt system provide?
The additional dump height varies depending on your base machine's lift capacity and boom geometry, but the hydraulic tilt typically adds 2 to 4 feet of effective dump clearance compared to a standard bucket at the same lift height. This extension comes from the forward tilt angle created by the hydraulic cylinders, which positions the bucket's dump point significantly higher and farther forward than a fixed bucket.
For example, if your tractor's standard lift height allows you to clear a 5-foot trailer side, the hydraulic dump bucket can help you clear 7 to 9 feet, making it possible to load full-sized dump trailers and commercial dumpsters. The exact clearance gain depends on factors like your machine's hydraulic flow, the bucket size you choose, and your loader arm configuration. The key advantage is that you're maximizing your existing machine's capabilities without needing to upgrade to a larger, more expensive loader. This makes the hydraulic dump bucket an excellent investment for operations that occasionally need extra reach but don't want the cost and complexity of a bigger machine.
What size hydraulic dump bucket should I choose for my tractor?

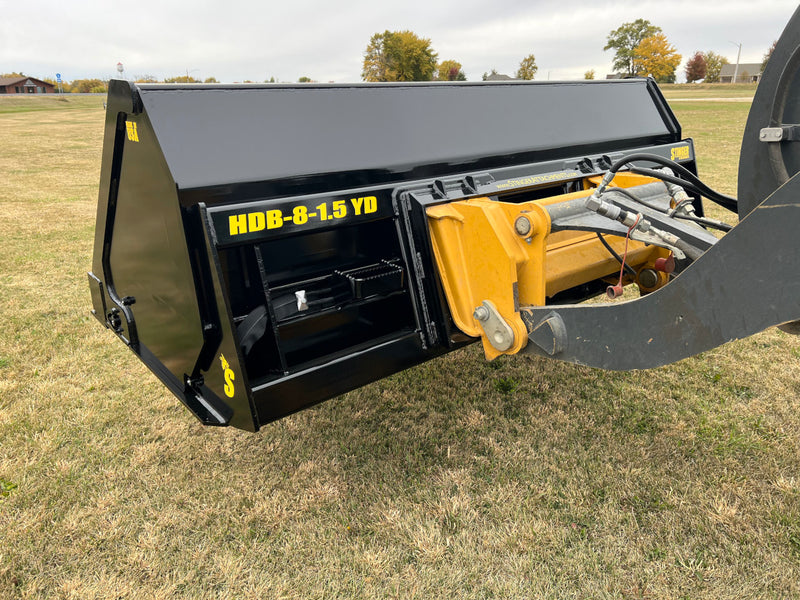

Choosing the right size depends on your tractor's lift capacity, the typical volume of material you move, and the working width that matches your jobsite needs. The hydraulic dump bucket is available in five sizes: 6-foot (1.1 cubic yards), 7-foot (1.3 cubic yards), 8-foot (1.5 cubic yards), 9-foot (1.7 cubic yards), and 10-foot (2.0 cubic yards). Compact utility tractors in the 25 to 40 horsepower range typically pair well with the 6-foot or 7-foot models, while larger tractors and skid steers in the 50 to 80 horsepower range can handle the 8-foot to 10-foot sizes.
It's important to match the bucket capacity to your machine's rated lift capacity—overloading can strain hydraulics and reduce stability. Consider the materials you'll be moving most often: lighter materials like mulch or compost allow for larger buckets, while dense materials like gravel or wet soil require more conservative sizing. Your Forge Claw representative can help you verify compatibility based on your specific machine model and typical applications.
Is the hydraulic dump bucket compatible with my tractor's hydraulic system?
The hydraulic dump bucket requires an auxiliary hydraulic circuit to power the tilt cylinders, which most modern compact tractors and skid steers provide as standard or optional equipment. Your machine needs to have at least one set of auxiliary hydraulic ports, sometimes called remote hydraulics or auxiliary flow. These are separate from the main loader lift and tilt circuits. Most tractors manufactured in the last 15 years include aux hydraulics, but it's worth confirming your specific model's capabilities before ordering.
The bucket connects to your machine's hydraulic system using standard quick-connect couplers, making installation straightforward. Flow requirements are moderate—the system doesn't demand high-flow capabilities like some attachments. If your tractor has auxiliary hydraulics for running other attachments like augers or post drivers, it will work with the hydraulic dump bucket. If you're unsure about your machine's hydraulic setup, check your operator's manual or contact Forge Claw. Our team can verify compatibility and help you understand exactly what's needed for proper operation on your specific equipment.
What mounting options are available for the hydraulic dump bucket?
The hydraulic dump bucket is available with multiple mounting configurations to fit a wide range of equipment. For skid steers and compact track loaders, the bucket comes with a universal skid steer quick attach plate that's compatible with the industry-standard quick attach system used by most manufacturers. For agricultural tractors, the bucket offers ISO and Global tractor mount options, which are the two most common front loader mounting standards worldwide.
ISO mounts feature a hook-and-pin design, while Global mounts use a different geometry—your tractor's loader will have one or the other. When ordering, you'll need to specify which mount type matches your machine. If you're not sure which system your tractor uses, check your loader's documentation or look at the attachment points on your existing bucket. The mount you need is determined by your loader's coupler, not the tractor brand. Once you have the correct mount, the bucket attaches and detaches quickly using your loader's existing coupler mechanism, just like any other front-end attachment.
How does the hydraulic dump bucket improve productivity compared to a standard bucket?
The productivity gains come from eliminating the workarounds and extra steps required when a standard bucket can't reach high enough. With a conventional bucket, loading a high-sided trailer often means building a ramp, repositioning the machine multiple times, or only filling the bucket partway to avoid spillage during awkward angles. The hydraulic dump bucket eliminates these inefficiencies by giving you the clearance to dump cleanly in one smooth motion.
This translates to faster cycle times—you spend less time maneuvering and more time moving material. For operations loading dozens of buckets per day, those time savings add up to significantly more loads per hour. The hydraulic tilt also provides better control over material placement, reducing spillage and the need for cleanup. Contractors report being able to complete material loading jobs 20 to 30 percent faster compared to working with standard buckets on the same equipment. That efficiency improvement means lower labor costs, faster project completion, and the ability to take on jobs that would otherwise require renting a larger machine.
What kind of maintenance does the hydraulic dump bucket require?
Maintenance requirements are straightforward and designed for easy field service. The most important routine task is greasing the pivot pins according to the recommended intervals—typically every 10 to 20 hours of operation depending on conditions. The pins are equipped with grease fittings, so you simply use a standard grease gun to keep the pivot points lubricated and operating smoothly. This prevents binding and premature wear.
The cutting edge should be inspected regularly for wear and damage. When one side wears down, you can flip it to use the opposite edge, effectively doubling its service life. Replacement is a simple bolt-on process when both edges are worn. Hydraulic hoses and connections should be checked periodically for leaks, abrasion, or damage, especially after working in rough terrain or around sharp debris. Keep the bucket clean to prevent material buildup around the pivot points and hydraulic cylinders. With basic preventive maintenance, the hydraulic dump bucket will provide years of reliable service with minimal downtime and low operating costs.
Can the hydraulic dump bucket handle the same materials as a standard bucket?
Yes, the hydraulic dump bucket is designed to handle the full range of materials you'd typically move with a standard bucket—dirt, gravel, sand, mulch, compost, stone, demolition debris, brush, and more. The heavy-duty steel construction and reinforced frame are built to withstand the same demanding conditions and abrasive materials that challenge any bucket attachment. The double-sided replaceable cutting edge provides excellent ground penetration for digging and scooping, while the structural design maintains rigidity even when loaded with dense materials.
The hydraulic tilt system adds functionality without compromising the bucket's core material handling capabilities. One consideration is to always respect your machine's rated lift capacity—the hydraulic dump bucket's capacity should match what your tractor or skid steer can safely lift and maneuver. Overloading any bucket, hydraulic or standard, creates safety risks and can damage your equipment. When properly sized to your machine, the hydraulic dump bucket handles materials just as effectively as a conventional bucket while adding the critical advantage of extended dump height for high-sided loading applications.
Is it worth buying a hydraulic dump bucket instead of renting a larger machine when needed?
For most operations that regularly encounter high-sided loading situations, purchasing a hydraulic dump bucket offers better long-term value than repeatedly renting larger equipment. Rental costs for a wheel loader or larger skid steer can range from $300 to $800 per day depending on size and location. If you need that extra capability even a few times per month, rental expenses add up quickly over a year. The hydraulic dump bucket is a one-time investment that adds permanent capability to equipment you already own.
Beyond direct cost savings, ownership provides scheduling flexibility—you're not dependent on rental availability or dealing with the logistics of equipment delivery and pickup. The bucket is always ready when you need it. There's also the operational advantage of working with familiar equipment. Your team already knows your tractor, understands its capabilities, and can operate efficiently without the learning curve of a rental machine. For contractors and landscapers who value responsiveness and the ability to take on diverse jobs without delay, the hydraulic dump bucket transforms their existing equipment into a more versatile tool that handles a wider range of work.
What should I know before operating a hydraulic dump bucket for the first time?
Start by familiarizing yourself with your machine's auxiliary hydraulic controls, which operate the bucket's tilt cylinders. Most tractors have a lever or switch that controls auxiliary flow direction—one position extends the cylinders to tilt the bucket forward, the other retracts them to return the bucket to the carry position. Practice the sequence on level ground with an empty bucket first: raise the loader to full height, extend the tilt cylinders to dump position, then retract to normal. This helps you understand the timing and motion before working with material.
Always operate on stable, level ground when dumping at height, as the extended reach shifts your machine's center of gravity forward. Avoid overloading the bucket beyond your machine's rated capacity, and be mindful of overhead clearances when raising the loader arms. When dumping into a trailer or container, approach slowly and position carefully to ensure the load clears the sides cleanly. The hydraulic tilt gives you excellent control, but smooth, deliberate movements produce the best results. After a few cycles, the operation becomes intuitive and you'll quickly appreciate the efficiency and capability the hydraulic dump bucket provides.
Forge Claw offers free nationwide shipping on all attachments and flexible financing to help you get the equipment you need. Order your Tractor Hydraulic Dump Bucket today.
