What Are Wheel Loader Buckets and Why Do They Matter for Your Operation?

What Role Does a Wheel Loader Bucket Play on the Job Site?

A wheel loader bucket scoops, carries, and dumps loose material into haul trucks, hoppers, and stockpiles. A properly matched bucket improves loading efficiency by 10–20% per cycle compared to an oversized or undersized configuration.

• Loading haul trucks in pit and quarry operations at 3–5 pass target cycles
• Feeding crushers, screens, and batch plants from stockpile faces
• Stockpiling aggregate, sand, and fill material at staging areas
• Rehandling recycled material at transfer stations and waste facilities

What Core Components Make Up a Wheel Loader Bucket?

A wheel loader bucket consists of 8 primary components that determine structural life and performance: shell body, floor plate, sidebar plates, cutting edge, back plate, spill guard (return flange), lifting eyes, and mounting brackets with pin bosses.

• Floor plates fabricated from AR400 or AR450 abrasion-resistant steel
• Cutting edges manufactured from Hardox 450 or Hardox 500 wear plate
• Sidebar plates reinforced with welded-on wear strips at high-contact zones
• Mounting brackets machined to OEM pin-center dimensions within ±0.5 mm tolerance

What Types of Wheel Loader Buckets Are Available?

What Is a General Purpose (GP) Wheel Loader Bucket Used For?

A GP bucket handles mixed materials — dirt, gravel, sand, and fill — in standard loading and stockpiling applications. Typical GP bucket capacity ranges from 1.5 to 7.0 cubic yards for mid-range wheel loaders. Cutting edge options include straight bolt-on and curved profiles.

GP buckets represent the default configuration shipped with most new wheel loaders. AR400 steel floor plates and bolt-on cutting edges are standard across most GP designs.

What Makes a Rock Bucket Different from a Standard Bucket?

A rock bucket features a reinforced floor, thicker sidewalls, and a V-shaped or spade-nose profile designed for loading shot rock, rip-rap, and large aggregate from quarry faces. AR450 steel is the minimum floor specification; Hardox 500 covers high-wear heel and lip zones.

Rock buckets weigh 15–30% more than equivalent GP buckets at the same width due to additional wear plates, thicker sidebar steel, and heavier cutting edge assemblies.

When Should You Choose a Light Material or Rehandling Bucket?

Light material buckets handle high-volume, low-density materials below 75 lb/cu ft — woodchips, mulch, coal, snow, compost, grain, and recycled plastics. Capacity ranges from 4.0 to 15.0+ cubic yards, often 2–4× the volume of an equivalent GP bucket.

Extended side plates and tall spill guards prevent material loss during carry and dump cycles. Floor plate thickness is reduced compared to rock buckets because abrasive wear loads are lower.

What Are Multi-Purpose, High Dump, and Specialty Buckets?

• Multi-purpose (4-in-1) buckets use hydraulic cylinders to open a clam-style jaw for dozing, clamping, grading, and loading
• High dump buckets extend dump height by 24–48 inches for loading into high-sided hoppers, rail cars, and transfer trailers
• Side dump buckets discharge material laterally for trench backfill and confined-space placement

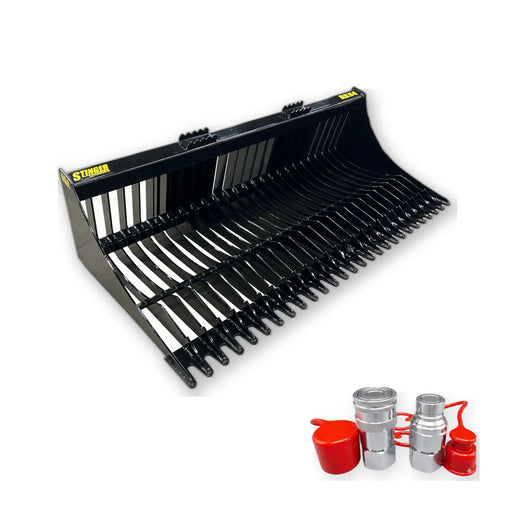

• Skeleton (screening) buckets separate fines from oversized rock through slotted floor openings

How Do You Choose the Right Wheel Loader Bucket Size and Capacity?

How Does Machine Weight Class Determine Bucket Capacity?

Machine operating weight sets the upper limit for bucket capacity based on tipping load and breakout force ratings. 3 weight classes define standard sizing tiers.

• Compact wheel loaders (≤5 ton operating weight): 0.75–2.0 cubic yard bucket capacity
• Mid-size wheel loaders (5–12 ton operating weight): 2.0–5.0 cubic yard bucket capacity
• Large wheel loaders (12–25+ ton operating weight): 5.0–15.0+ cubic yard bucket capacity

What Bucket Width and Volume Do You Need for Your Material?

Bucket width matches or slightly exceeds tire width for stable load distribution. Common widths run 84, 96, 108, 120, and 144 inches. Volume is measured two ways: struck capacity (level fill) and heaped capacity (SAE J742 standard at 2:1 repose angle).

Heaped capacity typically exceeds struck capacity by 15–25% depending on bucket profile and spill guard height. Always confirm which measurement a manufacturer references when comparing specifications.

How Does Material Density Affect Wheel Loader Bucket Selection?

Material density determines whether a loader reaches its volumetric or weight limit first. Lighter materials require larger-volume buckets; heavier materials require smaller, reinforced buckets to stay within payload ratings.

• Bank gravel: ~3,000 lb/cu yd — use GP or rock bucket at reduced volume
• Loose sand: ~2,500 lb/cu yd — standard GP bucket at rated capacity
• Topsoil: ~2,200 lb/cu yd — GP bucket fills to heaped capacity
• Snow: ~400–900 lb/cu yd — light material bucket at maximum volume
• Woodchips: ~500 lb/cu yd — light material bucket with extended side plates
• Coal: ~1,100 lb/cu yd — dedicated coal bucket or rehandling configuration

Which Wheel Loader Buckets Fit Your Machine Brand and Model?

What Pin Dimensions and Coupler Interfaces Determine Bucket Fitment?

Bucket fitment depends on 3 measurements: pin diameter, pin-center distance, and coupler cross-section profile. Each OEM uses proprietary dimensions that vary by model series and weight class. Compact loaders typically use 45–65 mm pins; large loaders use 80–120 mm pins.

Verifying pin-center distance within ±1 mm prevents sloppy fits that accelerate bushing wear and reduce breakout force transfer from the loader linkage to the bucket edge.

How Do Model Ranges Affect Bucket Compatibility Across OEM Brands?

Each OEM model series requires a specific bucket mounting interface. Compact through large loader lines span different pin geometries and coupler standards.

• Compact loader series (1–5 ton class) use smaller pin-on brackets or mechanical couplers
• Mid-size loader series (5–12 ton class) transition to hydraulic quick-coupler interfaces
• Large loader series (12–25+ ton class) use heavy-duty proprietary coupler or pin-on systems
• ISO coupler standards allow cross-brand compatibility on select mid-size models

What Is the Difference Between Pin-On and Quick Coupler Mounting?

Pin-on mounting provides maximum structural rigidity at the lowest cost but requires 15–30 minutes and manual labor for bucket changes. Quick coupler mounting enables attachment swaps in under 2 minutes from the cab using hydraulic or mechanical release mechanisms.

Quick couplers add 200–800 lb of weight between the loader arm and the bucket, which reduces net payload capacity by that amount. Operators running multiple attachments per shift gain the most value from coupler systems.

What Materials and Construction Standards Define a Durable Loader Bucket?

What Steel Grades Are Used in Heavy-Duty Wheel Loader Buckets?

AR400, AR450, Hardox 450, and Hardox 500 are the 4 steel grades used in professional-grade wheel loader bucket construction. AR400 (400 Brinell hardness) serves as the standard floor and sidewall material. AR450 and Hardox 500 (500 Brinell) protect high-impact zones on rock bucket floors and cutting edges.

What Types of Cutting Edges and Wear Parts Extend Bucket Life?

• Bolt-on cutting edges: replaceable in the field with standard wrenches; 1–2 inch thickness in AR450 or Hardox 450
• Weld-on cutting edges: permanent installation with higher impact resistance for rock applications
• Serrated (tooth-style) edges: penetrate compacted material and frozen ground
• Bolt-on heel shrouds: protect the back edge of the bucket floor from abrasive drag wear
• Sidebar wear strips: sacrificial plates welded to outer sidewalls at ground-contact zones

What Industries and Applications Rely on Loader Buckets Daily?

How Are Wheel Loader Buckets Used in Construction and Road Building?

Construction and road building operations use GP and rock buckets for aggregate loading, subbase placement, and truck loading at batch plants. A 3.5 cubic yard GP bucket on a 10-ton loader fills a standard tandem dump truck in 4–5 passes.

What Bucket Configurations Work Best for Mining and Quarry Operations?

Mining and quarry operations use rock buckets with Hardox 500 floor plates and spade-nose profiles to load shot rock, ore, and rip-rap. Large loaders in the 20+ ton class run 8.0–15.0 cubic yard rock buckets rated for material densities above 3,000 lb/cu yd.

How Do Operators Use Loader Buckets for Snow Removal and Agriculture?

Snow removal operations use light material buckets with 4.0–10.0 cubic yard capacities to push and load snow into haul trucks at municipal yards, parking facilities, and airport aprons. Agricultural operations use GP and rehandling buckets for grain, feed, silage, and compost handling at densities between 400–1,200 lb/cu yd.

How Do You Maintain Wheel Loader Buckets for Maximum Lifespan?

What Daily and Weekly Inspection Steps Keep Buckets in Service?

Daily inspections cover 5 checkpoints: cutting edge wear depth, sidebar plate cracks, floor plate thickness at the heel zone, mounting pin play, and spill guard condition. Weekly inspections add torque checks on all bolt-on cutting edge hardware to manufacturer specifications.

Operators measure cutting edge wear against a minimum thickness line stamped or scribed by the manufacturer. Replacing a cutting edge before it wears into the base metal of the bucket lip prevents costly structural welding repairs.

When Do You Replace Cutting Edges, Teeth, and Wear Plates?

Cutting edges require replacement when worn to 50% of original thickness or when bolt holes elongate beyond secure fastening. Teeth and adapters require replacement when the tooth profile loses its penetration angle, which increases breakout force demand by 15–25%.

• Cutting edges: replace every 500–1,500 operating hours depending on material abrasiveness
• Teeth and adapters: replace every 300–800 operating hours in rock and aggregate applications
• Sidebar wear strips: replace when worn flush with the parent sidewall plate
• Floor wear plates: replace when thickness drops below 60% of original specification

What Other Products Do Contractors and Operators Pair with Loader Buckets?

Contractors and operators regularly combine wheel loader buckets with complementary products to expand capability and reduce changeovers across job sites.

Frequently Asked Questions About Wheel Loader Buckets

What Machines Are Compatible with Wheel Loader Buckets?

Wheel loader buckets fit compact, mid-size, and large wheel loaders from 1 ton to 25+ ton operating weight classes using pin-on or quick coupler mounting interfaces.

Fitment requires matching 3 specifications: pin diameter, pin-center distance, and coupler profile type. Compact loaders in the 1–5 ton class use 45–65 mm diameter pins. Mid-size loaders in the 5–12 ton class use 65–90 mm pins with optional hydraulic quick couplers. Large loaders above 12 tons use 80–120 mm pins or proprietary coupler systems. ISO coupler standards provide cross-brand compatibility on select models within the same weight class.

What Jobs and Applications Do Wheel Loader Buckets Handle?

Wheel loader buckets handle loading, stockpiling, grading, carrying, and dumping operations across 8 primary industries including construction, mining, agriculture, and snow removal.

GP buckets load gravel, sand, dirt, and fill in general construction and road building. Rock buckets handle shot rock, rip-rap, and quarry face material. Light material buckets move woodchips, mulch, coal, snow, compost, and grain. Multi-purpose buckets perform dozing, clamping, and grading in site preparation. High dump buckets load material into elevated hoppers and rail cars at waste transfer and port facilities.

How Long Do Wheel Loader Buckets Last Before Replacement?

A wheel loader bucket lasts 5,000–15,000 operating hours before structural replacement, depending on material abrasiveness, steel grade, and maintenance practices.

Buckets operating in sand and topsoil reach the upper end of that range. Buckets loading shot rock and crushed aggregate reach the lower end. Cutting edges require replacement every 500–1,500 hours. Teeth and adapters require replacement every 300–800 hours. Replacing wear parts on schedule prevents damage to the bucket's structural shell and extends total service life by 25–40%.

What Safety Practices Apply to Wheel Loader Bucket Operations?

Wheel loader bucket safety requires 5 practices: load within rated payload capacity, maintain clear sight lines over the bucket, carry loads low during travel, verify coupler lock engagement, and never position personnel under a raised bucket.

Operating above rated payload stresses the loader's axles, tires, and frame, and reduces braking effectiveness. Bucket loads carried above axle height during travel shift the center of gravity forward and increase tip-over risk on grades above 10%. Quick coupler lock pins require visual and mechanical verification before lifting any load. Daily cutting edge inspections prevent fragments from detaching during operation.

How Much Does a Wheel Loader Bucket Cost and When Does Ownership Pay Off?

Wheel loader bucket prices range from $2,000–$8,000 for compact loader GP buckets to $15,000–$50,000+ for large rock and specialty buckets, depending on size, steel grade, and configuration.

Ownership breaks even against rental within 3–6 months for operators running a bucket 40+ hours per week. Rental rates for comparable buckets run $500–$2,500 per month depending on size and type. Operators who own buckets also control maintenance schedules and wear part replacement timing, which extends bucket life and reduces unplanned downtime costs across the fleet.
