BravePro Hydra Buddy Electric Start Remote Hydraulic Power Pack for Construction Equipment | 7 GPM | 2000 PSI | Brave

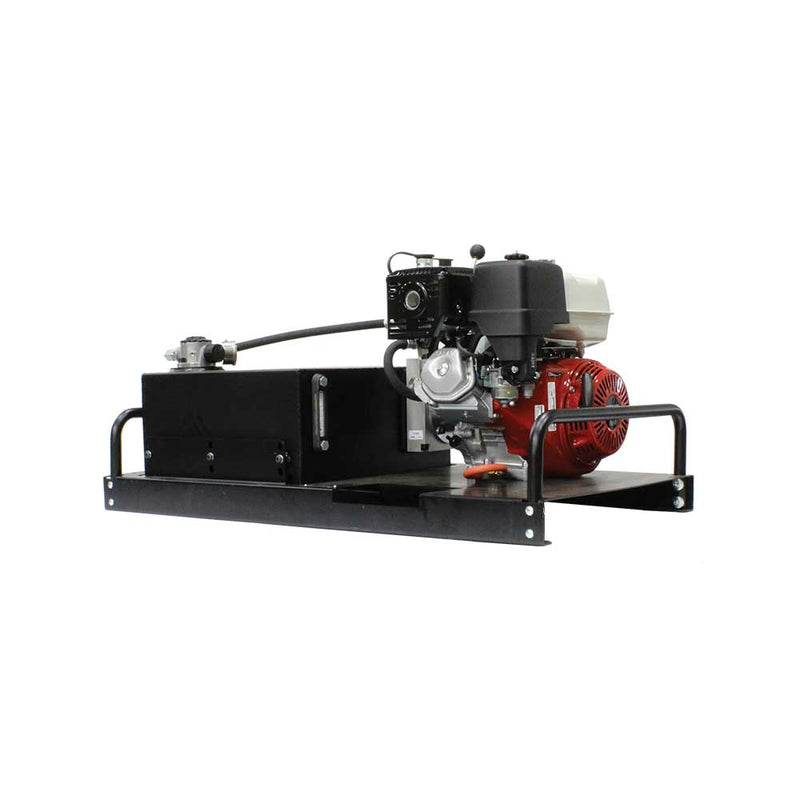

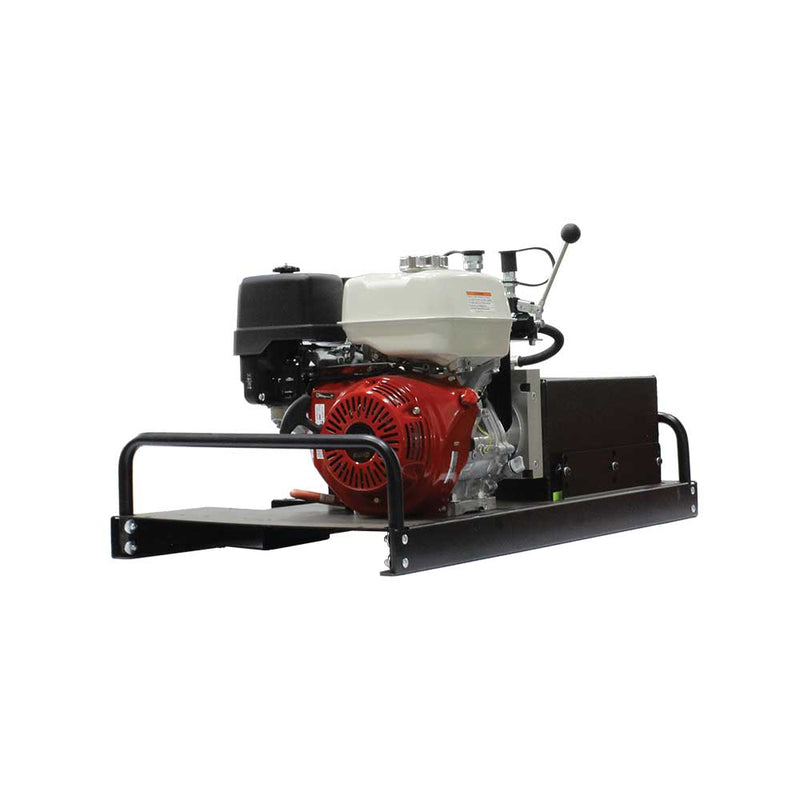

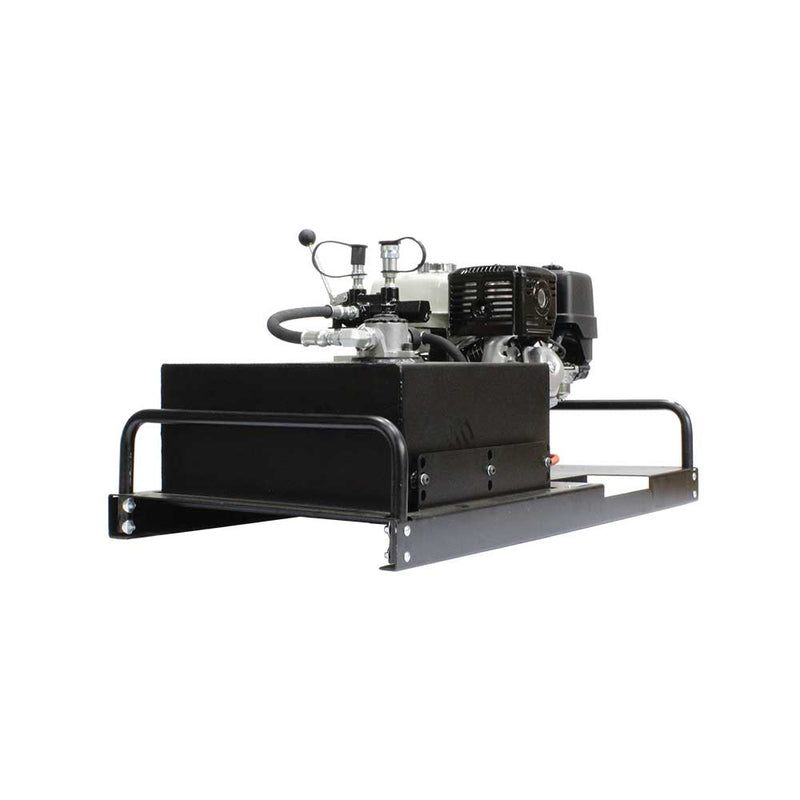

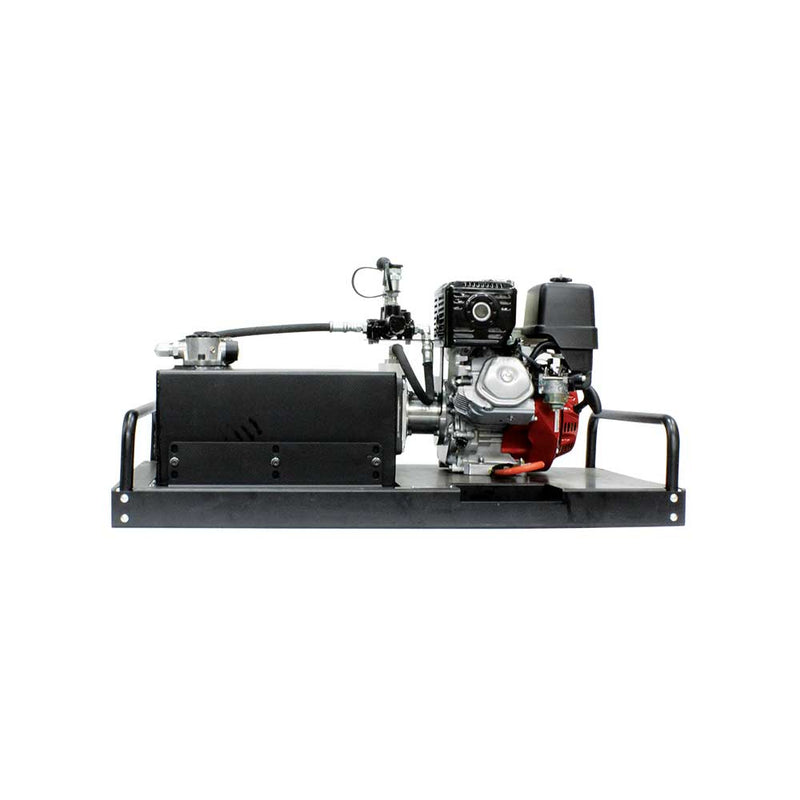

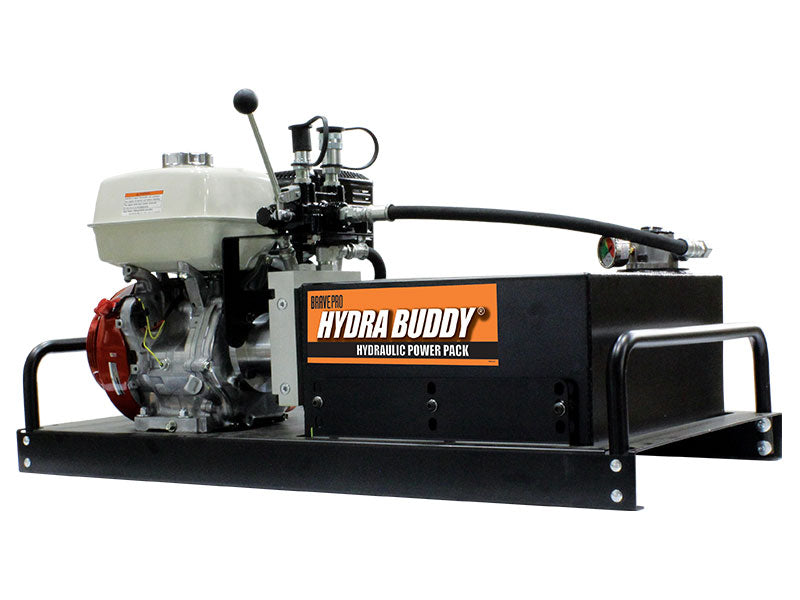

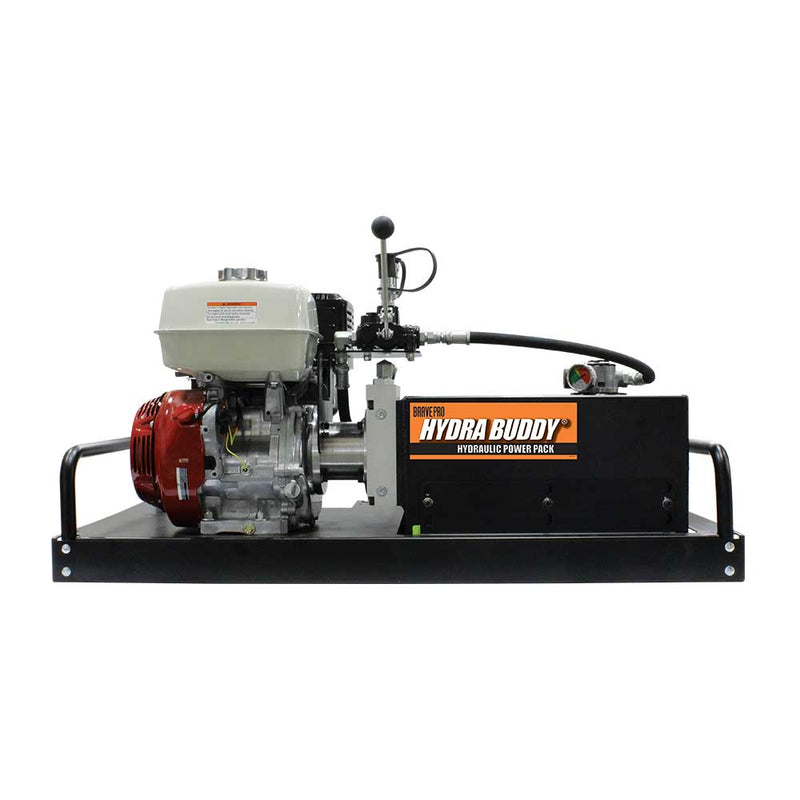

The BravePro Hydra Buddy Electric Start Remote Hydraulic Power Pack (HBHR350GXE) delivers reliable hydraulic power wherever your work takes you. This self-contained unit solves the common problem of needing hydraulic power on job sites where no power or compressed air is available.

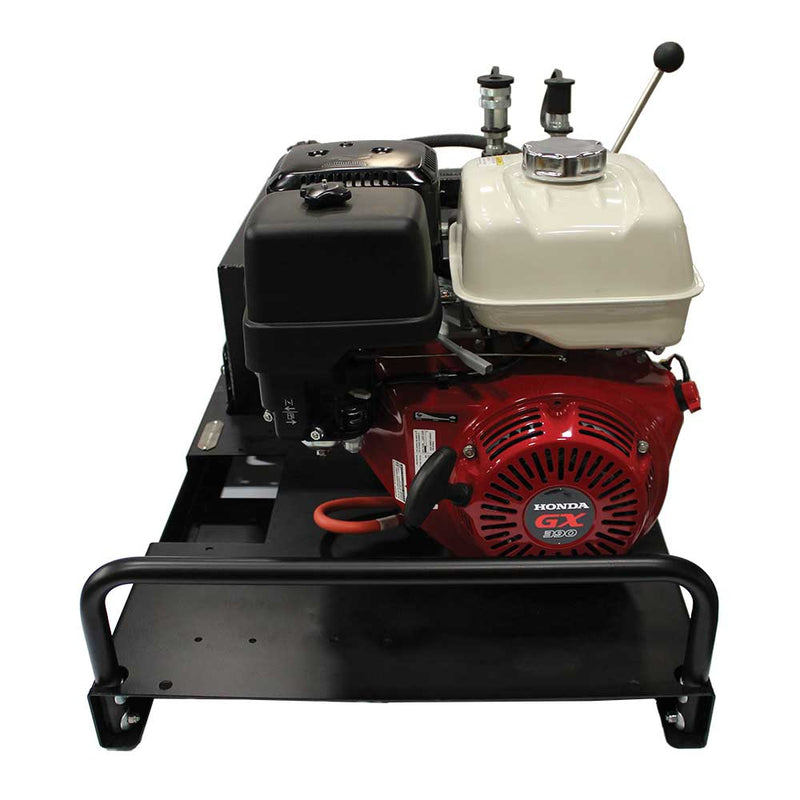

Built around a proven Honda GX390 electric start engine, this power pack generates 7 GPM flow at 2,000 PSI working pressure. The 390cc commercial-grade engine provides consistent performance across demanding applications, from operating hydraulic cylinders to powering specialized attachments.

What sets this unit apart is its complete ready-to-work design. Forge Claw ships every Hydra Buddy with a control valve and quick disconnect couplings already installed. You won't spend time hunting down additional components or making trips to hydraulic supply shops.

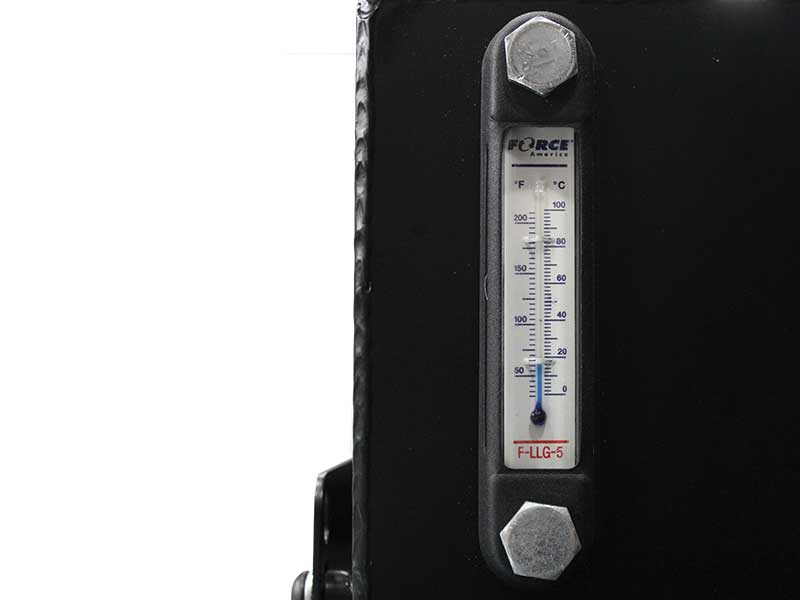

The 15-gallon steel hydraulic tank gives you substantial runtime between refills. The tank features a sight gauge and temperature monitor, so you can keep tabs on oil level and operating temperature at a glance. This prevents costly damage from running low on fluid or overheating during extended operations.

Brave designed this power pack to work with both single and double-acting cylinders. The 3-position, 4-way spring-centered directional control valve gives you precise control over hydraulic flow and direction. Whether you're operating a log splitter, hydraulic press, or custom cylinder application, the valve provides smooth, responsive control.

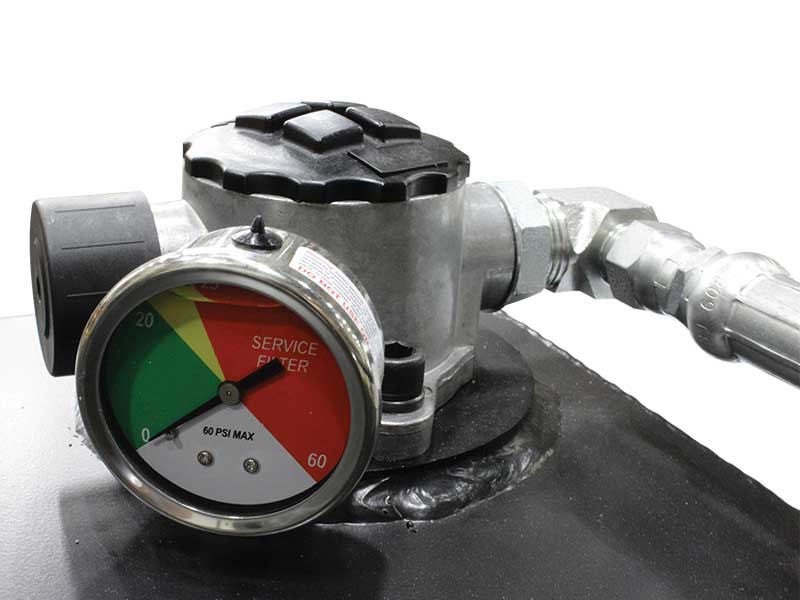

The integrated Zinga in-tank hydraulic filter with indicator keeps your hydraulic fluid clean and your system running smoothly. Clean fluid extends component life and maintains consistent pressure throughout your work cycle. The filter indicator takes the guesswork out of maintenance scheduling.

At 198 pounds dry weight and measuring 44" x 24.5" x 20", this power pack strikes the right balance between portability and capacity. It's heavy enough to stay put during operation but manageable enough to move between job sites with standard equipment.

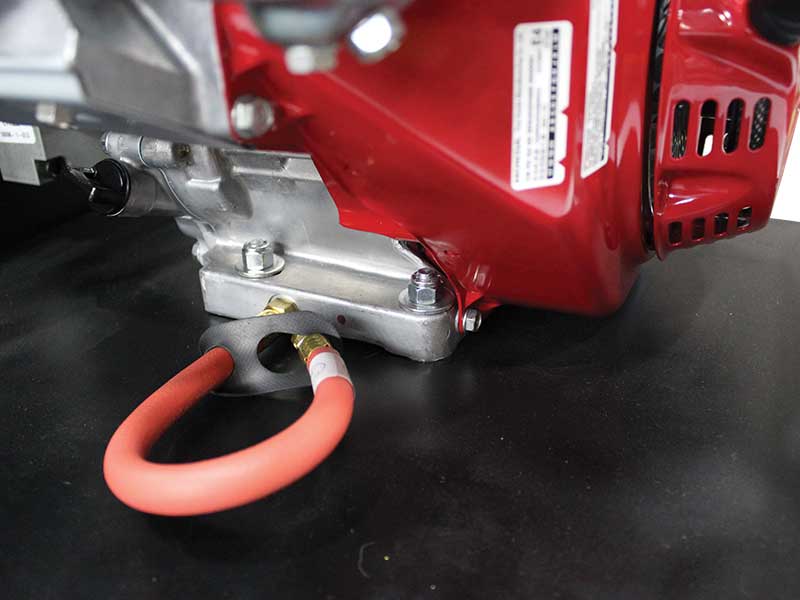

The Honda GX390 engine features electric start convenience with recoil backup. Cold morning starts become routine instead of a wrestling match with a pull cord. The commercial-grade engine design handles frequent starts and long run times that destroy lesser engines.

Contractors appreciate the system relief valve that protects against pressure spikes and overloading. This safety feature prevents damage to your cylinders, hoses, and fittings when you hit an obstruction or reach the end of cylinder stroke.

The pump rotation runs clockwise with standard ORB port fittings. Inlet port uses 1-1/16-12 ORB threading while the outlet uses 7/8-14 ORB. These industry-standard fittings make connecting hoses and adapters straightforward.

Forge Claw stocks this power pack for immediate shipment with free nationwide delivery. Rush processing is available for same-day or next-business-day shipping when you need equipment fast. Every unit comes backed by Brave's 2-year manufacturer warranty for peace of mind.

• Engine: Electric Start 390cc Honda GX390
• Starting: Electric start with recoil backup
• Flow Rate: 7 GPM
• Pump Displacement: .51 CIR
• Operating Pressure: 2,000 PSI
• Hydraulic Tank Capacity: 15 gallons nominal, 13.6 gallons actual, 10.3 gallons useable
• Tank Material: 12-gauge steel construction
• Tank Drain Port: 1/2" NPT
• Pump Inlet Port: 1-1/16-12 ORB
• Pump Outlet Port: 7/8-14 ORB
• Valve Type: 3-position, 4-way spring-to-center directional control
• Weight (Dry): 198 lbs
• Dimensions: 44" L x 24.5" W x 20" H
• Warranty: 2 years manufacturer coverage

• Honda GX390 Electric Start Engine — Reliable 390cc commercial engine with electric start convenience and recoil backup for dependable operation in all conditions
• Complete Ready-to-Work Package — Includes control valve and quick disconnect couplings standard, eliminating additional component purchases
• Zinga In-Tank Hydraulic Filter — Advanced filtration with visual indicator maintains clean fluid and extends system component life
• Large Capacity Steel Tank — 15-gallon 12-gauge steel tank with sight gauge and temperature monitor for extended runtime and easy monitoring
• Precision Directional Control Valve — 3-position, 4-way spring-centered valve with integral adjustable relief provides smooth, accurate hydraulic control
• Single and Double-Acting Compatibility — Versatile design works with both cylinder types for maximum application flexibility
• System Protection Features — Integrated relief valve prevents pressure spikes and component damage during operation
• Professional Port Configuration — Standard ORB inlet and outlet ports with clockwise pump rotation for easy system integration

Time savings start the moment you connect this power pack to your hydraulic application. The electric start Honda engine fires up instantly, even in cold weather when pull-cord engines become stubborn. You'll spend more time working and less time fighting with equipment.

The complete package design eliminates multiple vendor purchases and compatibility concerns. Everything arrives ready to connect and operate, reducing setup time and avoiding the frustration of missing components that shut down your work day.

Consistent 7 GPM flow at 2,000 PSI delivers the power you need for serious hydraulic work. Whether you're splitting logs, operating a hydraulic press, or powering custom cylinders, this flow rate handles demanding applications without bogging down or stalling.

The substantial 15-gallon hydraulic tank reduces refill frequency during extended operations. More tank capacity means longer work cycles and fewer interruptions. The sight gauge and temperature monitor prevent costly mistakes that damage hydraulic components.

Durability comes from proven Honda engine technology and heavy-duty steel tank construction. The 12-gauge steel tank withstands job site abuse while the commercial-grade engine handles frequent starts and long run times. This reliability translates to consistent productivity and lower operating costs.

Portability at 198 pounds means you can move this power pack between job sites or different work areas. It's substantial enough to remain stable during operation but manageable with standard material handling equipment. This mobility extends your hydraulic capabilities across multiple locations.

The precision control valve gives you the fine control needed for delicate work and the flow capacity for heavy-duty applications. Spring-to-center design provides safety by automatically returning to neutral when you release the control, preventing unexpected cylinder movement.

This power pack excels in applications where electrical power and compressed air aren't available. Tree service operations, remote construction sites, agricultural settings, and mobile repair services benefit from the self-contained design. The Honda engine runs on standard gasoline, making fuel readily available anywhere.

Both single-acting and double-acting hydraulic cylinders work with this power pack. Single-acting cylinders use hydraulic power in one direction with spring or gravity return. Double-acting cylinders receive hydraulic power for both extension and retraction, giving you precise control in both directions.

For optimal performance, use high-quality hydraulic fluid appropriate for your operating temperature range. Check fluid level regularly using the sight gauge and maintain the filter according to the indicator. Keep spare quick disconnect couplings on hand for different applications and hose configurations.

The system relief valve is factory set but adjustable for different pressure requirements. Never exceed the maximum rated pressure of your weakest system component. Always use properly rated hoses and fittings that match or exceed the 2,000 PSI system pressure. Note that this power pack is not designed for closed-center hydraulic systems.

Manufactured by Brave, this product is covered under the manufacturer's standard warranty for defects in materials and workmanship. Contact Forge Claw for full warranty details and authorized service options. Order your BravePro Hydra Buddy Electric Start Remote Hydraulic Power Pack (HBHR350GXE) from Forge Claw today. We offer flexible, easy financing and free nationwide shipping so every operator can get their hands on top-quality equipment.
