What machines is this hydraulic power pack compatible with?
The BravePro Hydra Buddy is a universal hydraulic power pack designed to work with a wide variety of equipment and applications. It's compatible with log splitters, hydraulic pumps, lift tables, tree service equipment, and custom hydraulic applications. The system works with both single and double-acting hydraulic cylinders, making it versatile for different attachment types.
The standard ORB and JIC hydraulic connections ensure compatibility with common hydraulic hoses and fittings. The skid-mount design allows secure installation on trailers, work platforms, or stationary setups. With 5 GPM flow rate and 3,000 PSI maximum pressure, it provides sufficient power for most commercial hydraulic applications. Forge Claw provides free nationwide shipping and financing options to help you get this versatile power solution for your operation.
What are the hydraulic requirements for this power pack?

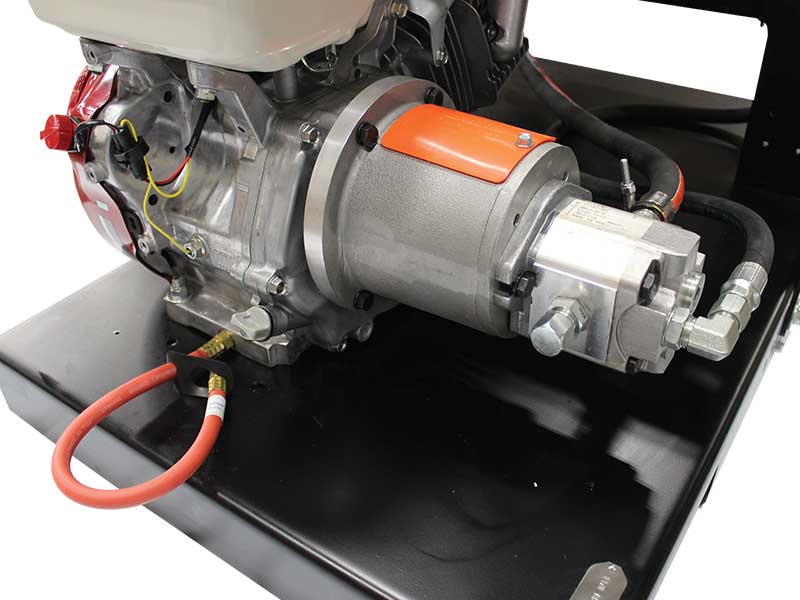

This hydraulic power pack delivers 5 GPM flow rate at operating pressure with a maximum operating pressure of 3,000 PSI. The pump features 0.36 CIR displacement with clockwise rotation. Hydraulic connections include inlet 1-1/16-12 ORB and outlet 7/8-14 ORB on the pump, while valve ports feature inlet 12 ORB and outlet 8 Male JIC adapter.

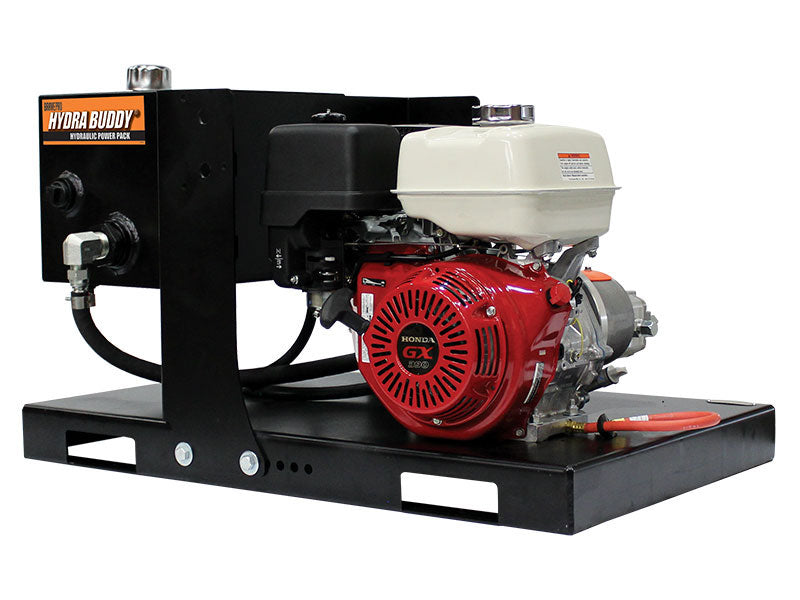

The system requires standard hydraulic fluid and holds 9.7 gallons nominal capacity with 5.75 gallons usable. The built-in system relief valve protects against over-pressurization. The Honda GX390 390cc engine provides consistent power to maintain hydraulic performance. The spin-on return filter with indicator helps maintain fluid cleanliness.
How do I install and set up this hydraulic power pack?
Installation begins with securing the skid-mounted unit to your trailer or work platform using the built-in mounting points. The 240-pound unit can be positioned using fork lift accessibility features for safe handling. Connect your hydraulic hoses to the standard ORB and JIC fittings - inlet 1-1/16-12 ORB and outlet 7/8-14 ORB on the pump side.
Fill the 9.7-gallon tank with appropriate hydraulic fluid, monitoring the sight gauge for proper level. The Honda GX390 electric start engine requires standard engine oil and fuel. Check all hydraulic connections for proper torque and seal integrity before first operation.
What maintenance does this hydraulic power pack require?

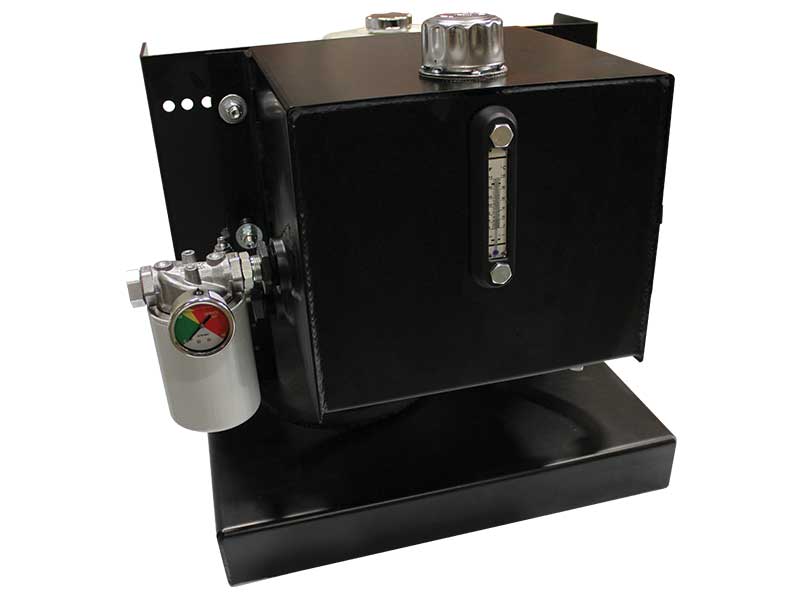

Regular maintenance includes monitoring hydraulic fluid levels using the sight gauge and checking fluid temperature with the built-in monitor. The spin-on return filter should be changed according to the visual indicator or manufacturer schedule to maintain system cleanliness. Honda GX390 engine maintenance follows standard commercial engine service intervals.
Check hydraulic connections periodically for leaks or wear, tightening as needed. The system relief valve should be tested periodically to ensure proper pressure protection. The 2-year manufacturer warranty covers defects, but proper maintenance extends equipment life significantly.
Is it worth buying vs renting this hydraulic power pack?
Purchasing provides significant long-term value for operations with regular hydraulic power needs. The Honda GX390 engine and professional-grade components are built for thousands of operating hours, making the per-hour cost very economical with ownership. You gain immediate availability for emergency jobs and remote locations without rental scheduling constraints.
Professional contractors typically recover the investment cost within the first year through increased job capacity and eliminated rental fees. The electric start feature reduces downtime compared to pull-start rental units. For occasional use, rental might make sense, but regular hydraulic power needs justify ownership.
