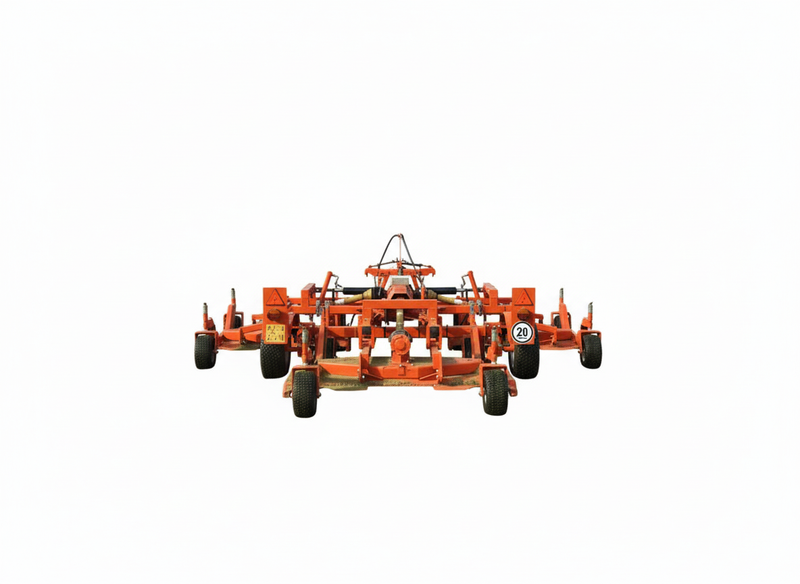

What makes the BEFCO CYCLONE SUPER-FLEX gang mower more efficient than standard mowers for large properties?

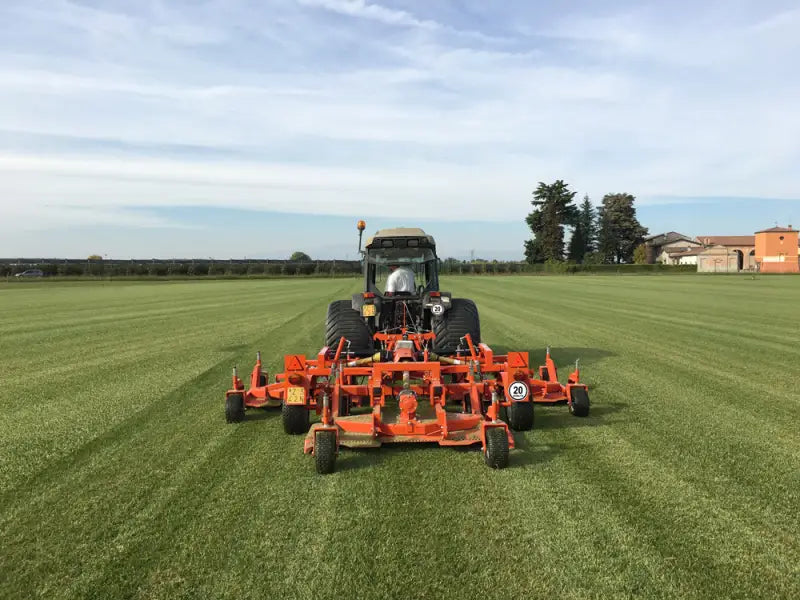

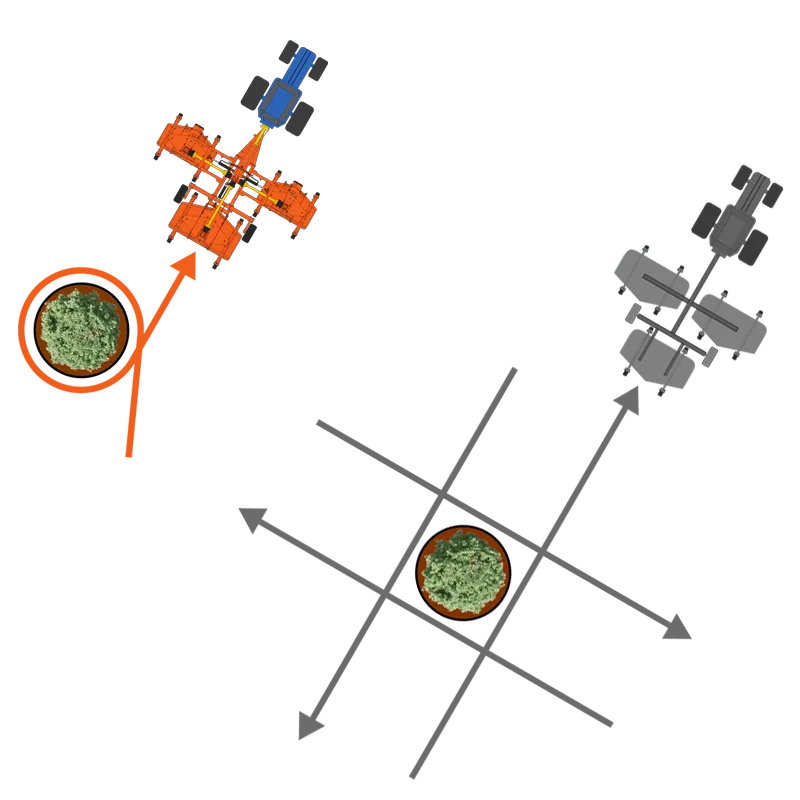

The CYCLONE SUPER-FLEX delivers efficiency through its zero-turn radius capability and wide cutting widths ranging from 12 to 20 feet. The unique frame design paired with BEFCO's constant velocity driveline allows the mower to circle trees, fence posts, and landscape features in a single pass without backing up or repositioning. This capability alone can reduce mowing time by 20 percent or more on properties with obstacles compared to mowers requiring multiple approaches.
Productivity ranges from 8 acres per hour with the 12-foot model up to 15 acres per hour with the 20-foot model at 6 mph, allowing a single operator to maintain substantial acreage efficiently. The independent free-floating deck system with double-pivot linkage ensures each of the three decks follows ground contours individually, maintaining consistent cut quality across rolling terrain, drainage swales, and uneven surfaces without slowing down or making multiple passes.
How do the independent floating decks improve cut quality compared to fixed-frame gang mowers?

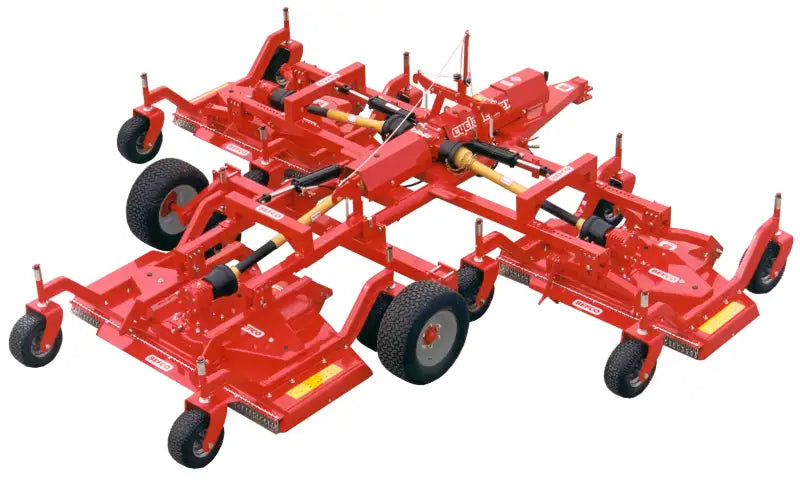

The CYCLONE SUPER-FLEX features completely independent free-floating decks with unique double-pivot floating linkage that allows each deck to move independently both side-to-side and front-to-back. This means when one deck encounters a rise, depression, or change in terrain firmness, it adjusts without affecting the other two decks or creating visible streaking in the finished cut.
Each deck rides on four pneumatic tires measuring 13 inches by 6.5 inches with maintenance-free sealed bearings, totaling 12 tires across all three decks. These high-flotation tires distribute weight evenly, reduce turf compaction, and maintain a level cutting plane regardless of what the transport frame is doing. Three front antiscalp rollers come standard to prevent the leading edge from digging into uneven ground. This system delivers professional-grade results across terrain that would challenge fixed-frame mowers, allowing you to maintain a consistent cutting height across rolling pastures, athletic fields with crown drainage, or parks with varied topography all at full working speed.
What tractor horsepower do I need to operate the different CYCLONE SUPER-FLEX models?
The CYCLONE SUPER-FLEX is designed for tractors ranging from 35 to 80 HP and requires a 540 rpm PTO. The minimum horsepower requirement increases with working width to ensure adequate power for optimal performance. The 12-foot model (412-SFLA) requires a minimum of 35 HP, while larger models need progressively more power, with the 20-foot model (420-SFLA) requiring approximately 50 HP minimum. All models have an 80 HP maximum rating.
Your tractor must also have sufficient hydraulic capacity to operate the single-action hydraulic wing folding system. The 1 3/8-inch constant velocity driveline includes an ASAE category 6 slip clutch that protects both the mower and your tractor's PTO from shock loads when blades encounter hidden obstacles. Matching the mower model to your tractor's horsepower ensures efficient operation, prevents overloading your tractor, and delivers the productivity and cut quality the CYCLONE SUPER-FLEX is designed to provide across your specific acreage and terrain conditions.

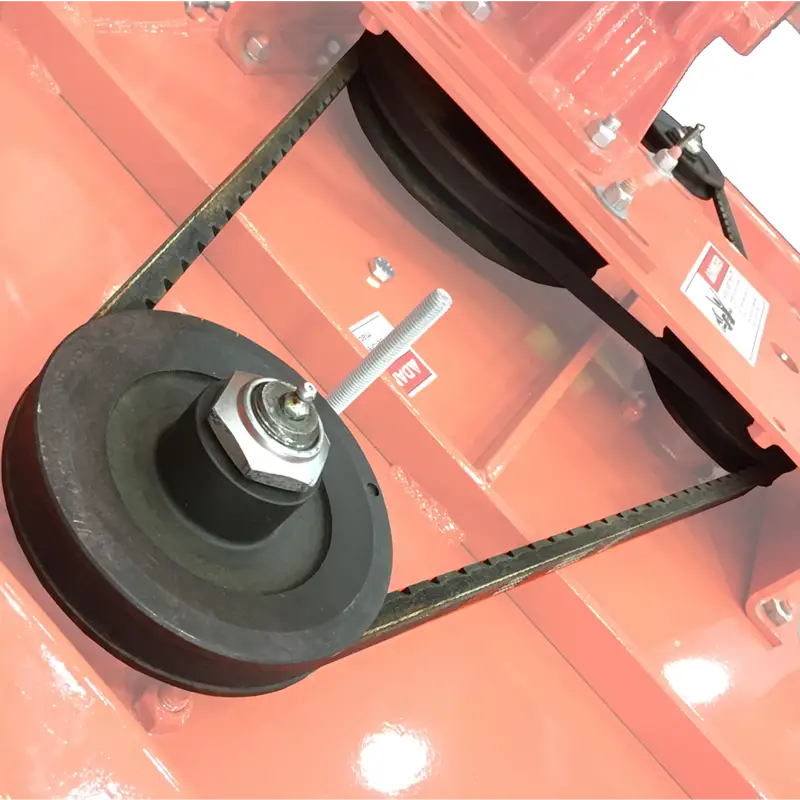

How does the manual belt tensioning system compare to spring-loaded tensioners?

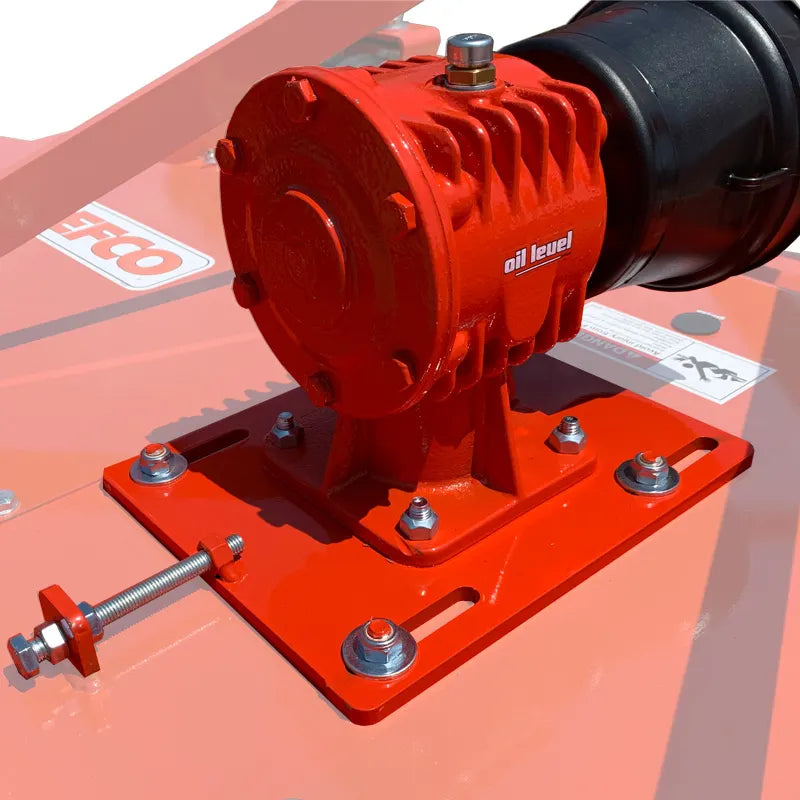

BEFCO's manual belt tensioning system offers significant advantages over spring-loaded idler systems commonly found on competing mowers. Spring-loaded tensioners continuously stretch belts over time, causing premature wear and often requiring complete disassembly during winter storage to prevent permanent belt deformation and spring fatigue. The manual tensioner on the CYCLONE SUPER-FLEX maintains constant tension without stretching, significantly extending belt life and eliminating seasonal maintenance headaches.

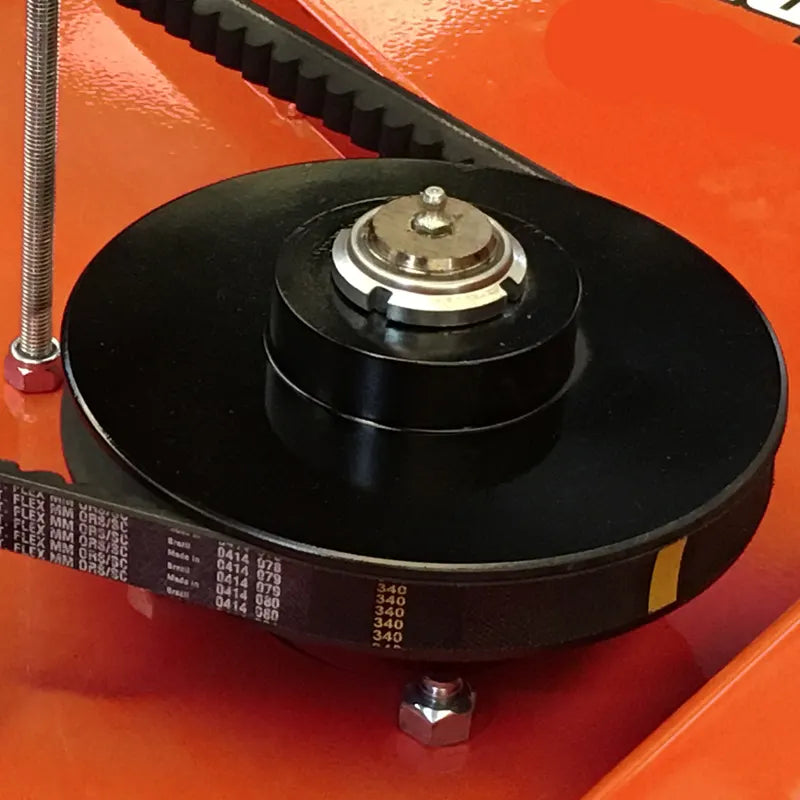

The double belt transmission uses two heavy-duty reinforced SPBX belts per deck, providing over 180 degrees of pulley coverage. This extensive wrap reduces slippage and belt wear even under heavy loads in thick or wet grass conditions. The system uses individually balanced cast iron pulleys that offer greater durability than steel or plastic alternatives and resist damage during service and maintenance. Periodic tension adjustment is simple and quick, requiring only basic tools, and the reduced belt replacement frequency translates to lower operating costs over the mower's lifespan.
What are the transport dimensions and how does the hydraulic folding system work?
The CYCLONE SUPER-FLEX features a single-action hydraulic folding wing system that allows you to fold and unfold the mower from the tractor seat without manual labor. Transport widths range from 91 inches on the 12-foot model up to 114 inches on the 20-foot model, with transport heights from 74 to 116 inches respectively. These compact dimensions allow you to move between job sites on narrow roads, cross older bridges with width restrictions, and navigate through standard gates or under low clearances that would stop wider implements.
Remote safety locks secure the wings during transport and prevent accidental deployment. The main transport frame uses high-flotation transport tires measuring 23 inches by 10.5 inches by 12 inches, equipped with genuine Bearing Buddy bearing protectors. The Bearing Buddy system makes it easy to visually confirm grease levels and uses internal spring pressure to keep moisture out of the hubs during off-season storage, extending bearing life and preventing unexpected failures at the start of busy seasons.
How does the telescoping wing adjustment improve performance in different grass conditions?
The telescoping wing design allows operators to adjust the cutting width to increase or decrease mower overlap based on current conditions, optimizing either cut quality or productivity. When working in particularly thick grass, tall growth, or wet conditions where grass tends to lay over, you can increase overlap between decks for a cleaner finish with no missed strips or uncut areas. The additional overlap ensures complete coverage even when grass is bent or matted.
In ideal conditions with moderate growth and dry turf, you can reduce overlap to maximize your effective cutting width and boost productivity, covering more ground per pass. This flexibility means you're not locked into a fixed configuration regardless of conditions. You can adapt the mower's performance to spring's vigorous growth, summer's varied conditions, or fall maintenance work. The adjustment capability helps you balance cut quality against productivity based on client expectations, property requirements, and current grass conditions without compromising results or wasting time on unnecessary overlap when conditions don't require it.
What maintenance does the CYCLONE SUPER-FLEX require and how accessible are service points?
BEFCO designed the CYCLONE SUPER-FLEX with field maintenance in mind, incorporating features that simplify routine service. Axial grease fittings on spindles allow you to service them from the top without removing belt shields or crawling underneath the mower. The manual belt tensioning system eliminates the need for seasonal disassembly during storage that spring-loaded systems require. BEFCO's pin system stays securely fastened under field conditions, preventing the constant hardware replacement that plagues traditional cotter pin designs.
Regular maintenance includes greasing all fittings according to the operator's manual schedule, checking tire pressure before each use, inspecting belts for wear and proper tracking, and verifying all safety shields remain in place. The Bearing Buddy protectors on transport wheel hubs provide visual confirmation of grease levels and prevent moisture intrusion during storage. At season's end, thoroughly clean the decks, check blade condition and sharpness, drain and replace gearbox oil if needed per the maintenance schedule, and store the mower in a dry location with wings folded to minimize space requirements and protect components from weather exposure.
What applications and property types is the CYCLONE SUPER-FLEX best suited for?
The CYCLONE SUPER-FLEX excels in applications requiring efficient, high-quality mowing across substantial acreage. Municipal parks and recreation departments use it for maintaining athletic fields, green spaces, and community parks where professional appearance and productivity both matter. Commercial landscaping contractors managing HOA common areas, corporate campuses, or large residential developments benefit from the combination of speed and cut quality. Farm and ranch operators use it for pasture maintenance and hayfield grooming, keeping forage areas productive and well-maintained.
Golf course superintendents deploy it for rough mowing where wide cutting widths reduce labor hours. Airport grounds maintenance crews, facility managers responsible for large campus grounds, and property managers overseeing extensive green spaces all find value in the CYCLONE SUPER-FLEX's capabilities. The range of models from 12 to 20 feet allows you to match the mower to your specific acreage, tractor horsepower, and terrain characteristics. Whether you're maintaining 50 acres of pasture or 200 acres of park land, there's a CYCLONE SUPER-FLEX configuration that delivers the productivity and results your operation requires.

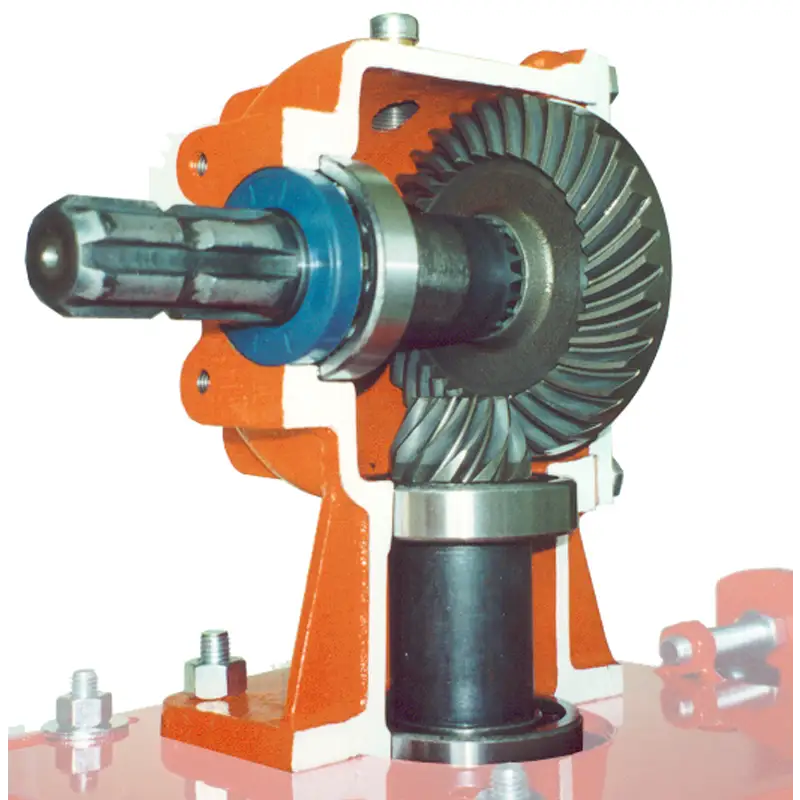

How do the BEFCO-manufactured gearboxes with spiral gears improve durability and performance?

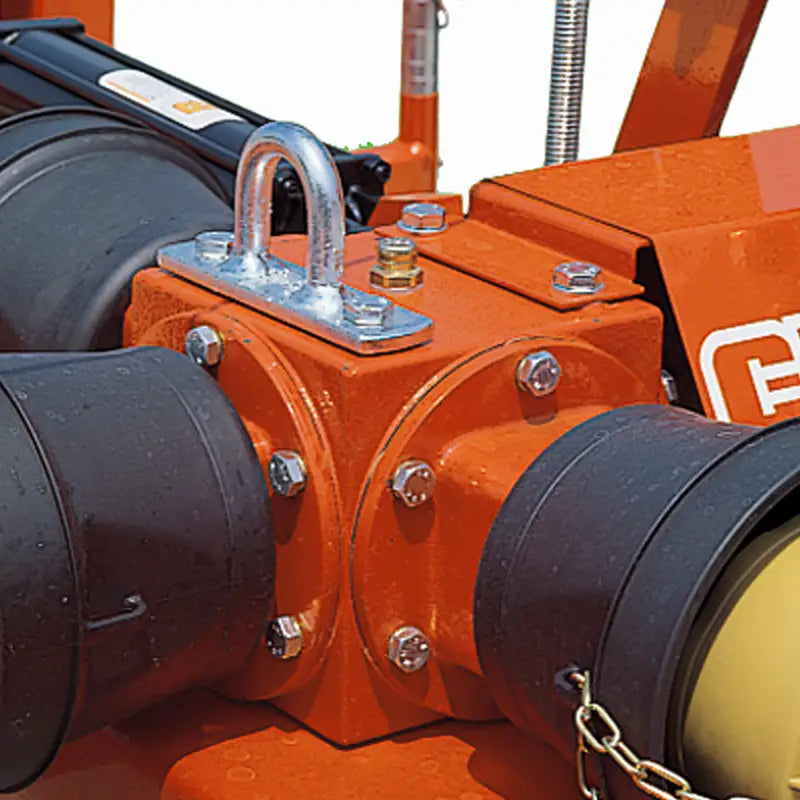

BEFCO manufactures both the heavy-duty main four-way gearbox and the individual mower deck gearboxes in-house, equipping them with SKF bearings and spiral gears rather than straight-cut gears. Spiral gears provide superior power transmission compared to straight-cut gears because they engage gradually along the gear tooth length rather than impacting across the entire tooth width simultaneously. This gradual engagement distributes forces more evenly, reducing stress concentrations that cause premature wear on gear teeth.
The result is extended service intervals and longer gearbox life under sustained loads season after season. Spiral gears also run significantly quieter than straight-cut gears, reducing operating noise and vibration that contribute to operator fatigue during long workdays. SKF bearings are precision components known for reliability and longevity in demanding applications. The combination of in-house manufacturing control, premium bearing selection, and superior gear design means these gearboxes handle the continuous loads of commercial mowing operations without the failures or excessive maintenance that plague lesser designs, translating directly to lower operating costs and greater uptime over the mower's lifespan.
What safety features are built into the CYCLONE SUPER-FLEX and how do they protect operators and equipment?
The CYCLONE SUPER-FLEX incorporates multiple safety features designed to protect operators, bystanders, and the equipment itself. Chain shields protect operators and anyone nearby from thrown debris when blades encounter rocks, sticks, or other objects in the cutting path. Remote safety locks secure the wings during transport and prevent accidental deployment that could cause injury or equipment damage.
The constant velocity driveline includes an ASAE category 6 slip clutch that protects the entire drivetrain if a blade strikes an immovable object like a large rock or buried obstacle, absorbing the shock load rather than transferring destructive forces to gearboxes or the tractor's PTO. Individual drivelines to each deck use shear pins as an additional failsafe layer, sacrificing an inexpensive replaceable pin rather than expensive gears, shafts, or other drivetrain components. The three front antiscalp rollers help prevent the leading edge of decks from catching on rises or digging into uneven ground, protecting both your turf and the mower deck structure. All safety shields and guards must remain in place during operation per the operator's manual. Forge Claw offers free nationwide shipping on the CYCLONE SUPER-FLEX, and we back it with expert customer service and easy financing options to help every operator access professional-grade equipment.
