What machines is this hydraulic power pack compatible with?

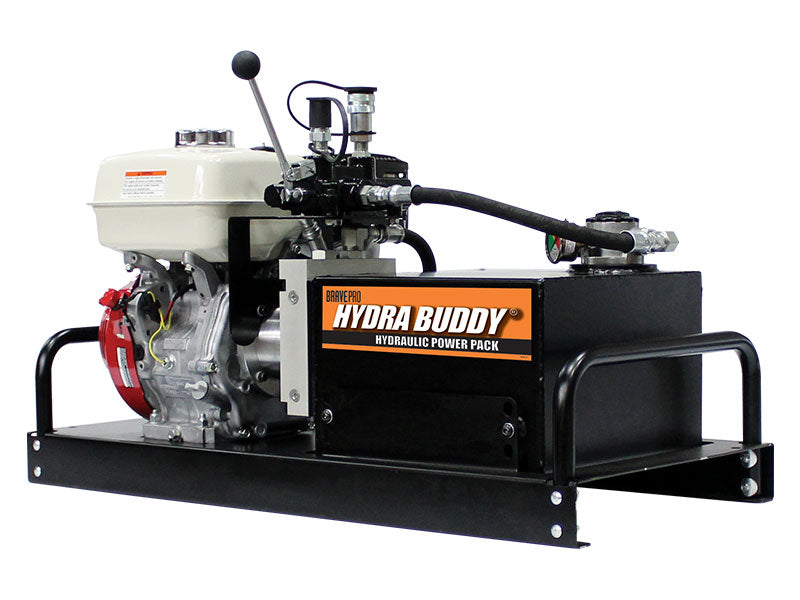

The BravePro Hydra Buddy Remote Hydraulic Power Pack is universally compatible with any hydraulic equipment requiring 5.5 GPM flow at up to 2,000 PSI. This includes log splitters, hydraulic cylinders, hydraulic tools, wood processors, and other hydraulic attachments. The unit works with both single and double-acting cylinders, making it incredibly versatile for contractors, landscapers, tree service professionals, and agricultural operators.
The quick disconnect couplings and professional valve system allow easy connection to various hydraulic equipment without modifications. Whether you're operating mobile equipment, stationary tools, or custom hydraulic applications, this power pack provides the reliable hydraulic power you need in remote locations where electrical power isn't available. Forge Claw provides free nationwide shipping and flexible financing options to help you get this versatile hydraulic power solution quickly and affordably.
What are the hydraulic requirements for this power pack?
This hydraulic power pack delivers 5.5 GPM flow at operating pressure with a maximum system pressure of 2,000 PSI. The pump features .36 CIR displacement with clockwise rotation and includes a 1-1/16-12 ORB inlet port and 7/8-14 ORB outlet port. The 8-gallon nominal capacity tank (7.3 actual, 5.4 usable) provides excellent runtime for extended work sessions.

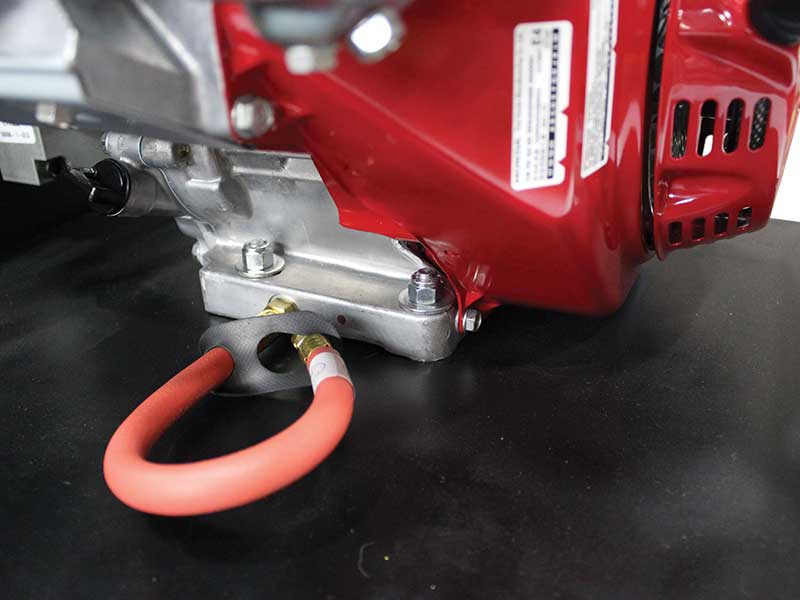

The system includes an integral adjustable main relief valve for pressure control and a Zinga in-tank hydraulic filter with indicator to maintain clean fluid. The hydraulic valve outlet features an 8 Male JIC adapter for standard connections. Your hydraulic equipment should be rated for operation within these flow and pressure parameters for optimal performance. The Honda GX270 engine provides consistent power to maintain these specifications throughout your work session, ensuring reliable hydraulic performance in demanding applications.
How do I install and set up this hydraulic power pack?
Setup is straightforward with everything included out of the box. First, add appropriate hydraulic fluid to the 8-gallon tank using the sight gauge to monitor levels. Check engine oil and fuel levels in the Honda GX270. Connect your hydraulic equipment using the included quick disconnect couplings to the valve outlet with 8 Male JIC adapter. The 3-position, 4-way spring-to-center directional control valve allows you to control flow direction and pressure.

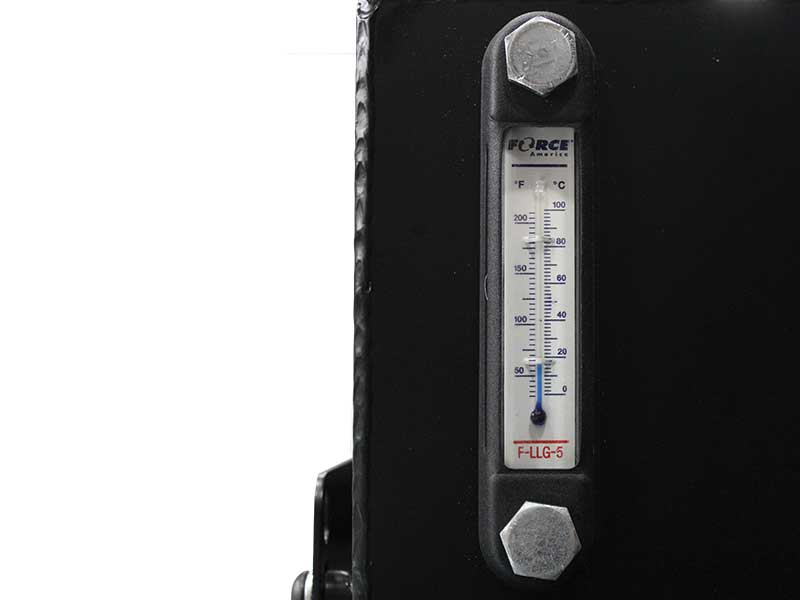

Adjust the integral main relief valve to match your equipment's pressure requirements up to 2,000 PSI maximum. Start the engine with the recoil starter and allow it to warm up before engaging hydraulic load. Monitor the temperature gauge and sight glass during operation. The unit measures 38.25" x 19" x 20" and weighs 155 pounds, making it manageable for transport on truck beds or trailers between job sites.
What maintenance does this hydraulic power pack require?

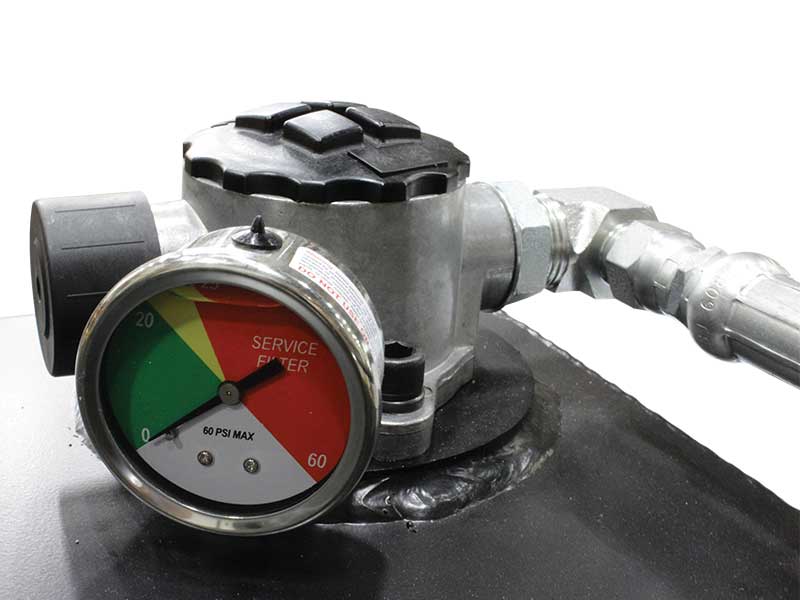

Regular maintenance keeps this power pack running reliably for years. Follow Honda's maintenance schedule for the GX270 engine including regular oil changes, air filter cleaning, and spark plug replacement. Check hydraulic fluid levels using the sight gauge and top off as needed with appropriate hydraulic fluid. The Zinga in-tank hydraulic filter has a visual indicator showing when replacement is needed.
Monitor the temperature gauge during operation and ensure adequate ventilation around the unit. Inspect quick disconnect couplings for wear and replace if damaged to prevent leaks. Check all hydraulic connections periodically for tightness and leaks. Clean the exterior and keep air intake areas clear of debris. Store the unit with fresh fuel or use fuel stabilizer for extended storage periods. The tank drain port allows complete fluid changes when required. With proper maintenance, the commercial-grade Honda engine and professional hydraulic components provide years of dependable service in demanding applications.
Is it worth buying vs renting this hydraulic power pack?
For professionals who regularly work in remote locations without electrical power, purchasing provides significant long-term value. Rental costs add up quickly when you need hydraulic power frequently, while ownership eliminates rental availability concerns and scheduling constraints. This power pack pays for itself through increased productivity by bringing reliable hydraulic power directly to job sites instead of hauling equipment to fixed power sources.
The Honda GX270's legendary reliability and the unit's professional-grade construction ensure years of dependable service with proper maintenance. You'll save labor costs and project time while having hydraulic power available whenever needed. The 2-year manufacturer warranty provides peace of mind for your investment. Consider your usage frequency, rental costs in your area, and the value of having hydraulic power always available. For contractors, landscapers, and agricultural operators with regular hydraulic power needs, ownership typically provides better return on investment than repeated rentals.
