What makes a vertical grapple different from a root grapple or standard bucket?
A vertical grapple combines three essential functions that traditional attachments handle separately: raking debris, grabbing and holding materials securely, and backfilling with the round bottom bar. Unlike root grapples that primarily focus on moving brush and roots, the vertical grapple excels at handling a wider variety of materials including logs, rocks, demolition debris, and general site cleanup. The independent hydraulic cylinder operation gives you precise control over uneven or irregularly shaped loads, something fixed grapples simply cannot match.
The open tine design acts like a rake, allowing dirt and fine material to sift through while you capture larger debris, which eliminates extra sorting steps. This versatility means fewer attachment changes throughout your workday, keeping your crew productive and reducing downtime. Whether you're clearing land, handling storm damage, managing demolition materials, or organizing job site resources, the vertical grapple adapts to whatever task you're facing. The upward-curving tines provide an important safety feature by sliding smoothly across terrain without catching underground utilities or cables. For contractors and professionals who need one attachment that handles multiple material types efficiently, the vertical grapple delivers exceptional value and performance that specialized attachments cannot provide on their own.
How do I choose the right size vertical grapple for my skid steer?

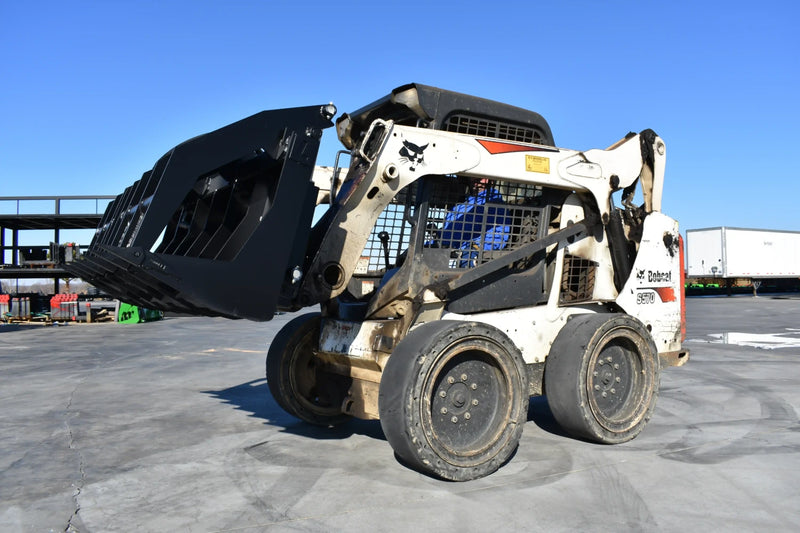

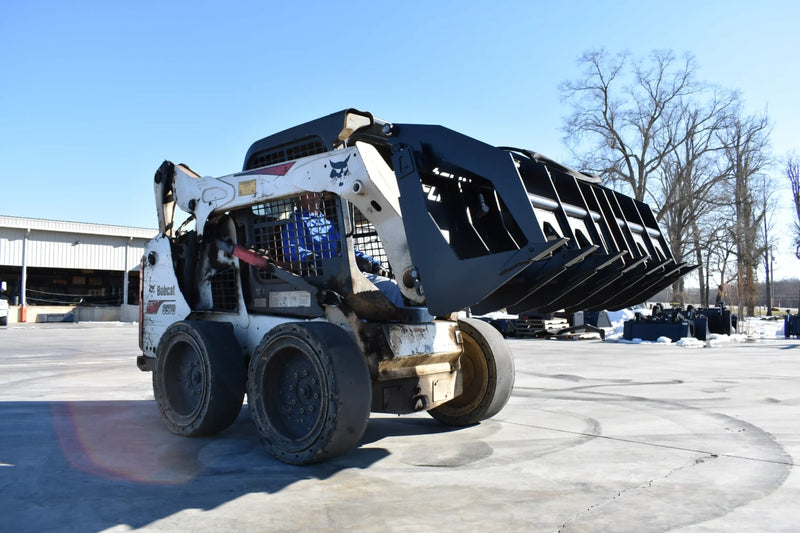

Selecting the correct vertical grapple width depends on your machine's lifting capacity, stability, and the scale of work you typically handle. The most popular stocked sizes are 72 inches, 78 inches, and 84 inches, with custom widths available for specialized needs. Start by checking your skid steer's rated operating capacity and hydraulic flow specifications in the operator manual. A wider grapple provides more coverage and larger grab capacity, but requires adequate machine size to handle loaded weight safely without compromising stability.

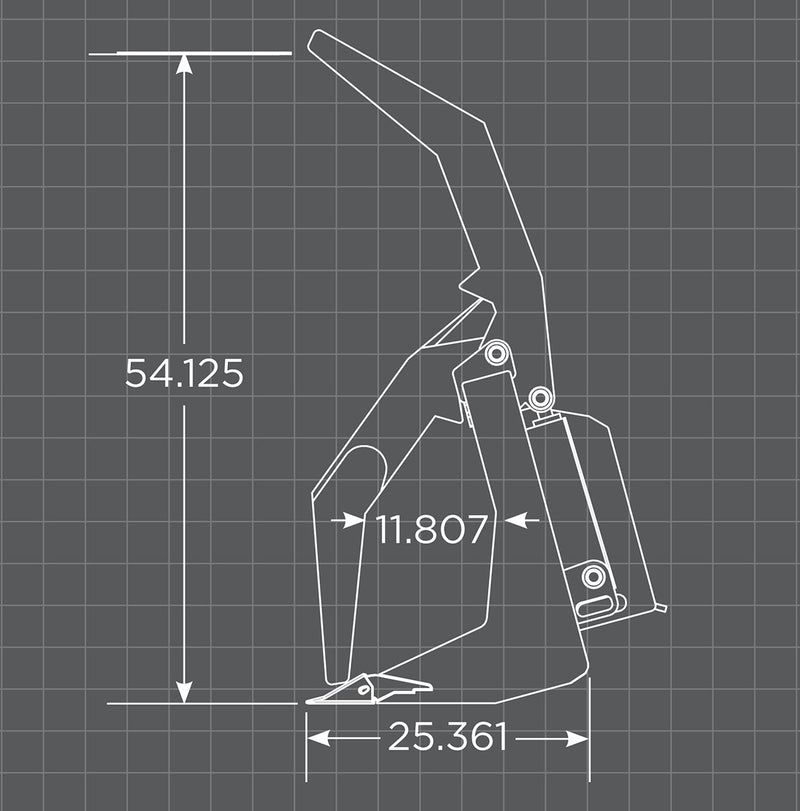

As a general guideline, compact skid steers under 2,000 pounds operating capacity work well with 72-inch grapples, mid-size machines between 2,000 and 3,000 pounds pair nicely with 78-inch models, and larger skid steers above 3,000 pounds can efficiently operate 84-inch grapples. Consider the typical materials you handle most frequently. Land clearing operations with large brush piles benefit from wider grapples, while residential work in tighter spaces may require more compact dimensions. The 54-inch opening width remains consistent across sizes, providing excellent grab capacity regardless of overall width. Forge Claw's team can help match the optimal grapple size to your specific equipment and applications, ensuring maximum productivity and safe operation.
What maintenance does a vertical grapple require?

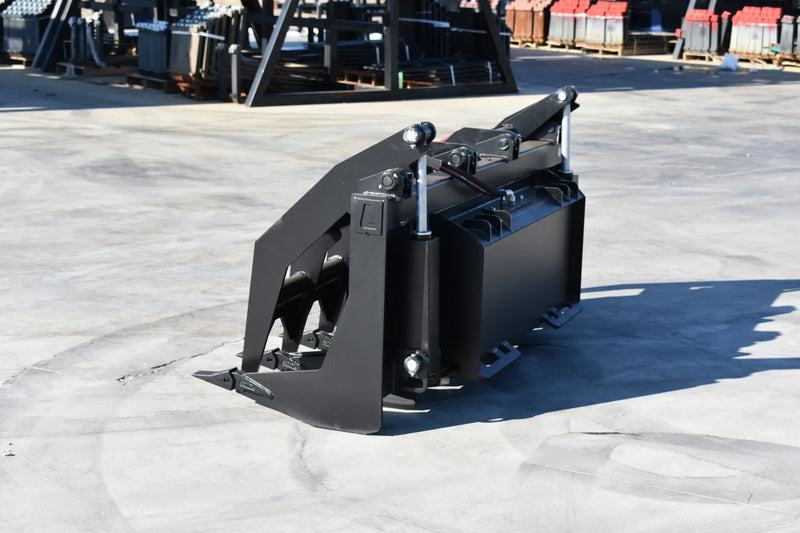

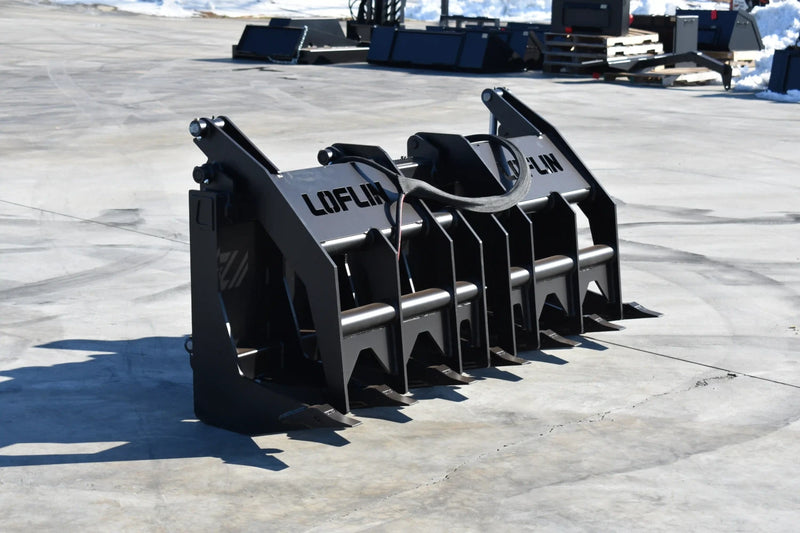

The Loflin vertical grapple requires minimal maintenance thanks to its protected design and quality construction. Regular greasing is the primary maintenance task, focusing on the hinge points and oversized 1.25-inch pins that all feature grease fittings for easy servicing. Depending on usage intensity, apply grease every 8 to 10 hours of operation, or daily during heavy use in dusty or abrasive conditions. The enclosed cylinder and hose protection dramatically reduces typical hydraulic maintenance issues by shielding components from damage caused by brush, debris, and rough terrain.
Periodically inspect hydraulic connections for any signs of leaks or wear, checking both at the attachment and where hoses connect to your machine. The Parker brand hoses, fittings, and couplers are high-quality components that resist common failure points. Examine tines for any damage, excessive wear, or bending, though the 1.5-inch thick steel construction resists most abuse encountered in normal operation. Check mounting pins and quick attach components for proper tightness and signs of wear at connection points. When storing the grapple, position it on level ground or use supports to prevent unnecessary stress on cylinders and pins. Following these straightforward maintenance practices ensures years of reliable service from your vertical grapple.
Can a vertical grapple handle demolition materials and heavy debris?
Absolutely. The Loflin vertical grapple is specifically engineered to handle demanding demolition work, heavy debris, and challenging materials that would damage lighter attachments. The 1.5-inch thick steel tines resist bending and damage even when clamping down on concrete chunks, metal debris, irregular demolition materials, and heavy rock piles. Demolition contractors rely on vertical grapples because the independent hydraulic cylinder operation provides secure grip on awkwardly shaped materials that shift during handling.

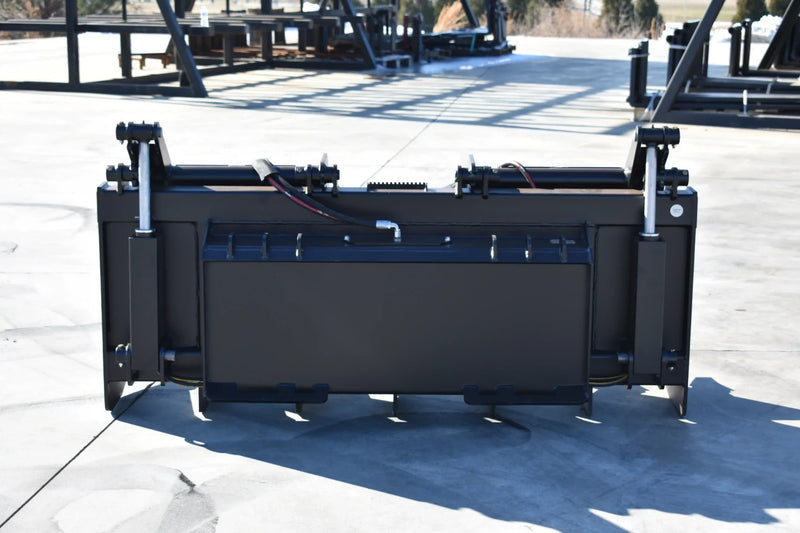

The 2-inch by 10-inch cylinders deliver substantial clamping force to hold heavy loads safely while maintaining smooth, controlled operation. The open tine design works exceptionally well for sorting demolition materials on site, allowing smaller debris and dirt to fall through while you grab and move larger pieces. This separation capability saves significant time compared to manual sorting or making multiple passes with different attachments. The reinforced quick attach mounting system handles the stress of lifting and moving heavy demolition loads without flexing or developing play over time. The enclosed cylinder and hose protection becomes particularly valuable in demolition environments where flying debris and sharp materials pose constant threats to exposed hydraulic components.
How does the independent cylinder operation improve performance?
Independent hydraulic cylinder operation is one of the most significant performance advantages of the Loflin vertical grapple compared to fixed or linked grapple designs. Each cylinder operates separately, allowing the grapple jaws to adjust independently when handling uneven, irregularly shaped, or off-center loads. This independent movement means you can securely grab materials that aren't perfectly positioned or uniformly shaped, something that's common with logs, brush piles, rock clusters, and demolition debris.
When one side encounters a larger or heavier section of material, that cylinder can extend or retract independently to maintain firm contact and secure grip across the entire load. This prevents materials from slipping or shifting during transport, which improves both safety and efficiency. The independent operation also gives you better control when working in tight spaces or around obstacles, as you can manipulate one side of the grapple while the other remains stationary. Fixed grapples force you to reposition materials or make multiple attempts to achieve secure hold, wasting time and fuel. The independent cylinders work naturally with the material's shape and weight distribution, making the attachment feel more responsive and intuitive to operate.
Is the vertical grapple suitable for tree service and forestry work?

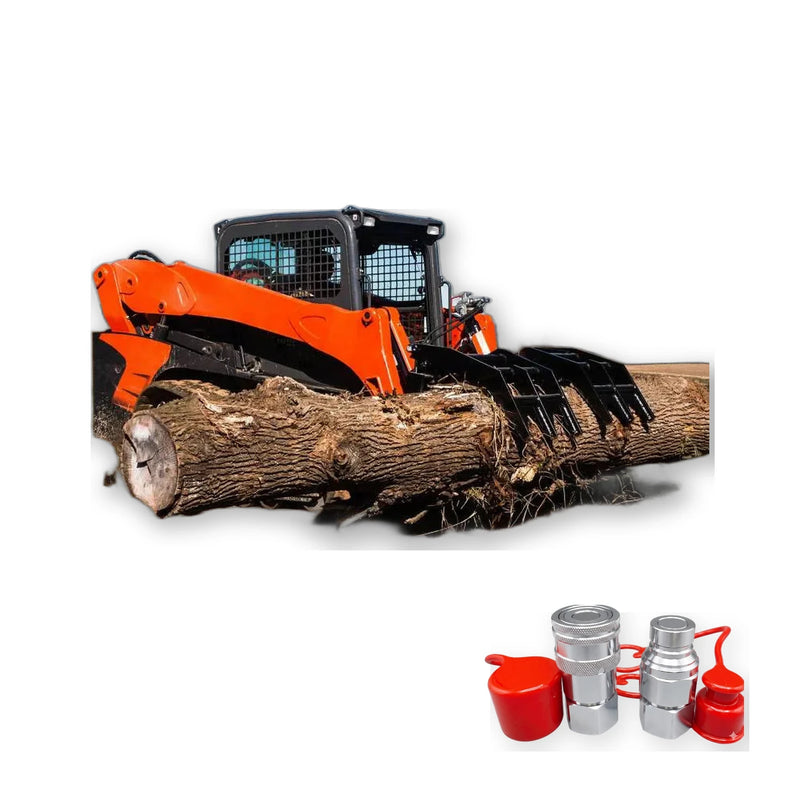

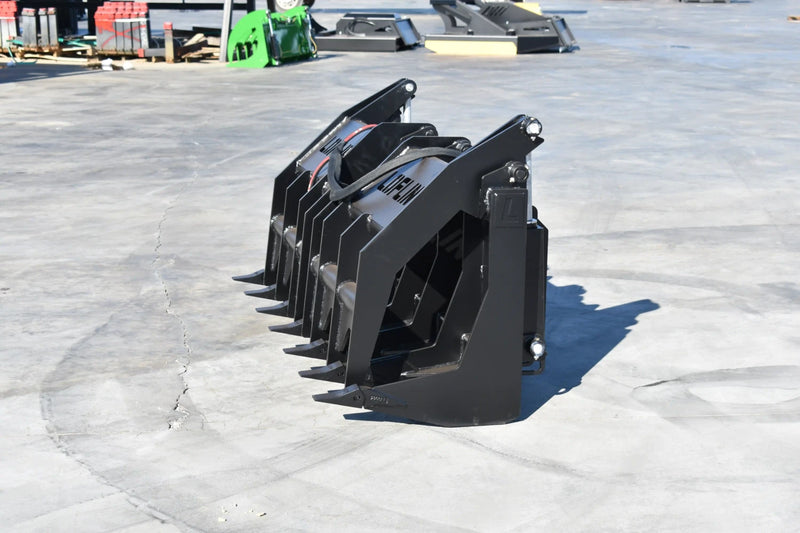

The vertical grapple has become standard equipment for tree service professionals and forestry operations because it handles the specific demands of this work exceptionally well. Clearing brush, moving logs, handling root balls, and managing storm damage cleanup are daily tasks where the vertical grapple excels. The open tine design allows you to rake through brush piles and separate twigs and leaves from larger branches and logs in a single pass, dramatically speeding up cleanup operations. The 11.25-inch tine spacing is optimized for forestry materials, capturing logs and substantial branches while allowing smaller debris to fall through naturally.
When moving logs, the independent cylinder operation provides secure grip even on irregular or tapered timber that shifts during handling. The 1.5-inch thick steel tines resist damage from hardwoods and withstand the constant abuse of grabbing and moving heavy logs. Tree service professionals particularly appreciate the upward-curving tine design when working on residential properties, as it reduces the risk of snagging underground irrigation lines, utility cables, or damaging landscaping. The enclosed cylinder and hose protection proves invaluable in forestry environments where branches and debris constantly threaten exposed hydraulic components. Order from Forge Claw today with free nationwide shipping and flexible financing options.
