What makes the BEFCO HRC V-wheel rake more versatile than a standard rake?

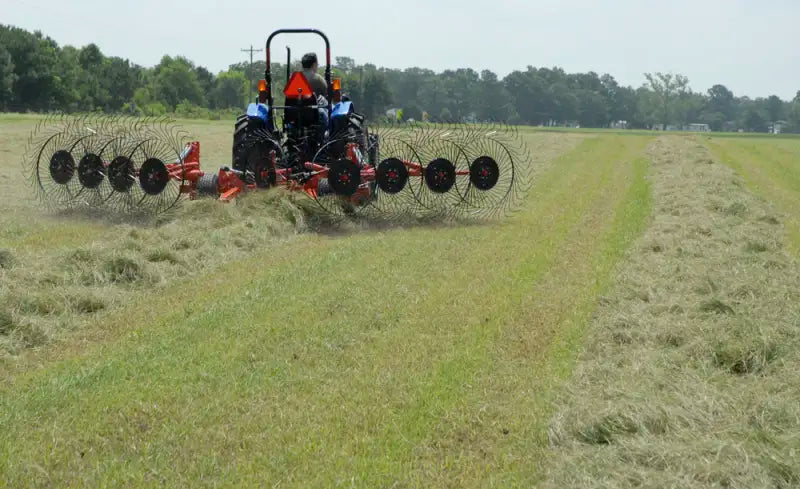

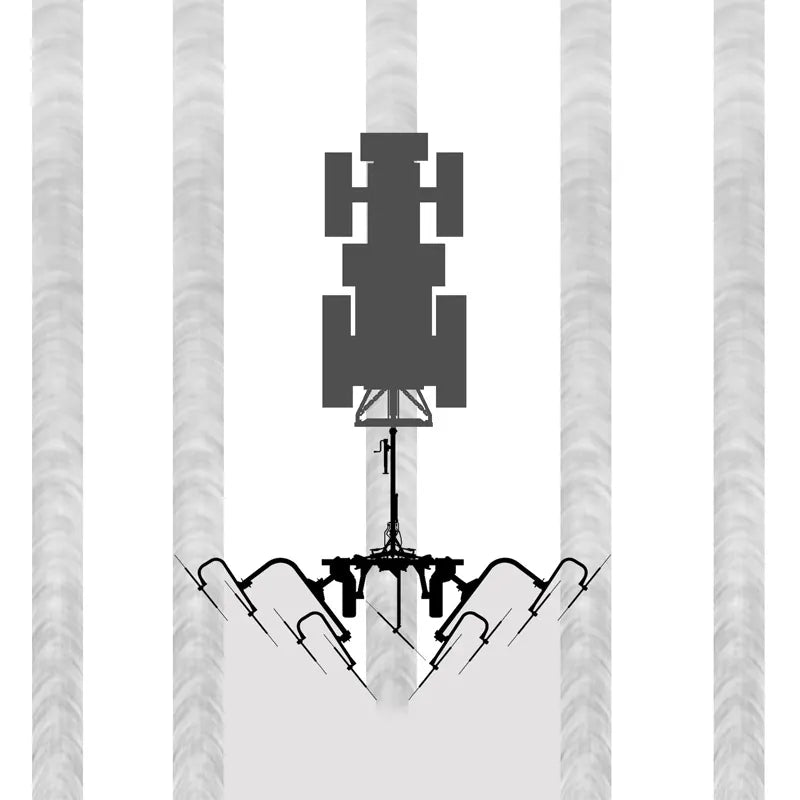

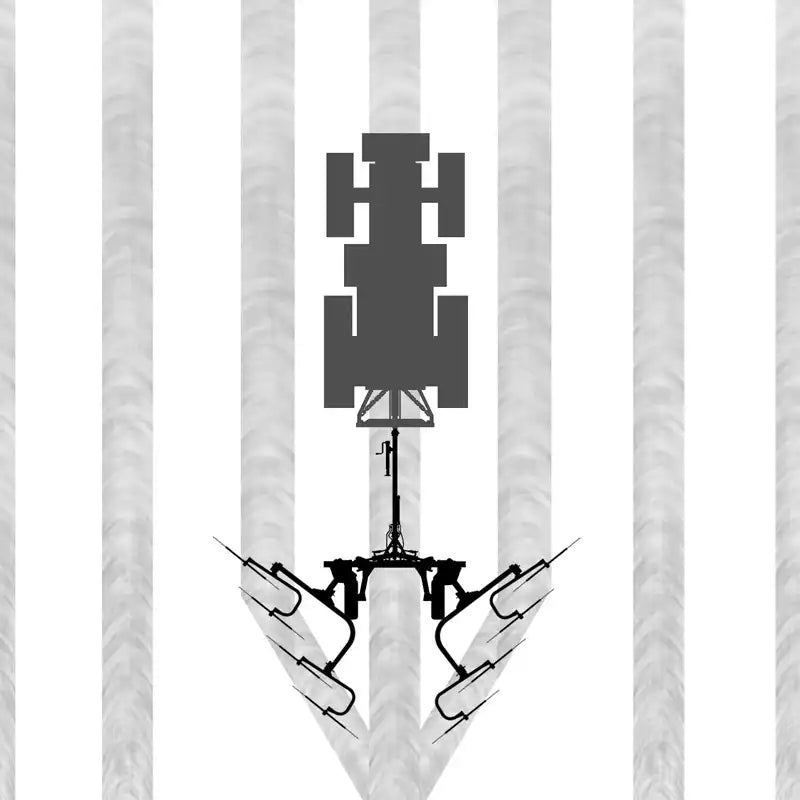

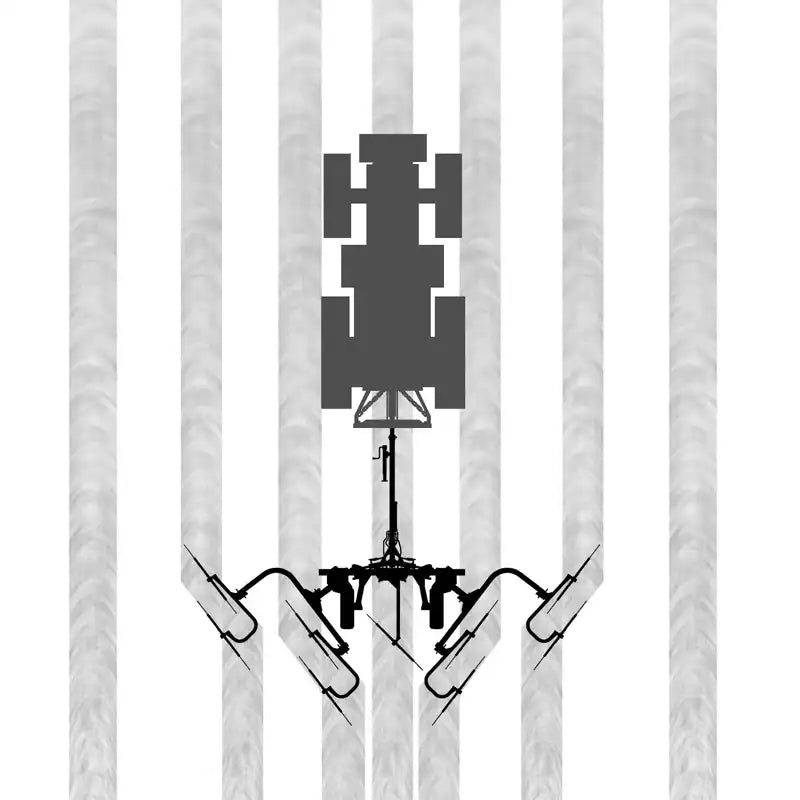

The HRC V-wheel rake gives you three distinct operating modes in one machine—raking, turning, and spreading. In raking position, the wheels overlap front to back to merge cut hay into clean center windrows. When you need to speed up drying after rain or heavy dew, reconfigure to turning mode where wheels work in pairs to flip two windrows per pass and increase airflow. If hay needs extra exposure, use spreading mode to align all wheels across the machine width and redistribute crop evenly.
This three-in-one functionality eliminates the need to own separate equipment for each task, saving you money on purchase price, insurance, storage space, and maintenance. You can adapt to changing field conditions without returning to the barn to swap implements, keeping you productive throughout the day. That versatility is especially valuable during tight weather windows when every hour counts toward getting your hay dried and baled before conditions change.
How does ground-driven operation reduce my maintenance costs?

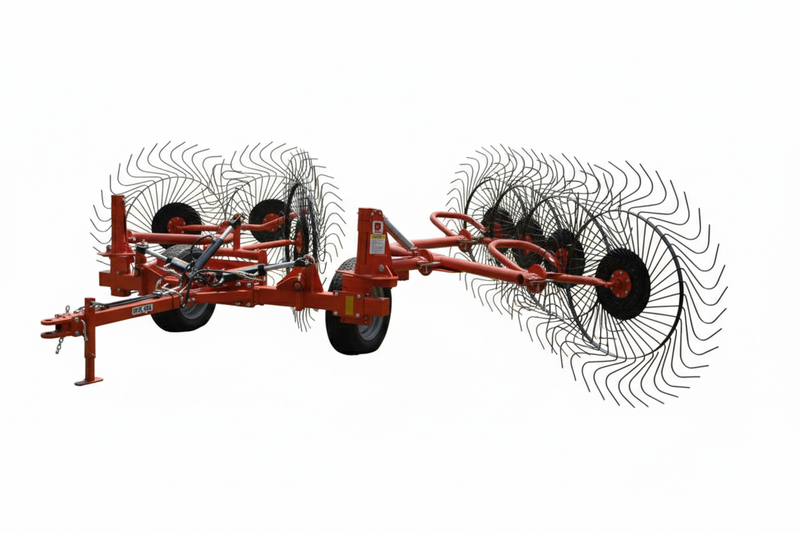

Ground-driven operation means the rake wheels are powered directly by your forward motion through mechanical contact with the ground, not by hydraulic motors, drive belts, or complex power transfer systems. This eliminates multiple potential failure points that require regular maintenance and eventual replacement on hydraulically driven systems. You don't have hydraulic motors to service, belts to tension and replace, or fluid systems that can leak and require monitoring.
The mechanical simplicity means most maintenance consists of greasing the tapered roller bearings according to schedule and occasionally checking spring tension on the wheel assemblies. Repairs typically require only basic tools and can often be handled in the field without specialized hydraulic knowledge or diagnostic equipment. Fewer components mean lower parts inventory costs and less downtime waiting for replacements. Over the life of the machine, this simplicity translates to significantly lower total cost of ownership and more hours spent raking instead of wrenching.
Can I use this rake effectively on uneven or hilly terrain?

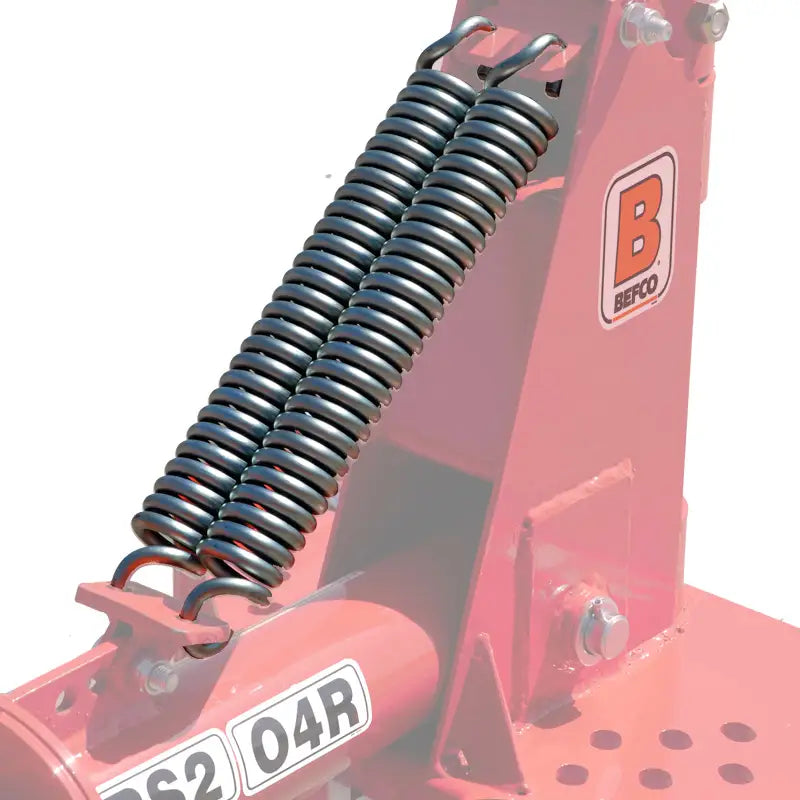

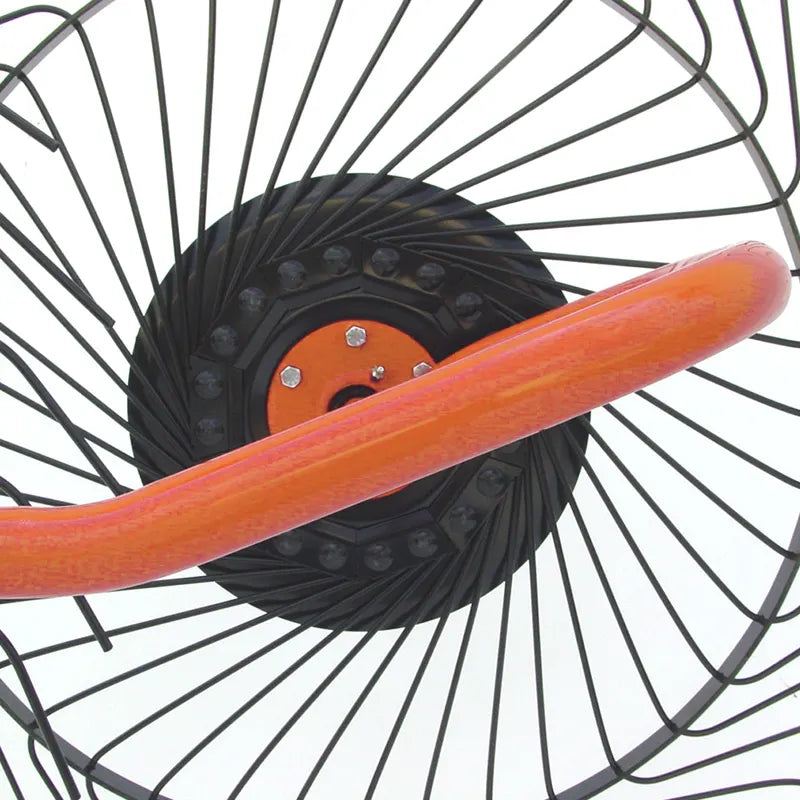

Yes, the floating wheel assemblies are specifically designed to handle uneven ground conditions that are common in real-world hayfields. Each wheel is independently mounted on spring assemblies that allow vertical movement to follow ground contours smoothly. The springs provide just enough downward pressure to ensure the spring steel tines make consistent contact with the crop without digging into the soil or lifting dirt into your windrows.
When a wheel encounters a rock, root, depression, or ridge, it floats over the obstacle independently without affecting the performance of adjacent wheels. This independent suspension maintains even raking action across the full width of the machine regardless of terrain variations. The result is cleaner hay with less contamination, reduced crop loss, and better feed quality. The system works equally well whether you're raking flat bottomland or rolling hillside pastures, giving you consistent performance across your entire operation without requiring constant operator adjustment or risking equipment damage from ground strikes.
How quickly can I cover acreage with the HRC rake compared to smaller equipment?
The combination of wide working widths and high operating speeds delivers substantial productivity gains over smaller raking equipment. The 12-wheel HRC-12V covers over 25 feet of width in a single pass at speeds up to 14 mph, which translates to roughly 40 acres per hour under ideal conditions. Even the smaller 8-wheel model covers more than 21 feet at the same speed, still delivering exceptional acreage coverage.
Compare that to narrow rakes or slower equipment that might cover 10-15 acres per hour, and you're looking at completing the same field in half the time or less. That speed advantage becomes critical when you're working against weather forecasts or trying to rake while dew conditions allow. The faster you can get hay raked into windrows, the sooner it can begin drying, and the quicker you can move to baling. This speed doesn't compromise quality—the floating wheels and spring steel tines maintain clean, consistent raking even at maximum operating velocity. For commercial operations or larger farms, this productivity directly impacts profitability by reducing labor hours and fuel consumption per acre raked.
What specific advantage do tapered roller bearings provide over standard bearings?
Tapered roller bearings are engineered to handle both radial and thrust loads simultaneously, which is exactly what rake wheels experience during continuous field operation. Standard ball bearings or plain bushings wear much faster under the combination of rotational forces, side loads from uneven terrain, and the constant vibration and dirt exposure that comes with haymaking. The tapered roller design distributes these forces across a larger surface area, significantly reducing wear rates and extending service life.

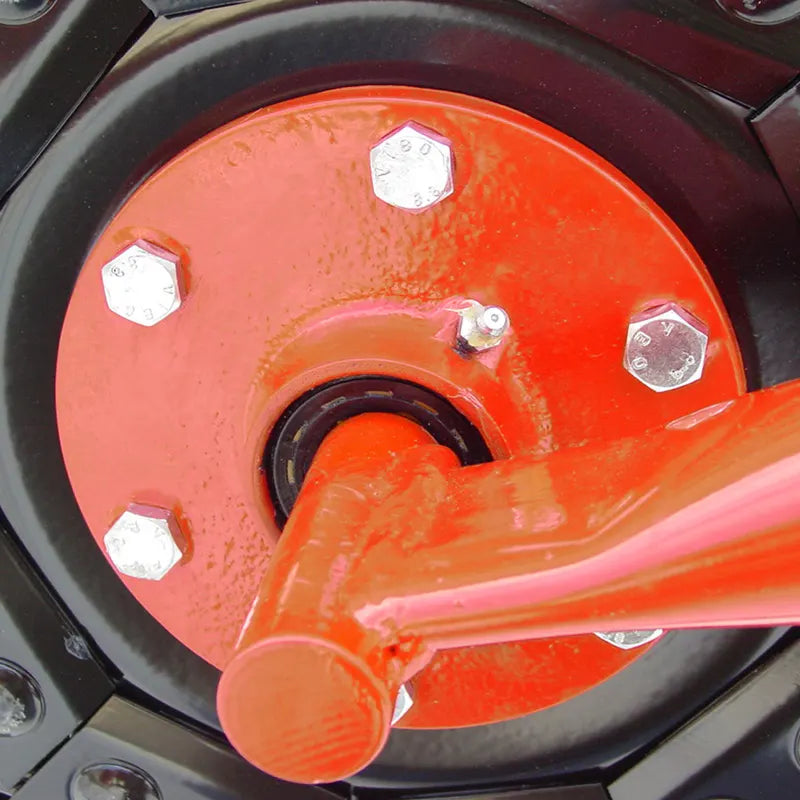

BEFCO mounts these bearings in cast steel housings rather than stamped metal, providing a more rigid, stable mounting that prevents deflection and misalignment. Each hub is greasable, allowing you to maintain proper lubrication and flush out contaminants that enter despite seal protection. In practical terms, this means you'll replace bearings far less frequently, experience fewer mid-season failures, and maintain smoother wheel rotation throughout the rake's service life. The upfront investment in premium bearing systems pays dividends in reduced downtime, lower parts costs, and reliable performance when you need it most during peak hay season.
Is the 8-foot folded width narrow enough for all road conditions?
The 8-foot hydraulic folded width is specifically designed to meet legal requirements for most roadway travel without requiring oversize load permits or escort vehicles. This dimension fits within standard traffic lane widths and provides adequate clearance when meeting oncoming traffic on county roads and farm lanes. The narrow profile also makes it easy to navigate through standard barn doors, gates, and between buildings when moving equipment around your property or into storage.
All three models—8, 10, and 12-wheel configurations—fold to this same 8-foot width using double-action hydraulic cylinders, so you get consistent transportability regardless of which size you choose. The ball valves on the hydraulic system lock the wings securely in transport position, preventing unexpected movement during road travel. Compact folded dimensions also benefit operators who work multiple properties or provide custom raking services, as you can move efficiently between locations without the delays and expense associated with oversized equipment transport. When you arrive at your destination, the hydraulic system unfolds the rake quickly so you can get to work without lengthy setup procedures.
How do I know which model size is right for my operation?

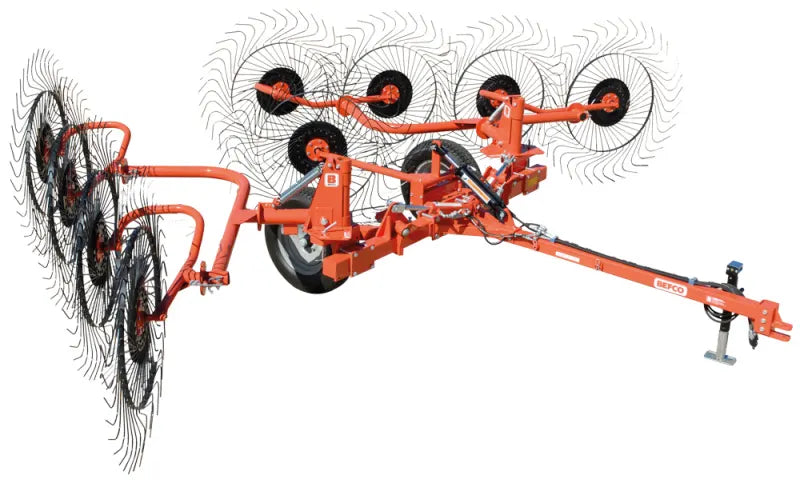

Model selection depends primarily on your typical field size, tractor horsepower, and how much acreage you need to cover during weather windows. The HRC-08V with 8 wheels and 21'4" working width works well for smaller properties and operations running 30-50 horsepower tractors. It's maneuverable in tighter fields and provides excellent performance for operations putting up a few hundred to a thousand bales per season.
The HRC-10V at 23'4" offers a middle ground with noticeably increased productivity while still being manageable for mid-sized tractors in the 40-60 HP range. The HRC-12V with 12 wheels and 25'7" working width is ideal for larger commercial operations, custom contractors, or farms with extensive acreage where maximum coverage per pass translates directly to time and fuel savings. All three models handle the same 30-80 HP tractor range, but larger tractors will pull the wider models more comfortably at higher speeds. Consider your typical field sizes—if you're regularly raking 50+ acre fields, the 12-wheel model's productivity advantage justifies the investment. Smaller, more varied fields might benefit from the maneuverability of the 8 or 10-wheel configurations.
What routine maintenance does the HRC rake require during hay season?
Maintenance requirements are minimal compared to more complex equipment, but consistent attention to basics will maximize performance and longevity. The most critical routine task is greasing the tapered roller bearings on all wheel assemblies according to the schedule in your operator's manual—typically every 8-10 hours of operation or daily during heavy use. Proper lubrication prevents premature bearing wear and keeps wheels rotating smoothly under load.
Periodically check the spring tension on wheel assemblies to ensure even ground pressure across all wheels; uneven spring tension can cause inconsistent raking or excessive dirt pickup. Inspect spring steel tines regularly for damage from rocks or obstacles, replacing bent tines promptly to maintain uniform raking action. Check hydraulic cylinders and hoses for leaks, especially at connection points and seals. Verify that ball valves operate smoothly and hold position during transport. At the end of each day, remove accumulated crop material and debris that can trap moisture against metal surfaces. These simple preventive measures take minutes per day but significantly extend equipment life and prevent breakdowns during critical raking windows when every hour of uptime matters.
Can I operate just one wing if I'm working near fence lines or obstacles?

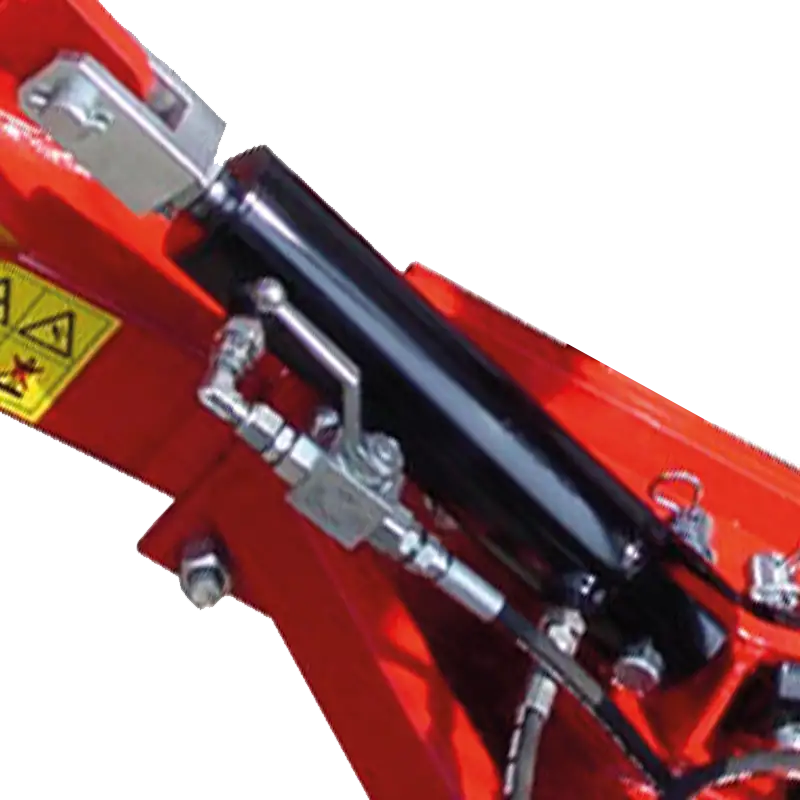

Yes, the ball valve system on the hydraulic cylinders allows you to operate wings independently, giving you precise control for working partial windrows or navigating around obstacles. When approaching a fence line, tree line, or other obstruction, you can close the ball valve to lock one wing in the raised position while allowing the other wing to remain operational. This lets you rake right up to boundaries without wasting usable crop or creating gaps in your windrow pattern.
The same capability is useful when working irregularly shaped fields or when you need to make partial-width passes to clean up edges and corners. Independent wing control also provides flexibility when working in turning mode—you can flip a single windrow instead of two if field conditions require it. The ball valves hold position securely, so there's no drift or creep that would cause the locked wing to gradually lower during operation. This level of control reduces waste, improves efficiency in challenging field layouts, and gives you the adaptability to handle real-world situations that don't fit perfect rectangular field patterns. It's another example of thoughtful engineering that translates to practical benefits in daily operation.
Does this rake work effectively with both grass hay and alfalfa?
The HRC V-wheel rake handles both grass hay and alfalfa effectively, along with mixed forage crops, though each responds slightly differently to raking and benefits from minor adjustment. Alfalfa leaves are more fragile and prone to shattering when dry, so you'll want to rake when moisture content is slightly higher and potentially reduce ground speed to minimize leaf loss. The floating wheel design and spring steel tines are gentle enough to handle delicate alfalfa without excessive mechanical damage.
Grass hay is generally more tolerant of aggressive raking and can often be handled at higher speeds. The adjustable rake angle and wheel positioning let you customize the machine's performance based on crop type and moisture level. In raking mode, you can adjust windrow size to match your baler capacity and the volume of crop you're handling. The turning and spreading modes work equally well with both crop types, giving you the flexibility to manage drying curves regardless of what you're growing. The key is understanding your specific crop's characteristics and making minor adjustments to speed, angle, and configuration to optimize results. The machine's versatility means you're not locked into one approach—you can fine-tune performance based on real-time field conditions and crop response. Order your BEFCO HRC V-wheel rake from Forge Claw with free nationwide shipping and flexible financing to get professional-grade haymaking capability delivered to your operation.
