What machines is this hose kit compatible with?

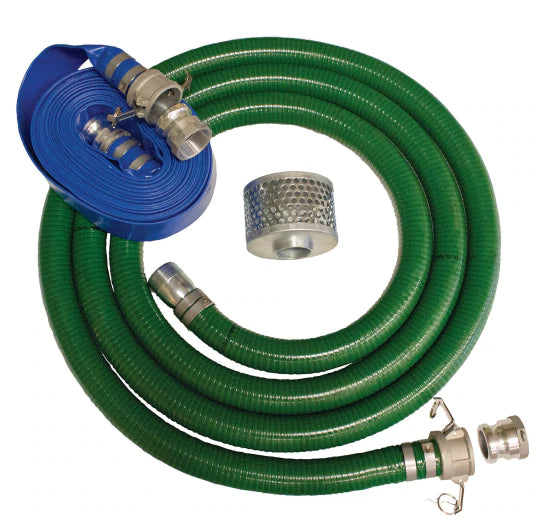

This 3-inch transfer pump hose kit works with any water pump equipped with standard NPT connections, including centrifugal pumps, trash pumps, and diaphragm pumps. The universal design accommodates most brands of 3-inch pumps used in construction, agriculture, and landscaping applications. The included male adapters thread directly onto pump discharge and suction ports without requiring additional fittings.
This compatibility extends across engine-driven pumps, PTO-powered units, and electric pumps commonly used for dewatering, irrigation, and water transfer operations. The quick connect couplers work regardless of pump brand or model, making this kit an excellent universal solution for contractors who operate multiple pump types across different job sites and applications. Forge Claw offers free nationwide shipping on this complete kit, with financing options available for qualified buyers.
What are the hydraulic requirements for this hose kit?
This hose kit operates on water pressure rather than hydraulic power, designed for 3-inch water pumps with maximum working pressure of 65 PSI. The system handles temperature ranges from -5°F to 140°F, making it suitable for both winter and summer operations. The heavy-duty PVC construction maintains structural integrity under vacuum conditions on the suction side while the discharge hose handles positive pressure up to the 65 PSI limit.
No hydraulic connections are required - the kit connects directly to pump inlet and outlet ports using standard NPT threading. The lay-flat discharge design reduces pressure drop compared to corrugated alternatives, improving overall system efficiency. Flow capacity depends on your pump specifications, but the 3-inch diameter provides excellent flow rates for most agricultural, construction, and emergency response applications requiring efficient water movement over distances up to 70 feet total reach.
How do I install and set up this hose kit?
Installation takes just minutes with the quick connect system. First, thread the included male adapters into your pump's suction and discharge ports using standard NPT connections. Attach the steel strainer to the end of the 20-foot suction hose and submerge it in your water source, ensuring adequate depth to prevent air intake. Connect the suction hose to the pump inlet using the quick connect coupler - simply align and push until it locks in place with the preformed band.
Attach the 50-foot discharge hose to the pump outlet the same way, then route it to your destination. The lay-flat design unfurls automatically as water flows through. Before starting the pump, ensure all connections are secure and the suction line is properly primed. The aluminum couplers create tight seals without requiring tools or excessive force. When finished, disconnect by pulling the release mechanisms and drain both hoses for compact storage and longer service life.
What maintenance does this hose kit require?
Regular maintenance ensures maximum service life and reliable performance. After each use, drain both hoses completely and inspect quick connect couplers for debris or damage. Clean the steel strainer regularly, removing any accumulated sediment or debris from the 3/8-inch openings using water pressure or compressed air. Store hoses in a dry location away from direct sunlight when possible, though the UV-resistant PVC construction handles outdoor storage well.
Inspect preformed bands on couplers for wear or damage, replacing if connections become loose or difficult to engage. In freezing conditions, ensure all water is drained to prevent ice damage. The lay-flat discharge hose should be folded rather than kinked during storage to maintain flexibility. Periodically check male adapters for thread damage and apply pipe thread compound as needed for leak-free connections. With proper care, this kit provides years of reliable service across demanding agricultural, construction, and emergency response applications.
Is it worth buying vs renting this hose kit?
Purchase makes financial sense for operations requiring regular water transfer capabilities. Rental costs for similar hose kits typically run $50-75 per day, meaning this kit pays for itself after just a few uses. Ownership eliminates scheduling delays and ensures immediate availability for emergency situations like flood response or unexpected dewatering needs. Having your own kit means no time wasted picking up or returning rental equipment, reducing project delays and transportation costs.
The universal compatibility works across multiple pump brands and applications, from construction dewatering to agricultural irrigation and landscaping projects. Quality PVC construction and aluminum couplers provide years of service when properly maintained, making the per-use cost extremely low over time. For contractors, landscapers, and agricultural operations that handle water management regularly, ownership provides convenience, cost savings, and operational flexibility that rental simply cannot match. The complete kit eliminates the need to source individual components, saving time and ensuring compatibility between all system elements.
