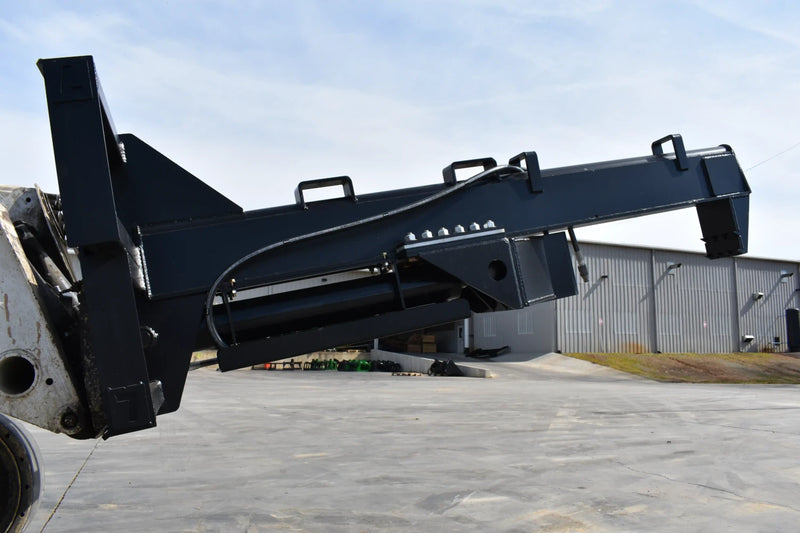

Universal Wood Splitter – One-Person Operation with 35-Ton Splitting Force

Universal Wood Splitter – One-Person Operation with 35-Ton Splitting Force

$5,053.00 - $5,053.00

$5,053.00

$5,053.00 - $5,053.00

$5,053.00

We Will Beat Any Competitor Price.
Just call us at (888) 388-6514, or message us by clicking on the blue Live Chat button in the bottom right corner or email at sales@forgeclaw.com

Pick From The Options Below to Get Exact Price

Quantity

What Sets Us Apart
• 12-Month Warranty (Industry-Leading Coverage)
• Free Shipping (Lower 48 US States)
• Comes with hoses, fittings, and couplers (Jobsite ready)

35-ton splitting force
One-person inverted operation
32.25-inch opening width
Round tube beam design
Enclosed hydraulic cylinder
Parker hydraulic components
2-position quick attach
Oversized greasable pins
Replaceable nylon guides
Optional 4-way wedge

Overview

When you're processing firewood for your home, farm, or business, the right equipment makes all the difference between a productive day and a grueling ordeal. The Loflin Wood Splitter delivers 35 tons of splitting force with a design that's built to handle serious volume without breaking down or slowing you down. Manufactured by Loflin Manufacturing and distributed nationwide by Forge Claw, this wood splitter combines hydraulic power with thoughtful engineering that addresses the real challenges you face on the job.

What sets this splitter apart is its inverted operating capability. The 2-position quick attach system lets you run it inverted from the cab or upright, depending on your workflow and preference. Running inverted means one person can operate the machine and feed wood efficiently from the cab, cutting labor requirements in half while maintaining safe, consistent splitting performance. That's a game-changer when you're running a one-person operation or trying to maximize efficiency with a small crew.

The main beam is constructed from round tubing rather than flat steel, which prevents the twisting and warping that plague conventional designs under heavy use. When you're splitting knotty hardwoods or oversized rounds hour after hour, that structural integrity matters. The beam stays true, the wedge stays aligned, and you keep working without fighting equipment that's bent itself out of spec.

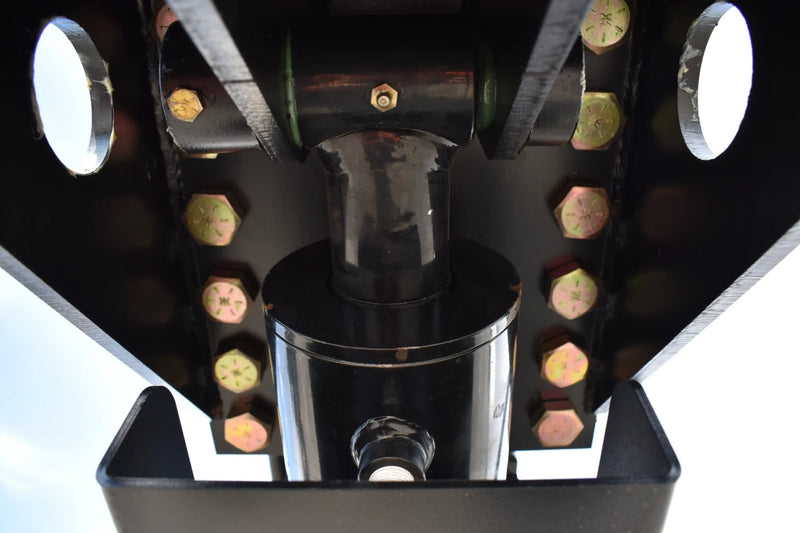

Loflin Manufacturing equipped this splitter with a 5-inch bore by 36-inch stroke hydraulic cylinder that's fully enclosed to protect it from debris, weather, and impact damage. The cylinder generates the force you need for tough splits while staying protected from the bark, dirt, and wood chips that are inevitable in this kind of work. The operational flow range of 6 to 40 GPM means this splitter adapts to various hydraulic systems, giving you flexibility across different machines and setups.

The opening width measures 32.25 inches, accommodating large-diameter logs that would require multiple cuts or repositioning on smaller splitters. When you're processing logs from land clearing, storm cleanup, or timber operations, that extra capacity translates directly into fewer handling steps and faster cycle times. You can tackle big rounds in one pass instead of quartering them first.

Forge Claw carries this wood splitter because it meets our standards for durability and real-world performance. The components reflect quality choices that matter over years of use. Parker brand hoses, fittings, and couplers come standard, so you're jobsite ready right out of the gate. The oversized 1.75-inch pins are greasable, which extends service life and makes maintenance straightforward. Replaceable nylon guides prevent the beam from galling, protecting your investment and keeping operation smooth even after thousands of splits.

Optional upgrades include a table and hand control for stationary operation, plus a 4-way wedge that quarters logs in a single stroke. The 4-way wedge is particularly valuable for firewood production, where splitting rounds into quarters saves handling time and produces market-ready pieces faster. The table provides a stable work surface when you're running the splitter in a fixed location rather than moving between job sites.

This wood splitter fits contractors doing land clearing work, tree service professionals processing removals, landowners managing woodlots, and anyone producing firewood at commercial or serious residential scale. It's built for people who need equipment that works as hard as they do, day after day, without constant repairs or performance degradation. The design reflects input from operators who actually split wood for a living, not engineers guessing at what might work in theory.

Forge Claw offers free nationwide shipping on this wood splitter, along with flexible financing options that make it easier to get the equipment you need without tying up capital. We've built our reputation on reliable products, honest service, and backing our customers when they need support. When you order from Forge Claw, you're getting a wood splitter built by Loflin Manufacturing in the USA, delivered to your door ready to work.

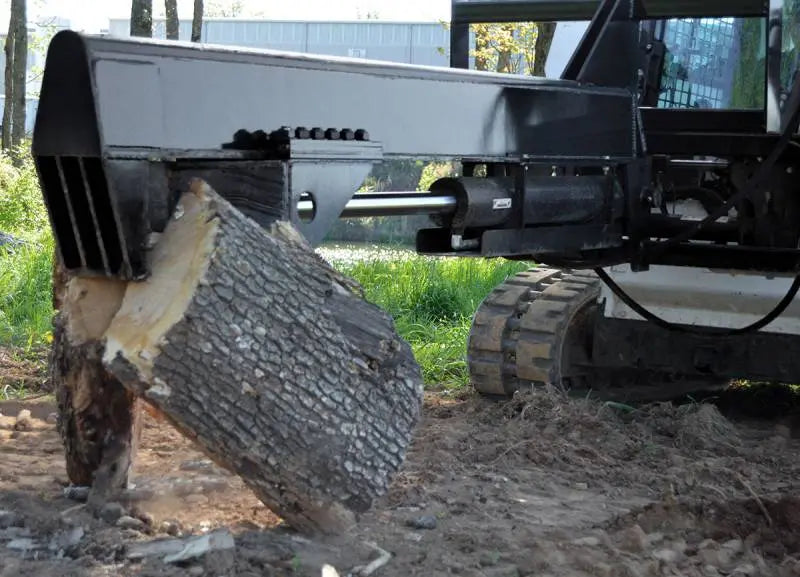

The inverted operation capability really stands out as a practical advantage. Traditional horizontal splitters require someone standing outside the machine feeding logs and removing split wood while the operator manages the hydraulics. With the inverted setup, you're running everything from the cab with clear visibility and control. You load the splitter, engage the cylinder, and manage the entire operation without climbing in and out or coordinating with a second person. That efficiency adds up quickly when you're running the splitter for several hours or full days at a time.

The round tube main beam design addresses a specific failure point that's common in this type of equipment. Flat beams tend to twist under side loads or when splitting uneven logs, which throws off wedge alignment and creates uneven wear patterns. Once a beam starts twisting, the problem accelerates because loads become progressively less centered. Round tubing distributes stress more evenly and resists torsional forces that would bend a flat beam out of shape. It's a smarter design that extends equipment life and reduces maintenance headaches.

Whether you're splitting oak, hickory, elm, or other tough species, 35 tons of force handles knots, crotches, and stringy grain without stalling or requiring multiple passes. The enclosed cylinder and robust construction mean this splitter keeps working in conditions that would sideline lighter equipment. You can run it in cold weather, dusty conditions, or wet environments without babying it or worrying about premature failure.

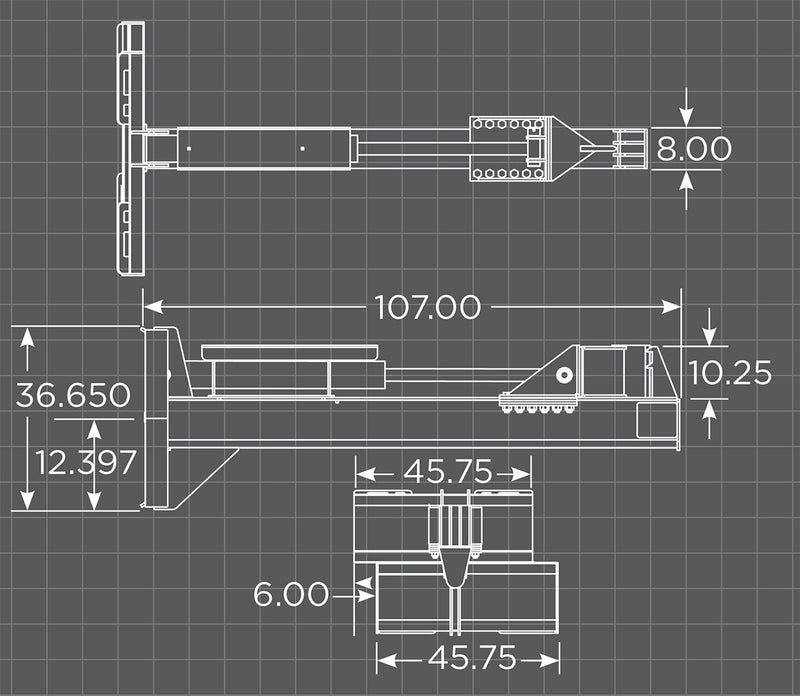

Specifications

Splitting Force: 35 tons
Opening Width: 32.25 inches
Hydraulic Cylinder: 5-inch bore × 36-inch stroke
Pin Size: 1.75 inches (oversized, greasable)
Operational Flow Range: 6 to 40 GPM
Mounting: 2-position quick attach (inverted or upright operation)
Hydraulic Components: Parker brand hoses, fittings, and couplers (included)
Beam Construction: Round tubing design to prevent twisting
Guides: Replaceable nylon to prevent galling
Optional Accessories: Table and hand control, 4-way wedge
Country of Origin: USA

Features

35-Ton Splitting Force — delivers the power needed to split knotty hardwoods, large-diameter logs, and stringy species without stalling or requiring multiple passes

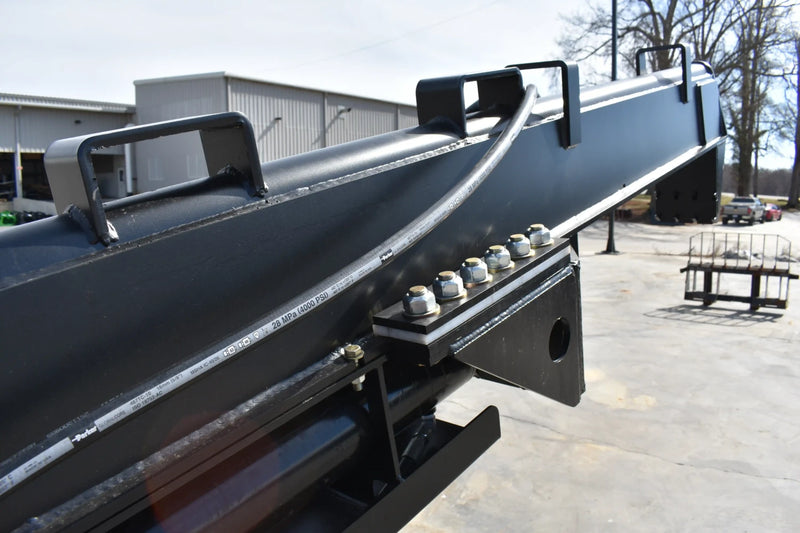

Round Tube Main Beam — prevents twisting and warping under heavy loads, maintaining wedge alignment and extending equipment service life compared to flat beam designs

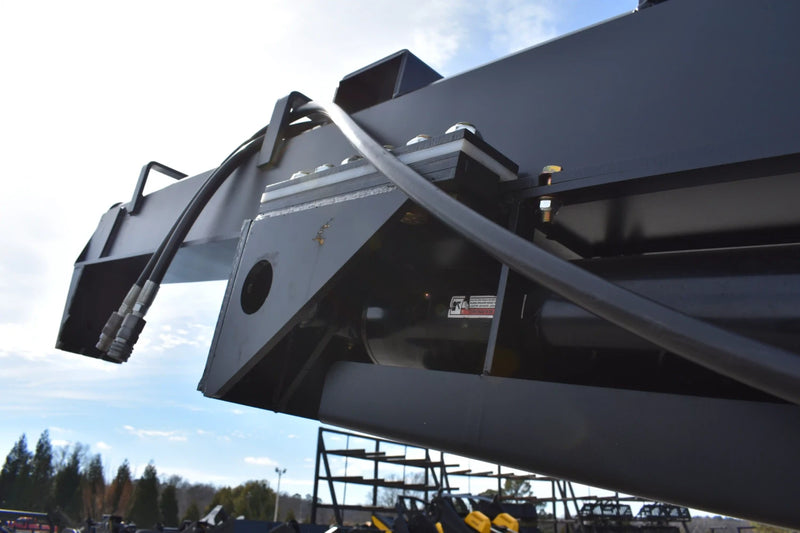

Enclosed Hydraulic Cylinder — protects the 5-inch bore × 36-inch stroke cylinder from debris, weather, and impact damage for reliable long-term performance

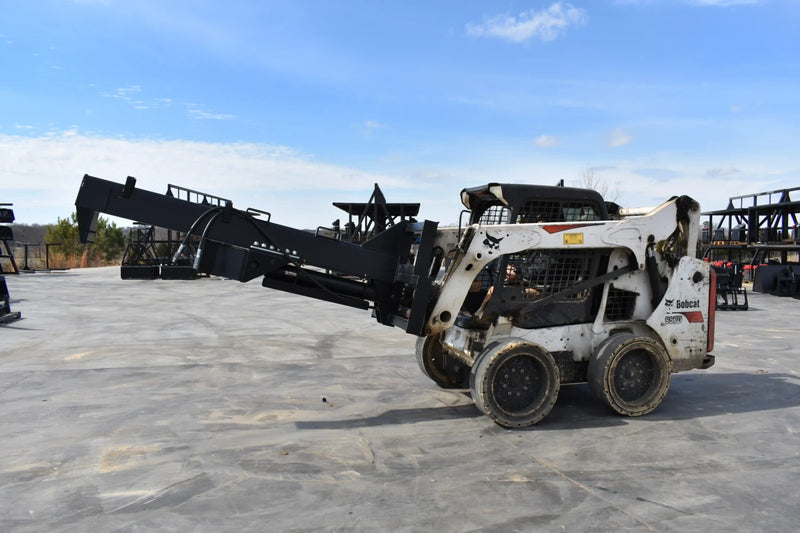

2-Position Quick Attach System — allows inverted operation from the cab or upright positioning, with inverted setup enabling one-person operation for significant labor savings
32.25-Inch Opening Width — accommodates large-diameter logs in a single pass, reducing handling time and increasing processing volume

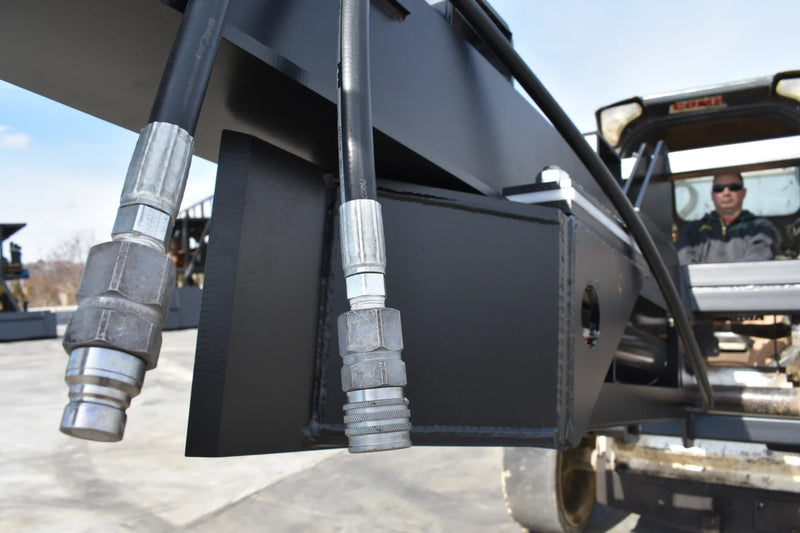

Parker Brand Hydraulic Components — includes professional-grade hoses, fittings, and couplers for jobsite-ready reliability and performance
Oversized Greasable Pins — 1.75-inch pins with grease fittings extend service life and simplify maintenance during heavy use

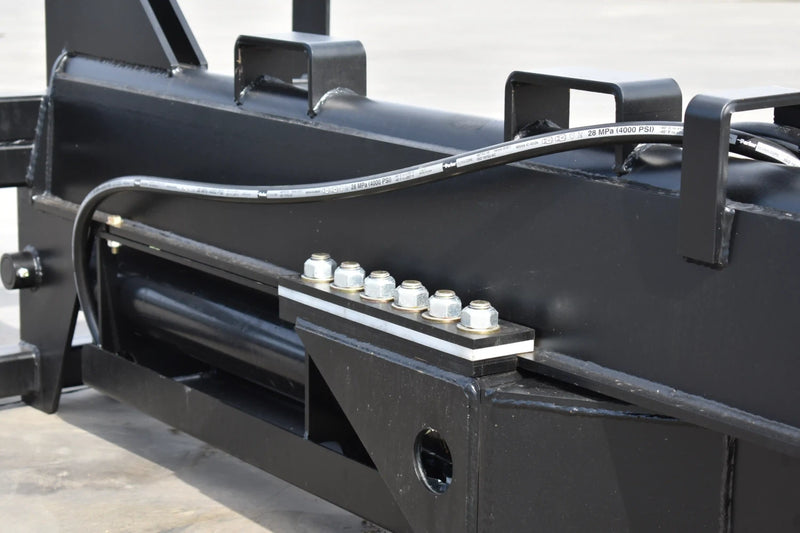

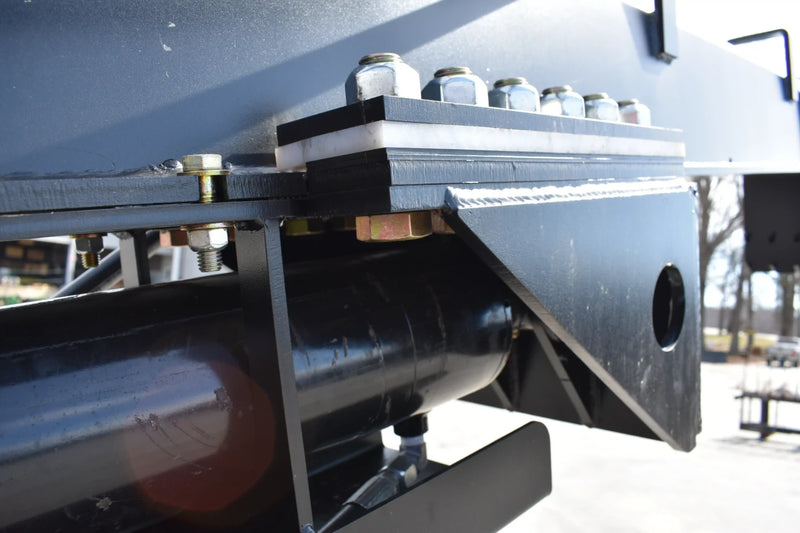

Replaceable Nylon Guides — prevent beam galling and protect the main structure while allowing cost-effective replacement when guides wear

Benefits

The inverted operating capability cuts labor costs dramatically by enabling one-person operation. Instead of positioning a worker outside the machine to feed logs and clear split wood, the operator manages the entire process from the cab with full visibility and control. For small operations or solo contractors, this means you can process firewood or clear land without hiring additional help. For larger crews, it frees up workers for other tasks instead of tying them to the splitter.

The 35-ton splitting force and 32.25-inch opening width combine to increase your daily processing volume. You can tackle logs that would overwhelm smaller splitters, and you can split them faster because the hydraulic power drives through resistance without hesitation. When you're bidding jobs or planning projects, that capacity translates into more realistic timelines and better profitability because you're not bottlenecked by underpowered equipment.

Durability features like the round tube beam, enclosed cylinder, and Parker hydraulic components reduce downtime and repair costs. The beam design prevents the structural failures that sideline cheaper splitters after a season or two of hard use. The enclosed cylinder keeps contamination out of the hydraulic system, avoiding the seal failures and fluid contamination that lead to expensive rebuilds. Quality hydraulic components maintain pressure and flow rates instead of developing leaks or requiring frequent replacement.

The 6 to 40 GPM operational flow range provides compatibility across different machines and hydraulic systems. Whether you're running it off a skid steer, tractor, or dedicated power unit, you can match the splitter to your available hydraulics without being locked into a narrow specification. That flexibility matters when you're adding the splitter to existing equipment or planning to use it across multiple machines.

Greasable pins and replaceable nylon guides make maintenance straightforward and affordable. Regular greasing takes minutes and extends pin life significantly. When guides eventually wear, you replace the nylon components rather than machining or replacing the entire beam assembly. These design choices reflect an understanding of how equipment actually gets maintained in the field, where simplicity and low parts costs matter as much as initial performance.

The optional 4-way wedge multiplies productivity for firewood production by quartering logs in one stroke. Instead of making multiple splits to break down a large round, you produce four pieces ready for stacking or further processing. For commercial firewood operations or high-volume users, that efficiency improvement pays for the upgrade quickly through increased output and reduced cycle times.

Running this wood splitter means you're working with equipment that handles full days of hard use without breaking down or slowing down. The robust construction and quality components deliver consistent performance whether you're splitting your hundredth log of the day or your thousandth of the season. That reliability protects your reputation, keeps projects on schedule, and eliminates the frustration and lost revenue that come with equipment failures.

Additional Information

This wood splitter is ideal for tree service contractors processing removals into manageable pieces, land clearing operations dealing with timber from site preparation, firewood producers working at commercial scale, and landowners managing woodlots or maintaining properties with significant timber resources. The combination of power, capacity, and one-person operation makes it particularly valuable for operations where labor efficiency directly impacts profitability.

The 2-position quick attach system provides flexibility for different work environments and preferences. Inverted operation excels when you're working from a machine with good cab visibility and want to maximize efficiency. Upright positioning works well for stationary setups where you're feeding the splitter from ground level or using the optional table. The ability to switch between configurations means one splitter can adapt to different jobs rather than compromising on a single setup.

Regular maintenance focuses on keeping pins greased, checking hydraulic connections for leaks, and replacing nylon guides when wear becomes evident. The enclosed cylinder design minimizes contamination concerns, but standard hydraulic fluid and filter maintenance according to your power unit's requirements keeps the system operating properly. Parker components are widely supported, so replacement hoses or fittings are readily available if you ever need them.

Operating within the 6 to 40 GPM flow range ensures proper cycle times and prevents hydraulic system strain. Too little flow makes the splitter slow; too much can create heat and pressure issues in the hydraulic circuit. Matching your power unit's hydraulic output to the splitter's requirements delivers optimal performance and protects both the attachment and your machine's hydraulic system from unnecessary wear.

Warranty Info

Manufactured by Loflin Manufacturing, this product is covered under the manufacturer's 12-month warranty for defects in materials and workmanship, valid for the first registered owner from the date of invoice. Replacement parts are warranted for 30 days from delivery. The warranty does not cover wear items such as belts, shear pins, oil, grease, tires, tubes, hydraulic hoses, knives, and PTO components. Warranty service must be performed by an authorized Loflin Manufacturing dealer. Order your Wood Splitter from Forge Claw today. We offer flexible, easy financing and free nationwide shipping so every operator can get their hands on top-quality equipment.

What makes inverted operation better than traditional horizontal wood splitters?

Inverted operation fundamentally changes how you process firewood by enabling complete one-person operation from the machine cab. Traditional horizontal splitters require one worker standing outside feeding logs and clearing split wood while another operates the hydraulics. With inverted setup, you manage loading, splitting, and clearing entirely from the cab with full visibility and control.

This cuts labor requirements in half, which directly impacts profitability for small operations and frees up crew members for other tasks on larger jobs. The 2-position quick attach system gives you flexibility to run inverted when maximizing efficiency or switch to upright for stationary setups with the optional table. For solo contractors and landowners, this means processing firewood without hiring help. For tree service companies and land clearing operations, it means faster job completion and better resource allocation across your crew.

Can this wood splitter handle knotty hardwoods and large diameter logs?

The 35-ton splitting force and 32.25-inch opening width are specifically engineered for tough hardwoods and oversized rounds. This splitter drives through oak, hickory, elm, and other dense species including knotty sections, crotches, and stringy grain without stalling or requiring multiple passes. The hydraulic cylinder generates consistent force that doesn't hesitate when encountering resistance.

The opening width accommodates large-diameter logs that would require quartering on smaller splitters, letting you process big rounds in one pass instead of making multiple cuts first. This capacity translates directly into higher daily processing volume whether you're handling storm cleanup, land clearing timber, or commercial firewood production. The round tube beam maintains alignment under side loads from uneven logs, so the wedge stays true even when splitting challenging pieces that would throw lesser equipment out of spec.

How does the round tube beam design improve durability compared to flat beam splitters?

Round tubing distributes stress more evenly and resists torsional forces that bend flat beams out of shape during heavy use. Flat beam splitters commonly develop twisting problems when splitting uneven logs or handling side loads, which throws off wedge alignment and creates uneven wear patterns. Once twisting starts, the problem accelerates because loads become progressively less centered, leading to premature failure.

Round tube construction prevents this failure mode by maintaining structural integrity under the varied loads you encounter splitting real-world logs with knots, irregular shapes, and off-center mass. The beam stays true, the wedge stays aligned, and you keep working without fighting equipment that's bent itself out of specification. This design choice extends equipment service life significantly and eliminates the maintenance headaches and downtime associated with warped beams that plague conventional flat beam designs after sustained use.

What hydraulic flow rate does my machine need to run this wood splitter effectively?

This splitter operates across a 6 to 40 GPM flow range, providing compatibility with various skid steers, tractors, and hydraulic power units. Matching your machine's hydraulic output to this range ensures proper cycle times and system protection. Flow rates below 6 GPM make the splitter cycle slowly, reducing productivity. Rates above 40 GPM can create excessive heat and pressure in the hydraulic circuit, potentially damaging both the attachment and your machine's hydraulic system.

Most standard skid steers and compact tractors fall within this operational range, giving you flexibility to use the splitter across different machines in your fleet. The enclosed cylinder design and Parker brand hydraulic components maintain reliable performance throughout this flow range. Before operation, verify your machine's hydraulic specifications match the splitter's requirements to achieve optimal splitting speed while protecting your equipment investment from unnecessary wear or hydraulic system strain.

How does the optional 4-way wedge increase firewood production efficiency?

The 4-way wedge quarters logs in a single hydraulic stroke instead of requiring multiple splits to break down large rounds. Traditional splitting produces two pieces per cycle, meaning you handle each log multiple times to create firewood-sized pieces. The 4-way wedge produces four market-ready quarters in one pass, cutting handling time and cycle count dramatically.

For commercial firewood operations processing high volumes, this efficiency improvement pays for the upgrade quickly through increased daily output. You spend less time repositioning wood and more time moving through your pile. The 4-way configuration works particularly well on the larger diameter logs this splitter accommodates, where you'd otherwise make three or four separate splits to break down a single round. Combined with inverted one-person operation, the 4-way wedge creates a production setup that maximizes volume while minimizing labor, fuel, and time invested per cord of finished firewood.

What maintenance does this wood splitter require for long-term reliability?

Regular maintenance focuses on keeping the oversized 1.75-inch pins greased, checking hydraulic connections for leaks, and replacing nylon guides when wear becomes evident. Pin greasing takes just minutes and significantly extends service life by preventing metal-to-metal wear. The grease fittings make this straightforward field maintenance rather than requiring disassembly. Inspect hydraulic hoses and connections periodically for damage or seepage, addressing issues before they become failures.

The enclosed cylinder design minimizes contamination concerns, but maintain your power unit's hydraulic fluid and filters according to manufacturer schedules. When nylon guides show wear, they're designed for easy, affordable replacement without machining or replacing the entire beam assembly. Parker brand components are widely supported, so replacement hoses or fittings are readily available from multiple suppliers if ever needed. These maintenance requirements reflect practical field service rather than complex procedures, keeping your splitter operational with minimal downtime.

Is this wood splitter suitable for both commercial operations and serious residential use?

The 35-ton splitting force and robust construction serve both commercial firewood producers and landowners managing significant timber resources. Commercial operations benefit from the one-person inverted operation, high daily processing capacity, and durability that supports full-time use without constant repairs. Tree service contractors processing removals, land clearing operations handling site preparation timber, and dedicated firewood businesses all gain efficiency from the combination of power, capacity, and labor savings.

Serious residential users managing woodlots, heating with firewood, or maintaining properties with substantial timber find this splitter handles volume that overwhelms consumer-grade equipment while remaining practical for periodic intensive use rather than daily operation. The quality construction and enclosed cylinder design deliver reliable performance whether you're splitting your hundredth log of the day or your thousandth of the season, making it appropriate for anyone who needs professional-grade results without compromise.

Why are Parker brand hydraulic components important for this attachment?

Parker manufactures professional-grade hydraulic components known for reliability under demanding conditions. The included Parker hoses, fittings, and couplers ensure this wood splitter arrives jobsite-ready with components that maintain proper pressure and flow rates without developing leaks or failures. Lesser quality hydraulic components often fail prematurely when exposed to the pressure cycles, temperature variations, and physical abuse common in wood splitting operations.

Parker components resist these failure modes, reducing downtime and repair costs over the equipment's service life. The widespread availability of Parker products means replacement parts are readily accessible from multiple suppliers if you ever need them, unlike proprietary or obscure brands that create sourcing challenges. This component choice reflects a commitment to long-term performance rather than cutting costs on critical parts that directly impact reliability and operational uptime during heavy use.

How does the enclosed cylinder design protect against damage and contamination?

The fully enclosed 5-inch bore by 36-inch stroke hydraulic cylinder is shielded from bark, wood chips, dirt, and physical impacts that are inevitable in wood splitting operations. Exposed cylinders accumulate debris that contaminates hydraulic seals, leading to fluid leaks and eventual cylinder failure requiring expensive rebuilds. The protective enclosure prevents this contamination while also guarding against impact damage from split wood, dropped logs, and contact with other equipment or structures.

Weather protection extends service life by preventing moisture intrusion and corrosion on cylinder surfaces and rod components. This design consideration addresses real-world operating conditions where wood splitters work in dusty, dirty, wet environments with constant debris generation. The enclosed design maintains cylinder performance and hydraulic system integrity across years of use, eliminating a common failure point that sidelines equipment with less thoughtful construction when seals fail or rods become scored from contamination.

What advantages does this splitter offer for land clearing and storm cleanup work?

The 32.25-inch opening width and 35-ton splitting force tackle the oversized, irregular logs common in land clearing and storm cleanup operations. Site preparation and cleanup jobs frequently involve large-diameter timber, root masses, and awkwardly shaped pieces that challenge standard splitters. This equipment processes those difficult pieces in single passes, reducing handling time and increasing job completion speed.

The inverted operation capability means one operator manages both the machine and splitting process, making efficient use of crew resources on projects where labor allocation impacts profitability. The round tube beam maintains alignment when processing uneven, off-center, or oddly shaped pieces that would twist flat beam designs. For contractors bidding land clearing or emergency storm work, this splitter provides the capacity and durability to complete jobs on schedule while processing timber into manageable pieces for removal or client use, rather than being bottlenecked by underpowered equipment that can't handle the volume and variety encountered in these applications. Forge Claw backs this wood splitter with free nationwide shipping and flexible financing options to help you acquire the equipment your operation needs.
