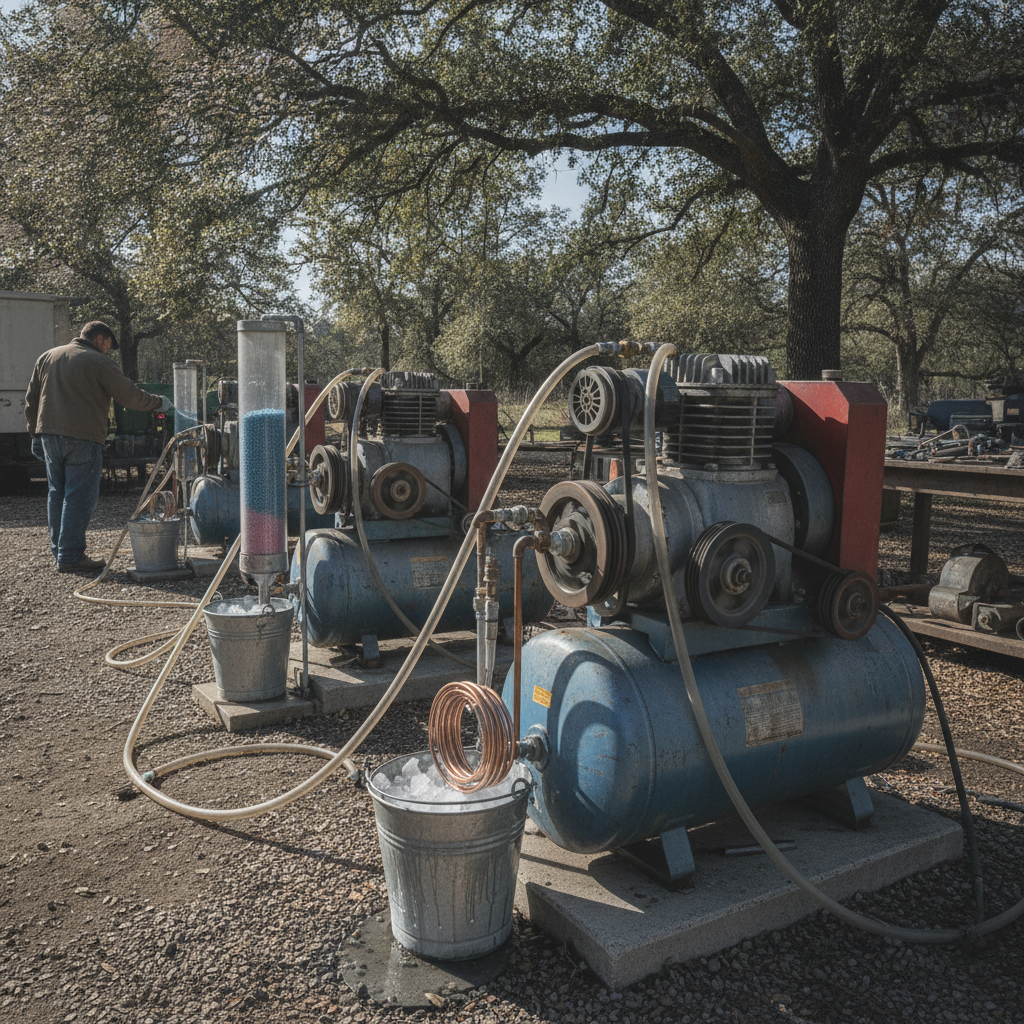

DIY Air Dryer for Air Compressor — How to Build One

Building a DIY air dryer for your air compressor takes 2 to 4 hours and costs $40 to $80 in parts. The most effective home-build design uses a 50-foot copper coil that cools compressed air and condenses moisture before it reaches your tools. You need basic hand tools, copper tubing, brass fittings, and a water separator. A compressor running at 100 PSI in a moderate-humidity shop can push roughly 2 gallons of water through your air lines per day — enough to damage pneumatic tools, ruin paint finishes, and corrode blast cabinets.

What Do You Need Before Building a DIY Air Dryer for Your Air Compressor?

Building a DIY air dryer requires copper tubing, brass fittings, a water separator, Teflon tape, a mounting surface, and basic hand tools. Each item serves a specific function in the cooling and moisture-collection process.

What Parts Are Required for a Copper Coil Aftercooler?

A copper coil aftercooler requires 50 feet of 3/8-inch outer-diameter copper tubing, two 3/8-inch brass compression-to-NPT adapter fittings, a mechanical or automatic drain valve, and a standard inline water separator. Use only copper, steel, or aluminum for pressurized air lines. The 50-foot length provides enough surface area to cool air from compressors rated up to 5 to 6 CFM.

• 50 feet of 3/8-inch OD copper refrigeration tubing
• Two 3/8-inch compression × 1/4-inch NPT male adapter fittings
• One inline water separator with 1/4-inch NPT ports
• One drain valve — manual petcock or automatic float-style
• Teflon thread tape for all NPT connections
• Mounting brackets or pipe straps for wall or post mounting

What Safety Equipment Do You Need on Hand?

Safety glasses, work gloves, and a tube cutter are the minimum required safety items. Copper tubing edges are sharp after cutting. Wear gloves when coiling and handling cut ends. Keep a fire extinguisher accessible if soldering any joints. Depressurize the compressor tank completely before connecting any new plumbing.

Shop Air Compressors for This Job

These 10 picks from our air compressors range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all air compressors.

5 HP Electric Motor for Air Compressor | Single-Phase | 208-230V | 3450 RPM | 7/8-In. Keyed Shaft | Castair$7107.5 HP 1-Phase Motor for Air Compressor | 208-230V | 1750 RPM | 1-3/8-Inch Keyed Shaft | Castair$1,3218-Gallon Air Compressor for Construction Equipment | Wheelbarrow Style | 5.7 CFM @ 90 PSI | 1.9 HP Motor | DEWALT$1,1488-Gallon Air Compressor for Construction Sites | Honda GX160 Engine | 9.9 CFM at 90 PSI | Wheelbarrow Style | DEWALT$1,4738-Gallon Gas Air Compressor | Wheelbarrow Style | 9.9 CFM @ 90 PSI | Honda GX160 Engine | Industrial Air$1,35580 Gal. Vertical Air Compressor | 5HP 1-Phase | 18.1 CFM @100 PSI | Two-Stage Cast Iron Pump | Castair$3,77180 Gal. Vertical Air Compressor Tank for Industrial Compressors | ASME Compliant | 200 PSI | Steel Construction | Castair$1,37780-Gallon Vertical Air Compressor | 5HP 1-Phase 230V | 17.5 CFM @ 175 PSI | Two-Stage Cast Iron | Castair$4,63480-Gallon Vertical Air Compressor | 7.5HP 1-Phase 230V | 24.8 CFM @ 175 PSI | Two-Stage Cast Iron | Castair$5,11380-Gallon Vertical Air Compressor | 7.5HP 1-Phase 230V | 28.1 CFM @ 175 PSI | Two-Stage Cast Iron | Castair$6,010

How Do You Build and Install a DIY Air Dryer Step by Step?

Building and installing a DIY air dryer follows 6 steps completed in 2 to 4 hours. Each step has a clear completion point before moving to the next.

What Are the Steps to Build a DIY Air Dryer?

The build covers 6 steps from coiling the copper tubing through final leak testing.

1. Coil the tubing. Wrap 50 feet of 3/8-inch copper tubing around a round form 8 to 10 inches in diameter — a bucket or short propane tank works well. Maintain even spacing of 1/2 inch between wraps to maximize air exposure across the coil surface.
2. Attach the fittings. Cut both ends of the coil square with a tube cutter. Deburr each end with the cutter's built-in reamer. Thread a 3/8-inch compression-to-NPT adapter onto each end and tighten 1-1/4 turns past finger-tight with two wrenches.
3. Mount the coil. Secure the coil vertically to a wall, post, or ceiling joist using pipe straps or metal brackets. Position the inlet at the top and the outlet at the bottom so gravity pulls condensed water downward through the coil.
4. Install the water separator. Connect the inline water separator to the bottom outlet of the coil using a short air hose or nipple. Mount the drain valve at the lowest point of the separator. Wrap all NPT threads with 3 to 4 layers of Teflon tape before assembly.
5. Plumb into the air line. Connect the coil inlet to the compressor tank outlet or aftercooler port. Connect the separator outlet to the main shop air line feeding your tools. Route the drain line to a small collection container or floor drain.
6. Test for leaks. Pressurize the system to the compressor's normal operating pressure — typically 90 to 125 PSI. Apply soapy water to every fitting and connection. Tighten any joint that produces bubbles. Run the compressor for 10 to 15 minutes and check the separator bowl for collected water to confirm moisture removal.

What Are the Most Common Mistakes?

The most common mistake is using PVC pipe for pressurized air connections. PVC shatters without warning under compressed air pressure and sends sharp fragments in all directions. Use only copper tubing, steel pipe, or rated air hose for any pressurized section of the system.

• Using PVC pipe — causes catastrophic brittle failure under air pressure — replace with copper, steel, or aluminum
• Mounting the coil horizontally — prevents gravity drainage of condensate — mount vertically with the drain at the bottom
• Skipping leak testing — allows pressure loss and undetected fitting failures — test every joint with soapy water at full system pressure

What Safety Practices Apply When Building a DIY Air Dryer for Your Air Compressor?

DIY air dryer safety requires 3 controls: proper material selection, full depressurization before plumbing changes, and eye protection during assembly. Each control prevents a specific injury or equipment failure.

What Are the Critical Safety Requirements?

The primary safety requirement is using only pressure-rated metal pipe, copper tubing, or rated air hose in the system. PVC, CPVC, and ABS pipe are not rated for compressed air service and fracture explosively. Depressurize the compressor tank to 0 PSI and disconnect power before cutting into any existing air line.

• Never use PVC for pressurized air — brittle fracture sends shrapnel at high velocity
• Depressurize the tank completely before connecting or modifying plumbing — residual pressure causes fittings to blow out during assembly
• Wear safety glasses when cutting and bending copper tubing — metal chips and sharp edges cause eye injuries

What Are the Warning Signs During Operation?

An audible hiss near any fitting indicates a pressurized leak that requires immediate attention. Shut down the compressor and depressurize the system before tightening or replacing the leaking connection. Water pooling under the coil without passing through the separator indicates a cracked fitting or failed seal at a compression joint.

Shop Air Compressor Pumps for This Job

These 7 picks from our air compressor pumps range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all air compressor pumps.

Pneumatic Shingle Remover for Air Compressor | Electric | 70-90% Faster Tear-Off | Shingle Hog$2,045Reciprocating Compressor Pump for Air Compressor | 7.5-10 HP | 2-Stage | V-Style 4-Cylinder | 19" Flywheel | Castair$2,6602-Stage Reciprocating Compressor Pump for Industrial Equipment | 5-7.5 HP | Inline 2-Cylinder | 16.875" Flywheel | Castair$1,60020 Gal. Horizontal Air Compressor for Workshop | 2HP | Single Phase 115V | Cast Iron Pump | Castair$1,28620 Gallon Vertical Air Compressor | 2HP Single Phase | Cast Iron Pump | Belt Driven | Castair$1,28630 Gal 3-in-1 Compressor Generator Welder Combo for Construction Equipment | Honda GX390 | 19.7 CFM | 5000W | Castair$12,0215 HP 1-Phase Motor for Air Compressor | 208-230V | 1750 RPM | 1-1/8-Inch Keyed Shaft | Castair$943

How Do You Maintain a DIY Air Dryer for Long-Term Performance?

Post-build DIY air dryer maintenance involves 3 recurring tasks: draining collected water, inspecting fittings, and replacing or reactivating desiccant media if used. Skipping any step reduces moisture removal and risks corrosion in the air lines.

What Post-Use Maintenance Does a DIY Air Dryer Require?

Drain the water separator after every use session or at the end of each workday. Accumulated water that sits in the separator bowl grows bacteria and re-enters the air stream during the next compressor cycle. Installing an automatic float-style drain valve eliminates the need for manual draining. If using a desiccant dryer section, check the indicating silica gel beads — they change from blue or orange to clear or pink when saturated. Reactivate spent silica gel by spreading beads on a baking sheet and drying at 250°F for 2 to 3 hours.

How Often Do You Inspect Fittings and Connections?

Inspect all compression fittings and NPT connections every 30 days. Apply soapy water to each joint while the system is pressurized and look for bubbles. Retighten any fitting that shows a leak. Check mounting brackets for looseness or vibration damage monthly. A copper coil aftercooler with proper maintenance lasts 10 years or longer.

Frequently Asked Questions About DIY Air Dryers for Air Compressors

The most common DIY air dryer questions cover material safety, moisture removal capacity, coil sizing, compressor compatibility, and the role of water separators. The answers below address each with specific numbers and facts.

Can You Use PVC Pipe for a Pressurized Air Dryer?

No. PVC pipe must never be used for pressurized compressed air lines. PVC fractures explosively under air pressure without warning, sending sharp fragments at high speed.

PVC is rated for water and low-pressure drainage, not compressed gas. Unlike metal pipe, PVC fails in brittle shear — the pipe shatters rather than deforming. Use copper tubing, black steel pipe, or aluminum compressed air tubing for all pressurized sections. This applies to the dryer body, connecting lines, and any manifold or distribution plumbing downstream of the compressor.

How Much Moisture Can a Homemade Air Dryer Remove?

A 50-foot copper coil aftercooler typically reduces compressed air temperature by 30 to 50°F, which condenses and removes 50 to 70 percent of the moisture in the air stream.

A compressor running at 100 PSI in a shop at 90°F and moderate humidity produces roughly 2 gallons of water per day. The copper coil captures the majority of that moisture by cooling the air below its dew point. The effectiveness of any DIY dryer depends on the output and duty cycle of your compressor — browse Air Compressors to find a unit matched to your shop demands.

Does Pipe Length or Diameter Matter More for Cooling?

Pipe length matters more than diameter for cooling compressed air. Longer tubing provides more surface area for heat transfer to ambient air.

A 50-foot coil of 3/8-inch tubing is the standard starting point for compressors up to 5 to 6 CFM. Increasing to 75 feet improves cooling for higher-CFM systems. Larger diameter tubing (1/2 inch) reduces pressure drop but offers less cooling per foot because the air moves through the center without contacting the pipe walls as efficiently. For most shop setups, stick with 3/8-inch tubing and add length rather than diameter.

Can You Add a DIY Dryer to Any Size Compressor?

A copper coil aftercooler works on any compressor, but the coil length must scale to the compressor's CFM output to remain effective.

A 50-foot coil handles compressors up to 5 to 6 CFM. Compressors rated at 10 CFM or higher need 75 to 100 feet of coil or a larger-diameter tube. If you're running a shop with multiple high-CFM tools simultaneously, a DIY dryer may not remove enough moisture — a commercial refrigerated dryer becomes the practical choice above 15 to 20 CFM sustained demand. Pairing a DIY dryer with a Quiet Air Compressor creates a more comfortable and moisture-free shop setup.

Is a Water Separator Enough Without an Air Dryer?

A water separator alone removes liquid water already condensed in the line but does not cool the air or prevent further condensation downstream.

Hot compressed air leaving the tank still holds moisture in vapor form. That vapor condenses as the air cools in the hose and at the tool. A water separator catches droplets at one point, but a dryer cools the air upstream so moisture condenses before reaching the separator — then the separator catches it. If your compressor runs hotter than normal or produces excessive moisture, a worn pump may be the root cause — explore Air Compressor Pumps to find a replacement that restores proper performance.
