How to Quiet an Oil-Less Air Compressor — 7 Methods

Learning how to quiet an oil-less air compressor takes 1 to 3 hours depending on the method — from a 5-minute pad swap to a full weekend enclosure build. Most units run between 70 and 90 dB, but the right combination of vibration isolation, intake silencing, and sound enclosure work brings perceived noise down by 15 to 25 dB at the listener's position. You'll need basic hand tools, a sound level meter or smartphone app, and the specific dampening materials for whichever method you choose. No welding or special skills required.

What Do You Need Before Quieting an Oil-Less Air Compressor?

Reducing oil-less compressor noise requires 5 categories of materials and tools: vibration isolation pads, acoustic barrier material, ventilation components, basic hand tools, and a decibel meter. Each category addresses a distinct noise source — structural vibration, airborne sound, intake roar, or mechanical rattle.

What Equipment and Tools Are Required?

A socket set, screwdriver set, utility knife, tape measure, and a sound level meter (or smartphone decibel app) cover the tool requirements. The specific dampening materials depend on which of the 7 methods below apply to the situation.

• Rubber isolation pads or anti-vibration feet — 40 to 70 durometer hardness
• Mass-loaded vinyl (MLV) — 1 lb per square foot minimum density
• Acoustic foam panels — 1 to 2 inch thickness, open-cell type
• Intake silencer or muffler — sized to match the compressor's air filter port diameter
• 3/4-inch plywood or MDF — for enclosure construction if building a sound box

What Conditions or Preparations Are Needed?

The compressor must be unplugged, fully depressurized, and cool to the touch before any modification work begins. Take a baseline decibel reading at 3 feet from the compressor while the unit runs under load. Record the reading. This number serves as the reference point for measuring each method's effectiveness.

Shop Quiet Air Compressor for This Job

These 4 picks from our quiet air compressor range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all quiet air compressor.

20 Gal. Horizontal Air Compressor for Workshop | 2HP | Single Phase 115V | Cast Iron Pump | Castair$1,28620 Gallon Vertical Air Compressor | 2HP Single Phase | Cast Iron Pump | Belt Driven | Castair$1,2868-Gallon Air Compressor for Construction Equipment | Wheelbarrow Style | 5.7 CFM @ 90 PSI | 1.9 HP Motor | DEWALT$1,148Quiet Air Compressor | Silent Operation | 3.24 CFM @ 90 PSI | 1.5 HP | 5 Gallon Tank | Hulk$350

How Do You Quiet an Oil-Less Air Compressor Step by Step?

Quieting an oil-less air compressor follows 7 steps that progress from quick fixes to full enclosure builds, each targeting a different noise source. Start with the fastest methods first. Stack multiple methods for the greatest total reduction.

What Are the 7 Steps to Reduce Oil-Less Compressor Noise?

The 7 methods below take between 5 minutes and 4 hours each, depending on complexity.

1. Install isolation pads. Place rubber anti-vibration pads (40 to 70 durometer) under each foot of the compressor. Secure the pads with adhesive backing or bolt-through mounting. This step alone reduces transmitted vibration noise by 3 to 5 dB.
2. Tighten all hardware. Inspect every bolt, screw, and fastener on the compressor head, shroud, tank, and frame. Tighten each to the manufacturer's torque specification. Loose hardware creates rattle that adds 2 to 4 dB of unnecessary noise.
3. Install an intake silencer. Remove the existing air filter housing. Thread or clamp an intake silencer or muffler onto the air filter port. Match the silencer's port diameter to the compressor's intake opening. A properly sized intake silencer cuts intake noise by up to 10 dB.
4. Apply sound blankets. Wrap the compressor tank and motor shroud with mass-loaded vinyl backed by acoustic foam. Secure the material with heavy-duty hook-and-loop straps. Leave the cooling vents and exhaust port unobstructed.
5. Relocate the compressor. Move the compressor to a separate room, closet, or outdoor location. Run a longer air hose (up to 100 feet with 3/8-inch inside diameter) to the work area. Every doubling of distance from the source reduces perceived noise by approximately 6 dB.

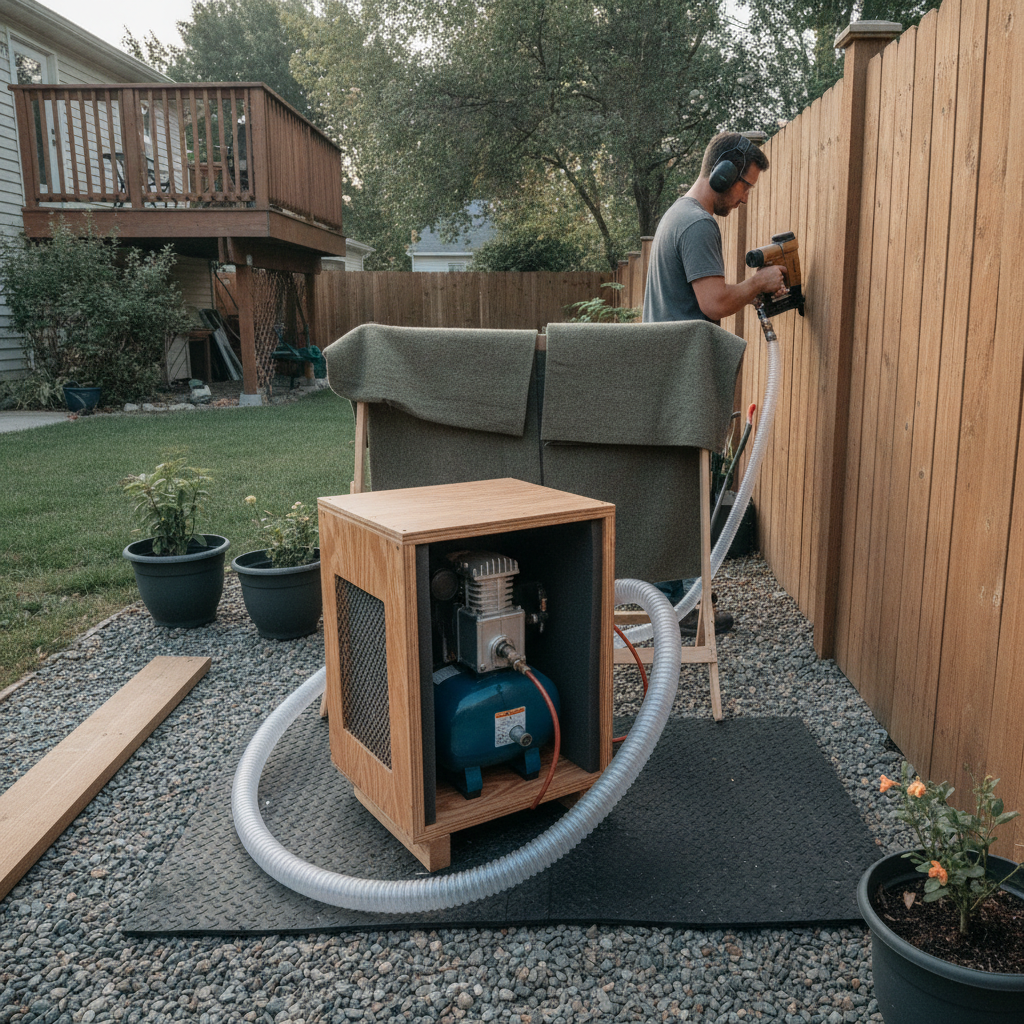

6. Build a sound enclosure. Construct a plywood box lined with 1 lb/sq ft mass-loaded vinyl and 1-inch acoustic foam. Size the interior at least 6 inches larger than the compressor on all sides. Include a minimum of two baffled ventilation openings on opposite walls to prevent overheating.
7. Lower the regulator pressure. Reduce the outlet regulator setting to the minimum PSI the connected tool requires. Lower pressure settings reduce the duty cycle frequency, which decreases total noise exposure time per hour — though peak decibel output during each run cycle remains the same.

What Are the Most Common Mistakes?

The most common mistake is sealing a sound enclosure without ventilation. An airtight box causes the compressor motor to overheat and fail within minutes. The second most frequent error is using soft, porous foam alone without a dense barrier layer — foam absorbs high frequencies but does nothing to block low-frequency sound transmission.

• Sealed enclosure with no ventilation — causes motor overheating and thermal shutdown — add two baffled vents on opposite walls
• Using acoustic foam without mass-loaded vinyl — fails to block low-frequency noise — always pair foam with a 1 lb/sq ft dense barrier
• Laying the compressor on its side inside an enclosure — disrupts piston and cylinder alignment, accelerates wear, increases noise — always keep oil-less compressors upright

What Safety Practices Apply When Quieting an Oil-Less Air Compressor?

Quieting an oil-less compressor safely requires 3 controls: proper enclosure ventilation, electrical safety during modification, and hearing protection during testing. Each control prevents a specific risk — overheating, shock, or hearing damage from sustained exposure above 85 dB.

What Are the Critical Safety Requirements?

Enclosure ventilation is the single most critical safety requirement. An oil-less compressor motor generates significant heat during operation. Any enclosure must include at least two vented openings with baffled airflow paths positioned on opposite walls to create cross-ventilation.

• Blocked ventilation causes motor temperatures to exceed safe limits — thermal damage occurs within 5 to 10 minutes in a sealed box
• Working on a pressurized tank risks sudden air release — drain all pressure and unplug the unit before starting modifications
• Sustained exposure above 85 dB causes hearing damage — wear rated ear protection during all test runs and baseline measurements

What Are the Warning Signs During Operation?

A burning smell or automatic thermal shutdown indicates the compressor is overheating inside the enclosure. Stop the compressor immediately if the motor housing temperature exceeds 150°F. Other warning signs include unusual knocking (piston wear), excessive vibration after pad installation (incorrect durometer), and longer-than-normal run cycles (air leak or restriction from modifications).

How Do You Maintain an Oil-Less Air Compressor After Quieting It?

Post-modification oil-less compressor maintenance involves 4 steps: inspecting dampening materials, checking fastener torque, cleaning intake silencers, and monitoring enclosure ventilation. Skipping any step allows noise levels to creep back up and shortens the compressor's service life.

What Post-Use Maintenance Is Required?

Inspect all acoustic materials, isolation pads, and silencer elements every 30 days. Rubber isolation pads degrade in high-heat environments and lose effectiveness after 12 to 18 months. Check mass-loaded vinyl wraps for shifting or loosening. Clean or replace the intake silencer filter element every 100 hours of operation to prevent airflow restriction.

How Often Does an Oil-Less Compressor Need Inspection?

Perform a full noise and condition inspection every 200 operating hours. Oil-less compressor motors typically last 500 to 2,000 hours depending on duty cycle. Worn piston rings and reed valves are the primary components that increase noise over time. Replace these components at the manufacturer's recommended intervals to prevent noise levels from exceeding the post-modification baseline.

Frequently Asked Questions About Quieting an Oil-Less Air Compressor

The most common oil-less compressor noise questions cover decibel benchmarks, compressor lifespan, orientation limits, and realistic noise-reduction targets. The answers below resolve each with specific numbers and actionable guidance.

Is 70 dB Loud for an Air Compressor?

70 dB is moderate for an air compressor — roughly equivalent to a vacuum cleaner at 3 feet.

Oil-less compressors typically range from 70 to 90 dB. Models rated under 60 dB exist and represent the current quiet benchmark. At 70 dB, conversation at normal volume is still possible at 3 feet. Above 85 dB, hearing protection becomes necessary for sustained exposure. A 10 dB reduction sounds approximately half as loud to the human ear, making even small improvements noticeable.

How Long Do Oil-Less Compressors Last?

Oil-less compressor motors last between 500 and 2,000 operating hours depending on the duty cycle and ambient conditions.

Heavy-duty cycles (above 50% duty) shorten lifespan toward the 500-hour end. Light intermittent use extends life toward 2,000 hours. Worn piston rings, dried-out cylinder sleeves, and fatigued reed valves are the primary failure points. Replacing these wear items at manufacturer intervals restores both performance and lower noise output. Regular air filter changes prevent abrasive particles from accelerating internal wear.

Can You Lay an Oil-Less Compressor on Its Side?

No — oil-less compressors must remain upright during operation because the piston and cylinder alignment depends on vertical orientation.

Laying an oil-less compressor on its side causes uneven piston contact against the cylinder wall, accelerating wear on the Teflon or composite piston rings. The result is increased noise, reduced compression efficiency, and shortened motor life. Inside an enclosure, mount the compressor on its original feet in the upright position. Transport on its side briefly for relocation is acceptable, but always return the unit to upright before running.

How Do You Lower Air Compressor Pressure to Reduce Noise?

Turn the outlet regulator knob counterclockwise to reduce the PSI setting to the minimum pressure the connected tool requires.

Lower regulator pressure does not reduce the compressor's peak decibel output during each run cycle. The motor runs at the same speed and volume while the tank fills. The benefit is indirect: the tank reaches cut-out pressure faster, the motor shuts off sooner, and the compressor spends less total time running per hour. This reduces cumulative noise exposure rather than peak loudness.

When Does Upgrading to a Quieter Compressor Make More Sense?

Upgrade when the compressor exceeds 1,500 operating hours, produces noise above 80 dB after all modifications, or requires piston ring and reed valve replacement that costs more than 40% of a new unit.

At that point, no amount of external dampening overcomes the internal mechanical noise from worn components. A purpose-built quiet compressor rated at 55 to 65 dB delivers lower noise out of the box than any retrofit on an aging unit. Look for models with low-RPM motors, dual-piston designs, and rubber-isolated pump assemblies — these features define a truly Quiet Air Compressor built for sustained professional use.
