How to Set Up Nitrogen Tire Inflation on Your Job Site

Nitrogen tire inflation keeps heavy equipment tires running cooler, holding pressure longer, and lasting more miles between replacements. If you're running skid steers, tractors, loaders, or trucks across rough terrain, switching from standard air to nitrogen is a practical upgrade you can handle on-site. This guide walks you through the full setup — from understanding why nitrogen matters to choosing the right equipment, avoiding costly mistakes, and building a fill station that pays for itself within a single season.

What Is Nitrogen Tire Inflation and Why Does It Matter for Job Sites?

Nitrogen tire inflation is the process of filling tires with 93–99% pure nitrogen gas instead of ambient air, which contains roughly 78% nitrogen, 21% oxygen, and trace moisture. Removing oxygen and water vapor from the fill gas directly reduces pressure loss and internal corrosion.

Who Needs Nitrogen Tire Inflation on a Job Site?

Contractors, farm operators, and tree service crews running heavy equipment on uneven terrain benefit most from nitrogen fills because their tires face extreme load and temperature swings daily.

A landscaper hauling a skid steer on a 20-mile trailer run hits highway temps that expand tire air unevenly. A ranch owner driving a tractor across 200 acres of rocky pasture sees sidewall flex that conventional air can't handle predictably. Any operation where a flat costs 2–4 hours of downtime is a strong candidate for nitrogen inflation.

What Happens If You Skip Nitrogen and Stick with Regular Air?

Standard compressed air loses 1–3 PSI per month through natural permeation; nitrogen loses roughly 1 PSI over the same period, cutting pressure-related blowout risk by up to 50% on high-load tires.

Under-inflated heavy equipment tires burn 3–10% more fuel per operating hour and wear unevenly, shortening tread life by 15–25%. On a $900 loader tire, that's $135–$225 in lost service life per tire. Multiply that across 4–6 tires on 3–5 machines, and the annual waste reaches $1,600–$5,400 for a mid-size operation.

What Steps Should You Follow to Set Up Nitrogen Tire Inflation?

The nitrogen tire inflation setup follows four specific phases: site selection, equipment staging, tire purging, and pressure verification. Each phase eliminates a distinct failure mode before you move to the next.

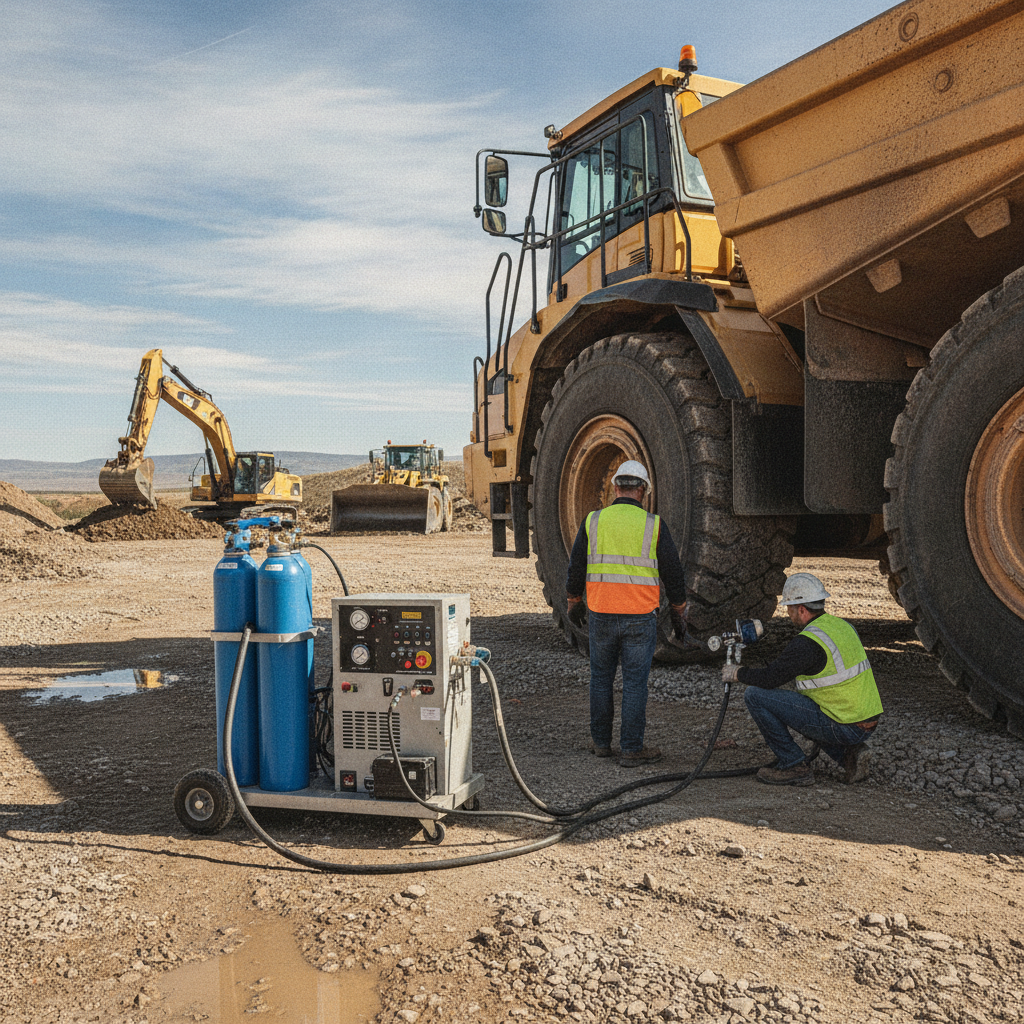

How Do You Choose the Right Location for a Nitrogen Fill Station?

Place the station on a level, compacted surface within 50 feet of your equipment staging area, with at least 8 feet of overhead clearance and shade from direct sun exposure.

Nitrogen generators and storage tanks perform best between 40°F and 110°F ambient. Positioning too far from where machines park means dragging long hose runs that drop output pressure. A gravel pad or concrete slab at least 6 by 8 feet gives enough room for the generator, a tank, hose reels, and a digital gauge station.

How Do You Purge Existing Air From a Tire Before Filling With Nitrogen?

Deflate the tire completely, then fill to operating pressure with nitrogen, deflate again, and repeat the cycle 3 times to reach 95%+ nitrogen purity inside the tire.

Each purge cycle reduces oxygen concentration by roughly 75%. After 3 full cycles, residual oxygen drops below 5%, which is the threshold where nitrogen's pressure-stability advantages become measurable. Skipping cycles and simply topping off a tire already filled with regular air leaves oxygen content above 15%, negating most of the benefit.

How Do You Verify Proper Fill Pressure After Nitrogen Inflation?

Check pressure with a calibrated digital gauge rated to 0.5 PSI accuracy, measuring at least 2 hours after fill when the tire has reached ambient temperature.

Hot-fill readings run 4–6 PSI higher than cold readings on heavy equipment tires. Recording the cold pressure and comparing it to the manufacturer's spec on the sidewall — typically 35–80 PSI for most off-road equipment tires — confirms the fill is correct. Log each tire's reading and date so you can track loss rates over 30-day intervals.

What Tools and Equipment Do You Need for Nitrogen Tire Inflation?

A functional nitrogen tire inflation station requires three equipment categories: a nitrogen source, a high-volume compressor, and measurement and dispensing accessories. Each category handles a different stage of the fill process, and weak links at any stage slow the entire workflow.

What Type of Compressor Supports Nitrogen Tire Inflation?

A stationary or portable compressor rated at 5 HP or higher with a minimum 60-gallon tank and 10+ CFM at 90 PSI provides the baseline airflow needed to run a membrane-type nitrogen generator efficiently.

Membrane generators separate nitrogen from compressed air by pushing it through hollow fiber bundles. The compressor feeds that generator, so its output must be clean, dry, and consistent. Units with oil-free pumps or integrated moisture separators give the best results. For this you'll want one of the Air Compressors that delivers at least 10 CFM continuously — undersized units cycle too frequently, overheat, and drop purity below 93%. Look for models with thermal overload protection and a duty cycle of 70% or higher for sustained job-site use.

What Supporting Tools and Accessories Do You Need?

Beyond the compressor and nitrogen generator, you need 5 specific items to complete a reliable fill station setup.

A nitrogen membrane generator or separator module rated to 95%+ purity at your target flow rate. A coalescing pre-filter to strip oil aerosols before they foul the membrane. A 50-foot rubber fill hose rated to 200 PSI with a locking chuck that fits both standard Schrader and large-bore valve stems. A calibrated digital tire gauge with 0.5 PSI resolution. Green valve stem caps — the industry-standard marker that tells anyone checking the tire it contains nitrogen, not regular air.

How Long Does Nitrogen Tire Inflation Setup Take and What Does It Cost?

A complete nitrogen fill station setup typically takes 4–8 hours for installation and first-use calibration, with equipment costs ranging from $2,500 to $8,000, depending on compressor size, generator purity rating, and whether you're filling 4 tires a week or 40.

How Long Does It Take to Fill One Heavy Equipment Tire With Nitrogen?

A single purge-and-fill cycle on a standard heavy equipment tire (35–50 gallon volume) takes 15–25 minutes with a properly sized compressor and generator.

Larger tires — such as rear tractor tires with 75–100 gallon volumes — can take 30–45 minutes per tire through 3 full purge cycles. A 10 CFM system processes roughly 4–6 standard tires per hour. Crews servicing 10+ machines should budget a full morning for initial conversion, then 5–10 minutes per tire for monthly top-offs once all tires hold 95%+ nitrogen.

Is It Cheaper to Set Up Your Own Nitrogen Station or Pay a Service?

Mobile nitrogen fill services charge $8–$15 per tire per visit; a fleet of 20+ tires crosses the break-even point for owning your own station within 12–18 months.

At $10 per tire and monthly top-offs, a 24-tire fleet costs $2,880 per year in service fees. A mid-range on-site system at $4,500 pays for itself in roughly 19 months — faster if you factor in reduced downtime from waiting on service trucks. Operations with fewer than 12 tires usually do better with quarterly service calls until the fleet grows.

What Mistakes Should You Avoid During Nitrogen Tire Inflation Setup?

Nitrogen tire inflation mistakes cluster into three categories: insufficient purging, undersized equipment, and skipped pressure monitoring. Each category produces a distinct outcome — from wasted nitrogen to premature tire failure.

What Is the Most Damaging Nitrogen Inflation Mistake?

Skipping the purge cycle and simply topping off air-filled tires with nitrogen is the most common and most wasteful error, leaving oxygen content above 15% and providing almost zero pressure-stability benefit.

Operators do this to save time, but a tire at 80% nitrogen behaves nearly the same as one at 78% (ambient air). The real performance gains — slower pressure loss, reduced oxidation of the inner liner, more consistent pressure across temperature swings — only appear above 93% purity. Every skipped purge cycle costs 3–5 minutes but preserves months of tire life.

What Other Avoidable Errors Should You Watch For?

Five specific errors recur on first-time nitrogen setups, each with a direct cost consequence.

Running a compressor without a coalescing filter contaminates the membrane within 200–400 hours, requiring a $300–$600 replacement. Using an analog gauge with 2 PSI graduations instead of a digital gauge rated to 0.5 PSI masks slow leaks until tires are 8–10 PSI low. Failing to mark filled tires with green caps leads to accidental air top-offs at roadside shops. Over-pressurizing by 5+ PSI above spec causes center-strip wear that cuts tread life by 20%. Storing the generator outdoors without a weather cover exposes electronics to moisture and shortens control board life to under 2 years.

Frequently Asked Questions About Nitrogen Tire Inflation

The most common nitrogen tire inflation questions cover purity requirements, fill timing, cost comparisons, fleet scaling, and maintenance intervals. The answers below resolve each with specific values.

What Purity Level Does Nitrogen Need to Be for Tire Inflation?

Nitrogen purity must reach 93% or higher inside the tire to produce measurable pressure-retention and temperature-stability benefits over standard compressed air.

Most membrane generators produce 95–99% purity at their rated flow. Running the generator above its maximum CFM rating drops purity — a unit rated for 5 CFM at 97% may only deliver 90% at 8 CFM. Always check the generator's purity-versus-flow chart and stay within the rated envelope. Tire shops that advertise "nitrogen fill" but skip purge cycles often deliver only 85–88% purity, which falls below the effective threshold.

When Is the Best Time to Convert a Fleet to Nitrogen?

Convert tires during seasonal maintenance windows — spring or fall — when machines are already pulled offline for fluid changes, blade sharpening, or attachment swaps.

Doing the conversion during active work hours costs 15–25 minutes of productive time per tire. Batching conversions across a full fleet during a scheduled down day eliminates that hit entirely. Cold-weather conversions (below 40°F) are fine for the tires but may slow compressor output by 10–15%, so allow extra fill time and confirm pressure readings once tires warm to operating temperature.

Should You Set Up Your Own Nitrogen Station or Hire a Mobile Service?

If your operation fills or tops off 15 or more tires per month, owning a station saves money within the first 12–18 months and eliminates scheduling delays.

Mobile services work well for fleets under 12 tires or operations in areas where service trucks can arrive same-day. Once you cross 15 tires per month, the per-tire cost drops from $8–$15 (service) to roughly $1.50–$3.00 (self-serve, amortized over 3 years). The real advantage isn't just cost — it's filling tires on your schedule, not waiting 1–3 days for a service window.

Can You Use Nitrogen Tire Inflation on Small Equipment Like Mowers and UTVs?

Yes — nitrogen inflation works on any pneumatic tire, including mower tires (15–25 PSI), UTV tires (8–15 PSI), and trailer tires (50–65 PSI), using the same purge-and-fill process.

Smaller tires fill faster — a standard zero-turn mower tire takes 3–5 minutes per purge cycle versus 8–12 minutes for a large tractor tire. The pressure-retention benefit is proportionally the same, but small tires have less volume, so any PSI loss represents a larger percentage drop. Checking small-tire pressure every 2 weeks instead of monthly catches slow leaks before they affect cut quality or handling.

How Often Do Nitrogen-Filled Tires Need to Be Topped Off?

Nitrogen-filled tires on heavy equipment typically need a top-off every 60–90 days, compared to every 30 days for standard air-filled tires.

The exact interval depends on tire condition, valve stem integrity, and operating temperatures. Tires running at sustained loads above 80% of their rated capacity lose pressure slightly faster due to increased sidewall flexion. A quick gauge check takes under 30 seconds per tire. Building a monthly walk-around into your maintenance routine catches any tire that's dropped more than 3 PSI before it affects performance or fuel consumption.
