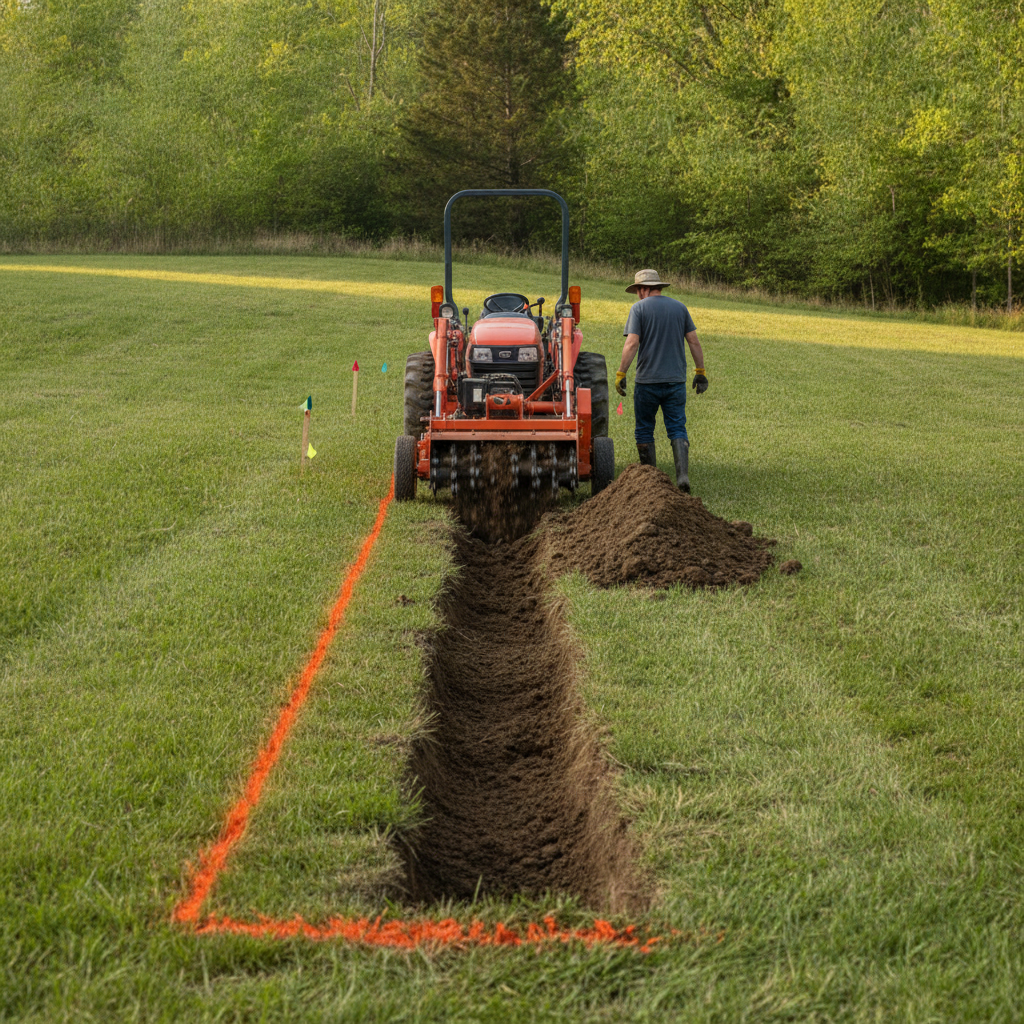

Trencher French Drain Install — Step-by-Step How-To Guide

Using a trencher for french drain installation cuts a 100-foot trench in 1 to 2 hours — compared to 8 to 12 hours of hand-digging. The process involves marking a drainage path, trenching to 18–24 inches deep at a 1-percent slope, lining the channel with landscape fabric, laying 4-inch perforated pipe, and backfilling with washed gravel. A towable or walk-behind trencher handles most residential jobs. Larger commercial runs call for a skid steer attachment. This guide covers equipment selection, trench dimensions, gravel calculations, and the exact steps to get water moving away from structures.

What Is a French Drain and Why Use a Trencher to Install One?

A french drain is a gravel-filled trench containing perforated pipe that collects and redirects subsurface water away from foundations, yards, and low-lying areas. A trencher accelerates the excavation phase from a full day of manual labor to under 2 hours for a typical 100-foot run.

How Does a French Drain Work to Redirect Water?

Groundwater enters through the gravel bed and perforated pipe, then flows downhill by gravity to a designated discharge point. The pipe sits on a bed of washed drainage gravel inside a landscape-fabric liner. Gravel filters sediment while the fabric prevents soil from clogging the pipe.

The minimum slope for proper flow is 1-percent grade — 1 inch of drop per 8 feet of trench length. Verify slope with a line level and string stretched between stakes at each end of the planned trench path.

Why Is a Trencher Faster Than Digging by Hand?

A mechanical trencher removes soil at 1 to 2 feet per minute in average conditions. Hand-digging a trench 18 inches deep and 12 inches wide through compacted soil or root zones takes 5 to 7 minutes per linear foot. A 100-foot french drain trench requires 8 to 12 hours of shovel work versus 1 to 2 hours with a trencher.

When Is a Trencher Not the Right Tool for a French Drain?

Heavy clay soils present a specific concern: the trencher chain can smear the trench walls, sealing off water infiltration. This effect is most pronounced in saturated montmorillonite clay. Mitigation techniques exist (covered below), but in extreme cases, hand-excavation with a flat spade produces cleaner wall surfaces.

Trenchers also underperform in rocky ground where cobbles exceed 4 inches in diameter. Frequent chain binding increases wear and slows progress to near hand-digging speeds.

Shop Trenchers for This Job

These 10 picks from our trenchers range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all trenchers.

Mini Skid Steer Trencher Attachment – Precision Trenching Up to 36 Inches Deep | Stinger Attachments$4,970Trencher Cart for Handheld Trencher | Universal Compatibility | Two-Wheel Design | Walk-Behind Conversion | Minitrencher$550Ripper Attachment for NorTrac Towable Trencher | 7-11/16 In. L x 10-11/16 In. W | Solid Iron Construction | NorTrac$167Skid Steer Trencher Attachment – Depth Control for Utility and Irrigation Work (up to 60" deep and 12" wide) | Stinger Attachments$8,235Skid Steer Trencher Attachment – Precision Depth Control for Utility & Irrigation Work (up to 36" deep, and 8" wide) | Stinger Attachments$6,085Trencher for Skid Steer | 48" Capacity | 15" Auger | Star Industries$9,457Trencher Edger for Landscaping | 7" Depth | Honda GX-196cc | Brave$4,862Brave Pro Trencher 18-In. Shark Chain GX160 for Utility Installation | 18" Deep | 3" Wide | Honda Engine | Brave$3,72810" Trencher Bucket Attachment for Towable Trencher | Iron Construction | 15 HP Compatible | NorTrac$260Brave Pro 5-In. Bedmaster Rotor Trencher for Walk-Behind | 9-Inch Depth | Honda GX270 | Brave$4,990

How Deep and Wide Does a French Drain Trench Need to Be?

Standard residential french drains require a trench 18 to 24 inches deep and at least 12 inches wide. Severe water table issues call for depths up to 36 inches. These dimensions provide adequate gravel bed above and below the pipe while allowing full water capture across the drain's collection zone.

How Deep Do French Drains Go?

Most residential french drains sit 18 to 24 inches below grade. Foundation perimeter drains extend to the depth of the footing — typically 24 to 36 inches. The pipe invert (bottom of the pipe) sits on 2 to 3 inches of gravel, with 6 to 8 inches of gravel above the pipe crown.

How Wide of a Trench Does a Walk-Behind Trencher Make?

Walk-behind trenchers cut 3 to 6 inches wide in a single pass. French drains require a minimum 12-inch width. Achieve the full width by making 2 to 4 parallel passes, offsetting the trencher by the chain width each time. Some towable units accept wider chain assemblies that cut up to 8 inches in one pass, reducing the number of required passes.

How Do You Determine the Right Slope for Drainage?

Set the slope at a minimum of 1-percent grade: 1 inch of elevation drop per 8 feet of run. Drive a stake at the trench start and end. Tie a string between stakes at the same height, hang a line level at the midpoint, and measure the difference. Adjust the downstream stake until the drop equals or exceeds the 1-percent minimum across the total length.

What Type of Trencher Works Best for a French Drain?

The right trencher depends on trench length, site access, and available tow or carrier equipment. Residential french drains under 200 feet favor towable units. Commercial-scale drainage projects benefit from skid steer attachments. Short runs in tight spaces call for handheld models with supplemental hand work.

When Do You Use a Towable Trencher for French Drains?

A towable trencher is the most practical option for residential and mid-size french drain projects up to several hundred feet. These units tow behind a truck or ATV, require no separate carrier equipment, and dig to depths of 24 to 36 inches depending on the model. Landscapers and property owners running standard 18-to-24-inch french drains find that Towable Trencher units match the job requirements without the cost of a full excavation rig.

How Do Skid Steer Trencher Attachments Handle Larger Jobs?

Skid steer trencher attachments cut deeper and faster than walk-behind or towable units. Contractors handling multiple drainage installations per week or trenching runs exceeding 300 feet benefit from the hydraulic power and digging speed of Skid Steer Trenchers. These attachments mount directly to the skid steer quick-attach plate and reach depths of 36 to 48 inches — useful when a skid steer is already on site for grading or backfill work.

Can a Handheld Trencher Dig a French Drain?

Handheld Trenchers handle short french drain runs in confined spaces such as along a foundation wall or in a narrow side yard where larger equipment cannot fit. Most handheld models cut 2 to 4 inches wide and 12 to 18 inches deep. Reaching the full 18-to-24-inch depth and 12-inch width of a standard french drain requires supplemental hand-digging with a trenching shovel to widen and deepen the cut.

How Do You Install a French Drain With a Trencher Step by Step?

Installing a french drain with a trencher follows 7 steps over 4 to 8 hours for a 100-foot residential run, including site prep, trenching, pipe placement, and backfill. Each step has a measurable completion point before proceeding to the next.

What Are the Steps to Trench and Install a French Drain?

The full process requires 7 steps from utility marking through final backfill.

1. Call 811 for utility marking. Contact the national 811 service 48 to 72 hours before digging. Wait for all utility companies to mark buried lines before trenching. Do not proceed until all lines carry a confirmed mark or an all-clear notice.
2. Mark the trench path. Drive wooden stakes every 8 feet along the planned drain route. Tie mason's line between stakes and verify slope with a line level. Confirm a minimum 1-inch drop per 8 feet of run.
3. Set the trencher cutting depth. Adjust the trencher boom or chain depth stop to 18 to 24 inches, matching the target french drain depth. Lock the depth setting before starting the engine.
4. Excavate the trench. Run the trencher along the marked path at a steady walking pace of 1 to 2 feet per minute. Make parallel passes to achieve a minimum 12-inch trench width. Pile excavated soil on one side of the trench for later backfill use.
5. Line the trench with landscape fabric. Lay non-woven geotextile landscape fabric along the full length of the trench. Drape the fabric up both walls with 6 to 8 inches of excess on each side to fold over the gravel later.
6. Place pipe and gravel bedding. Spread 2 to 3 inches of washed drainage gravel on the fabric-lined trench bottom. Lay 4-inch perforated pipe (corrugated or rigid PVC) with holes facing downward on top of the gravel bed. Fill gravel around and over the pipe until gravel reaches 4 to 6 inches below grade.
7. Fold fabric and backfill. Fold the landscape fabric flaps over the gravel to create a complete sediment barrier. Cover the fabric with 4 to 6 inches of topsoil or decorative stone to restore the surface grade.

What Mistakes Cause French Drain Failure?

The most common mistake is installing the pipe with perforations facing upward instead of downward. Upward-facing holes allow sediment to enter the pipe from above before water reaches the collection zone. Orienting holes downward forces water to rise through the gravel bed, filtering sediment before entry.

• Insufficient slope — water pools in the pipe. Verify 1-percent grade with a line level before laying pipe.
• Skipping landscape fabric — soil migrates into gravel within 1 to 2 years and clogs the drain. Wrap the entire gravel column in non-woven geotextile.
• Trench wall smearing in clay — sealed walls block water infiltration. Score walls with a flat spade or rake teeth after trenching to break the glazed surface.

What Safety Practices Apply When Trenching for a French Drain?

Trencher safety requires 4 controls: utility clearance verification, proper PPE, stable ground conditions, and correct operating posture. Each control prevents a specific injury or equipment failure during the trenching process.

What Are the Critical Safety Requirements?

Confirm all buried utilities are marked before starting the trencher engine. Striking a gas line or electrical conduit creates immediate life-threatening conditions. Maintain a minimum 24-inch clearance from any marked utility line.

• Wear steel-toed boots, safety glasses, hearing protection, and heavy-duty gloves — a trencher chain throws debris at high velocity and operates at 90 to 100 dB.
• Keep hands and feet clear of the trencher chain at all times — contact with a moving chain causes severe lacerations or amputations.
• Do not trench on slopes exceeding 15 degrees without a spotter — the machine can slide or tip on wet or loose soil.

What Are the Warning Signs During Operation?

A sudden increase in engine load or chain stalling indicates contact with a solid obstruction — rock, concrete, or an unmarked utility. Stop the trencher immediately and inspect the trench bottom visually before resuming. Unusual vibration or chain wobble indicates a worn or damaged chain tooth that requires replacement before continued operation.

How Do You Maintain the Trencher After Use?

Post-use trencher maintenance involves 4 steps: chain inspection, debris removal, lubrication, and storage preparation. Skipping any step shortens chain life and causes unexpected failure on the next job.

What Post-Use Maintenance Is Required?

Clean all soil and debris from the chain, boom, and crumb tray immediately after each use. Compacted clay left on the chain accelerates corrosion. Inspect each cutting tooth for chips, cracks, or excessive wear. Replace any tooth worn past the manufacturer's minimum height specification. Apply chain lubricant or bar oil to the full chain length before storage.

How Often Do You Inspect Trencher Components?

Inspect the chain, sprocket, and boom guide before every use. Check chain tension per the unit's specification — typical deflection is 1/4 to 1/2 inch at the midpoint of the boom. Inspect hydraulic lines on towable and skid steer models for cracks, abrasion, or leaks at 50-hour intervals. Replace worn sprockets every 2 to 3 chain replacements to prevent accelerated new-chain wear.

Frequently Asked Questions About Using a Trencher for French Drains

The most common trencher french drain questions cover trench dimensions, gravel volume, equipment sizing, soil conditions, and access limitations. The answers below resolve each with specific numbers and techniques.

How Deep Do French Drains Go?

Standard residential french drains range from 18 to 24 inches deep. Foundation perimeter drains extend to 24 to 36 inches to reach footing depth.

The target depth depends on the water problem. Surface runoff collection requires 18 inches. Subsurface water table control calls for 24 inches or deeper. Measure the depth of standing water or saturated soil during a rain event to set the minimum drain depth. The pipe invert sits on 2 to 3 inches of gravel, so the trench bottom extends 2 to 3 inches below the target pipe elevation.

How Much Gravel Do You Need for a 100-Foot French Drain?

A 100-foot french drain at 12 inches wide and 18 inches deep requires 2.5 to 3 tons (1.5 to 2 cubic yards) of washed drainage gravel.

Use 3/4-inch to 1-1/2-inch washed stone — not pea gravel, which migrates through fabric pores over time. Order 10 percent extra to account for settling and uneven trench width. For a 24-inch-deep trench, increase the estimate to 3.5 to 4 tons (2 to 2.5 cubic yards) per 100 feet.

How Do You Prevent Trench Wall Smearing in Clay Soil?

Score the trench walls with a flat spade, garden rake, or pick after trenching to break the glazed clay surface and restore water permeability.

Clay smearing occurs when the trencher chain compresses and polishes the trench sidewall, creating a seal that blocks water infiltration. After scoring, place 1 to 2 inches of coarse aggregate (3/4-inch to 1-inch stone) directly against the scored walls before laying the landscape fabric. This aggregate layer creates permanent drainage channels even if minor re-sealing occurs over time.

Will a Gravel Trench Help With Drainage Without Pipe?

A gravel-only trench (no pipe) provides limited drainage for minor surface water issues across short distances under 25 feet.

Without a pipe, water moves through the gravel bed by gravity alone. Flow rate drops significantly compared to a piped system because gravel creates friction against water movement. For runs exceeding 25 feet, a 4-inch perforated pipe carries 10 to 20 times more water volume per hour than gravel alone. A gravel-only trench also clogs faster without the pipe acting as a primary flow channel. Install pipe for any french drain expected to manage recurring subsurface water.

Can You Use a Mini Trencher for a French Drain in a Tight Backyard?

A handheld or walk-behind mini trencher fits through 36-inch gates and works in side yards as narrow as 4 feet, making it the go-to option for restricted-access french drain work.

Mini trenchers cut 2 to 6 inches wide and 12 to 18 inches deep. Reaching the full 12-inch width and 18-to-24-inch depth of a standard french drain requires multiple passes and some hand work with a trenching shovel. For larger properties or longer drainage runs where a skid steer is already on site, Skid Steer Trenchers eliminate the need for manual widening and reach 36-to-48-inch depths in a single pass.
