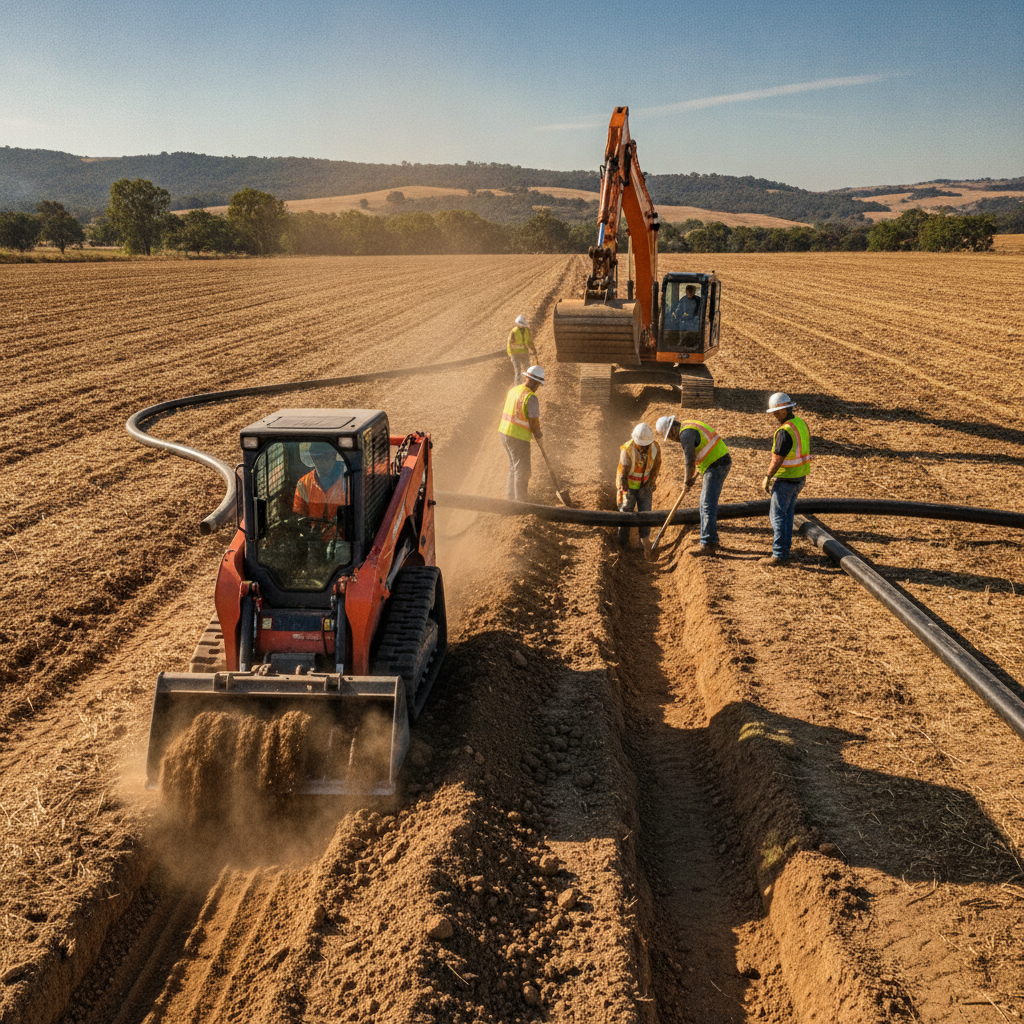

How to Tackle Trench Digging for Irrigation Lines

Trench digging for irrigation lines is one of those jobs that looks simple until you're knee-deep in rocky clay with a shovel that's getting you nowhere. Whether you're a contractor installing a new zone system, a farm owner running lines to a pivot, or a landscaper retrofitting a residential property, this guide walks you through every phase — site assessment, tool selection, execution, and backfill. By the end, you'll know exact depths, realistic timelines, equipment specs, and the mistakes that turn a one-day job into a week-long headache.

What Is Trench Digging for Irrigation and When Do You Need It?

Trench digging for irrigation is the process of cutting narrow channels — typically 6 to 18 inches deep and 3 to 6 inches wide — into soil to bury water supply lines below the frost line or mower-blade depth. The work applies to residential sprinkler installs, agricultural drip systems, and large-acreage pivot feeds alike.

Who Needs to Dig Irrigation Trenches and What Triggers the Job?

Contractors bidding new-construction landscape packages, farm owners expanding row-crop acreage, and ranch owners connecting stock tanks all face digging a trench for waterline burial at some point each season.

The trigger is usually a new planting, a zone expansion, or a freeze-damaged line that needs rerouting. Spring and early fall are peak windows because soil moisture sits between 10% and 20% — soft enough to cut, firm enough to hold shape. Frozen ground in winter and hardpan clay in late summer both slow production by 40% or more and increase equipment wear.

What Happens If You Skip or Delay Trench Digging?

Shallow-buried or surface-laid irrigation lines fail within one season — UV breaks down poly pipe in 6 to 12 months, and mower blades cut through anything less than 4 inches below grade.

Replacing a severed mainline mid-season costs $400 to $1,200 in parts and labor, plus the crop or turf loss from days without water. On a 10-acre hay field, 5 days without irrigation during a July dry spell can reduce yield by 15% to 20%. The trench is cheap insurance against those numbers.

What Steps Should You Follow to Dig an Irrigation Trench?

The trench digging workflow follows four phases — utility locate, layout marking, cutting, and backfill — and each phase eliminates a specific failure mode before you move to the next. Skipping even one phase multiplies rework time by a factor of 2 to 3.

How Do You Locate Existing Utilities Before Digging a Trench?

Call 811 at least 48 hours before any excavation; the service marks gas, electric, telecom, and water lines within 18 inches of their actual position at no charge.

Private lines — septic laterals, well casings, and older un-mapped electric — won't appear on the 811 locate. Use a handheld electromagnetic locator (around $200 to $600 to rent for a day) to sweep anything the public service misses. Hitting a gas line triggers a $5,000 to $25,000 repair bill and potential OSHA penalties, so this step is non-negotiable.

How Do You Mark and Measure the Trench Layout?

Drive wooden stakes every 25 feet along the planned run, then connect them with mason line pulled taut 2 inches above grade to visualize the path and catch elevation changes.

Measure total linear footage and mark any turns; each 90-degree elbow adds roughly 2 to 3 minutes of cutting time and requires a wider pocket — 8 to 10 inches — so fittings seat properly. For residential zones, runs average 100 to 300 linear feet. Agricultural mainlines commonly stretch 500 to 2,000 feet. Knowing your footage determines equipment choice, fuel needs, and time budget.

How Do You Backfill and Compact the Trench Correctly?

Backfill in 4-inch lifts, tamping each layer with a hand tamper or plate compactor to reach 90% Proctor density — loose backfill settles 2 to 3 inches over 6 months and leaves visible depressions.

Remove any rocks larger than 2 inches from the fill material; sharp edges pressed against poly or PVC pipe under soil load create stress points that crack within 1 to 3 seasons. Crown the trench surface about 1 inch above surrounding grade to account for natural settling. Water the backfill lightly — 10 to 15 minutes with a garden hose — to accelerate initial compaction without creating mud.

What Tools and Equipment Do You Need for Trench Digging?

Irrigation trench work requires three equipment categories — a primary cutting machine, pipe-laying accessories, and measuring and safety tools. Each category addresses a different phase; substituting hand labor for mechanical cutting multiplies project time by 5 to 8 on runs over 50 feet.

What Primary Equipment Makes Trench Digging Practical?

A dedicated trenching machine outperforms shovels, mattocks, and rented walk-behind units on any run longer than 50 linear feet by cutting a clean, consistent channel at 150 to 300 feet per hour.

Digging a trench by hand works for short stub-outs — say, 10 to 20 feet from a valve box to a head — but the labor cost per foot climbs fast. A flat-blade shovel moves about 8 to 12 linear feet per hour in average loam, and rocky or clay soils cut that rate in half. For anything beyond a quick repair, you'll want one of the Handheld Trenchers rated at 5 HP or above with a cutting depth of at least 12 inches and a chain width of 3 to 4 inches. That spec handles standard 1-inch poly pipe burial below mower depth without over-excavating, and the portability means you can walk it through gates and around mature trees that a ride-on machine can't reach.

What Supporting Tools and Accessories Do You Need?

Beyond the trencher, five supporting items keep the job moving without stops for improvisation.

A flat-blade spade cleans trench edges and scoops debris from the channel bottom. A torpedo level (9-inch minimum) checks grade on the pipe bed — irrigation lines need a minimum 1% slope toward drain valves, which equals roughly 1/8 inch per foot. Pipe cutters sized for your material — ratchet-style for poly, saw-tooth for PVC — prevent jagged cuts that leak at fittings. Knee pads rated for hard surfaces save your joints during pipe-laying stretches. Marking paint (inverted-tip cans) lets you flag valve locations and tee junctions before backfill buries them.

How Long Does Trench Digging Take and What Does It Cost?

Irrigation trench work typically takes 1 to 4 hours per 200 linear feet and costs $0.50 to $2.50 per linear foot for equipment and labor, with soil type and trench depth driving the spread more than any other variable.

How Much Time Should You Budget per 100 Feet of Trench?

In sandy loam at 8-inch depth, a handheld trencher cuts 100 feet in 20 to 30 minutes; heavy clay at 14-inch depth stretches that same distance to 50 to 70 minutes.

Add 10 to 15 minutes per 100 feet for layout, utility checking, and pipe placement. Backfill and compaction run another 15 to 25 minutes per 100 feet depending on whether you tamp by hand or use a plate compactor. A realistic full-cycle rate for a single operator — mark, cut, lay pipe, backfill — is 80 to 120 linear feet per hour on average residential soil. Farm fields with fewer obstacles push that number closer to 150 feet per hour.

Is It Cheaper to Dig Your Own Trench or Hire a Contractor?

Hiring a trenching contractor costs $2.50 to $6.00 per linear foot installed; owning a handheld trencher brings per-foot cost down to $0.30 to $0.75 after the machine is paid off — typically within 3 to 5 jobs.

A 500-foot residential irrigation install quoted at $4 per foot totals $2,000 in labor alone. The same job done with your own trencher, purchased in the $300 to $800 range depending on chain type and engine size, costs roughly $40 in fuel and wear items. If you run 3 or more trenching jobs per year — new installs, repairs, drainage add-ons — ownership breaks even fast and keeps your schedule free of subcontractor delays.

What Mistakes Should You Avoid When Digging Irrigation Trenches?

Trench digging mistakes cluster into three categories — wrong depth, skipped utility locate, and poor backfill technique. Each produces a distinct failure: freeze damage, severed gas or electric lines, or post-settle pipe stress fractures.

What Is the Most Damaging Trench Digging Mistake?

Digging too shallow — less than 6 inches below the local frost line — is the single most expensive error because freeze-thaw cycles crack fittings and split pipe, requiring full re-excavation in spring.

Frost-line depth varies from 6 inches in the Deep South to 48 inches in the northern Plains. Many first-timers dig to only 8 or 10 inches assuming that's deep enough everywhere, then face burst lines after the first hard freeze. Check your county's building code or USDA frost-depth map before cutting a single foot. Adding 2 inches of depth costs 5 to 10 extra minutes per 100 feet — a minor investment against a $1,500 spring repair.

What Other Avoidable Errors Lead to Rework?

Five recurring errors account for 80% of irrigation trench rework on residential and agricultural sites.

First, skipping the 811 call and hitting a fiber optic line — repair bills average $3,000 to $10,000. Second, using a trench width that's too tight for the pipe and fittings; 1-inch poly pipe with barbed couplings needs at least a 3-inch-wide channel. Third, laying pipe on an uneven trench bottom creates low spots where sediment collects and restricts flow by 15% to 25% over 2 years. Fourth, backfilling with excavated rock instead of screened fill damages pipe walls under compaction loads. Fifth, failing to pressure-test the line at 40 to 60 PSI for 30 minutes before backfilling — a leak buried under 12 inches of soil takes 4 times longer to find and fix than one caught at the surface.

Frequently Asked Questions About Trench Digging

The most common trench digging questions cover depth requirements, timing, cost breakdowns, scaling up from hand tools, and long-term maintenance. The answers below give specific values for each.

How Deep Should You Dig a Trench for Irrigation Lines?

Bury irrigation lines a minimum of 2 inches below your local frost line, with an absolute minimum of 8 inches in frost-free zones to stay below mower blades and foot traffic compaction.

Residential sprinkler laterals in USDA zones 7 through 10 typically sit at 8 to 12 inches. Mainlines feeding agricultural pivots in zones 4 through 6 need 18 to 36 inches depending on county frost tables. Your local building department or cooperative extension office can confirm the exact number for your area — don't guess, because even a 2-inch miscalculation means digging the whole run again after the first winter.

What Is the Best Time of Year for Digging a Trench?

Early spring — once soil temperatures reach 45°F at 4-inch depth — and early fall before the first frost offer the best combination of workable soil moisture and mild weather.

Soil between 10% and 20% moisture content cuts cleanly and holds trench walls without slumping. Mid-summer hardpan in arid regions and frozen ground in winter both slow production and accelerate chain wear on mechanical trenchers. If you're forced to dig in dry clay, pre-soaking the trench line with a sprinkler for 2 to 3 hours the day before softens the top 6 to 8 inches and cuts machine strain by roughly 30%.

Should You Dig Your Own Irrigation Trench or Hire It Out?

DIY makes financial sense for runs under 500 feet with no major obstacles, especially if you already own or plan to buy a handheld trencher; hire out for runs over 1,000 feet in rocky or root-dense soil.

A contractor with a ride-on trencher cuts 1,000 feet of rocky ground in 3 to 4 hours — the same job by hand could take 3 full days. At $4 per foot, that 1,000-foot hired job costs $4,000. If you own your own equipment and the soil is workable loam, you'll spend $60 to $100 in fuel and consumables for the same distance. The break-even point for equipment ownership sits at roughly 1,500 cumulative linear feet per year for most operations.

Can You Dig a Long Irrigation Trench With a Handheld Machine?

A handheld trencher handles runs up to 500 feet per session comfortably; beyond that, operator fatigue becomes the limiting factor more than machine capability.

Most 5 HP to 10 HP handheld units burn through 0.3 to 0.5 gallons of fuel per hour and run continuously for 2 to 3 hours on a single tank. That translates to 400 to 900 linear feet per tank depending on soil density. For runs exceeding 500 feet, plan a 15-minute break every 45 minutes to rest your grip and let the engine cool. Alternating operators, if your crew allows, doubles daily output without increasing per-foot cost.

How Often Do Irrigation Trenches Need Re-Digging or Maintenance?

A properly dug and backfilled irrigation trench should not need re-excavation for 15 to 25 years if the pipe material, burial depth, and compaction were correct at installation.

The main triggers for re-opening are tree-root intrusion (roots can crack PVC joints within 5 to 7 years if planted within 10 feet of the line), frost heave from shallow burial, and mechanical damage from post-install excavation like fence-post drilling. Annual maintenance is limited to flushing sediment from line ends and checking pressure at each zone valve. A 5-minute pressure test each spring — holding 50 PSI for 10 minutes — catches micro-leaks before they erode backfill and create sinkholes.
