Gas Water Pumps — How to Choose, Use, and Maintain Them

Gas water pumps use a gasoline engine to spin a centrifugal impeller that draws water through an inlet and pushes it out a discharge port at rates from 30 to 500-plus GPM. Setting up and priming a gas water pump takes 5 to 10 minutes with basic hand tools, a suction hose, a discharge hose, and clean fuel. This guide covers how the pump works, which type fits your application — irrigation, dewatering, or tank transfer — and the maintenance steps that prevent carburetor failure, impeller wear, and unexpected downtime.

How Does a Gas Water Pump Work?

A gas water pump converts engine rotation into water movement using a centrifugal impeller housed inside a volute casing. The engine spins the impeller at 3,000 to 3,600 RPM, creating a pressure differential that pulls water through the suction port and forces it out the discharge port.

What Are the Core Components Inside a Gas Water Pump?

Every gas water pump contains five primary components: a gasoline engine, a centrifugal impeller, a volute casing, a mechanical shaft seal, and inlet/outlet ports. The engine drives the impeller via a direct-coupled crankshaft.

• Gasoline engine — typically 3 to 13 HP for residential and commercial units
• Centrifugal impeller — cast iron or aluminum, sized to match target flow rate
• Volute casing — converts impeller velocity into pressure at the discharge port
• Mechanical seal — prevents water from leaking along the shaft into the engine housing

How Does Water Move Through a Centrifugal Impeller?

Water enters the impeller eye at the center and accelerates outward along curved vanes. The spinning vanes push water toward the volute wall, where the expanding casing shape converts velocity into static pressure. This pressure drives water through the discharge hose.

Most gas water pumps require manual priming before first use. Fill the pump casing and suction hose with water to eliminate air. A dry impeller spins without creating suction and risks seal damage within 30 to 60 seconds of operation.

What Role Does Engine RPM Play in Flow Rate and Pressure?

Higher engine RPM increases both flow rate and discharge pressure proportionally. A pump rated at 160 GPM at full throttle (3,600 RPM) delivers roughly 80 GPM at half throttle. Reducing RPM also lowers total dynamic head (TDH) — the combined vertical lift and friction loss the pump overcomes.

Total dynamic head is the true performance metric. TDH accounts for vertical discharge height, vertical suction lift, and friction losses in hoses and fittings. A pump rated at 100 feet of TDH loses effective flow as actual head increases — GPM alone does not tell the full story.

Shop Water Pumps for This Job

These 10 picks from our water pumps range cover the equipment this job calls for. Check each product's specs against your machine and job before ordering. Browse all water pumps.

3 Inch Semi-Trash Water Pump for Dewatering | 147 GPM | 5.5 HP Honda | Brave$6494 Inch Semi-Trash Water Pump for Dewatering | 259 GPM | Honda GX160 Engine | Brave$7503" Transfer Pump Hose Kit for Water Pumps | 70' Total Length | 65 PSI | Brave$3042" Transfer Pump Hose Kit for Water Pumps | 70' Total Length | 65 PSI | Heavy-Duty PVC | Brave$1603" Trash Water Pump for Commercial Applications | 290 GPM | Honda GX200 Engine | Brave$1,3223" Trash Water Pump for Commercial Use | 390 GPM | 1.5" Solids Handling | Brave$2,1403" Trash Water Pump for Commercial Use | 290 GPM | Honda GX200 | Self-Priming | Brave$1,4084 Inch Trash Water Pump for Construction Dewatering | 272 GPM | Honda GX200 Engine | Brave$8993 Inch Trash Water Pump for Dewatering | 180 GPM | Honda GX200 Engine | Brave$7992 In. Trash Pump for Construction Applications | 183 GPM | 212cc OHV Engine | Extended Run | Powerhorse$500

What Are Gas Water Pumps Used For?

Gas water pumps serve three primary applications: irrigation, jobsite dewatering, and water transfer between tanks or holding ponds. Each application demands a different impeller type, flow rate, and debris-handling capacity.

When Do You Use a Gas Water Pump for Irrigation?

Gas water pumps feed irrigation lines from ponds, creeks, or wells where electric power is unavailable. A 2-inch clean-water pump produces 30 to 80 GPM — sufficient for drip systems and small-acreage sprinkler setups. Larger 3-inch models reach 150 to 250 GPM for center-pivot or flood irrigation.

Suction lift limits apply to every centrifugal pump. Most gas water pumps max out at 25 to 26 feet of vertical suction lift. Position the pump as close to the water source as possible and keep the suction hose short and straight to minimize losses.

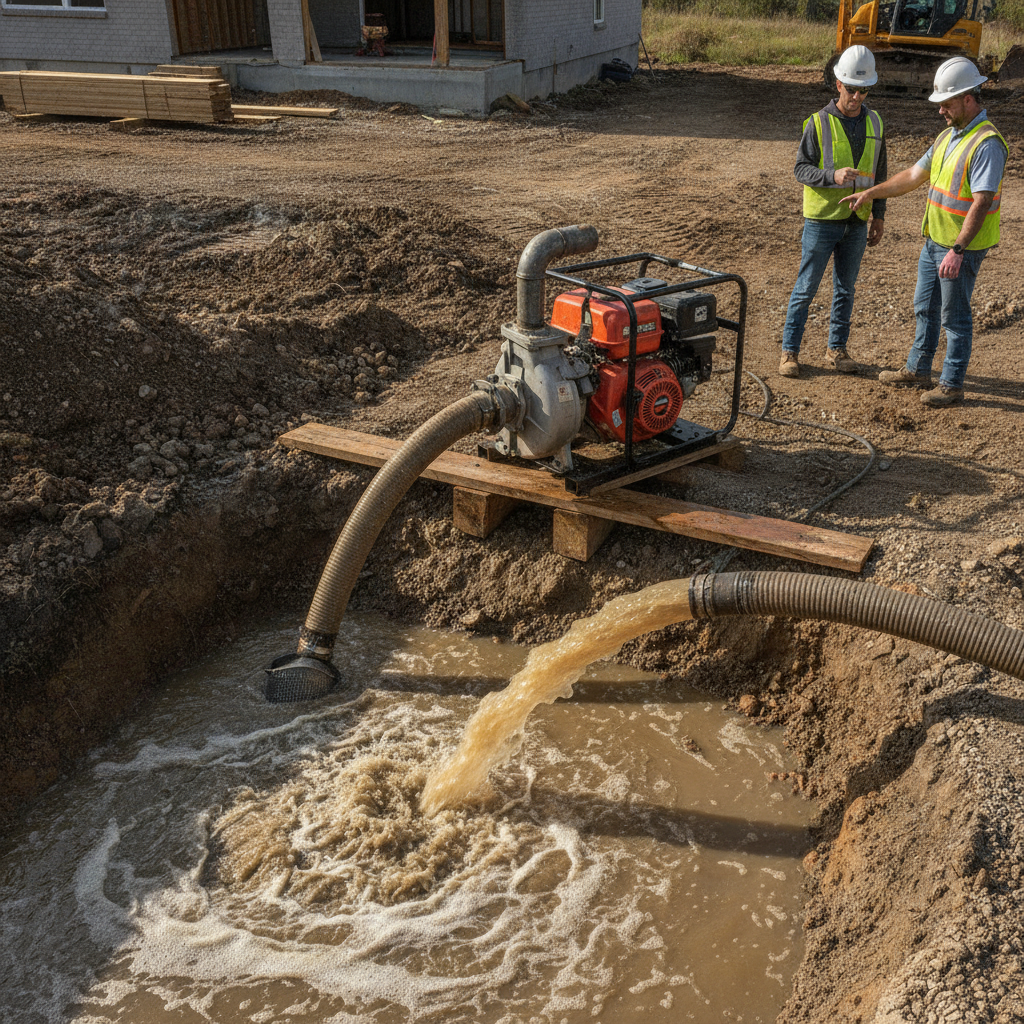

What Jobsite and Emergency Dewatering Tasks Require a Gas Pump?

Construction trenches, flooded basements, and storm-damaged properties all require portable dewatering. When floodwater or construction runoff carries mud, gravel, or small debris, a dedicated Trash Pump handles solids that would clog a standard clean-water impeller.

Trash pump impellers feature wider vane channels and hardened materials to pass solids up to 1 to 3 inches in diameter. Semi-trash pumps handle soft solids and small particulate up to 0.5 to 0.75 inches. Clean-water pumps tolerate no solids larger than fine sand.

Do You Need a Water Pump for Your Water Tank or Storage System?

Gravity feed works only when the source sits higher than the destination and pressure demands are low. A tank elevated 10 feet above the discharge point produces roughly 4.3 PSI — often insufficient for hose nozzles or sprinkler heads that require 20 to 40 PSI.

For moving water between tanks, cisterns, or holding ponds without heavy debris, a Transfer Pump offers a lighter, more fuel-efficient option than a full-size trash unit. Transfer pumps run at lower RPM, burn less fuel per hour, and weigh 30 to 50 pounds less than equivalent trash models.

How Do You Choose the Right Gas Water Pump for Your Application?

Selecting the right gas water pump depends on three variables: required flow rate, total dynamic head, and the type of debris in the water. Match these three specs to the pump's rated performance curve before purchasing.

What Pump Size and Flow Rate Match Common Residential and Farm Tasks?

A 2-inch pump producing 30 to 80 GPM handles garden irrigation, small pond filling, and light tank transfers. A 3-inch pump at 150 to 250 GPM suits larger irrigation runs, livestock water systems, and moderate dewatering. A 4-inch commercial unit at 350 to 500-plus GPM handles heavy construction dewatering and large-scale flood response.

Browsing the full Water Pumps collection lets you compare clean-water, semi-trash, and high-pressure models side by side before narrowing your choice.

How Do Inlet and Outlet Diameter Affect Pump Performance?

Larger inlet and outlet diameters reduce friction loss and increase achievable flow rate. A 3-inch pump with 3-inch hoses moves more water at lower engine RPM than a 2-inch pump working at full throttle to achieve the same GPM. Never reduce suction hose diameter below the pump inlet size — doing so restricts flow and causes cavitation.

What Engine Horsepower Range Fits Your Task?

Small 2-inch pumps run on 3 to 5.5 HP engines. Mid-range 3-inch pumps use 5.5 to 9 HP. Heavy-duty 4-inch trash and dewatering pumps require 9 to 13 HP. Higher horsepower delivers greater TDH and flow at the cost of increased fuel consumption and weight.

Runtime per tank varies by engine size and throttle setting. A typical 3-inch pump with a 1-gallon fuel tank runs 1 to 2 hours at full throttle. A 4-inch pump with a 1.6-gallon tank runs 1.5 to 3 hours at moderate load.

How Do Gas Water Pumps Compare to Electric and Diesel Alternatives?

Gas water pumps balance portability, cost, and power output differently than electric or diesel models. Each fuel type has distinct advantages depending on runtime demands, noise tolerance, and access to utility power.

What Are the Downsides of Using a Gas Water Pump?

Gas engines produce 85 to 95 dB during operation — loud enough to require hearing protection and potentially disruptive in residential areas. Gas pumps also demand more frequent maintenance than electric models: oil changes every 50 to 100 hours, spark plug replacement every 100 to 200 hours, and carburetor cleaning after any extended storage.

• Noise output of 85 to 95 dB — hearing protection required above 85 dB per OSHA standards
• Ethanol-blended fuel (E10, E15) degrades carburetor gaskets and jets during seasonal storage
• Exhaust emissions prevent indoor use without forced ventilation

When Does a Gas Pump Outperform an Electric Pump?

Gas pumps outperform electric models at remote sites with no grid power and in applications requiring high flow rates above 100 GPM. Electric pumps top out at lower GPM for portable units and require a generator on remote sites — adding weight, cost, and complexity. Diesel pumps offer longer runtime and better fuel economy for continuous 8-plus-hour operation but cost 40% to 60% more upfront than equivalent gas models.

What Maintenance Steps Keep a Gas Water Pump Running Reliably?

Post-use gas water pump maintenance involves four steps: draining residual water, flushing the volute, servicing the engine, and preparing the pump for storage. Skipping any step shortens pump life and causes carburetor or seal failure.

How Often Do You Service the Engine and Impeller?

Change engine oil every 50 to 100 operating hours or at the start of each season. Replace the spark plug every 100 to 200 hours. Inspect the impeller and volute for erosion, pitting, or cracks every 200 hours or after pumping abrasive water.

1. Drain residual water. Open the drain plug on the volute and tilt the pump to remove all standing water. Trapped water freezes and cracks the casing in cold climates.
2. Flush the pump casing. Run 2 to 3 gallons of clean water through the pump to clear sediment, sand, and debris from the impeller vanes and seal area.
3. Check the mechanical seal. Inspect the shaft seal for leaks or scoring. Replace the seal immediately if water drips along the shaft during operation.
4. Change the engine oil. Drain used oil while the engine is warm. Refill with the weight specified in the pump manual — typically 10W-30 for temperatures above 32°F.
5. Inspect the air filter. Remove the air filter element and clean or replace it. A clogged filter reduces engine power by 10% to 15% and increases fuel consumption.

What Fuel and Storage Practices Prevent Carburetor Problems?

Use ethanol-free gasoline or add fuel stabilizer to every tank of E10 or E15 fuel. Ethanol attracts moisture and forms gum deposits inside carburetor jets within 30 to 60 days of inactivity. Run the engine dry or close the fuel valve and let the carburetor empty before storing the pump for more than 2 weeks.

Store the pump in a dry, covered area with the fuel cap vented. Remove the spark plug and add 2 to 3 drops of engine oil into the cylinder bore. Pull the recoil starter slowly to coat the cylinder walls. Reinstall the spark plug finger-tight.

Frequently Asked Questions About Gas Water Pumps

The most common gas water pump questions cover working principles, tank applications, pricing, irrigation selection, and operational drawbacks. The answers below resolve each with specific numbers and direct guidance.

How Does a Gas Water Pump Work in Simple Terms?

A gasoline engine spins an impeller inside a sealed casing, creating suction that pulls water in through an inlet and pushes it out a discharge port at pressures up to 60 to 130 PSI depending on pump size.

The impeller functions like a high-speed fan blade for water. Fill the casing with water before starting (priming), then start the engine. The spinning impeller accelerates water outward from its center, and the casing shape converts that velocity into pressure that drives water through the discharge hose to the destination.

Do You Need a Water Pump for Your Water Tank?

A pump is necessary whenever the tank sits at the same elevation as or lower than the discharge point, or when the application requires more than 5 PSI of pressure.

Gravity feed from a tank elevated 10 feet produces only 4.3 PSI — too low for most sprinkler heads, hose nozzles, or drip systems with pressure regulators set above 10 PSI. A gas water pump boosts pressure to 20 to 60 PSI and delivers consistent flow regardless of tank level. For simple tank-to-tank movement, a small transfer pump at 3 to 5 HP provides adequate flow at lower fuel cost.

How Much Does a 40 HP Water Pump Cost?

A 40 HP gas water pump typically costs $3,000 to $8,000 depending on flow rating, construction materials, and impeller type (clean-water versus trash).

Pumps at this horsepower level produce 500 to 1,500 GPM and serve commercial dewatering, mining support, and municipal flood response. Frame-mounted and trailer-mounted configurations add $500 to $2,000 to the base price. Smaller pumps in the 5 to 13 HP range cost $250 to $1,500 and cover the vast majority of residential, agricultural, and contractor applications.

What Type of Pump Is Best for Irrigation?

A clean-water centrifugal pump with a 2-inch or 3-inch outlet provides the best combination of pressure and flow for irrigation systems drawing from ponds, creeks, or wells.

Clean-water impellers produce higher pressure per GPM than trash or semi-trash designs because the tighter vane clearances create a more efficient pressure curve. Match the pump's TDH rating to the vertical lift plus the friction loss of the irrigation piping. A 2-inch pump at 50 to 80 GPM feeds most drip and micro-sprinkler layouts. A 3-inch pump at 150 to 250 GPM supports larger sprinkler zones and flood irrigation.

What Are the Downsides of Using a Water Pump?

Gas water pumps generate 85 to 95 dB of noise, require regular engine maintenance every 50 to 100 hours, and cannot operate indoors without forced ventilation due to carbon monoxide exhaust.

Ethanol-blended fuel causes carburetor degradation during storage periods longer than 30 days unless treated with stabilizer. Gas pumps also consume 0.3 to 1.0 gallons of fuel per hour depending on engine size and load, making them more expensive to operate per hour than electric models where grid power is available. Compare specifications across Water Pumps to find the right balance of power, portability, and fuel economy for your application.
