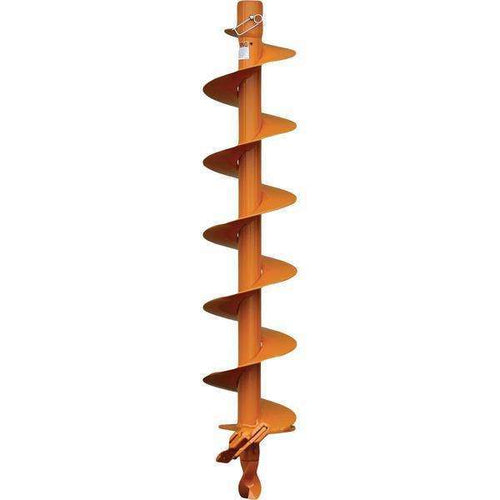

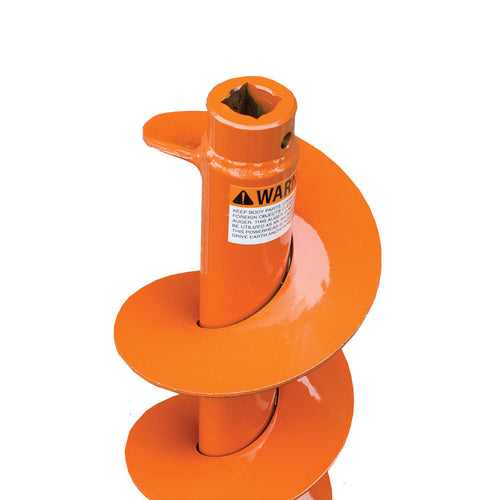

What auger bit sizes are compatible with this drive unit?
The BravePro Two Man Earth Auger features a 1-3/8 inch hex drive connection that accepts auger bits ranging from 2 inches to 18 inches in diameter. This versatile sizing capability makes it suitable for a wide range of applications, from small fence post holes requiring 4-6 inch bits to large tree plantings that need 12-18 inch diameter holes.
The hex drive connection ensures secure bit attachment and efficient power transfer even under high torque conditions. Standard auger bits provide digging depths up to 36 inches, while optional extension bits can reach depths of 51 inches for deeper foundation work or large tree installations. Contact Forge Claw for free nationwide shipping on compatible auger bits and flexible financing options to complete your digging setup.
What hydraulic flow and pressure does this auger require?
This BravePro Two Man Earth Auger is a self-contained, gasoline-powered unit that does not require hydraulic flow or pressure from external sources. The unit is powered by its own Honda GXV160 163cc four-cycle engine, which generates 190 ft-lbs of torque through an internal 25:1 gear reduction system.
This independence from hydraulic power makes the unit ideal for fence contractors, landscapers, and agricultural professionals who need reliable digging capability without investing in larger hydraulic-powered equipment. The gasoline engine provides reliable power delivery and can operate for extended periods without the heat buildup issues common in hydraulic systems.
What soil conditions can this auger handle?
The BravePro Two Man Earth Auger excels in challenging soil conditions that stop lighter equipment, including heavy clay, compacted soil, rocky ground, and root-packed earth. The Honda engine's 190 ft-lbs of torque at 144 RPM provides the power needed to punch through tough conditions while maintaining controlled operation.
The automatic centrifugal clutch system protects the drivetrain when the bit hits large obstacles or binds in difficult conditions, allowing operators to work confidently in unpredictable soil types. The two-operator design provides better control and stability when working in challenging ground conditions.
How deep can I drill with this auger attachment?
The BravePro Two Man Earth Auger provides a maximum digging depth of 36 inches with standard auger bits, which covers the majority of fence post, signage, and tree planting applications. For deeper requirements, optional extension bits can achieve maximum depths of 51 inches, suitable for larger tree installations, deep fence posts, or foundation pier work.
The 190 ft-lbs torque output maintains consistent drilling power even at maximum depth, ensuring clean hole completion without stalling. For most commercial applications, the 36-inch standard depth handles fence lines, sign installations, and landscape plantings effectively.
What is the difference between standard and high-torque auger drives?
The BravePro Two Man Earth Auger represents a high-torque design, delivering 190 ft-lbs of torque compared to standard single-operator units that typically produce 80-120 ft-lbs. This significant torque advantage allows the unit to handle larger diameter bits, deeper holes, and more challenging soil conditions.
High-torque drives also maintain drilling speed in difficult conditions where standard units would bog down or stall. While standard drives may be adequate for light-duty residential work, the high-torque design proves essential for commercial contractors who encounter varied soil conditions and need reliable performance.
